Underbody Engine Cover Clips Replacement
#1
Underbody Engine Cover Clips Replacement

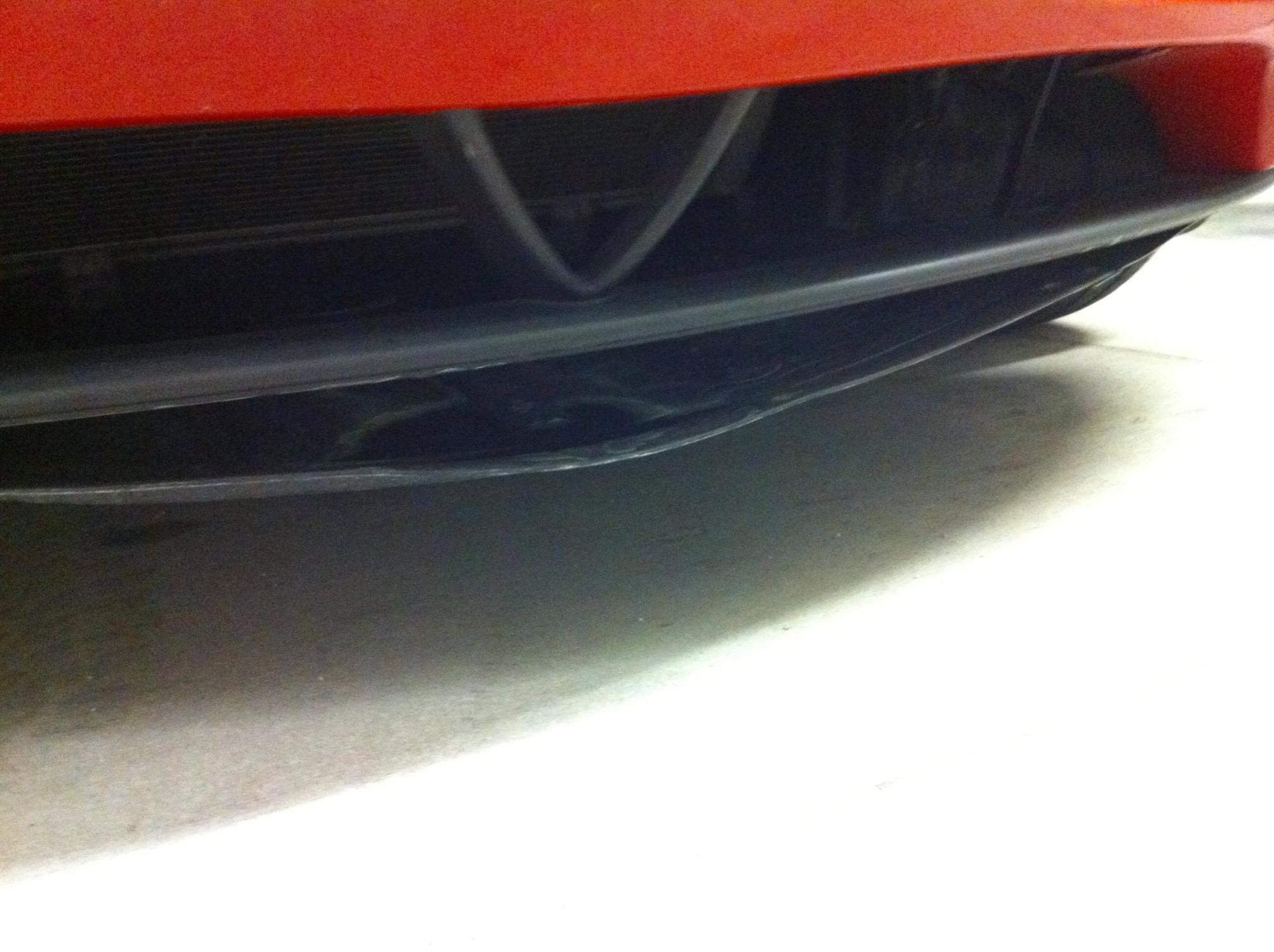

The screws/clips are missing from my underbody engine cover (see attached pictures).
I took it to Mazda and not surprisingly, they wanted to put it up on the rack and take a look at the piece which means $$$$ for them. He did say that the last oil change was probably done incorrectly and caused this (that's the last time I go to wal-mart).
Anyone have suggestions on where I come get some more of these clips/screws? Should I just go back to Mazda and tell them to give me the parts only?
I took it to Mazda and not surprisingly, they wanted to put it up on the rack and take a look at the piece which means $$$$ for them. He did say that the last oil change was probably done incorrectly and caused this (that's the last time I go to wal-mart).
Anyone have suggestions on where I come get some more of these clips/screws? Should I just go back to Mazda and tell them to give me the parts only?
#2
Out of NYC
iTrader: (1)
dude, u just need clips and screws to hook those back on. U dont even need to jack the car up, just get a short *** Philips screwdriver and thats it.
lemme find the part number for u.
there is total of 10 screws/clips to mount the whole thing.
"middle 4" screw part number is 9073-40-512b
the 6 screws on the side (3 each side) 9cf6-00-516b
the clip for ALL 10 is B455-50-038
lemme find the part number for u.
there is total of 10 screws/clips to mount the whole thing.
"middle 4" screw part number is 9073-40-512b
the 6 screws on the side (3 each side) 9cf6-00-516b
the clip for ALL 10 is B455-50-038
Last edited by nycgps; 07-12-2010 at 10:12 PM.
#3
dude, u just need clips and screws to hook those back on. U dont even need to jack the car up, just get a short *** Philips screwdriver and thats it.
lemme find the part number for u.
there is total of 10 screws/clips to mount the whole thing.
"middle 4" screw part number is 9073-40-512b
the 6 screws on the side (3 each side) 9cf6-00-516b
the clip for ALL 10 is B455-50-038
lemme find the part number for u.
there is total of 10 screws/clips to mount the whole thing.
"middle 4" screw part number is 9073-40-512b
the 6 screws on the side (3 each side) 9cf6-00-516b
the clip for ALL 10 is B455-50-038
