Series I Tech Garage The place to discuss anything technical about the RX-8 that doesn't fit into any of the categories below.

Turbo timer - do they work with PATS?

Thread Tools

Search this Thread

Rate Thread

Old 04-30-2005, 01:10 PM
  #1
Registered User
Thread Starter

Shinka13's Avatar

Join Date: Apr 2005
Location: Springfield, VA
Posts: 135
Likes: 0
Received 0 Likes on 0 Posts
Exclamation Timer to keep car running until warm.

With the problems that we have concerning the need to let the car warm up, before we can shut it off, I thought of maybe coming up with a reverse turbo timer. My idea would be a little unit designed to keep the car running until it reached a certain temperature. I called Greddy about this, but the guys I spoke with said they would not do something like this. I'm sure that the temperature sending unit either sends out a certain voltage, or has a certain amount of resistance, which is what the gauge reads and displays accordingly. I should imagine someone could design something to keep the ignition turned on, without the key in it, until it "sees" a predetermined voltage/resistance, at which time it would shut the ignition off. This would work on short trips, moving the car, etc. As much as we love to drive our cars, we don't always have time to let them run. Just thought I'd post this to get some feed back so I know if it'd be worthwhile trying to find a company to do this for me.

Last edited by Shinka13; 04-30-2005 at 03:40 PM.
Old 04-30-2005, 02:36 PM
  #2
Where the air is rare

JoeMamma's Avatar

Join Date: Nov 2004
Location: Denver, Colorado
Posts: 94
Likes: 0
Received 1 Like on 1 Post
Turbo timer - do they work with PATS?

I have searched the threads and found folks mentioning buying turbo timers, but no one has posted a DIY or success story.

Has anyone successfully installed a turbo timer? Is there a trick to keeping the engine running while the security system is armed?
Old 04-30-2005, 02:55 PM
  #3
Ex- member.

adrian-1's Avatar

Join Date: Jan 2004
Location: Austin, TX
Posts: 1,694
Likes: 0
Received 1 Like on 1 Post
I remeber somebody posting they had a shop put one in and it worked. He had the unit installed right below the cd player. Also, they had to have an extra key wired and hidden.
A DIY or more info would be great.
Old 04-30-2005, 03:05 PM
  #4
2010 Prius - Miss the 8

Outlaws eXtreme's Avatar

Join Date: Nov 2003
Location: LA/SGV...Miss the OC
Posts: 1,676
Likes: 0
Received 1 Like on 1 Post
A turbo timer could help in the case of "flooding" shut downs.
Old 04-30-2005, 03:18 PM
  #5
Where the air is rare

JoeMamma's Avatar

Join Date: Nov 2004
Location: Denver, Colorado
Posts: 94
Likes: 0
Received 1 Like on 1 Post
Originally Posted by adrian-1
I remeber somebody posting they had a shop put one in and it worked. He had the unit installed right below the cd player. Also, they had to have an extra key wired and hidden.
A DIY or more info would be great.
I searched thru a bunch of threads but couldn't find a confirmed installation. Did they happen to mention how they wired it up? Does it work with the system armed?
Old 04-30-2005, 03:24 PM
  #6
Ex- member.

adrian-1's Avatar

Join Date: Jan 2004
Location: Austin, TX
Posts: 1,694
Likes: 0
Received 1 Like on 1 Post
Here's the thread with pictures but no install notes. Maybe PM youngpit and see if you can get more info.
I gotta get back to "work".
Old 04-30-2005, 09:30 PM
  #7
Registered User
Thread Starter

Shinka13's Avatar

Join Date: Apr 2005
Location: Springfield, VA
Posts: 135
Likes: 0
Received 0 Likes on 0 Posts
Unfortunantly, everyone in that thread had, or was going to have a turbo installed in their car, which means he actually needed the timer to function normally. What I'm talking about would have the same theory behind the timer's operation, just reversed. You're absolutley right about the whole preventing it from flooding issue, it would only be used for short drives where the engine doesn't have time to fully warm up.

I'm new to this forum, but is anyone here associated with a company that might be able to do this?

Last edited by Shinka13; 04-30-2005 at 09:40 PM.
Old 05-03-2005, 07:13 AM
  #8
4th batch : Apr 03'

foo77's Avatar

Join Date: Mar 2005
Location: Bor. Isle
Posts: 1,840
Likes: 0
Received 1 Like on 1 Post
Turbo Timer

Originally Posted by JoeMamma
I have searched the threads and found folks mentioning buying turbo timers, but no one has posted a DIY or success story.

Has anyone successfully installed a turbo timer? Is there a trick to keeping the engine running while the security system is armed?

Yes, i've successfully installed a turbo timer on my A/T and i've used it since one month
Old 05-03-2005, 12:30 PM
  #9
Where the air is rare

JoeMamma's Avatar

Join Date: Nov 2004
Location: Denver, Colorado
Posts: 94
Likes: 0
Received 1 Like on 1 Post
Originally Posted by foo77
Yes, i've successfully installed a turbo timer on my A/T and i've used it since one month
Excellent news! Which timer are you using? How did you wire it?
Old 05-03-2005, 04:25 PM
  #10
Registered

rkostolni's Avatar

Join Date: Aug 2004
Location: Virginia/Maryland
Posts: 1,294
Likes: 0
Received 0 Likes on 0 Posts
I used to work at a stereo shop installing remote starters among other things. Don't be confused by the name. Yes they can start the vehicle, but they can also keep it running for a preset amount of time. Just hit the button before you get out and your car would continue running for 7/15/30 minutes are all usual increments. 7 would be most suited. You of course would get the added benefit of having a remote starter as well! You do need to permanently install a key under the dash though.
Old 05-03-2005, 04:29 PM
  #11
X-Sapper

army_rx8's Avatar

Join Date: Jan 2004
Location: where angle's fear to tread
Posts: 2,392
Likes: 0
Received 0 Likes on 0 Posts
^hehe permanently installing a key under teh dash makes it pretty easy to steal. it's like the system is never on then isn't it?
Old 05-03-2005, 04:42 PM
  #12
www.evoperform.com

lurch519's Avatar

Join Date: Apr 2005
Location: tax free delaware
Posts: 2,010
Likes: 0
Received 0 Likes on 0 Posts
regarding using a remote start, you can use it to act as a turbo timer in the 8, and you shouldnt need to use an extra key if all you were doing was using it as a cool down/warm up mode after the vehicle was already running, the only time you would need to use the extra key would be to start the car remotely....though you should be wary of installing it to do the starting if you are driving an 8 with a manual transmission, as if you leave it in gear and try to start it, it may try to take off on you, which would be a really bad thing.................
Old 05-05-2005, 06:06 AM
  #13
4th batch : Apr 03'

foo77's Avatar

Join Date: Mar 2005
Location: Bor. Isle
Posts: 1,840
Likes: 0
Received 1 Like on 1 Post
Originally Posted by JoeMamma
Excellent news! Which timer are you using? How did you wire it?
i used Auto Timer for NA&Turbo from APEXi, the mechanic wire it for me
Old 05-10-2005, 01:06 AM
  #14
X-Sapper

army_rx8's Avatar

Join Date: Jan 2004
Location: where angle's fear to tread
Posts: 2,392
Likes: 0
Received 0 Likes on 0 Posts
^got any pics?
Old 05-10-2005, 01:07 AM
  #15
X-Sapper

army_rx8's Avatar

Join Date: Jan 2004
Location: where angle's fear to tread
Posts: 2,392
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by lurch519
regarding using a remote start, you can use it to act as a turbo timer in the 8, and you shouldnt need to use an extra key if all you were doing was using it as a cool down/warm up mode after the vehicle was already running, the only time you would need to use the extra key would be to start the car remotely....though you should be wary of installing it to do the starting if you are driving an 8 with a manual transmission, as if you leave it in gear and try to start it, it may try to take off on you, which would be a really bad thing.................
are you sure? the car will notice if the key is not in...i woudl hate for it to disable my engine.
Old 05-10-2005, 07:47 AM
  #16
www.evoperform.com

lurch519's Avatar

Join Date: Apr 2005
Location: tax free delaware
Posts: 2,010
Likes: 0
Received 0 Likes on 0 Posts
i havent had a chance to install my remote start system as yet, but usually in a vehicle with a "chipped" key, what happens is when you go to start the car, the vehicle's computer looks for the key in the ignition. as long as the correctly coded key is in the ignition when you first start the vehicle, then you are fine.

in my experience installing remote starters, this has always been the case, once the proper key has been verified, the vehicle doesnt bother looking to make sure that that key is still there
Old 05-21-2005, 07:03 AM
  #17
4th batch : Apr 03'

foo77's Avatar

Join Date: Mar 2005
Location: Bor. Isle
Posts: 1,840
Likes: 0
Received 1 Like on 1 Post
Lightbulb my timer

Originally Posted by army_rx8
^got any pics?
sorry for being late..

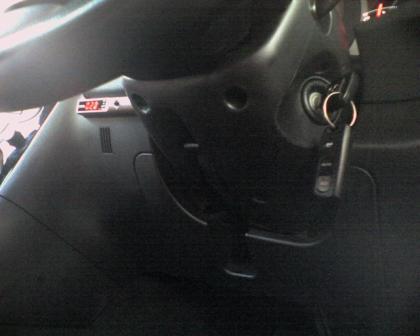

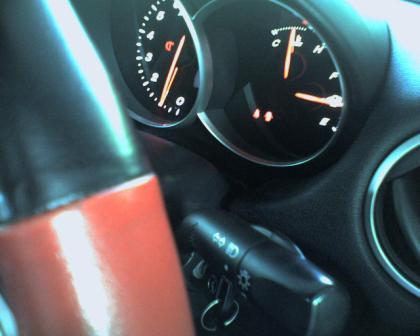

Attached Thumbnails Turbo timer - do they work with PATS?-engine-start-timer.jpg   Turbo timer - do they work with PATS?-apex-autotimer-na-turbo.jpg   Turbo timer - do they work with PATS?-key.jpg   Turbo timer - do they work with PATS?-out-key.jpg
