Slave Cylinder
Is it a major job to put in a slave cylinder? What kind of price am I looking at? NOT taking it to a dealership. The clutch pedal is almost to the floor, but I got it going to get it to the shop, no slipping and kept it in 3rd til I got it to the shop.
#2
I drive at Red Line.
iTrader: (1)
Depends on your skill level, and your ability to search:
learn to use this tool: https://www.rx8club.com/search.php
slave cylinder:
http://www.finishlineperformance.com...2&cat=0&page=1
stainless steel clutch line (might as well while your there)
http://www.racingbeat.com/RX8/Clutch...ate/12640.html
How to bleed the clutch/line
https://www.rx8club.com/showthread.p...ghlight=clutch
Shop Manual:
https://www.rx8club.com/series-i-tech-garage-22/2004-mazda-rx-8-shop-manual-149654/
inside that manual you will find this:
Caution
• Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If fluid does get on painted surfaces, wipe it off immediately.

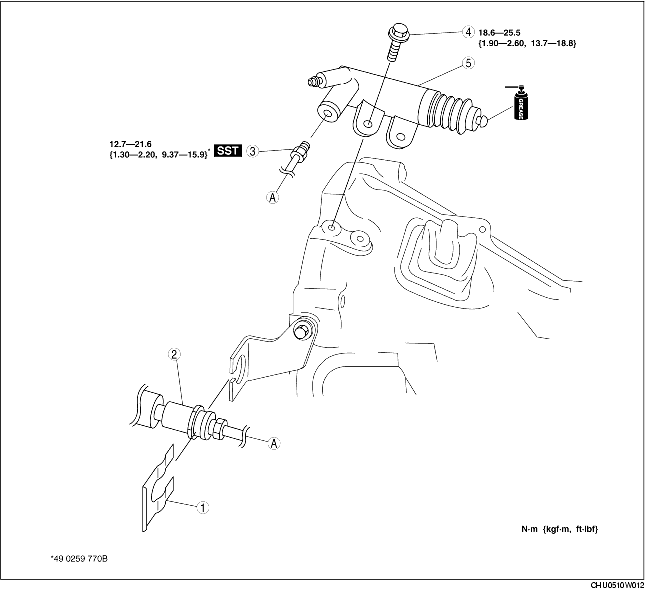

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Bleed the air from the system.
(See CLUTCH FLUID REPLACEMENT.)
4. Inspect and adjust the clutch pedal.
(See CLUTCH PEDAL ADJUSTMENT.)
1 Clip
2 Clutch pipe, clutch hose
3 Clutch pipe
4 Bolt
5 Clutch release cylinder
----------------------------
Incase you don't find it heres the pedal adjustment you need afterwords:
Clutch Pedal Stroke Inspection/Adjustment
1. Measure the clutch pedal stroke.
• If there is any malfunction, loosen locknut A and adjust the pedal stroke with adjusting bolt B. Tighten locknut A after adjustment.
Standard pedal stroke
130 mm {5.12 in}
Clutch Pedal Play Inspection/Adjustment
1. Lightly depress the clutch pedal by hand until clutch resistance is felt and then measure the pedal play.
Standard
Clutch pedal play
5-15 mm {0.20-0.59 in}
Clutch pedal push rod play
At push rod setting line :
0.1-0.5 mm {0.004-0.020 in}
(Reference value)
At pedal pad :
0.5-2.9 mm {0.020-0.110 in}
2. If it is not within the specification, loosen locknut C and turn push rod D to adjust the pedal play.
3. Remeasure the pedal play and, if it is within the specification, tighten locknut C.
Clutch Disengagement Point Inspection
1. Start the engine.
2. Without depressing the clutch pedal, move the shift lever slowly to the reverse position until gear noise is heard and hold the lever in that position.
3. Slowly depress the clutch pedal and hold at the point where the gear noise stops (clutch disengagement point).
4. Measure distance A (from pedal not depressed to clutch disengagement point) and verify that it is within the specification.
Clutch disengagement stroke (Reference value)
A: 111.8 mm {4.402 in}
-----------------------------------------------
And if you search you find this: https://www.rx8club.com/showthread.p...slave+cylinder
learn to use this tool: https://www.rx8club.com/search.php
slave cylinder:
http://www.finishlineperformance.com...2&cat=0&page=1
stainless steel clutch line (might as well while your there)
http://www.racingbeat.com/RX8/Clutch...ate/12640.html
How to bleed the clutch/line
https://www.rx8club.com/showthread.p...ghlight=clutch
Shop Manual:
https://www.rx8club.com/series-i-tech-garage-22/2004-mazda-rx-8-shop-manual-149654/
inside that manual you will find this:
Caution
• Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If fluid does get on painted surfaces, wipe it off immediately.
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Bleed the air from the system.
(See CLUTCH FLUID REPLACEMENT.)
4. Inspect and adjust the clutch pedal.
(See CLUTCH PEDAL ADJUSTMENT.)
1 Clip
2 Clutch pipe, clutch hose
3 Clutch pipe
4 Bolt
5 Clutch release cylinder
----------------------------
Incase you don't find it heres the pedal adjustment you need afterwords:
Clutch Pedal Stroke Inspection/Adjustment
1. Measure the clutch pedal stroke.
• If there is any malfunction, loosen locknut A and adjust the pedal stroke with adjusting bolt B. Tighten locknut A after adjustment.
Standard pedal stroke
130 mm {5.12 in}
Clutch Pedal Play Inspection/Adjustment
1. Lightly depress the clutch pedal by hand until clutch resistance is felt and then measure the pedal play.
Standard
Clutch pedal play
5-15 mm {0.20-0.59 in}
Clutch pedal push rod play
At push rod setting line :
0.1-0.5 mm {0.004-0.020 in}
(Reference value)
At pedal pad :
0.5-2.9 mm {0.020-0.110 in}
2. If it is not within the specification, loosen locknut C and turn push rod D to adjust the pedal play.
3. Remeasure the pedal play and, if it is within the specification, tighten locknut C.
Clutch Disengagement Point Inspection
1. Start the engine.
2. Without depressing the clutch pedal, move the shift lever slowly to the reverse position until gear noise is heard and hold the lever in that position.
3. Slowly depress the clutch pedal and hold at the point where the gear noise stops (clutch disengagement point).
4. Measure distance A (from pedal not depressed to clutch disengagement point) and verify that it is within the specification.
Clutch disengagement stroke (Reference value)
A: 111.8 mm {4.402 in}
-----------------------------------------------
And if you search you find this: https://www.rx8club.com/showthread.p...slave+cylinder
#3
My ol man, just put a slave in mine. Took him a couple hrs. {hot rodder}but he's having trouble getting the pedal to come up off the floor. He's bled it a couple times. But it's not liken him very much. But no it's not all that hard. just 2 bolts on the unit, and losen the line down on the bracket not the unit. its that easy.
