Mckenna04

iTrader: (1)

I recently bought a 2005 rx-8 and it has had some wires cut for some reason. And i have no clue where they go. I am thinking that the 'black with blue' wire and the 'black with orange?' wire goes to the abs but im not sure. So i am asking if any one knows where these wires go or if anyone has a diagram of wires that go under the driver side headlight.

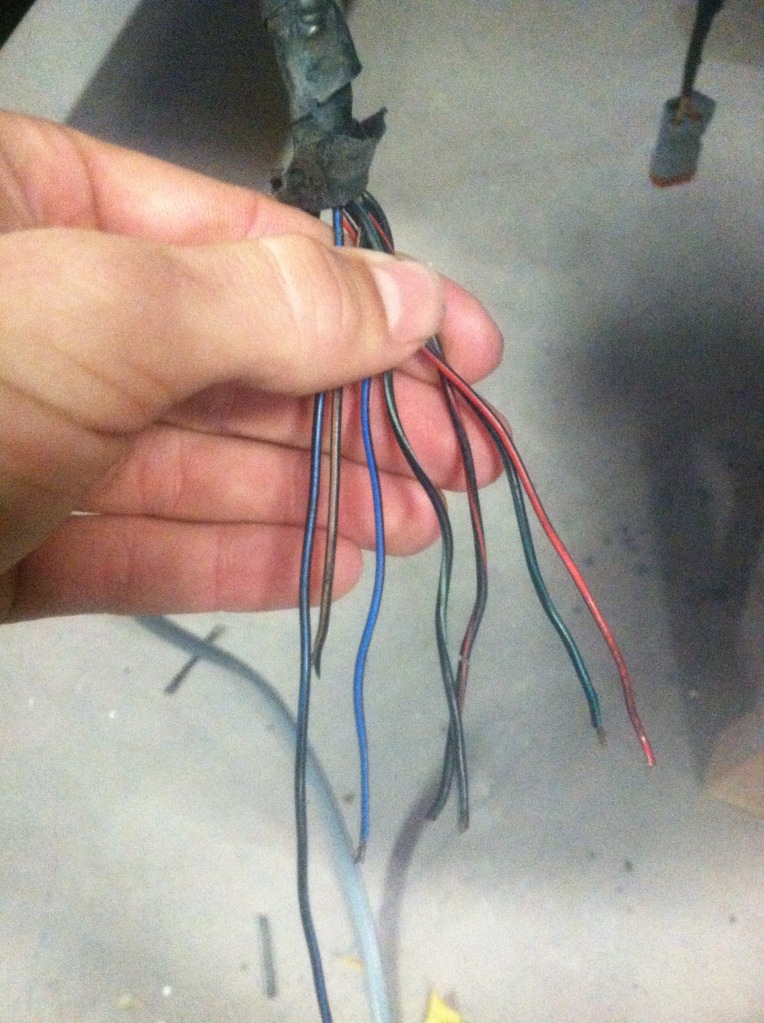

I have a picture of the wires that have been cut.



Thank you.

nycgps

iTrader: (1)

there is more than one of those wires in the car.

you said driver side, can you tell us which harness it belongs to? like a "zoom out" picture of the location would be great.

Mckenna04

iTrader: (1)

It's right under the headlight. Inside the driver side tire well. Two of the wires are abs I'm pretty sure so it's that group of wires.

nycgps

iTrader: (1)

I don't remember exactly goes there. Sandy is having fun in NYC now I can't look at it for u so ... and for some reason I can't open the FSM on my comp (wtf? adobe corrupted?)

was it the one that goes to the ABS and speed sensor ?

dannobre

iTrader: (3)

Likely the headlight leveling sensor and the ABS wires...

looking at the PDF to try and figure it out

dannobre

iTrader: (3)

OK.... Think this should be correct..

B/LG B/R ABS sensor
L/B horn
B/L B/O B/G Headlight sensor
R/B Ambient temp sensor

You should have headlight warning light and ABS light on dash..and you amb temp on the dash should be wrong...and the LH horn shouldn't work

Mckenna04

iTrader: (1)

One of my friends said something about ride height? Never heard of it?

Mckenna04

iTrader: (1)

And can you post a picture of the PDF because the guy I bought the car off from didnt have the manual or anything.

nycgps

iTrader: (1)

not ride height, your headlight has an auto leveling sensor so the light will always be pointing "down" instead of pointing at one direction and blind the other people @ the opposite direction

dannobre

iTrader: (3)

13_Electrical.pdf

New Yorker

I think you can download the owner's manual from the Mazda website:
https://www.mymazda.com/MusaWeb/disp...wnloads.action
