ECU clear/reset - what are the numbers 01, 02, 03, "on" and "off" display?
I was messing around the car last night and found it. When you clear or reset the ECU via the odo, you're able to scroll to a number of functions? I don't even know what to call it-- can someone shed some light on this?

What does the 01, 02, 03 stand for? It went all the way up to 50 I think, some of them even had "off" and "on" displayed.

Thanks for clarifying--oh and if there's a thread on this--can you please post it? I don't really have a clue on what to search for.

Thanks again !
delrmx01 is offline
Reply Like
Old 02-23-2006, 11:00 AM
  #2
Registered User
Thread Starter
iTrader: (1)

delrmx01's Avatar

Join Date: Apr 2004
Location: The Valley, CA
Posts: 191
Likes: 0
Received 0 Likes on 0 Posts
Anyone?
delrmx01 is offline
Reply Like
Old 02-23-2006, 11:02 AM
  #3
Administrator

zoom44's Avatar

Join Date: Jul 2002
Location: portland oregon
Posts: 21,958
Received 115 Likes on 88 Posts
its teh test mode for the instrument cluster. you can cycle thru each instrument and check its operation. there are posts and at least one thread. search like- dash test
zoom44 is offline
Reply Like
Old 02-23-2006, 11:48 AM
  #4
Registered User
Thread Starter
iTrader: (1)

delrmx01's Avatar

Join Date: Apr 2004
Location: The Valley, CA
Posts: 191
Likes: 0
Received 0 Likes on 0 Posts
Thanks, I just tried it and couldn't find anything. Are they specifically for instrument only? I'd like to know what each number represents, like how the codes represent when you get a CEL?

Would this information be in a shop manual? I was scrolling though them and I saw "on" and "off" just curious as to what they represent.

Thanks again !
delrmx01 is offline
Reply Like
Old 02-23-2006, 02:34 PM
  #5
Registered

Go48's Avatar

Join Date: Jul 2004
Location: Fayetteville, PA
Posts: 2,598
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by delrmx01
Thanks, I just tried it and couldn't find anything. Are they specifically for instrument only? I'd like to know what each number represents, like how the codes represent when you get a CEL?

Would this information be in a shop manual? I was scrolling though them and I saw "on" and "off" just curious as to what they represent.

Thanks again !
Is this what you're looking for? There are additional pages--too many pages to post here--in the shop manual describing the ON/OFF readouts for each code and what they mean.
Attached Thumbnails ECU clear/reset - what are the numbers 01, 02, 03, "on" and "off" display?-checkcodes1.jpg   ECU clear/reset - what are the numbers 01, 02, 03, "on" and "off" display?-checkcodes2.jpg
Go48 is offline
Reply Like
Old 02-23-2006, 02:57 PM
  #6
Registered User
Thread Starter
iTrader: (1)

delrmx01's Avatar

Join Date: Apr 2004
Location: The Valley, CA
Posts: 191
Likes: 0
Received 0 Likes on 0 Posts
^^Yes !! That's it --thanks Go48. I guess, the codes are sort off like a check list of the instrument panel?
delrmx01 is offline
Reply Like
Old 02-23-2006, 03:25 PM
  #7
Registered

Go48's Avatar

Join Date: Jul 2004
Location: Fayetteville, PA
Posts: 2,598
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by delrmx01
^^Yes !! That's it --thanks Go48. I guess, the codes are sort off like a check list of the instrument panel?

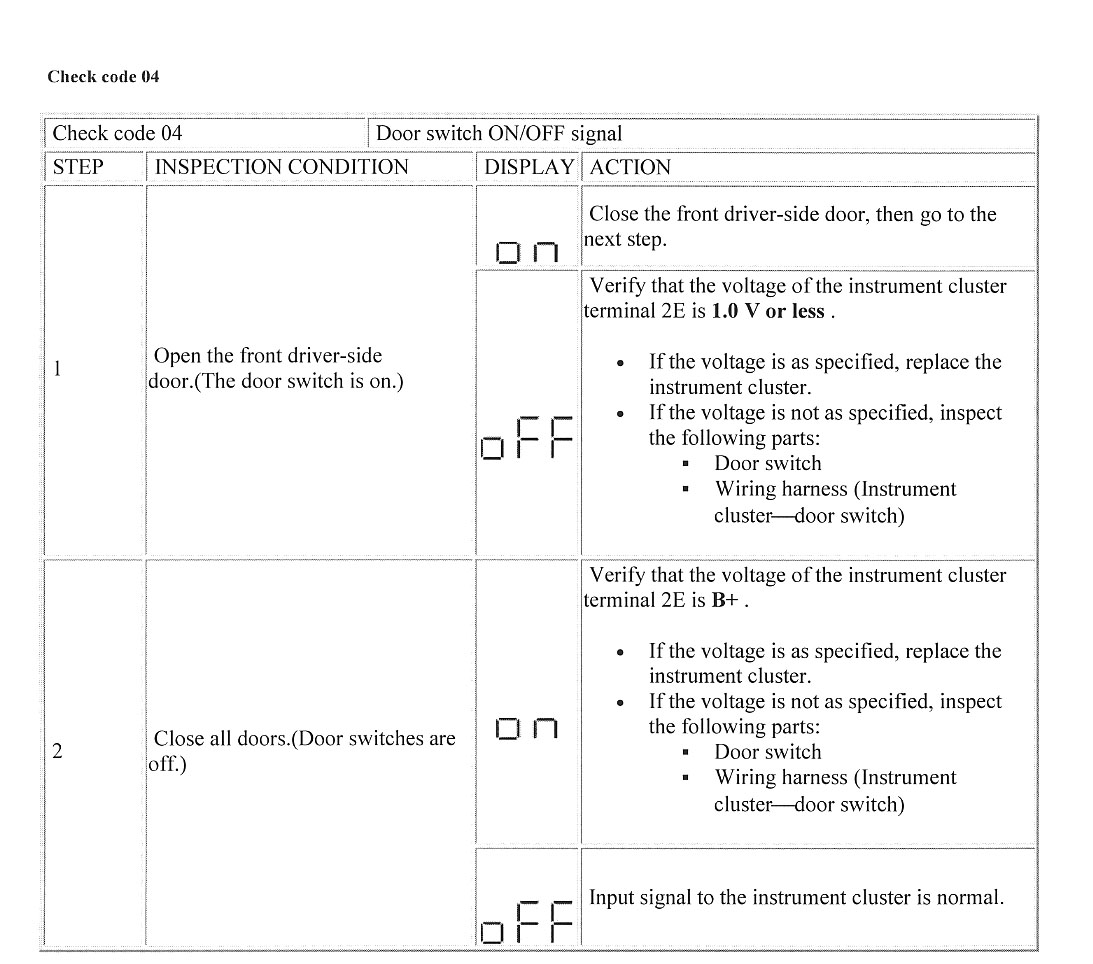

Here's an example of check code 04 details. I believe that these codes are normally read using the WDS for diagnosing problems.
Attached Thumbnails ECU clear/reset - what are the numbers 01, 02, 03, "on" and "off" display?-checkcodes3.jpg
Go48 is offline
Reply Like
Old 02-23-2006, 04:51 PM
  #8
Registered User
Thread Starter
iTrader: (1)

delrmx01's Avatar

Join Date: Apr 2004
Location: The Valley, CA
Posts: 191
Likes: 0
Received 0 Likes on 0 Posts
Thanks again Go !!
delrmx01 is offline
Reply Like
Old 02-23-2006, 04:56 PM
  #9
Registered

Go48's Avatar

Join Date: Jul 2004
Location: Fayetteville, PA
Posts: 2,598
Likes: 0
Received 2 Likes on 2 Posts
Sure.
