DIY Request Badge Removal

How do I remove the badges on the front bumper and rear bumpers
Old 12-17-2008, 11:12 PM
  #2
space reserved for shirt

ShinkaTeen's Avatar

Join Date: Aug 2007
Location: Pasadena,ca for school SD for home
Posts: 668
Likes: 0
Received 1 Like on 1 Post
ok.

listen.





Heat with Hair dryer,

Easiest way was to slip something underneath the badges like a

hotel key card. (plastic and wont own your paint)

after that take the glue off with Goo Gone bought at your friendly kragen.
Old 12-18-2008, 04:14 AM
  #3
Hit & Run Magnet
iTrader: (3)

kersh4w's Avatar

Join Date: May 2007
Location: DC Area
Posts: 6,690
Likes: 0
Received 3 Likes on 3 Posts
get leather gloves and 30lb fishing wire.
Old 12-18-2008, 07:38 PM
  #4
One Shot One Kill

xsnipersgox's Avatar

Join Date: Jan 2008
Location: Houston
Posts: 1,369
Likes: 0
Received 2 Likes on 2 Posts
just fyi, this is no honda, you are going to have holes everywhere that will need to be filled.
Old 12-18-2008, 07:39 PM
  #5
What mawd bug?
iTrader: (3)

tubingchamp's Avatar

Join Date: Aug 2007
Location: Surrey, B.C., Canada
Posts: 1,515
Likes: 0
Received 1 Like on 1 Post
1) Get a sledge hammer
2) Swing the sledgehammer at badge you want removed
3) Throw the plastic bits in the garbage.
Old 12-18-2008, 08:43 PM
  #6
VS8
4 Cylinder Rotary
Thread Starter
iTrader: (4)

VS8's Avatar

Join Date: May 2007
Location: San Antonio, TX
Posts: 1,485
Likes: 0
Received 0 Likes on 0 Posts
i am planning on debadging my car that was the point of it
Old 12-18-2008, 08:45 PM
  #7
space reserved for shirt

ShinkaTeen's Avatar

Join Date: Aug 2007
Location: Pasadena,ca for school SD for home
Posts: 668
Likes: 0
Received 1 Like on 1 Post
dude... trust me...
Old 12-18-2008, 08:48 PM
  #8
2004 Titanium Grey GT
iTrader: (1)

RyanX-8's Avatar

Join Date: Apr 2008
Posts: 286
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ShinkaTeen
dude... trust me...
+1 on the advice. Same thing when taking off vinal.
Old 12-18-2008, 08:59 PM
  #9
Rotary wanabee
iTrader: (1)

heyarnold69's Avatar

Join Date: Jul 2007
Location: Long Island, NY
Posts: 1,978
Likes: 0
Received 0 Likes on 0 Posts
hair dryer?
Old 12-18-2008, 09:48 PM
  #10
WENTGERMAN
iTrader: (6)

shadycrew31's Avatar

Join Date: Apr 2008
Location: Burbs,PA
Posts: 5,805
Received 30 Likes on 22 Posts
hair dryer or I prefer a heat gun takes less time.

heat area for 8-10 seconds.

use a card or plastic putty knife.

then get treesap/bug remover to get the stock adhesive off.

I'm planning on blacking mine out soon. not to keen on the delete..

everything is going gloss black on my exterior, well the plastic at least.
Old 12-18-2008, 10:01 PM
  #11
sold the 8... :(
iTrader: (7)

05rex8's Avatar

Join Date: Feb 2008
Posts: 4,917
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by VS8
How do I remove the badges on the front bumper and rear bumpers
we don't have badges on the rear bumper
Old 12-18-2008, 10:46 PM
  #12
Central Valley RX8
iTrader: (7)

Wind Dance's Avatar

Join Date: Aug 2007
Location: CenCal
Posts: 1,062
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ShinkaTeen
Heat with Hair dryer,

Easiest way was to slip something underneath the badges like a

hotel key card. (plastic and wont own your paint)

after that take the glue off with Goo Gone bought at your friendly kragen.
Though this works only problem the fact that the mazda and the flying M has holes. Please search there are various thread of this.
Old 12-18-2008, 10:49 PM
  #13
space reserved for shirt

ShinkaTeen's Avatar

Join Date: Aug 2007
Location: Pasadena,ca for school SD for home
Posts: 668
Likes: 0
Received 1 Like on 1 Post
^^ doesnt matter

once heated they pop off like virgins at a showing of twilight.
Old 12-19-2008, 12:46 AM
  #14
zoom zoom
iTrader: (1)

04blue8's Avatar

Join Date: Sep 2008
Location: Gilbert, AZ
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ShinkaTeen
^^ doesnt matter

once heated they pop off like virgins at a showing of twilight.
lmao. +1 on the description
Old 12-23-2008, 02:29 AM
  #15
Full Rotation

Jpaul26's Avatar

Join Date: Apr 2008
Location: Texas
Posts: 59
Received 3 Likes on 2 Posts
I know wat he means. When you take the flying M and the Mazda badges off there are holes there. Doesnt matter how easy they come off. I actually got mine off just by slidin my nails underneath them, but once I saw the holes, I just popped the badges back on..
Old 12-23-2008, 10:33 AM
  #16
space reserved for shirt

ShinkaTeen's Avatar

Join Date: Aug 2007
Location: Pasadena,ca for school SD for home
Posts: 668
Likes: 0
Received 1 Like on 1 Post
its ok...... you get better ventilation with the holes....
Old 01-04-2009, 03:23 AM
  #17
Metatron
iTrader: (1)

StealthTL's Avatar

Join Date: Mar 2003
Location: A Pacific Island.
Posts: 7,280
Received 173 Likes on 130 Posts
Front M has two posts, Mazda has three, only the RX-8 on the trunk comes off clean.

S
Old 01-06-2009, 10:47 AM
  #18
I bid thee farewell

notorque's Avatar

Join Date: Jan 2009
Posts: 109
Likes: 0
Received 0 Likes on 0 Posts
ive done this many times, for a good temp covering of the holes, once the badge is off and you clean the area inside and out with alcohol, put masking tape, blue painters kind covering the hole on the outside of the car, on the inside of the trunk, when you take the plastic cover off you can see the holes covered with the masking tape,
use a pea size amount of bondo, just enough to fill the hole so it can be popped out later when you find a shop to paint it. once its dried you take the tape off on the outside of the car, it should be flush with the surface, no sanding, DO NOT SAND, leave that to the pro's. if your like me, when you buy a car you buy touchup paint for chips, use the touchup paint and dabble the small area, they are tiny, only about 2mm......ive had them hold up for 4 months through the winter before i got it painted. Im about to do this to my 8 next week, ill post a lil DIY. its easy sh*t

oh yeah, this is ASSUMING, you are ultimitaly going to take your car to the shop to get them to do it right, this is only a TEMP thing, by having the bondo set on macking tape to dry, it acts more as a plug than actual body molding.

Last edited by notorque; 01-06-2009 at 10:49 AM. Reason: clarify
Old 03-29-2009, 04:12 PM
  #19
Pew Pew

xdj_jdx's Avatar

Join Date: Apr 2008
Location: New Hope MN,
Posts: 74
Likes: 0
Received 0 Likes on 0 Posts
good thread im subscribing... i debadged the front of mine and now working on getting rid of them pesky holes.....
Old 04-08-2009, 06:00 PM
  #20
The Dark Carnival

Semiazas's Avatar

Join Date: Jan 2009
Location: Boca Raton, FL
Posts: 105
Likes: 0
Received 0 Likes on 0 Posts
BOBO just black the badges. Looks alot better and still has its name. Just remove the Rx8
Old 04-08-2009, 06:13 PM
  #21
rot8ing
iTrader: (1)

myriadshalaks's Avatar

Join Date: Feb 2007
Location: merritt island, fl
Posts: 1,538
Likes: 0
Received 1 Like on 1 Post
once you take off the flying M and the Mazda, they will pop back into the holes, right?

and you don't need to remove the front bumper to remove the front M, right?
Old 04-09-2009, 12:32 AM
  #22
SS RX8
iTrader: (5)

dsire4u's Avatar

Join Date: Apr 2007
Location: Vancouver BC
Posts: 362
Likes: 0
Received 0 Likes on 0 Posts
is there hole in the front bumper too if you take off the flying M?
Old 04-09-2009, 12:56 AM
  #23
What mawd bug?
iTrader: (3)

tubingchamp's Avatar

Join Date: Aug 2007
Location: Surrey, B.C., Canada
Posts: 1,515
Likes: 0
Received 1 Like on 1 Post
Yup.
Old 04-11-2009, 06:31 AM
  #24
4-um Spectator

jesterb6ub9's Avatar

Join Date: Jul 2008
Location: Kennewick, WA
Posts: 20
Likes: 0
Received 0 Likes on 0 Posts
I'm in the process of doing mine the way Semiazas suggested...blackened. Used the blow-dryer method with the heat set on low and one of those Quickpass plastic keychain cards to get underneath 'em and separate. I've read it before but do be careful on the 'mazda' emblem...it can split 'tween the a-z and the z-d fairly easily so work that one from the top and bottom. Personally, I plan on replacing the 'mazda' piece with the '[I]RX-8[I]' to cover the holes there and just leave the right side blank. It doesn't match the rest of the emblems cuz they just look like block letters. Took about 15 minutes for all to be removed and I used a goo remover to get the excess glue off of the car and emblems. Next I sanded all the shiny off with some 220-grit wet/dry sandpaper and was sure to get every nook and cranny(sp?) so that I won't be doing this again in a few months. I then went ahead and applied some 2-sided weather proof tape to them and went around the edges with a razor to make sure the entire backside was covered to prevent leakage, ensure grip and to just give it a cleaner look overall. The sanding and the taping were tedious and tough on the digits but doing it right, I think, is definitely going to be worth it. I started this at 1 in the p.m. and was able to get a few coats of paint on before I lost sunlight. I used an indoor/outdoor, plastic-bonding spray paint in a flat finish and I believe they look waaay better. Also, all the materials are at your local hardware and shouldn't cost ya more than 20 bucks...mine was 17 and some change.

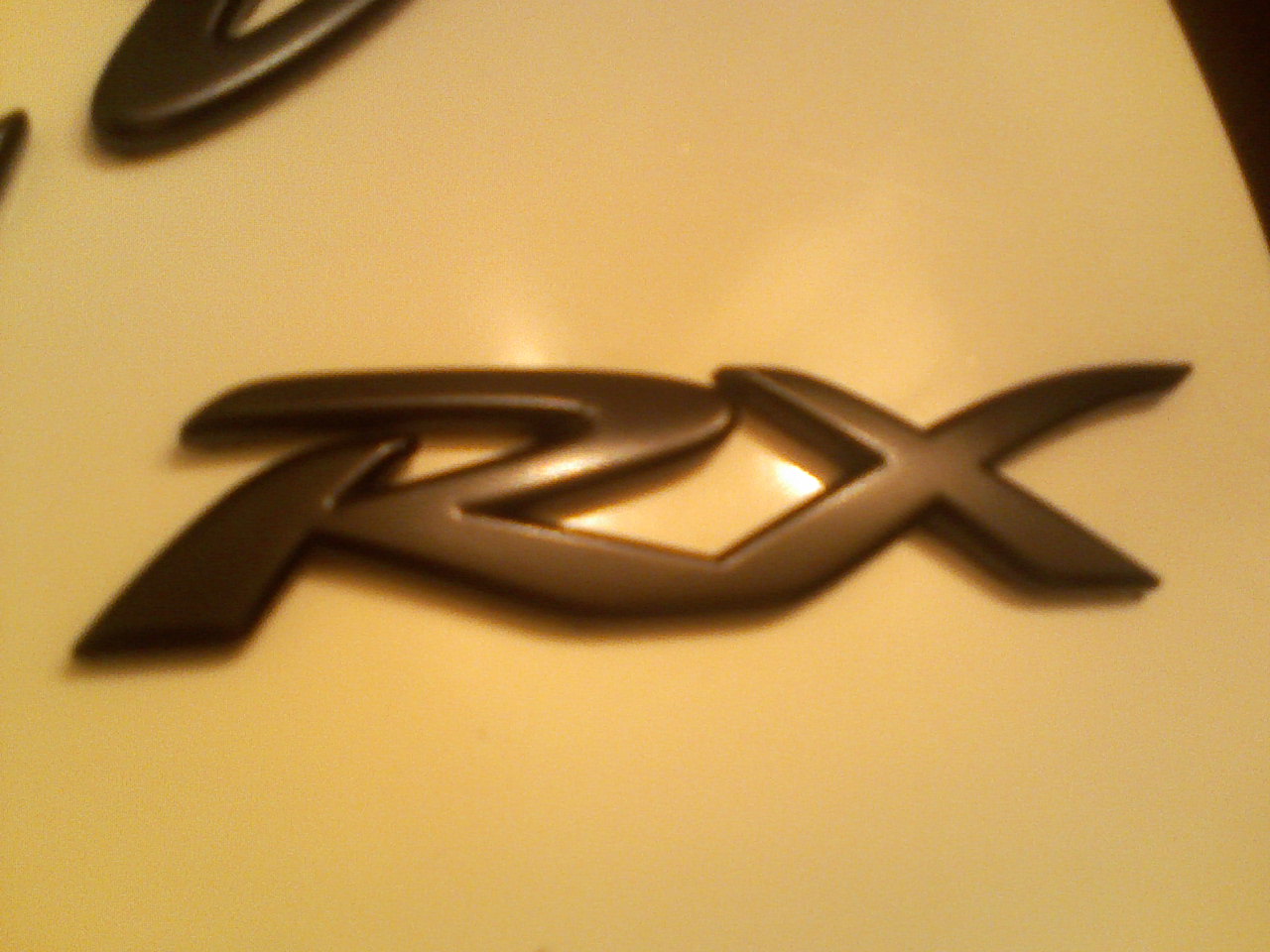

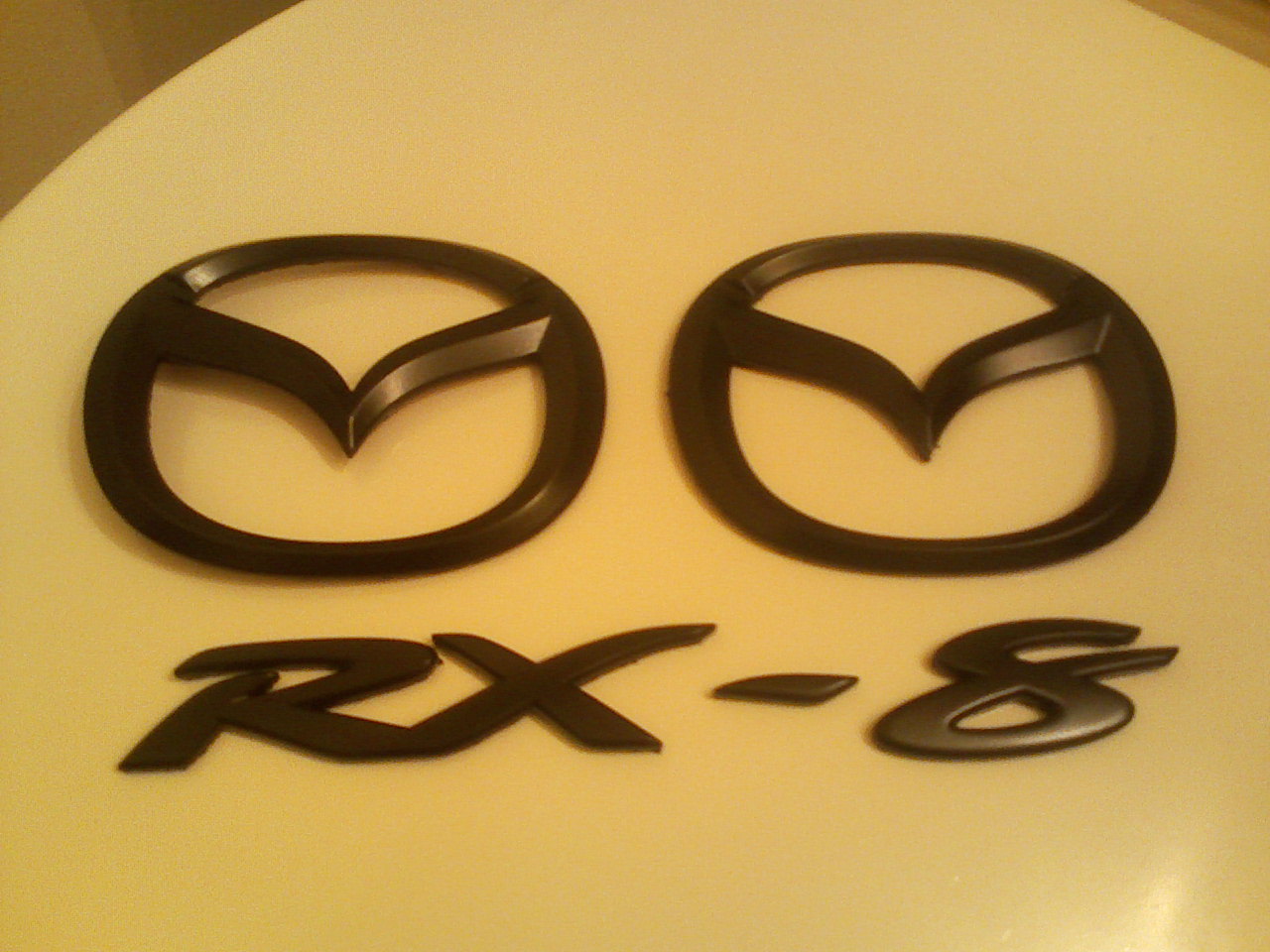

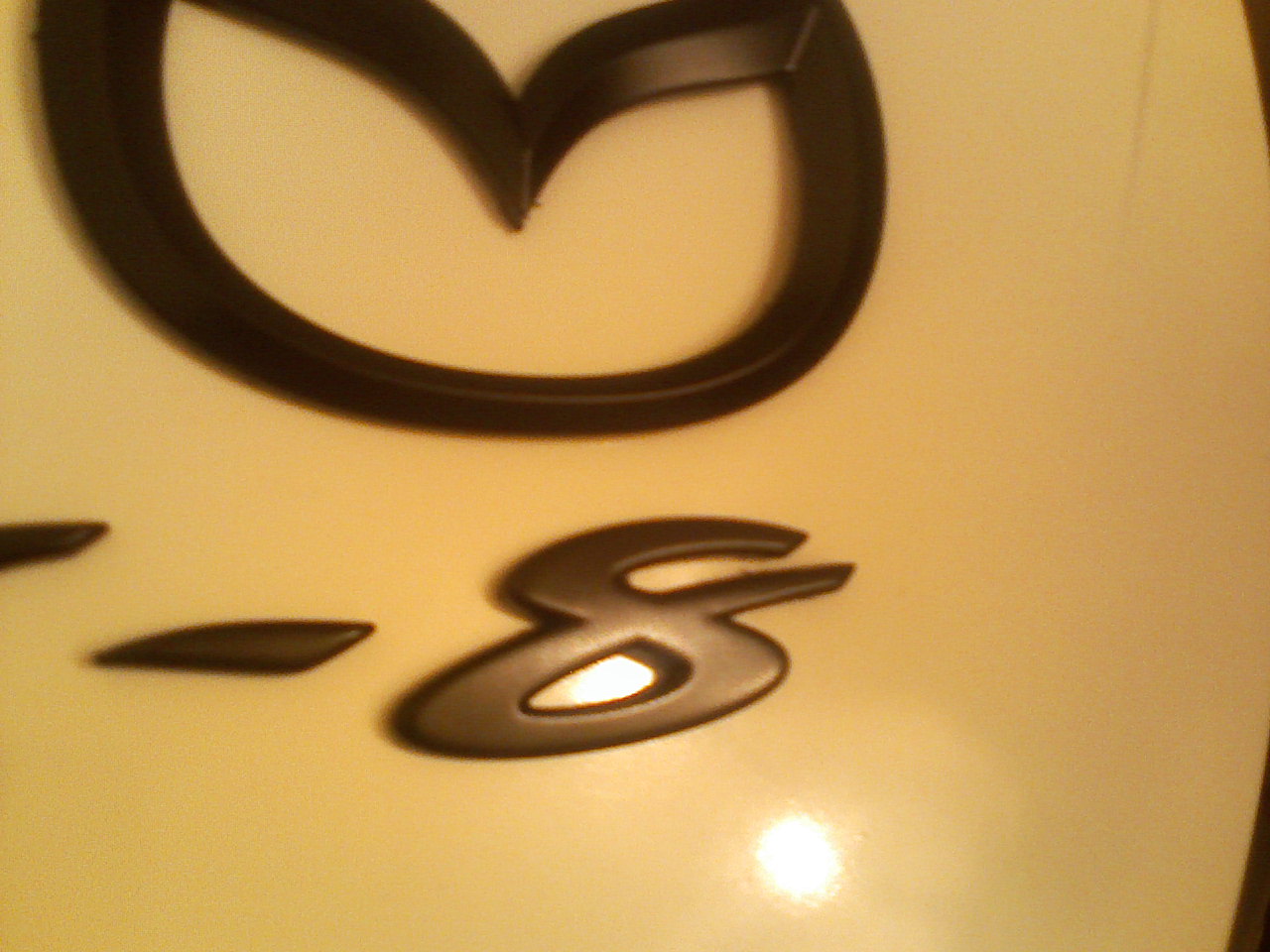

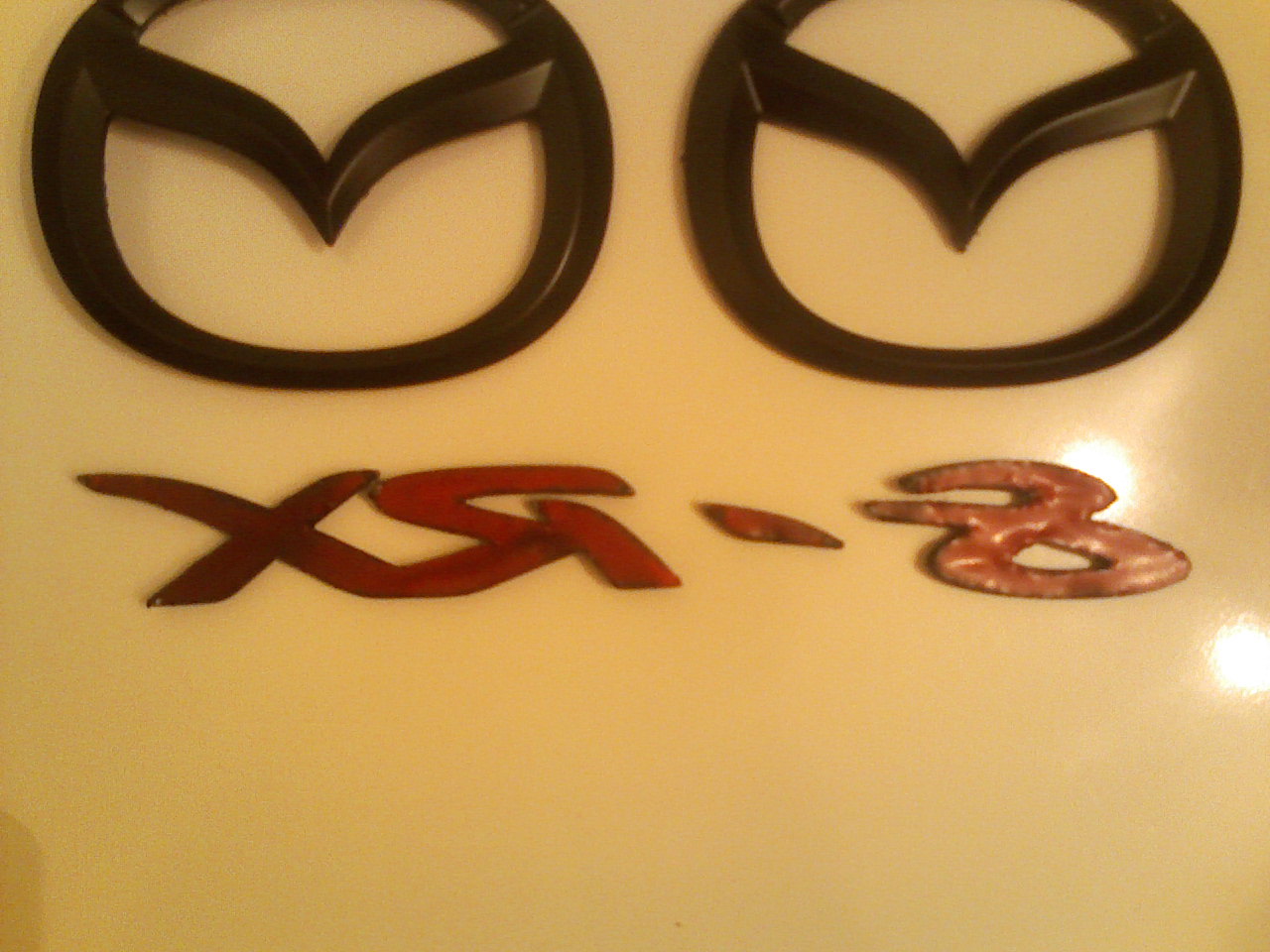

Attached Thumbnails DIY Request Badge Removal-0411090329.jpg   DIY Request Badge Removal-0411090330.jpg   DIY Request Badge Removal-0411090330a.jpg   DIY Request Badge Removal-0411090331.jpg

Last edited by jesterb6ub9; 04-11-2009 at 07:21 AM.
Old 04-11-2009, 07:19 PM
  #25
4-um Spectator

jesterb6ub9's Avatar

Join Date: Jul 2008
Location: Kennewick, WA
Posts: 20
Likes: 0
Received 0 Likes on 0 Posts
WA

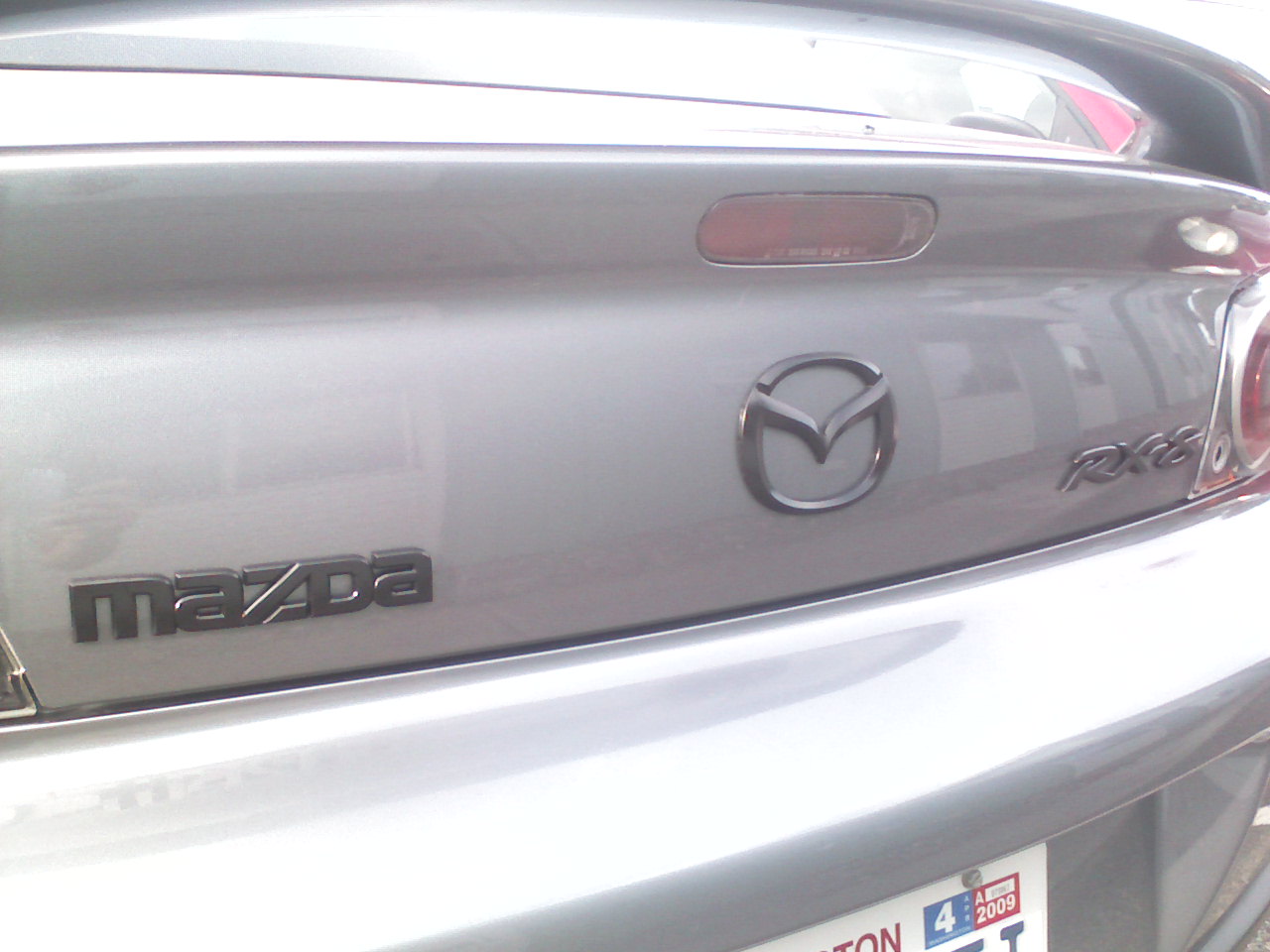

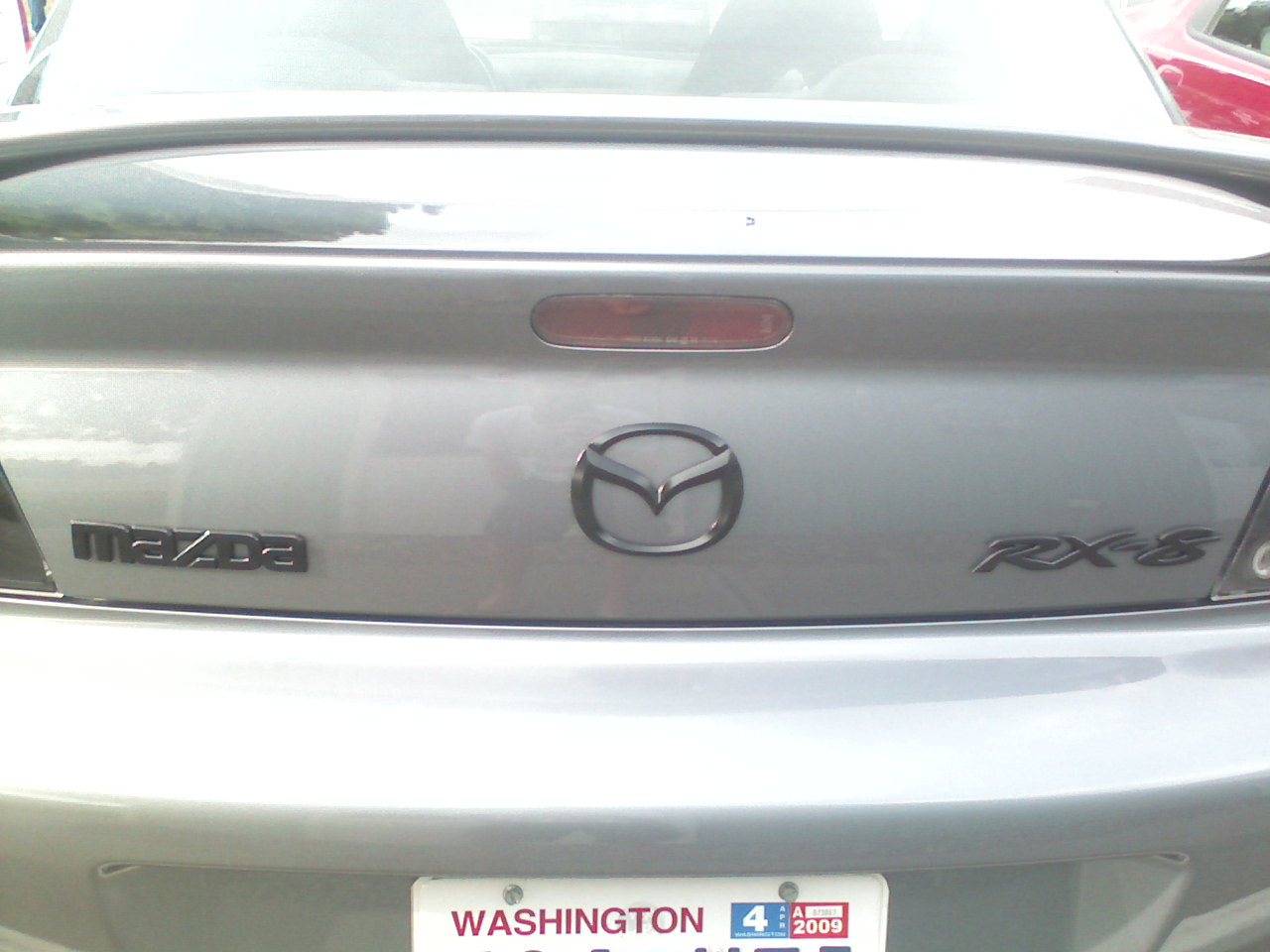

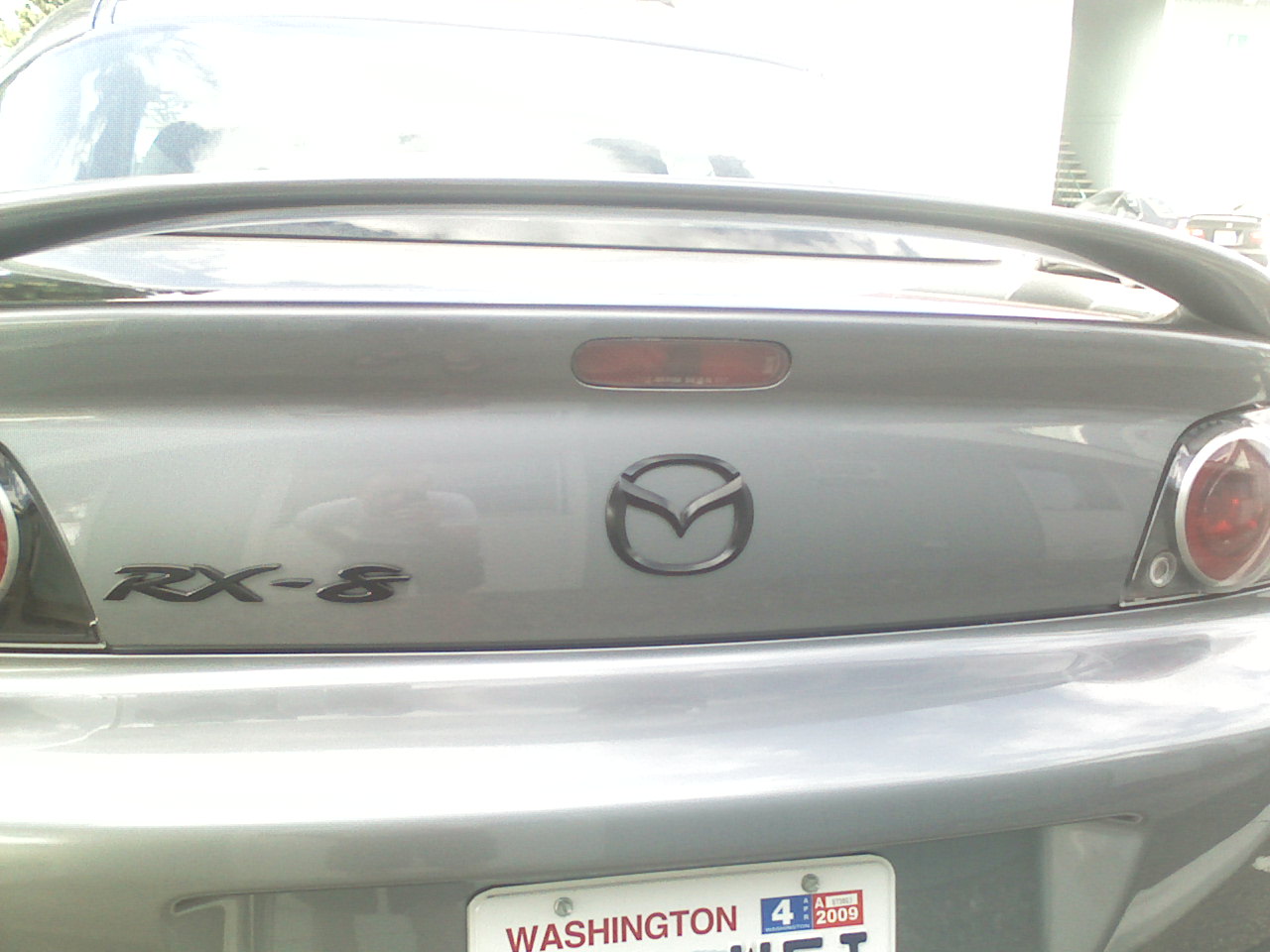

And done...I decided to keep the 'mazda' on the back because to me, it didn't look balanced with the right side blank but here are the finished results of the two options...

And yes, I know my tabs are due soon...hehe
Attached Thumbnails DIY Request Badge Removal-0411091610.jpg   DIY Request Badge Removal-0411091716.jpg   DIY Request Badge Removal-0411091716a.jpg

Last edited by jesterb6ub9; 04-11-2009 at 07:26 PM.
