Anybody have pictures of where the Starter is located?

Thread Tools

Search this Thread

Rate Thread

Old 11-22-2009, 06:36 PM
  #1
Registered User
Thread Starter

rx8playa's Avatar

Join Date: Apr 2006
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Anybody have pictures of where the Starter is located?
http://www.myrotarycar.com/portal/fo...3le/index.html

The location isn't as easy as it seems...to me, that is.

thanks so much for your help!
rx8playa is offline
Reply Like
Old 11-22-2009, 06:41 PM
  #2
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,779
Likes: 0
Received 44 Likes on 33 Posts

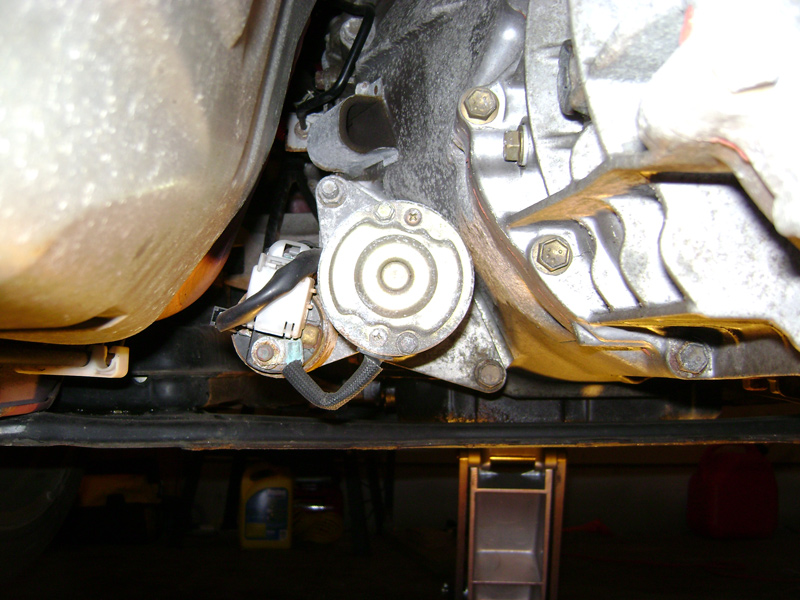

Driver's side of the transmission:
Anybody have pictures of where the Starter is located?-starter-10-.jpg
Jon316G is offline
Reply Like
Old 11-22-2009, 06:45 PM
  #3
Registered User
Thread Starter

rx8playa's Avatar

Join Date: Apr 2006
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Thanks Jon! I really appreciate the picture!

I'm not that mechanically inclined, but I'm trying to learn as much as I can here from people like yourself.

Another question...what is the easiest way to get to it?

Thanks Jon
rx8playa is offline
Reply Like
Old 11-22-2009, 06:48 PM
  #4
Registered User
Thread Starter

rx8playa's Avatar

Join Date: Apr 2006
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Somebody told me it was a 15 min job...is there truth to this?
rx8playa is offline
Reply Like
Old 11-22-2009, 06:48 PM
  #5
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,779
Likes: 0
Received 44 Likes on 33 Posts
Easy... jack up the driver's side and put a jack stand under there for safety.
The starter has two bolts (one has a nut on the other side).

Also, disconnect the battery because the starter has constant voltage running to it.
Jon316G is offline
Reply Like
Old 11-22-2009, 06:48 PM
  #6
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,779
Likes: 0
Received 44 Likes on 33 Posts
Originally Posted by rx8playa
Somebody told me it was a 15 min job...is there truth to this?
Pretty much... you'll laugh at how simple it is.
Jon316G is offline
Reply Like
Old 11-22-2009, 06:52 PM
  #7
Registered User
Thread Starter

rx8playa's Avatar

Join Date: Apr 2006
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Thanks for the help Jon. I'll go ahead and give it a shot.
rx8playa is offline
Reply Like
Old 11-25-2009, 10:58 PM
  #8
Registered User
Thread Starter

rx8playa's Avatar

Join Date: Apr 2006
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Jon, thanks for the help! I managed to replace/install a new starter and my car is starting great!
rx8playa is offline
Reply Like
Old 11-25-2009, 11:05 PM
  #9
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,779
Likes: 0
Received 44 Likes on 33 Posts
Good to hear
Jon316G is offline
Reply Like
Old 01-12-2010, 10:21 AM
  #10
10,000 Revs in the Air!

EinHeisserSchrei's Avatar

Join Date: Jan 2008
Location: Tipperary, Ireland
Posts: 233
Likes: 0
Received 0 Likes on 0 Posts
Is the starter located before or after the engine tray? That is the black lip at the front that has the rotary emblem on it and then the tray it's attached to.
EinHeisserSchrei is offline
Reply Like
Old 01-12-2010, 12:06 PM
  #11
#50

bse50's Avatar

Join Date: Nov 2007
Location: Caput Mundi
Posts: 7,521
Received 10 Likes on 10 Posts
Originally Posted by EinHeisserSchrei
Is the starter located before or after the engine tray? That is the black lip at the front that has the rotary emblem on it and then the tray it's attached to.
The starter is located on the transmission, very close to the flywheel where it grips to start your car
bse50 is offline
Reply Like
Old 01-12-2010, 12:09 PM
  #12
Registered

CRO8TIA's Avatar

Join Date: Nov 2009
Location: Adriatic Paradise
Posts: 596
Likes: 0
Received 0 Likes on 0 Posts
Disconnect the Battery before attempting to remove the starter.Yes it is after the front tray.
CRO8TIA is offline
Reply Like
Old 01-12-2010, 05:44 PM
  #13
10,000 Revs in the Air!

EinHeisserSchrei's Avatar

Join Date: Jan 2008
Location: Tipperary, Ireland
Posts: 233
Likes: 0
Received 0 Likes on 0 Posts
Gorgio - ya mad bastard haha thanks for that

Cro8tia - Will do, cheers!
EinHeisserSchrei is offline
Reply Like
Old 01-12-2010, 05:49 PM
  #14
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,779
Likes: 0
Received 44 Likes on 33 Posts
Originally Posted by EinHeisserSchrei
Is the starter located before or after the engine tray?
In the pic I posted above I'm laying at the middle of the car, facing forward, on the driver's side.
Just jack up the driver's side and crawl under where your door is... you can't miss it.
Jon316G is offline
Reply Like
Old 01-12-2010, 05:59 PM
  #15
#50

bse50's Avatar

Join Date: Nov 2007
Location: Caput Mundi
Posts: 7,521
Received 10 Likes on 10 Posts
Originally Posted by EinHeisserSchrei
Gorgio - ya mad bastard haha thanks for that

Cro8tia - Will do, cheers!
Mad bastard sounds cool!

Giorgio
bse50 is offline
Reply Like
Old 01-13-2010, 03:30 AM
  #16
10,000 Revs in the Air!

EinHeisserSchrei's Avatar

Join Date: Jan 2008
Location: Tipperary, Ireland
Posts: 233
Likes: 0
Received 0 Likes on 0 Posts
I meant it in a good way
EinHeisserSchrei is offline
Reply Like
Old 01-13-2010, 03:34 AM
  #17
#50

bse50's Avatar

Join Date: Nov 2007
Location: Caput Mundi
Posts: 7,521
Received 10 Likes on 10 Posts
Originally Posted by EinHeisserSchrei
I meant it in a good way
Yeah i know that, that's an italian saying as well
bse50 is offline
Reply Like
Old 01-13-2010, 04:17 AM
  #18
10,000 Revs in the Air!

EinHeisserSchrei's Avatar

Join Date: Jan 2008
Location: Tipperary, Ireland
Posts: 233
Likes: 0
Received 0 Likes on 0 Posts
Oh right yeah, OK so!
EinHeisserSchrei is offline
Reply Like
Old 01-13-2010, 06:53 AM
  #19
Registered

EricMeyer's Avatar

Join Date: Oct 2007
Location: Indianapolis, IN
Posts: 684
Likes: 0
Received 11 Likes on 10 Posts
May I suggest that you look into purchasing a factory service manual. They are a wonderful picture and exploded drawing source and have lots of fantastic information. You'll find yourself referring to it more often than not when you perform simple service on your car.

Available from any Mazda dealer.
EricMeyer is offline
Reply Like
Old 01-14-2010, 07:51 AM
  #20
10,000 Revs in the Air!

EinHeisserSchrei's Avatar

Join Date: Jan 2008
Location: Tipperary, Ireland
Posts: 233
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by EricMeyer
May I suggest that you look into purchasing a factory service manual. They are a wonderful picture and exploded drawing source and have lots of fantastic information. You'll find yourself referring to it more often than not when you perform simple service on your car.

Available from any Mazda dealer.
I have this already although I got it on ebay and it's a pile of PDF files on a CD. Never got around to printing them off!
EinHeisserSchrei is offline
Reply Like
Old 01-15-2010, 12:16 PM
  #21
"13B vs. Renesis" Discuss
iTrader: (28)

Vyndictive's Avatar

Join Date: Mar 2008
Location: Canton, OH
Posts: 2,399
Likes: 0
Received 2 Likes on 2 Posts
even though Jon has this pretty well taken care, I had been meaning to make a DIY for this project, took pics and everything.

This thread inspired me to do this.

So, here is semi complete DIY on starter swaps:

https://www.rx8club.com/showthread.p...=1#post3389149
Vyndictive is offline
Reply Like
