airbox removal
#2
Registered
iTrader: (7)
You can get to the coils without removing the airbox. Just need an extension. IIRC just remove the accordion tube and disconnect the 3 hoses. That should give you move room to work. Just be careful not to break the nipples on the accordion tube that the hose connect too. If you want to the entire aribox out, after removing the accordion tube you can lift the airbox and pop it right out. There is not bolts holding it down.
#3
I figured it out.
I ended up dropping one of the nuts so I had to remove the the whole coil plate.....
then while putting the plate back on...the head of the vertical bolt broke off..... awesome..
the screws for my MAF also no longer get tight. the MAF wont fall out but it doesn't make an awesome seal.
I ended up dropping one of the nuts so I had to remove the the whole coil plate.....
then while putting the plate back on...the head of the vertical bolt broke off..... awesome..
the screws for my MAF also no longer get tight. the MAF wont fall out but it doesn't make an awesome seal.
#7
Surf Hard, Drive Hard
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes
on
9 Posts
Been so long since I've been stock. Where the hell is the MAF location on the stock setup? Is there no MAF tube between the box and accordian tube? Guess I better go look at those damn manuals I just sent you last week!
#9
Surf Hard, Drive Hard
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes
on
9 Posts

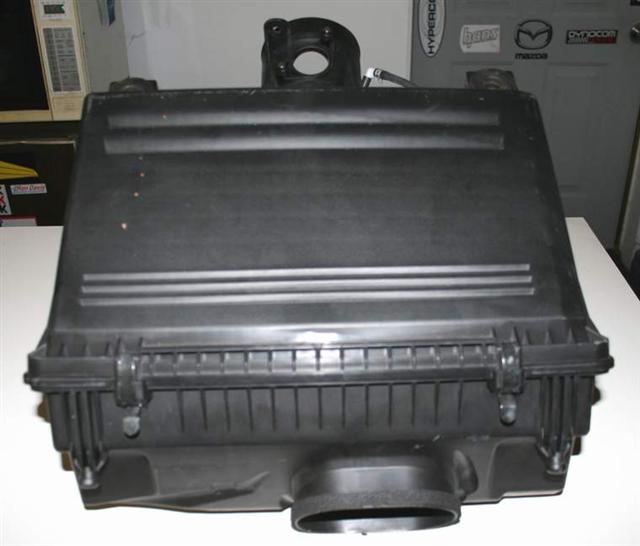

Oh crap! I just looked............stock it's on the airbox itself isn't it!
Argh!
The Revi has a seperate tube where the MAF mounts and don't have to remove the airbox or accordion.
Hell, I don't even know how yours is held down. Screws into threaded plugs embedded in the plastic I guess????
Wait a second...............I remember someone with this stripped or loose MAF issue. I'll search and see if I can find the solution he came up with as it worked good.
Argh!
The Revi has a seperate tube where the MAF mounts and don't have to remove the airbox or accordion.
Hell, I don't even know how yours is held down. Screws into threaded plugs embedded in the plastic I guess????
Wait a second...............I remember someone with this stripped or loose MAF issue. I'll search and see if I can find the solution he came up with as it worked good.
Last edited by Mazurfer; 02-04-2011 at 07:33 PM.
#10
Surf Hard, Drive Hard
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes
on
9 Posts
Yeah, but it's one piece attached to the airbox.

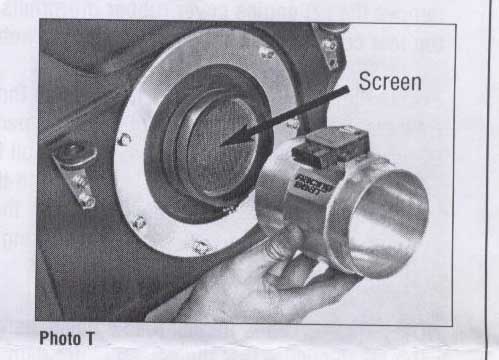

With the Revi intake you have a MAF tube between the airbox and accordian tube.
So...the stock has two pieces, while the Revi has three. Think of it that way.
If I was to strip the MAF mounting holes, I could just replace the tube and not the airbox or the accordian.
With the Revi intake you have a MAF tube between the airbox and accordian tube.
So...the stock has two pieces, while the Revi has three. Think of it that way.
If I was to strip the MAF mounting holes, I could just replace the tube and not the airbox or the accordian.
#11
I always remove it because I am very afraid that when trying to get that monster of an airbox out, I will break it... I would rather feel safe then have it break and have to spend monster dollars on a new one.
I never took apart the airbox, I just removed the accordian piece so I didn't know the tube was a seperate peice from the box.
guess I could go ghetto and duct tape the damn thing down...but I feel sooooo dirty doing so.
I never took apart the airbox, I just removed the accordian piece so I didn't know the tube was a seperate peice from the box.
guess I could go ghetto and duct tape the damn thing down...but I feel sooooo dirty doing so.
#14
Surf Hard, Drive Hard
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes
on
9 Posts
I always remove it because I am very afraid that when trying to get that monster of an airbox out, I will break it... I would rather feel safe then have it break and have to spend monster dollars on a new one.
I never took apart the airbox, I just removed the accordian piece so I didn't know the tube was a seperate peice from the box.
guess I could go ghetto and duct tape the damn thing down...but I feel sooooo dirty doing so.
I never took apart the airbox, I just removed the accordian piece so I didn't know the tube was a seperate peice from the box.
guess I could go ghetto and duct tape the damn thing down...but I feel sooooo dirty doing so.
Anyway, see what 04Green says below..............maybe he was the one?
#19
Registered
to remove airbox, push the air box towards the end of the car till the front mounts come out their rubber mounts then pull upwards so that the bottom ones come out.
MAF loose get slightly bigger strews and tighten just finger tight on the screw driver dont use your palm to tighten it, its plastic very easy to strip.
also before you remove the airbox check if you have two botton rubber mounts in place and make sure they dont fall down into the radiator fans.
heres a vid telling you how to remove airbox.
http://www.youtube.com/watch?v=6I6_UnQELcw
MAF loose get slightly bigger strews and tighten just finger tight on the screw driver dont use your palm to tighten it, its plastic very easy to strip.
also before you remove the airbox check if you have two botton rubber mounts in place and make sure they dont fall down into the radiator fans.
heres a vid telling you how to remove airbox.
http://www.youtube.com/watch?v=6I6_UnQELcw
#20
Registered
No they are not metal. The first time I removed my MAF the screw came out with the plastic threads attached to it lol. I just found a slightly larger screw and it did the job perfect. Now I am very careful about how I tighten that screw because whoever did it last really messed it up.
Seems to be a pretty common problem, some people take epoxy and use the stock screw but a larger one is 10x easier. Just make sure its only a tiny bit larger, the one I used only had slightly wider threads than the stock one.
Seems to be a pretty common problem, some people take epoxy and use the stock screw but a larger one is 10x easier. Just make sure its only a tiny bit larger, the one I used only had slightly wider threads than the stock one.
