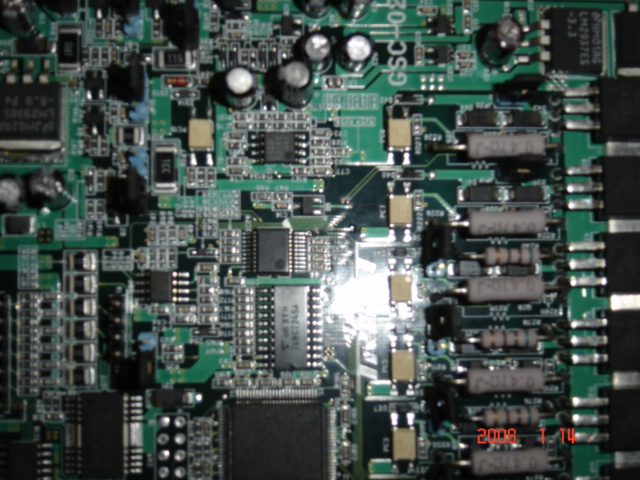

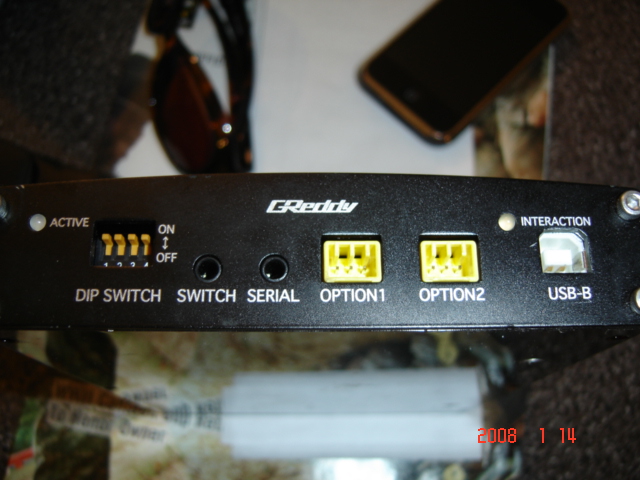

Some pictures of my Emanage and cable MA-10 for A/T RX8



MOre pictures



I don't get it... is there something wrong with it?



I didnt know how to send them to mazdamaniac so i decided to make a thread if someone wants to comment about the set up and if they see something wrong with them.As it is right now i tried to set up my A/t but it beatme,and 2 friends of mine that have worked with microtech before with theyr cars.It was funny looking at them like wtf its going on whe they made changes to it and the car was just giving them crap.I cant find someone experienced with rx8 and emanage here in PR.



Its good to have the pics out there, either way.
I'll give them a look over and PM you when I've got it figured out.



Thanks,have a good one.



MM,
if need be i can post pics of my harness when I get home. I remember that when we did my 8 you had never seen the version of harness i have.



Dave - didn't you have the 6-port harness (that was converted to 4-port duty)?



Yep,



The harness in question here is actually delivered from GReddy with a matching pinout to the 4-port.
However, it isn't clear what is connected and how.
Unfortunately, the pictures above are blurry and too far away.
I can sorta make out what is connected, but not where.



Will get better Pictures for you.



Cool! I really want this to work out for you!



Is the ingination Chip already bulid in as part of ultimate? Does Blue Emanage have this?

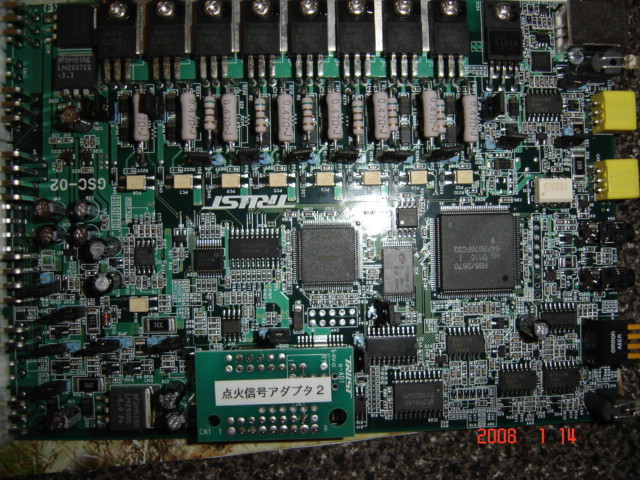

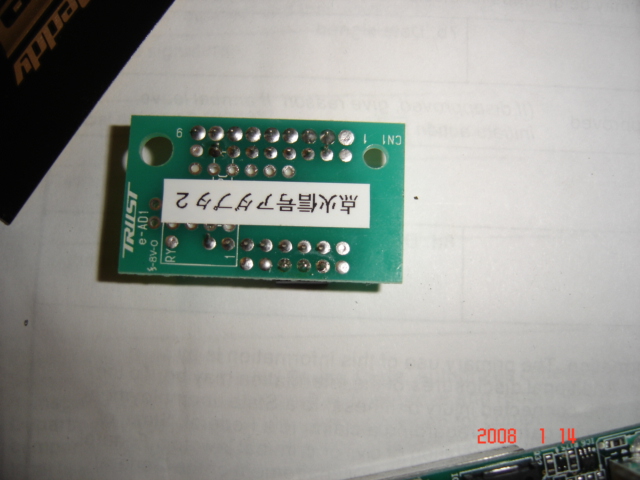

The Rx8 specific ign chip is setup as a daughterbord. Other words it's not built into the EMU.

The Emanage Blue was more of a universal design that has a diffrent harness' for each car type.



Thanks. Guess I really should get a Ultimate for my turbo 8. Idle isn't not well and stales at stop. But runs very strong when turbo kicks in.



You may try haltec interceptor-X. it's also available in Taiwan

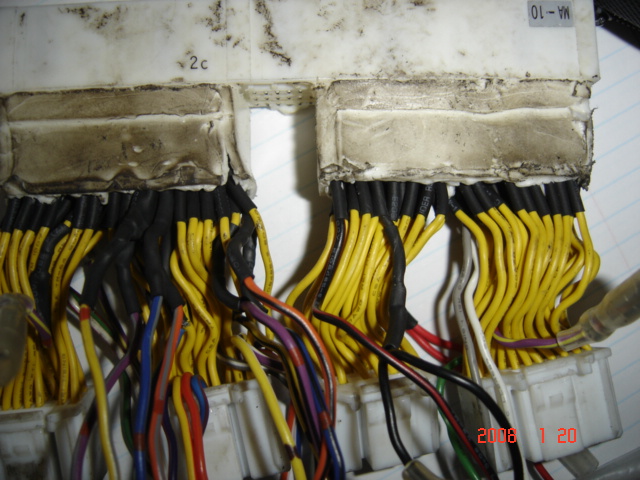

New pictures of the MA-10 cable



MOre pics of the PCM conector



Nice to see you here Zaku. How is your yellow 8. Havn't see it for awhile. I bet you have already don't some heavy mod on it. I have been thinking of Inter-X. But I 40% off on greddy stuff. So...
