Pettit Super Charger Owners
look and drool.
You wouldnt believe what I paid for this car. And I aint telling-hehe.
http://garx8club.com/v3/download/file.php?id=2787
You wouldnt believe what I paid for this car. And I aint telling-hehe.
http://garx8club.com/v3/download/file.php?id=2787
Hope everyone's doing well. My car has been running better than ever and I've been having a lot of fun with it. Here's a picture I created from some shots I took this weekend:
Hope you all enjoy it. Anyway, it's bed time. Good night folks!
Hope you all enjoy it. Anyway, it's bed time. Good night folks!
been wondering where you were.
I didnt get a chance to fix the pic of my R3 project last night.
I will try this w/e. I mostly have the interior out---you sure learn things by taking a car apart.
OD
I didnt get a chance to fix the pic of my R3 project last night.
I will try this w/e. I mostly have the interior out---you sure learn things by taking a car apart.
OD
Rotary engine addict
Joined: Jun 2008
Posts: 303
Likes: 0
From: Guadeloupe (FWI)
Yaaooohhhhh !!
my problems are getting worse
Sent log (awful run) to moon with some picts...
Didn't do yet the spark picts... will do it tonight or tomorow ...

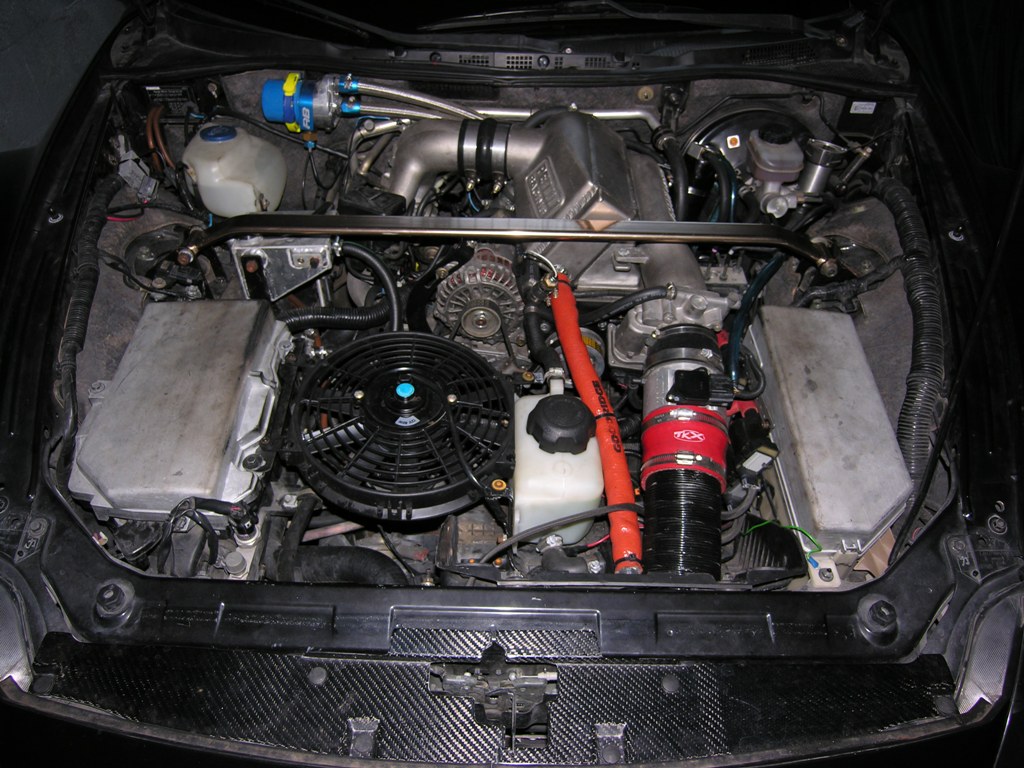

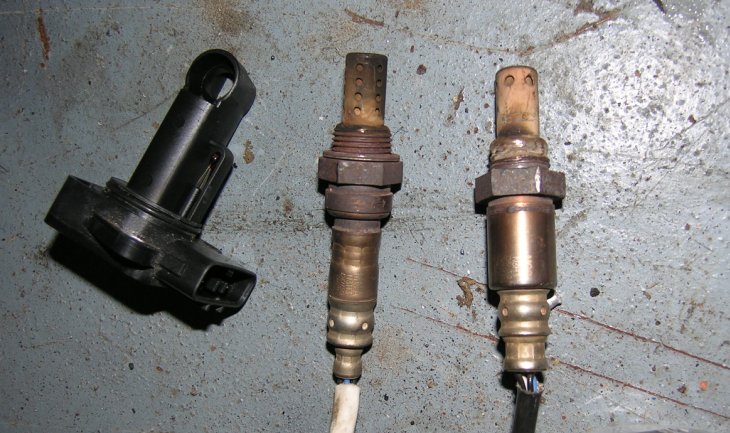

attached some pict of my (dirty) car ; engine bay ; old sensors (just changed them)
Sent log (awful run) to moon with some picts...
Didn't do yet the spark picts... will do it tonight or tomorow ...
attached some pict of my (dirty) car ; engine bay ; old sensors (just changed them)
A picture is better than 1000 words.
1- get a better intake pipe to the maf tube. I am surprised it even goes over 4K with that one on? It HAS to cause a lot of turbulance. It would be better to stick an universal AEM cone filter on the end of the red silicone coupler.
2- what is the sensor that is plugged into the a/w return line. Are you measuring those temps?
3- why did you mount your coils like that?
4- what is the black box next to your radiator overflow tank?
5- what is the box mounted on the firewall above the WW tank?
OD
1- get a better intake pipe to the maf tube. I am surprised it even goes over 4K with that one on? It HAS to cause a lot of turbulance. It would be better to stick an universal AEM cone filter on the end of the red silicone coupler.
2- what is the sensor that is plugged into the a/w return line. Are you measuring those temps?
3- why did you mount your coils like that?
4- what is the black box next to your radiator overflow tank?
5- what is the box mounted on the firewall above the WW tank?
OD
my project!!
https://www.rx8club.com/attachment.p...1&d=1287405329
By the way --if you want to reduce engine bay temps --then get the S2 undertray. It has a spoiler under it that creates a low pressure area that helps to draw the heat out. Pretty sweet of mazda to do that.
OD
https://www.rx8club.com/attachment.p...1&d=1287405329
By the way --if you want to reduce engine bay temps --then get the S2 undertray. It has a spoiler under it that creates a low pressure area that helps to draw the heat out. Pretty sweet of mazda to do that.
OD
Registered
Joined: Jan 2006
Posts: 1,257
Likes: 0
From: Maryland
my project!!
https://www.rx8club.com/attachment.p...1&d=1287405329
By the way --if you want to reduce engine bay temps --then get the S2 undertray. It has a spoiler under it that creates a low pressure area that helps to draw the heat out. Pretty sweet of mazda to do that.
OD
https://www.rx8club.com/attachment.p...1&d=1287405329
By the way --if you want to reduce engine bay temps --then get the S2 undertray. It has a spoiler under it that creates a low pressure area that helps to draw the heat out. Pretty sweet of mazda to do that.
OD
Rotary engine addict
Joined: Jun 2008
Posts: 303
Likes: 0
From: Guadeloupe (FWI)
A picture is better than 1000 words.
1- get a better intake pipe to the maf tube. I am surprised it even goes over 4K with that one on? It HAS to cause a lot of turbulance. It would be better to stick an universal AEM cone filter on the end of the red silicone coupler.
2- what is the sensor that is plugged into the a/w return line. Are you measuring those temps?
3- why did you mount your coils like that?
4- what is the black box next to your radiator overflow tank?
5- what is the box mounted on the firewall above the WW tank?
OD
1- get a better intake pipe to the maf tube. I am surprised it even goes over 4K with that one on? It HAS to cause a lot of turbulance. It would be better to stick an universal AEM cone filter on the end of the red silicone coupler.
2- what is the sensor that is plugged into the a/w return line. Are you measuring those temps?
3- why did you mount your coils like that?
4- what is the black box next to your radiator overflow tank?
5- what is the box mounted on the firewall above the WW tank?
OD
Nice Car !!!!!!!
some answers :
1- I wanted to remove the air filter from the engine bay (to hot).
I'll remove it
2-yes this is for a temp gauge.
3-I get the Delco coils and theire is no room for them... and I didn't want to fix them on a metal plate...so that was a kind of solution...
4-the black box next to my coolant tank (overflow tank) is the vaccum box.
5-it's my oil filter + racing beat plate for gauges + magnet around the filter
my project!!
https://www.rx8club.com/attachment.p...1&d=1287405329
By the way --if you want to reduce engine bay temps --then get the S2 undertray. It has a spoiler under it that creates a low pressure area that helps to draw the heat out. Pretty sweet of mazda to do that.
OD
https://www.rx8club.com/attachment.p...1&d=1287405329
By the way --if you want to reduce engine bay temps --then get the S2 undertray. It has a spoiler under it that creates a low pressure area that helps to draw the heat out. Pretty sweet of mazda to do that.
OD
I want to see the naked pictures you have of the owner that made him give it up to you
Rotary engine addict
Joined: Jun 2008
Posts: 303
Likes: 0
From: Guadeloupe (FWI)
still not working...5 month now...
Hi OD !!
Nice Car !!!!!!!
some answers :
1- I wanted to remove the air filter from the engine bay (to hot).
I'll remove it
2-yes this is for a temp gauge.
3-I get the Delco coils and theire is no room for them... and I didn't want to fix them on a metal plate...so that was a kind of solution...
4-the black box next to my coolant tank (overflow tank) is the vaccum box.
5-it's my oil filter + racing beat plate for gauges + magnet around the filter
Nice Car !!!!!!!
some answers :
1- I wanted to remove the air filter from the engine bay (to hot).
I'll remove it
2-yes this is for a temp gauge.
3-I get the Delco coils and theire is no room for them... and I didn't want to fix them on a metal plate...so that was a kind of solution...
4-the black box next to my coolant tank (overflow tank) is the vaccum box.
5-it's my oil filter + racing beat plate for gauges + magnet around the filter
car still in a huge mess...wondering to burn it & get payed by the insurance
Pettit do not answer to my emails...or the answer do not really help... tryed to contact BHR without answer.
I'll try banzai racing.......
I think if it continue that way, i'll ask someone to come or i'll send my car to the USA....
Rotary engine addict
Joined: Jun 2008
Posts: 303
Likes: 0
From: Guadeloupe (FWI)

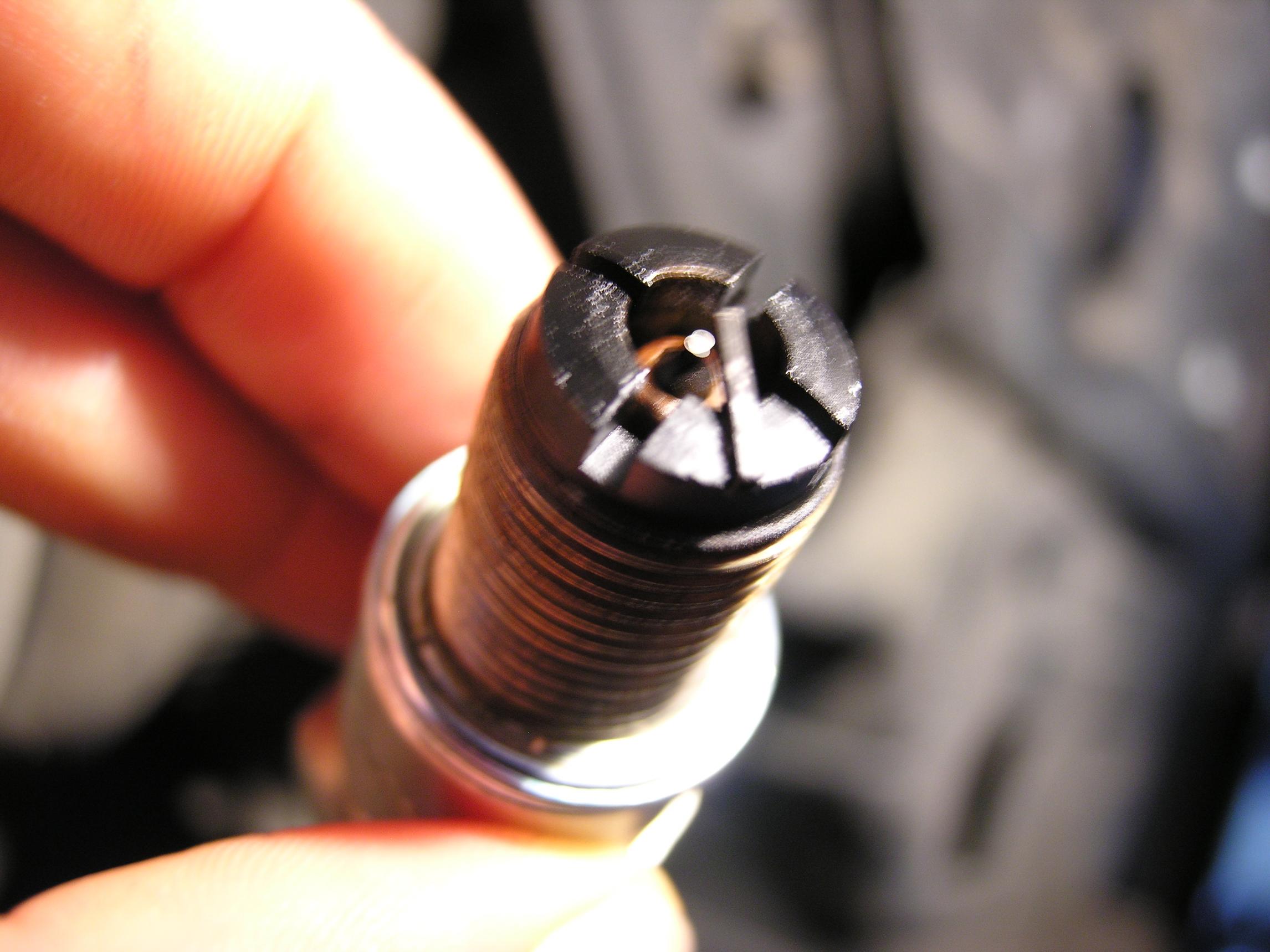

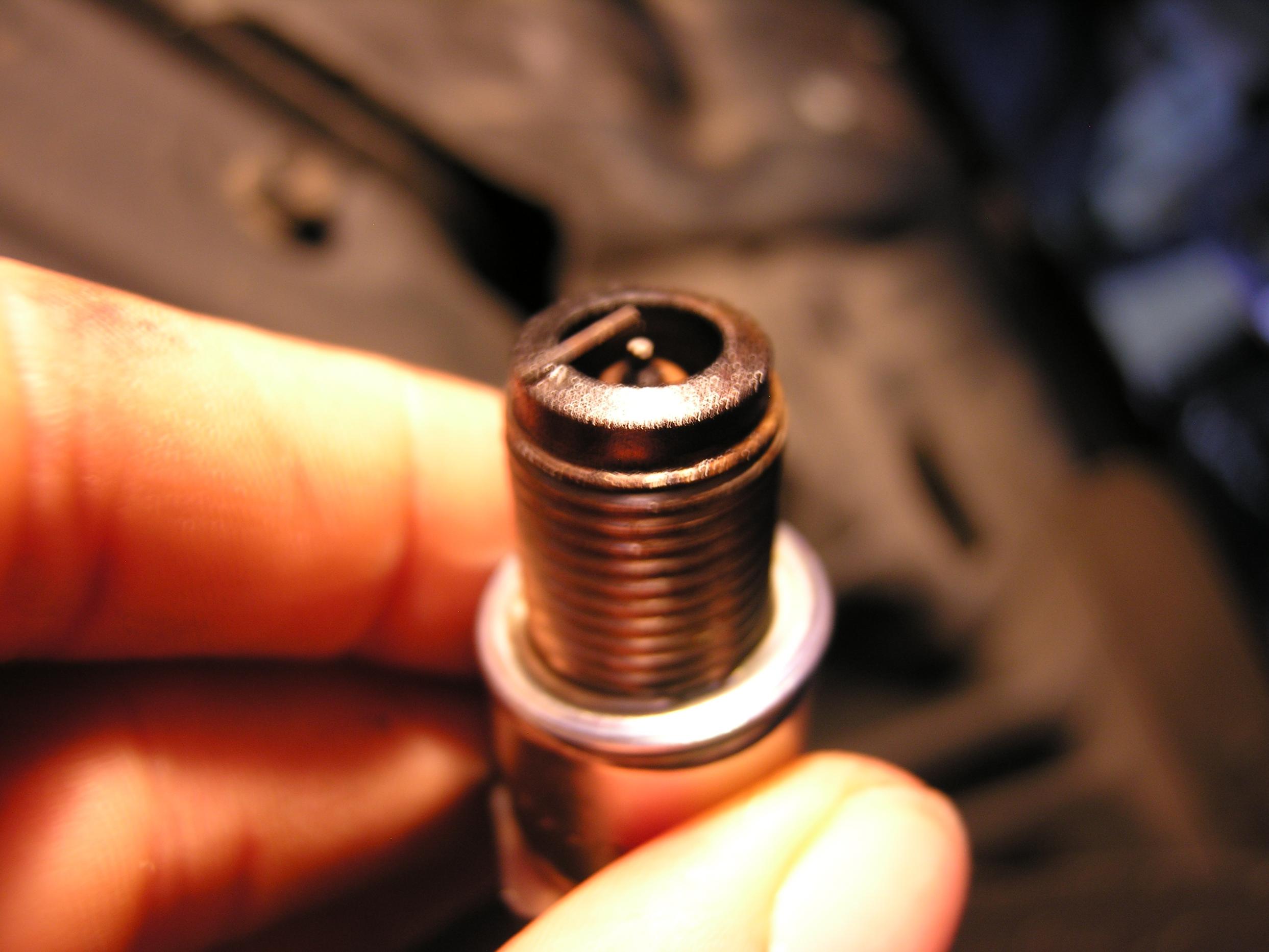

sparks picture - finaly
finaly I took some time to go under the car...
attached picture of TR & TL sparks...
black and still wet even if the car didn't run since 24h.
what to do now ???
attached picture of TR & TL sparks...
black and still wet even if the car didn't run since 24h.
what to do now ???
Registered
Joined: Jan 2006
Posts: 1,257
Likes: 0
From: Maryland
Ok, those plugs are shot, they look very fouled out. Replace the leading ones at the least. Also you need to gap them, it looks like you opened the gap. Also, have you dropped any of the plugs? If so that can also be a problem.
Also, make sure you have the injectors in the correct positions.
BOLO ALERT
STOLEN CAR, MAKE MAZDA MODEL RX8 COLOR RED
CAR BELONGS TO SUSPECTED COLOMBIAN DRUG TRAFFICKER WITH HISTORY OF
VIOLENCE, OUTSTANDING WARRANTS FOR SEXUAL ASSAULT...OF BOTH SEXES
ADD: IF CAR IS LOCATED, RECOMMEND BRINGING BACKUP AND BODY BAGS.
Man, I bet it would suck to be whoever has this freak's car
Last edited by zenrx8; Oct 23, 2010 at 03:58 PM.
JM
Have you physically inspected your fuel pump? I've been reading since the post where Mazda Maniac suggested a problem, but I haven't seen if you've actually looked at it. If there is a loose, pinched, or cracked hose, it will limit how much fuel you can get, hence limit rpm.
I swear I think this is a physical problem with fuel delivery; the only other thing that makes any sense after trolling all over this forum for a problem like this is a problem with the ECU. I think it's your fuel pump, man.
Have you physically inspected your fuel pump? I've been reading since the post where Mazda Maniac suggested a problem, but I haven't seen if you've actually looked at it. If there is a loose, pinched, or cracked hose, it will limit how much fuel you can get, hence limit rpm.
I swear I think this is a physical problem with fuel delivery; the only other thing that makes any sense after trolling all over this forum for a problem like this is a problem with the ECU. I think it's your fuel pump, man.
Last edited by zenrx8; Oct 24, 2010 at 07:51 AM.
LOL--ZENRX8.
I wondered what the hell was that compartment looking thing I saw in the chassis underpanels---deactivate the homing device 1st thing
I agree i think it sounds like a fuel problem too.
OD
I wondered what the hell was that compartment looking thing I saw in the chassis underpanels---deactivate the homing device 1st thing
I agree i think it sounds like a fuel problem too.
OD
