Modified turblown top mount dyno

Oct 20, 2015 | 05:13 PM

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

Modified turblown top mount dyno

ENGINE: Ported, Goopy apex seals, goops resurfaced rotor housings, 6k miles on engine.

TURBO KIT: Turblown top mount kit, with active apv motors. GTX35R Te04 BB turbo

Tuned by Steve Kan in Lewisville, Tx, she made:

287.7 RWHP
201 TQ. @ 9.25psi

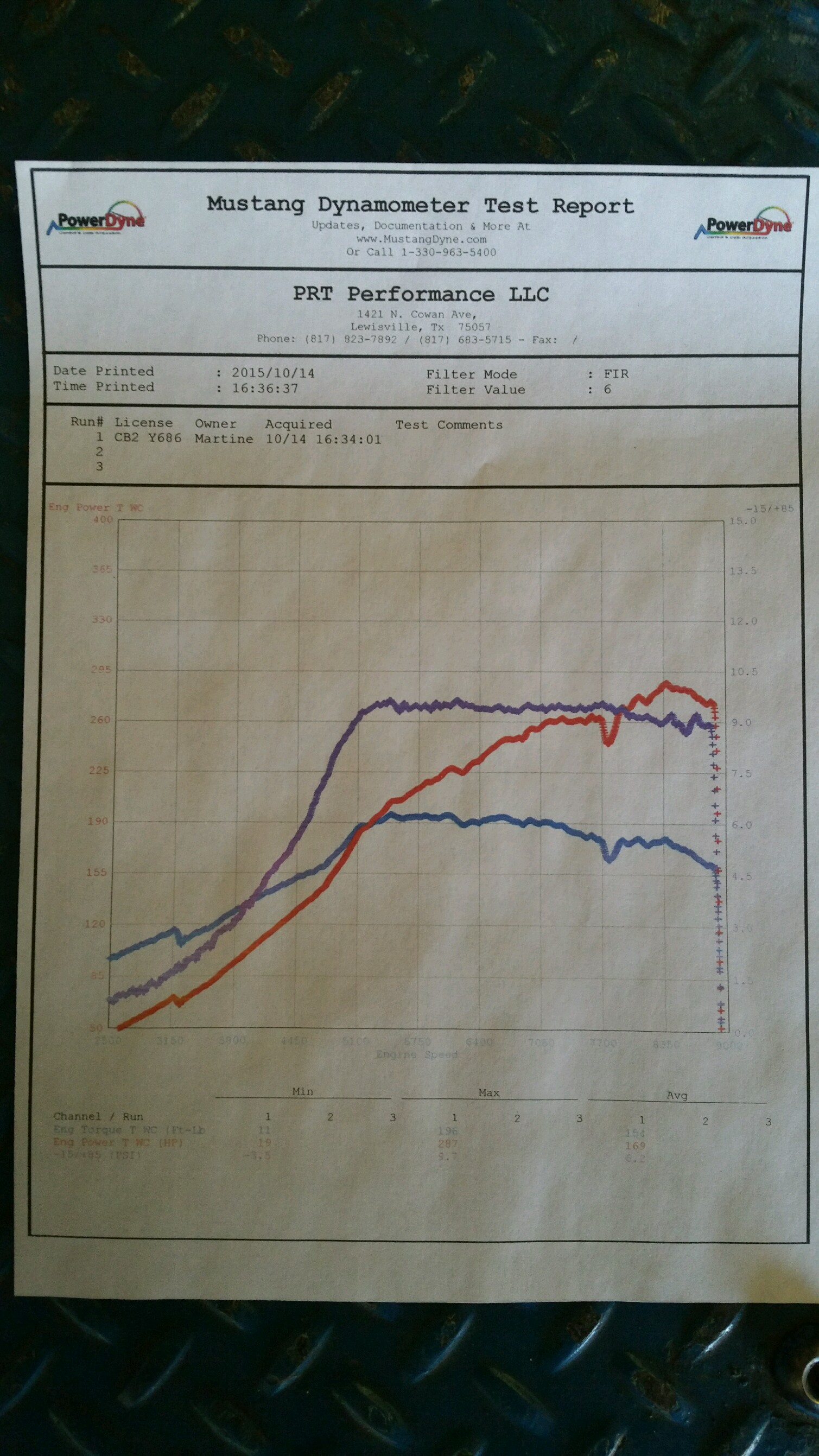

here is a picture of the dyno sheet, and ill post some pictures of the engine bay tonight.

Attached Thumbnails

Modified turblown top mount dyno-20151014_164112.jpg

Oct 20, 2015 | 05:20 PM

Brettus

Boosted Kiwi

iTrader: (2)

Joined: Apr 2006

Posts: 20,853

Likes: 1,806

From: Y-cat-o NZ

Quote:

Originally Posted by 05rx8mazda

Congrats on getting to this stage !
Not bad power for that psi/dyno . Is the turbo a GTX3582r ?

Last edited by Brettus; Oct 20, 2015 at 05:28 PM.

Oct 20, 2015 | 05:31 PM

9krpmrx8

SARX Legend

iTrader: (46)

Joined: Jan 2007

Posts: 33,788

Likes: 462

From: San Antonio, Texas

I love it man, post that video.

Sucks you ran out of fuel man, but still awesome for that Mustang Dyno. It's hard to gauge but based on others who have run there I would say when you get some proper injectors 350WHP is attainable.

Enjoy it for a while and then when you get the itch we can go visit Steve on the same day.

Oct 20, 2015 | 05:40 PM

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

Quote:

Originally Posted by Brettus

Congrats on getting to this stage !
Not bad power for that psi/dyno . Is the turbo a GTX3582r ?

THANKS MAN! Its a .70 trim brother.

Last edited by 05rx8mazda; Oct 21, 2015 at 08:35 AM.

Oct 20, 2015 | 05:44 PM

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

Quote:

Originally Posted by 9krpmrx8

Definitely man, I wish we could have gone together dude. Yeah @ 92% inj. duty cycle she definitely needs more fuel!

She surpassed my expectations at a lower boost level so I am happy. Just gonna enjoy her. Who knows, I might upgrade injectors and aim for that 10 psi, and that 13 psi high boost setting around next spring.

sad part is... my boost controller wasn't even hooked up..... running on wastegate spring.

Oct 20, 2015 | 07:34 PM

yomomspimp06

El Jefe

Joined: Mar 2007

Posts: 1,833

Likes: 7

congrats

Oct 20, 2015 | 07:53 PM

Brettus

Boosted Kiwi

iTrader: (2)

Joined: Apr 2006

Posts: 20,853

Likes: 1,806

From: Y-cat-o NZ

Wait a minute ............... aren't Turblown top mount GT35 turbos supposed to make 420whp at 10psi ?

Oct 20, 2015 | 08:32 PM

logalinipoo

Driving my unreliable rx8

Joined: Oct 2012

Posts: 2,051

Likes: 7

From: Alvarado, Tx

Now now that's only if you have a competent tuner.

But in reality nice numbers to see. What area do you live in?

Oct 21, 2015 | 03:27 AM

JimmyBlack

Hybrid Greddy Boosted

Joined: Jul 2013

Posts: 475

Likes: 30

From: New Zealand

Quote:

Originally Posted by logalinipoo

Now now that's only if you have a competent tuner.

Them fighting words, lol

Oct 21, 2015 | 07:43 AM

#10

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

Quote:

Originally Posted by Brettus

Wait a minute ............... aren't Turblown top mount GT35 turbos supposed to make 420whp at 10psi ?

BRETTUS.... YOU BELIEVE EVERYTHING TURBLOWN CLAIMS? LOLOLOLOL the person handling the dyno must have been on the >>>

I have uncapped p2's and walbro 255... ran out of fuel.. im gonna just up all injectors to 1000cc and go for a retune.

Last edited by 05rx8mazda; Oct 21, 2015 at 07:48 AM.

Oct 21, 2015 | 07:43 AM

#11

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

Quote:

Originally Posted by logalinipoo

Now now that's only if you have a competent tuner.

But in reality nice numbers to see. What area do you live in?

I live in Austn Tx, but got it tuned in Dallas.

Oct 21, 2015 | 08:15 AM

#12

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

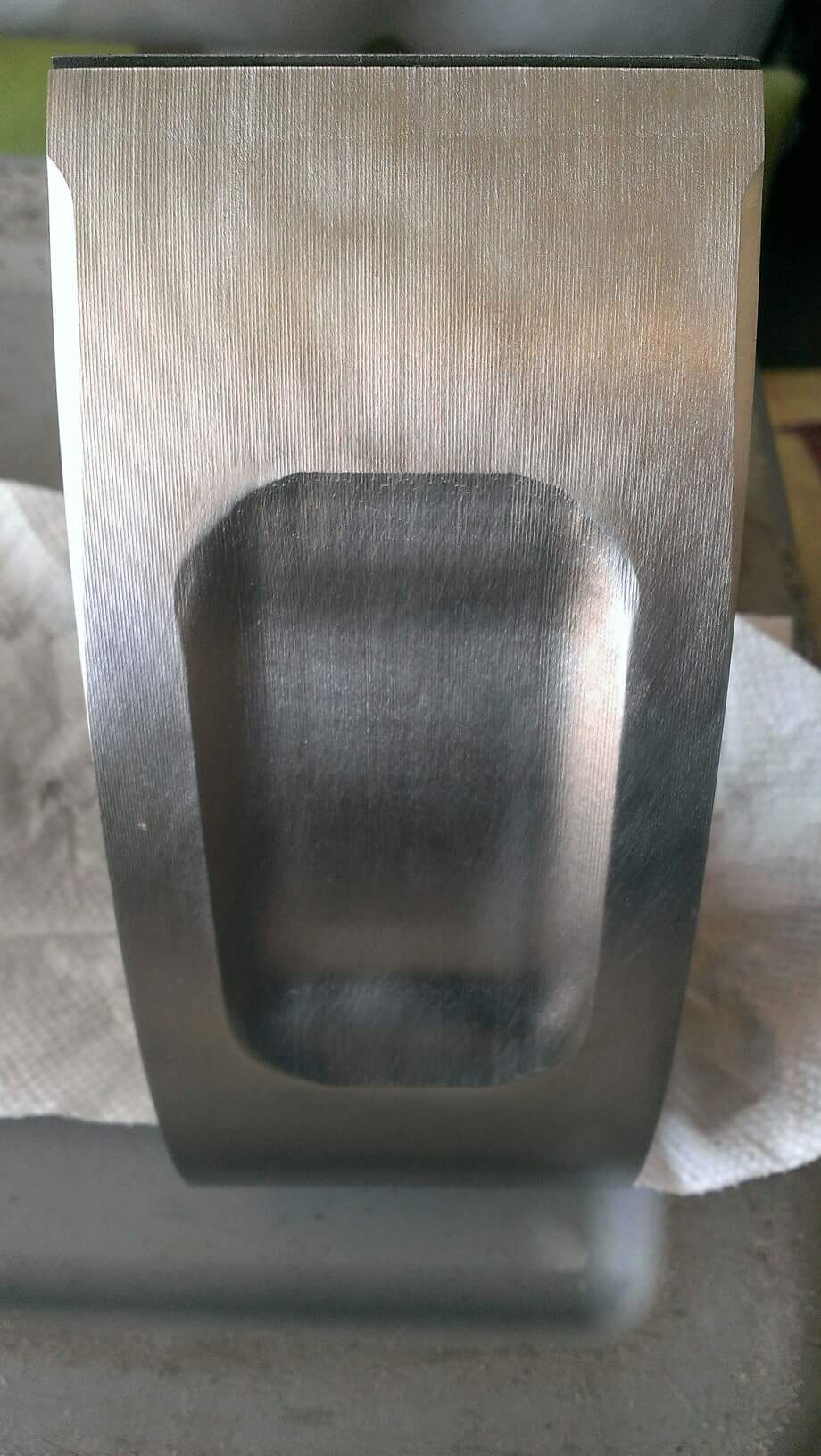

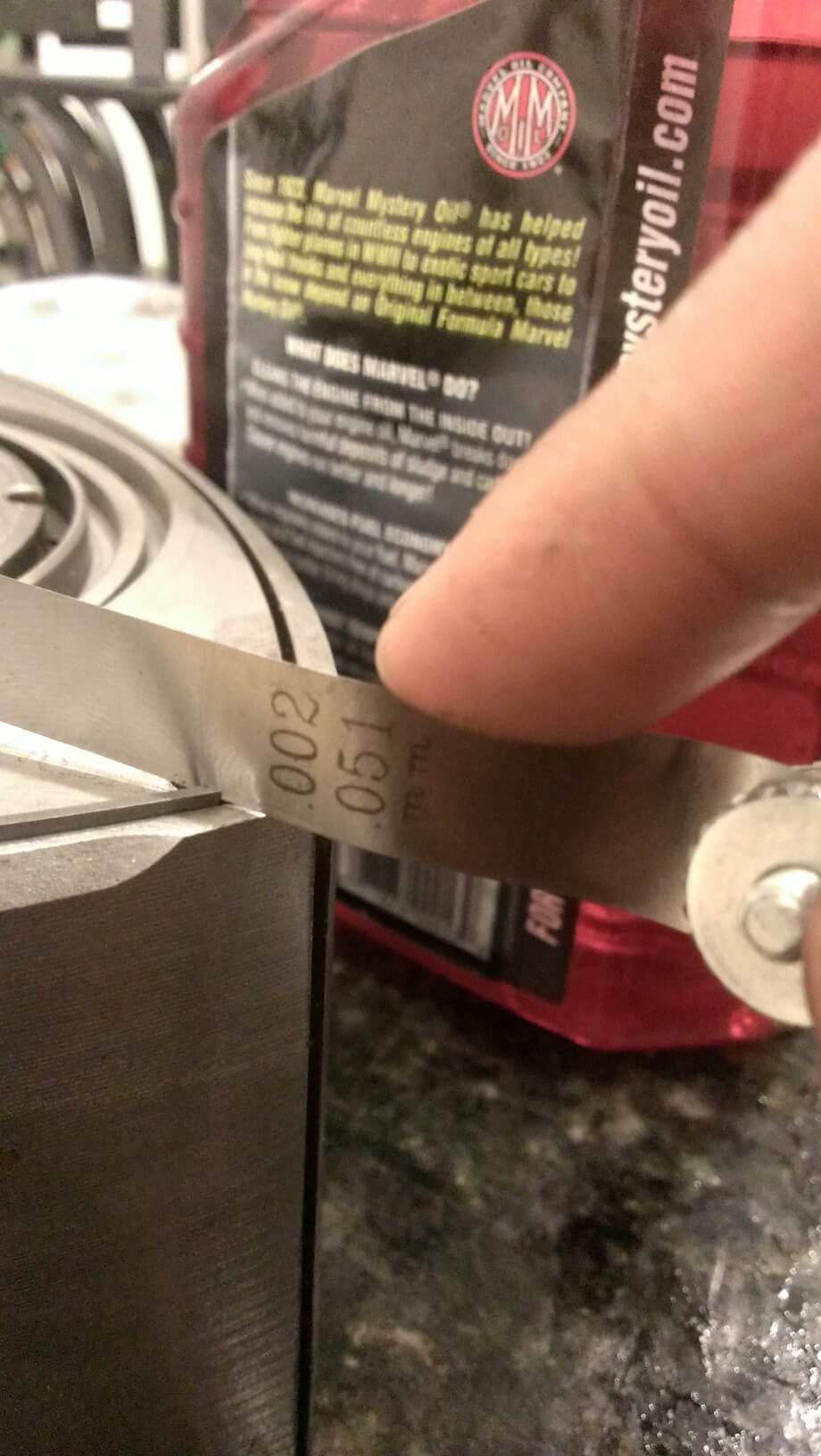

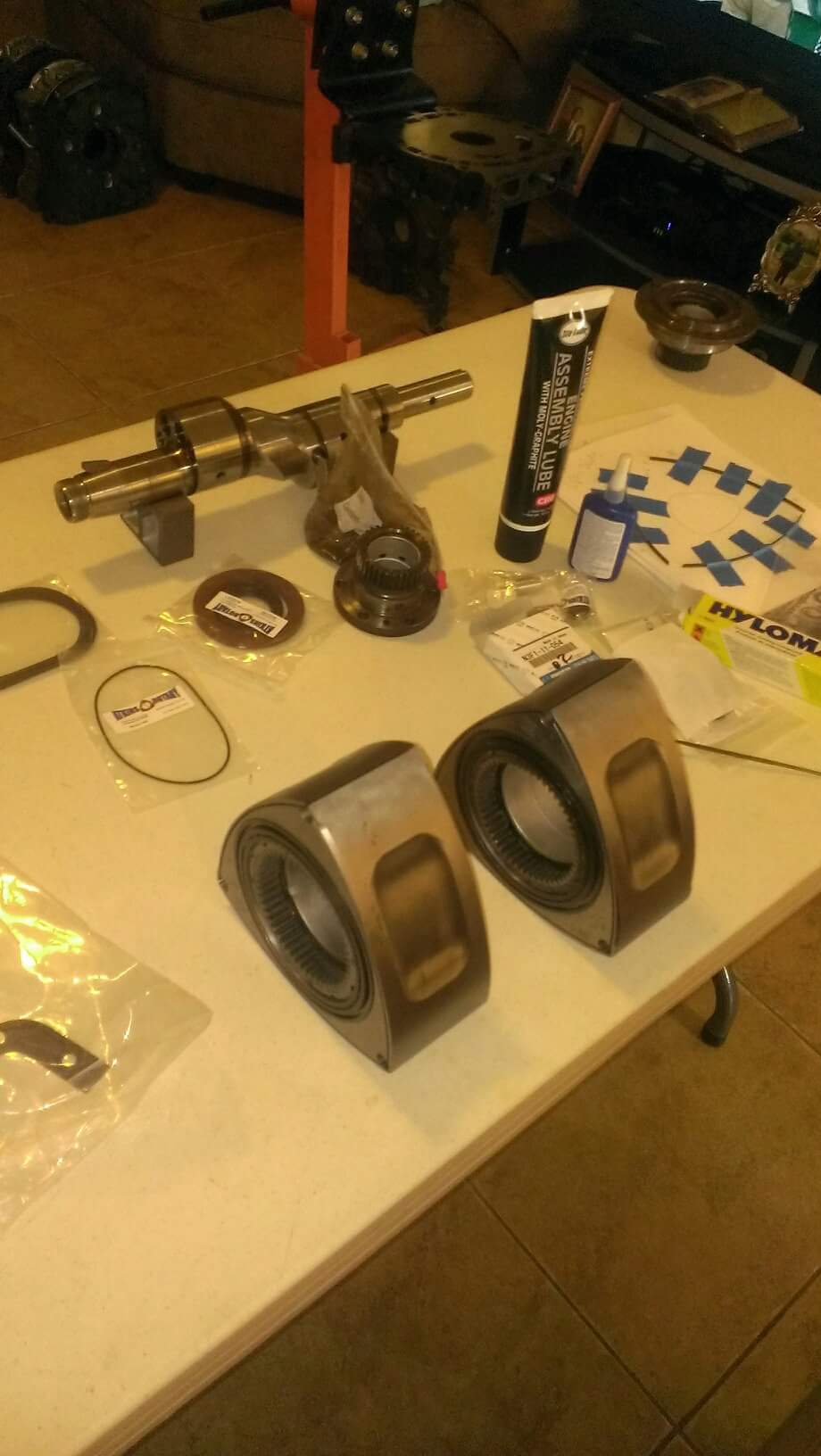

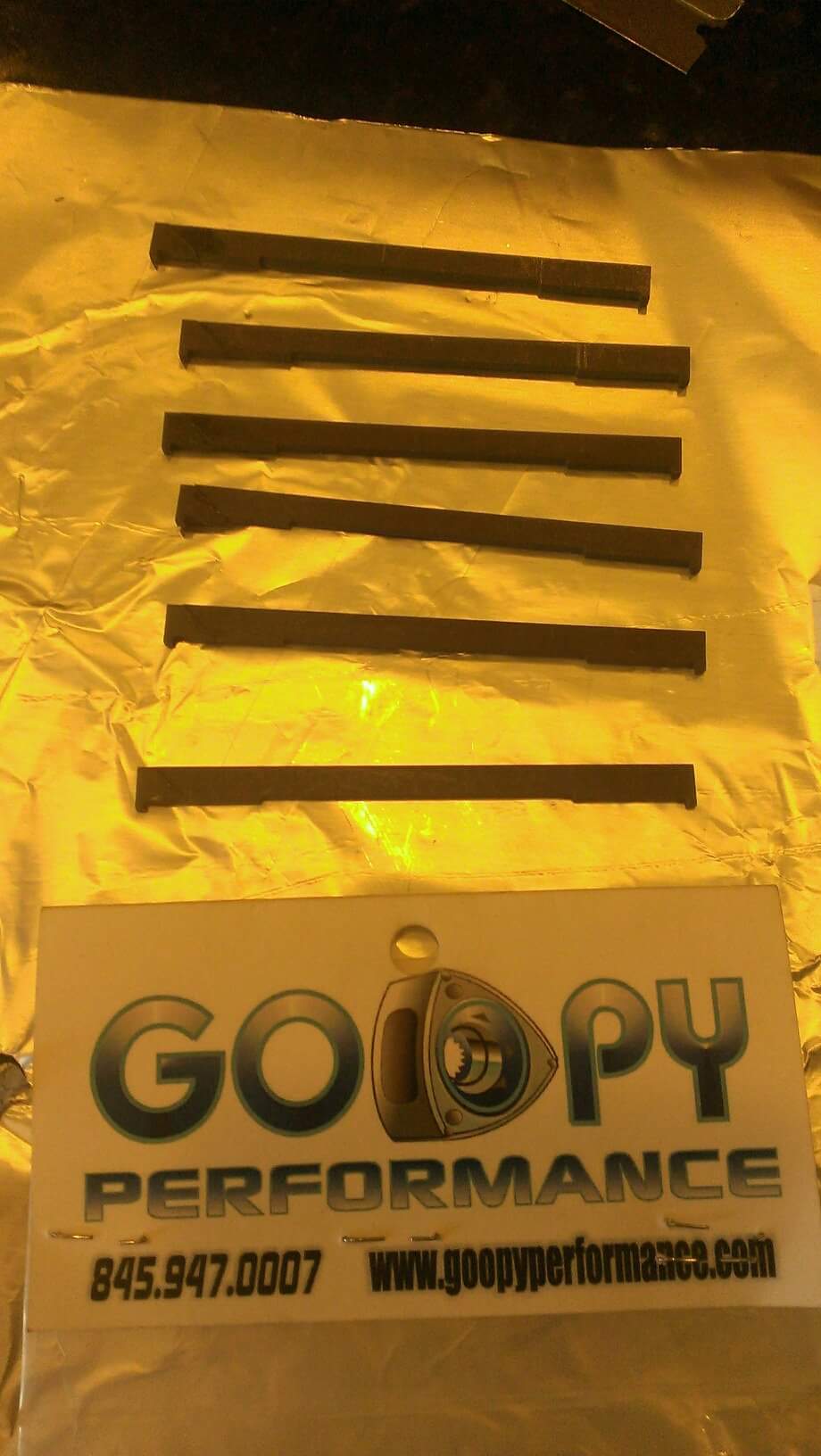

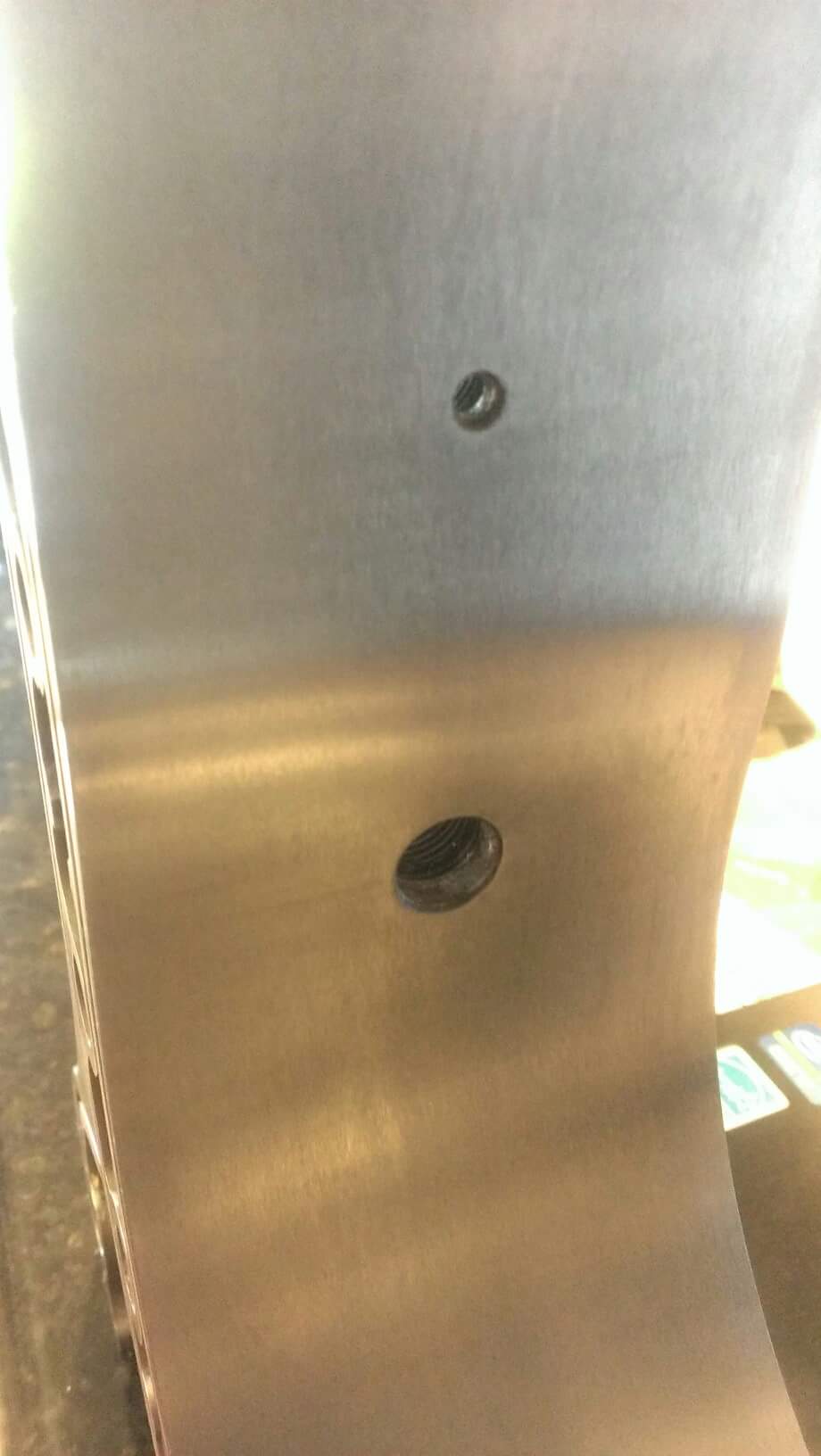

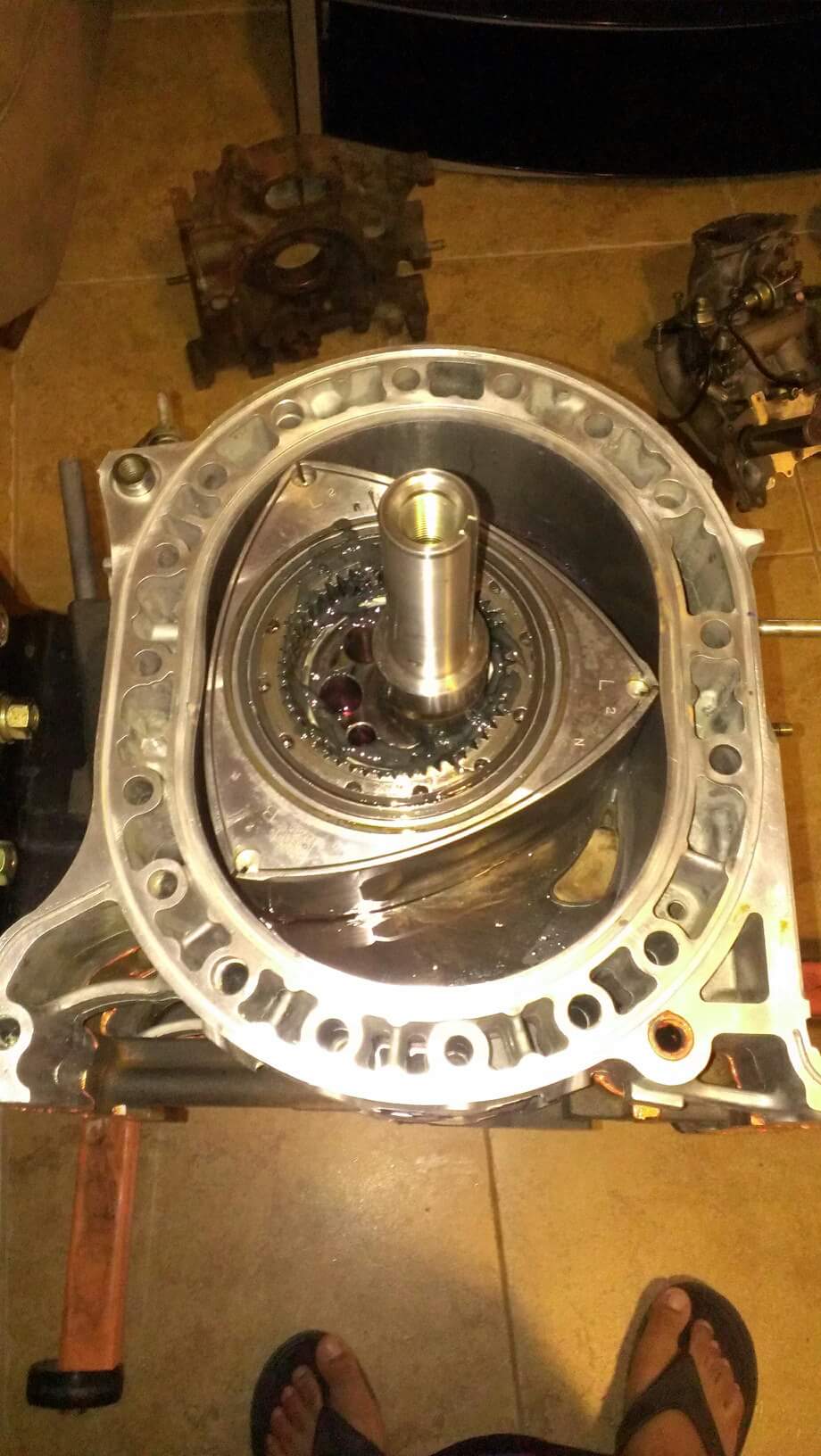

Some pics of the rebuild.

Attached Thumbnails

Modified turblown top mount dyno-img_38247748037624.jpeg

Modified turblown top mount dyno-img_38241004407887.jpeg

Modified turblown top mount dyno-img_38253149147882.jpeg

Modified turblown top mount dyno-img_38266180774752.jpeg

Modified turblown top mount dyno-img_38276576918394.jpeg

Modified turblown top mount dyno-img_38287708995838.jpeg

Oct 21, 2015 | 08:23 AM

#13

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

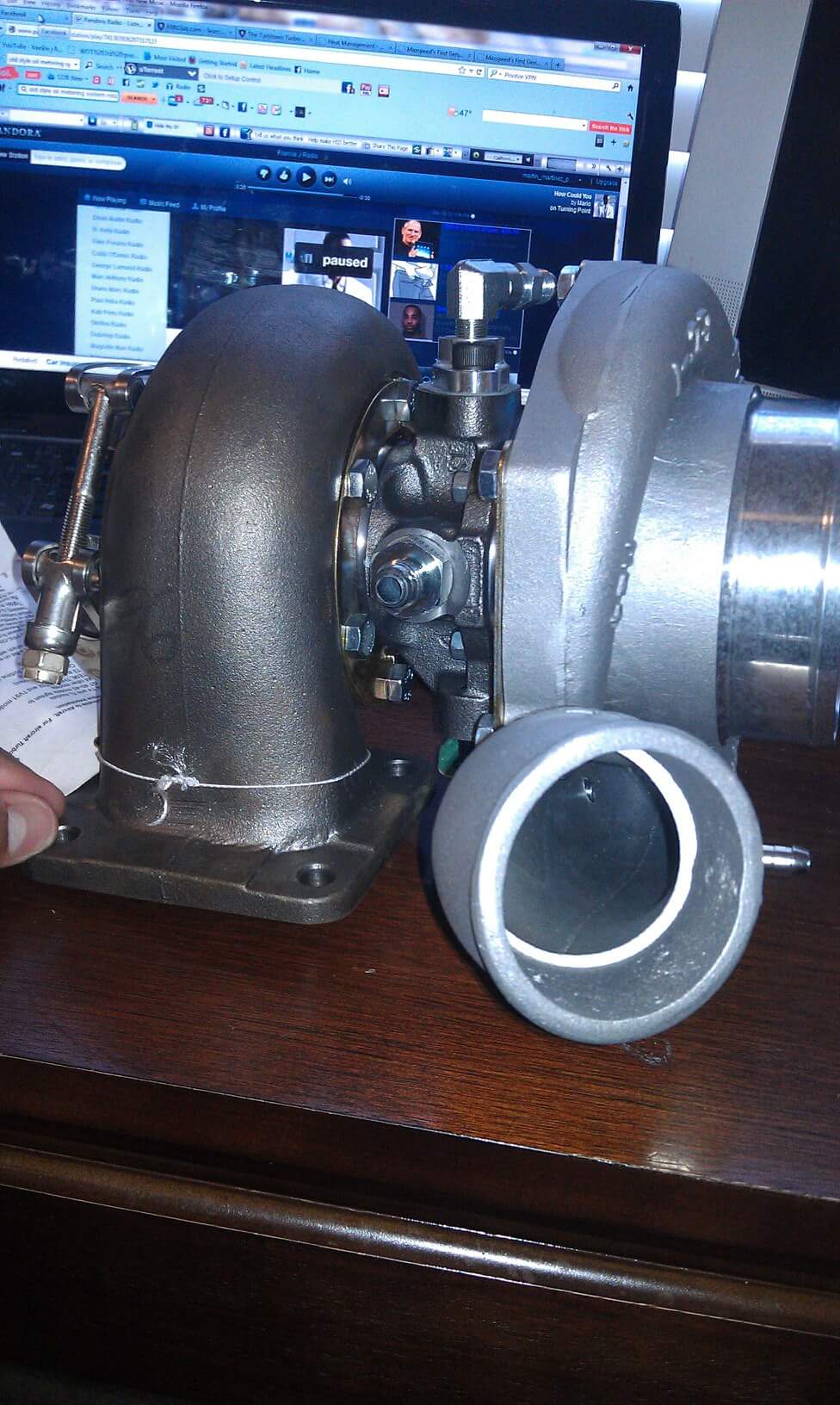

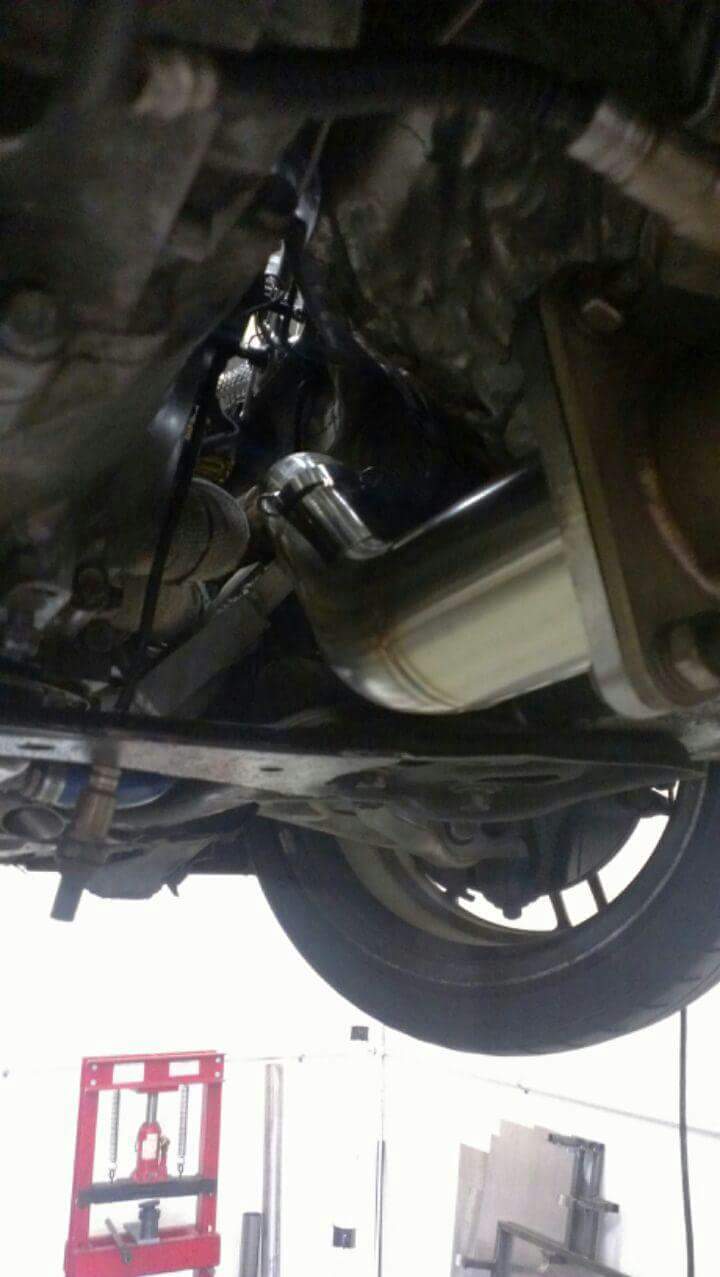

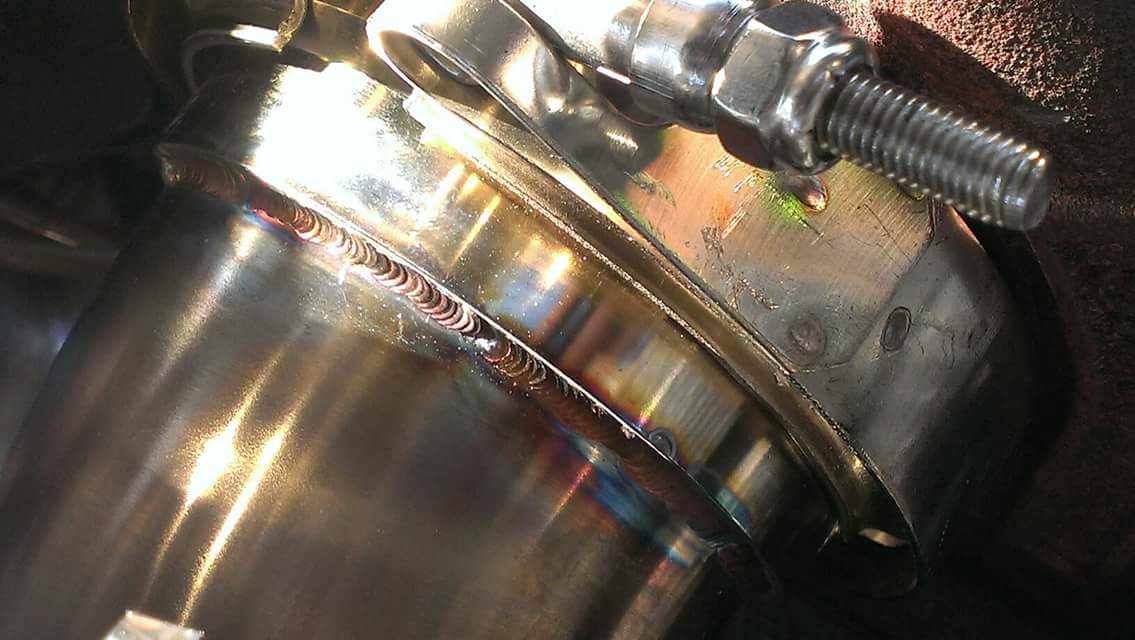

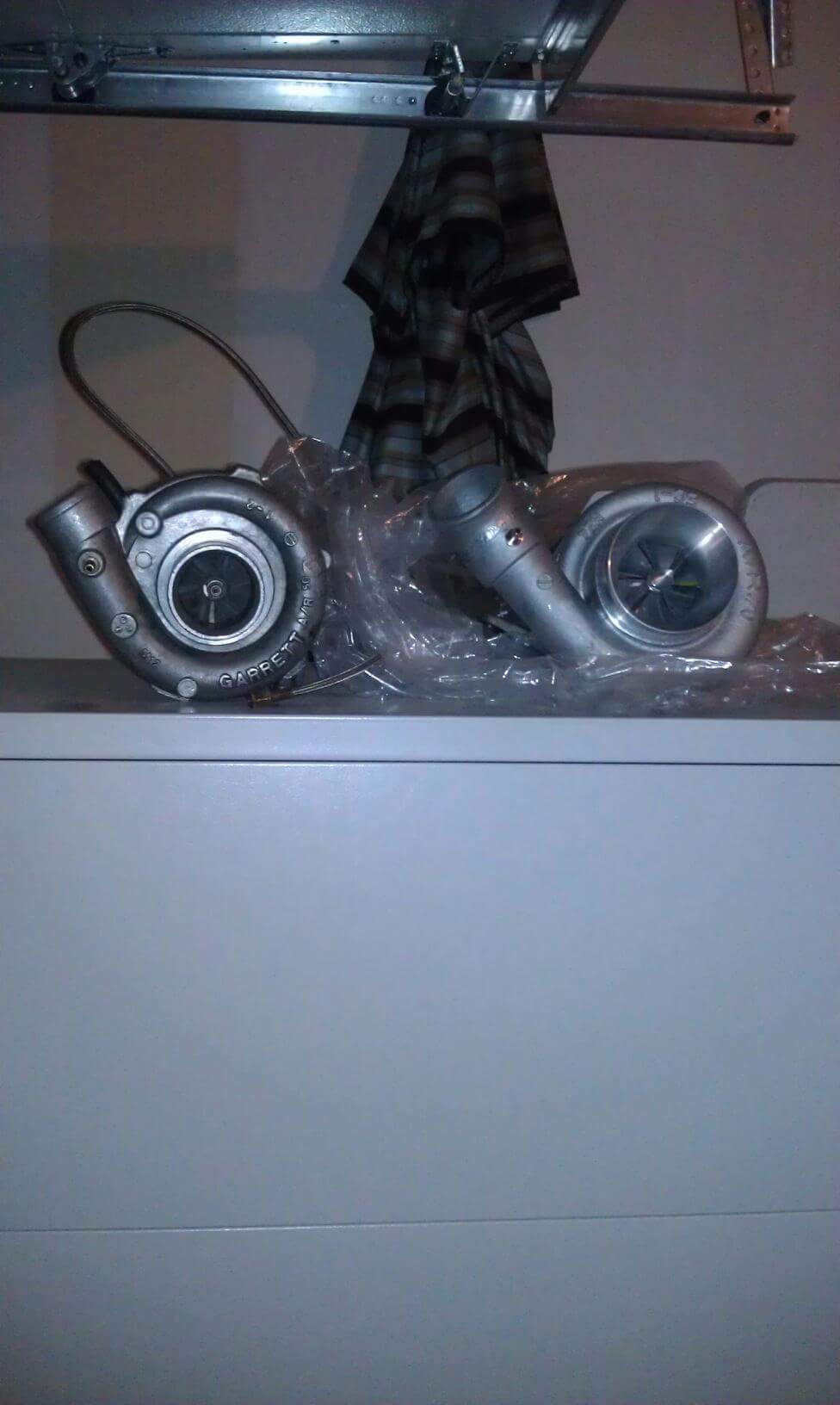

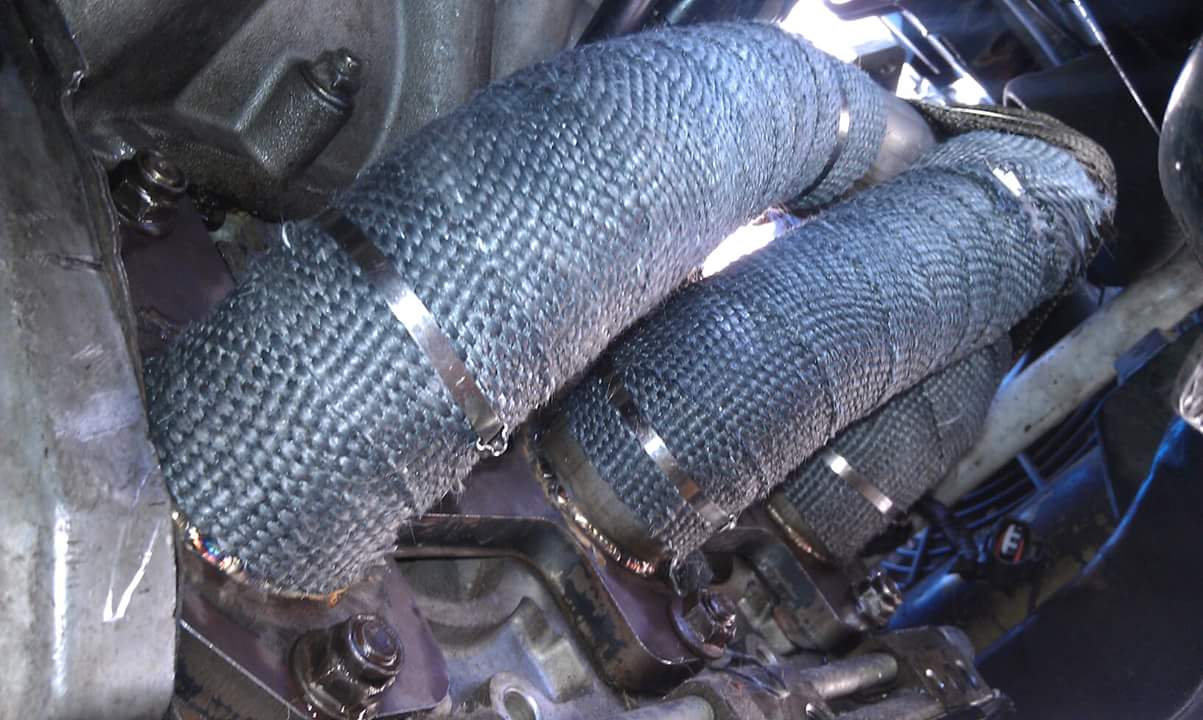

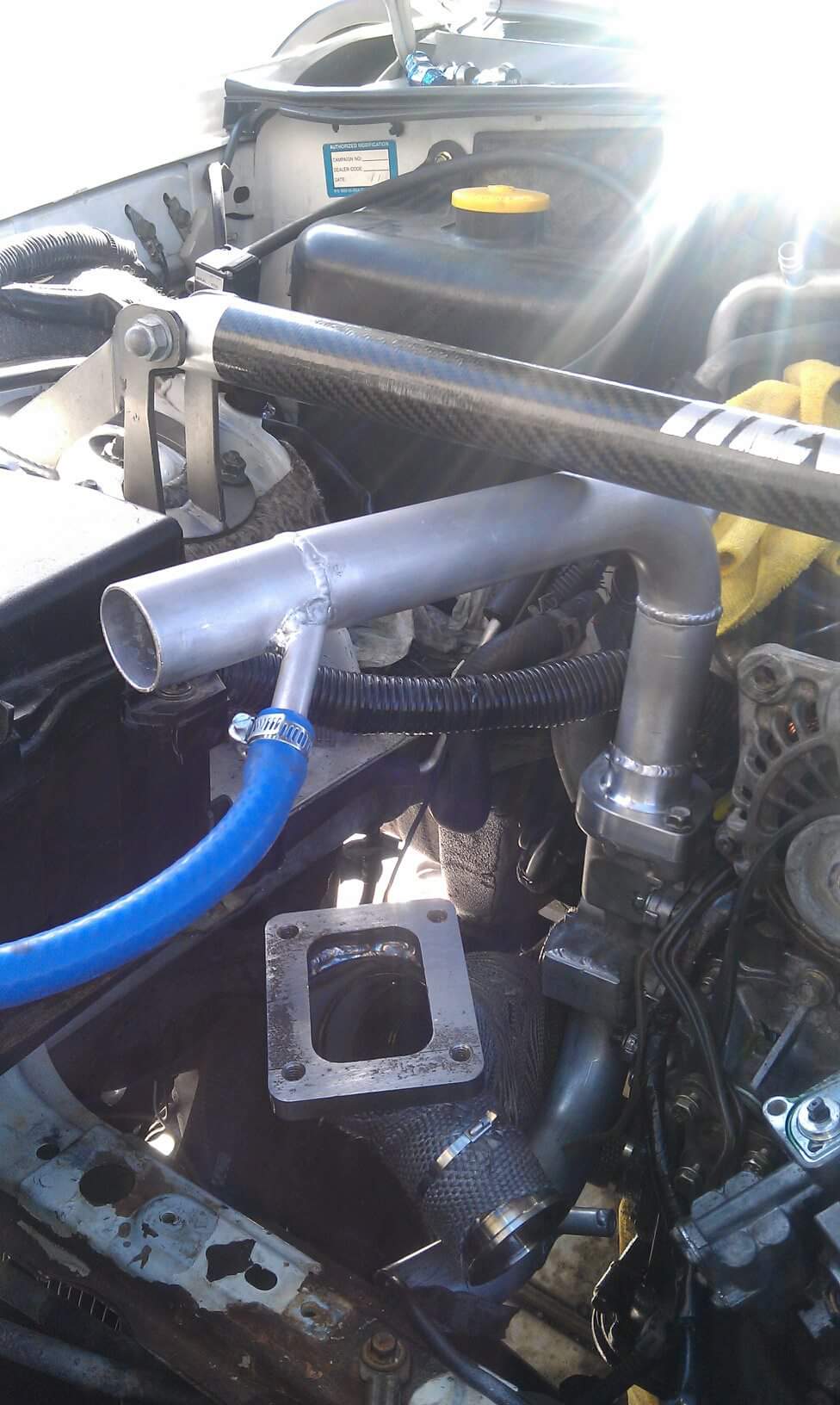

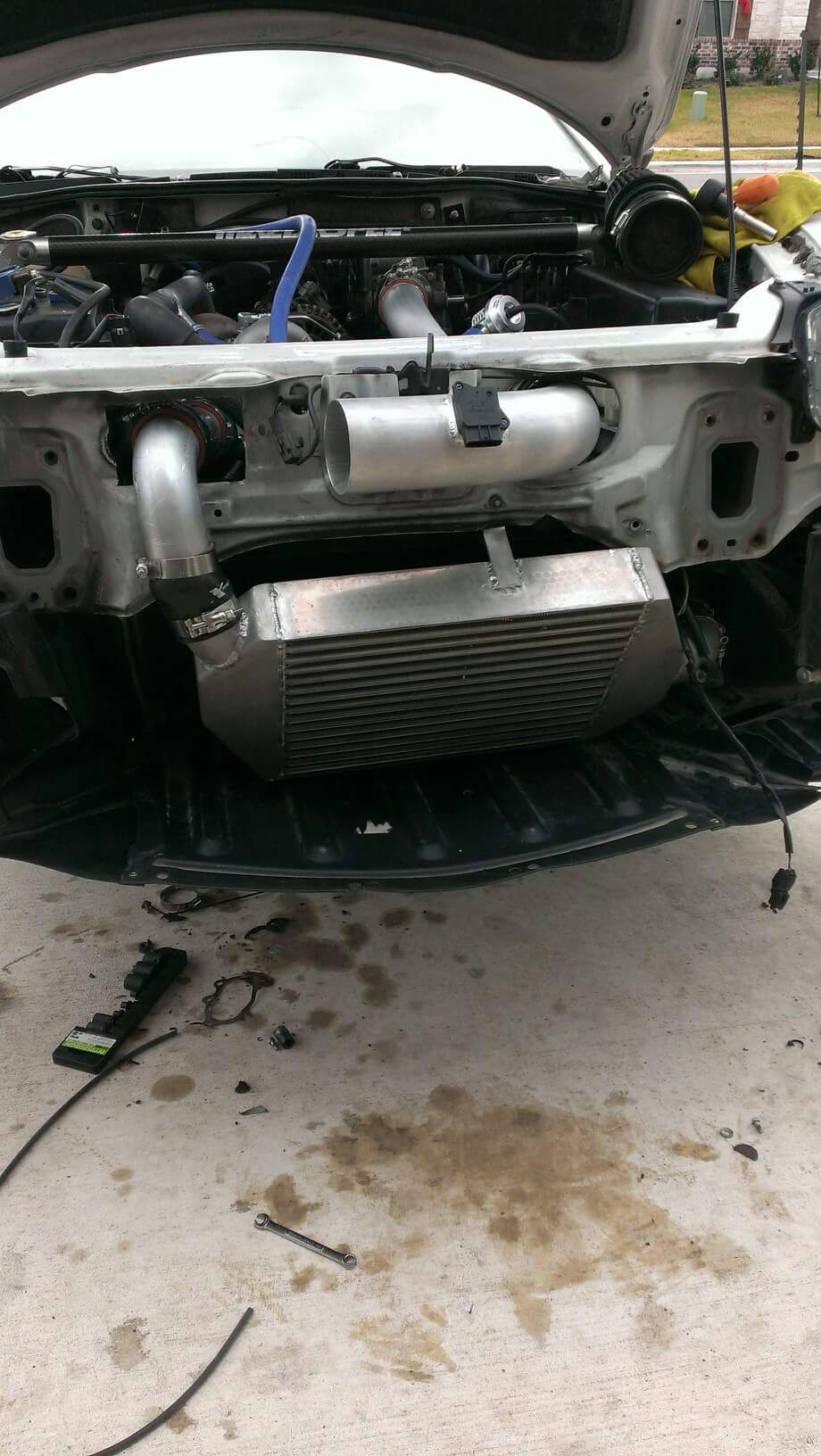

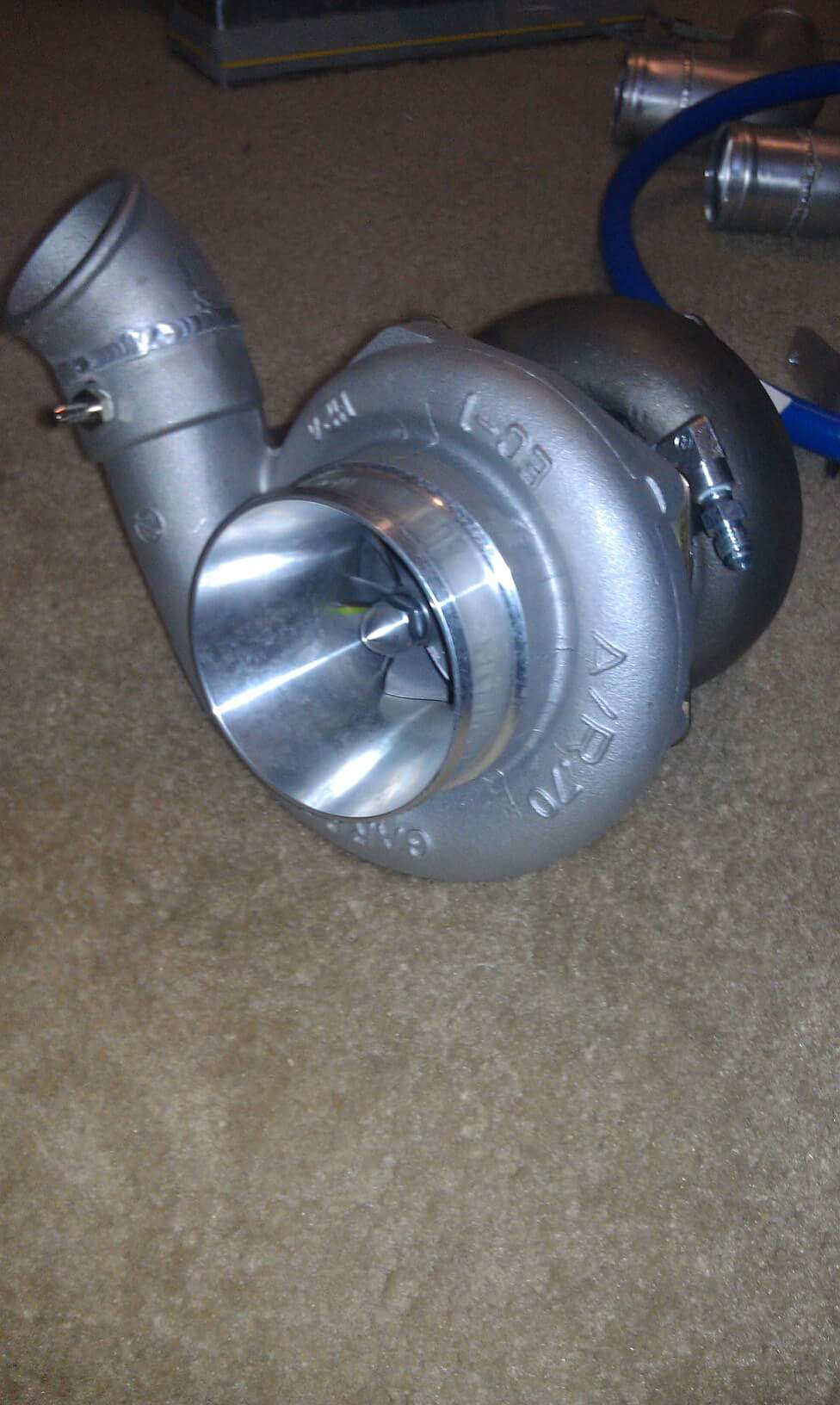

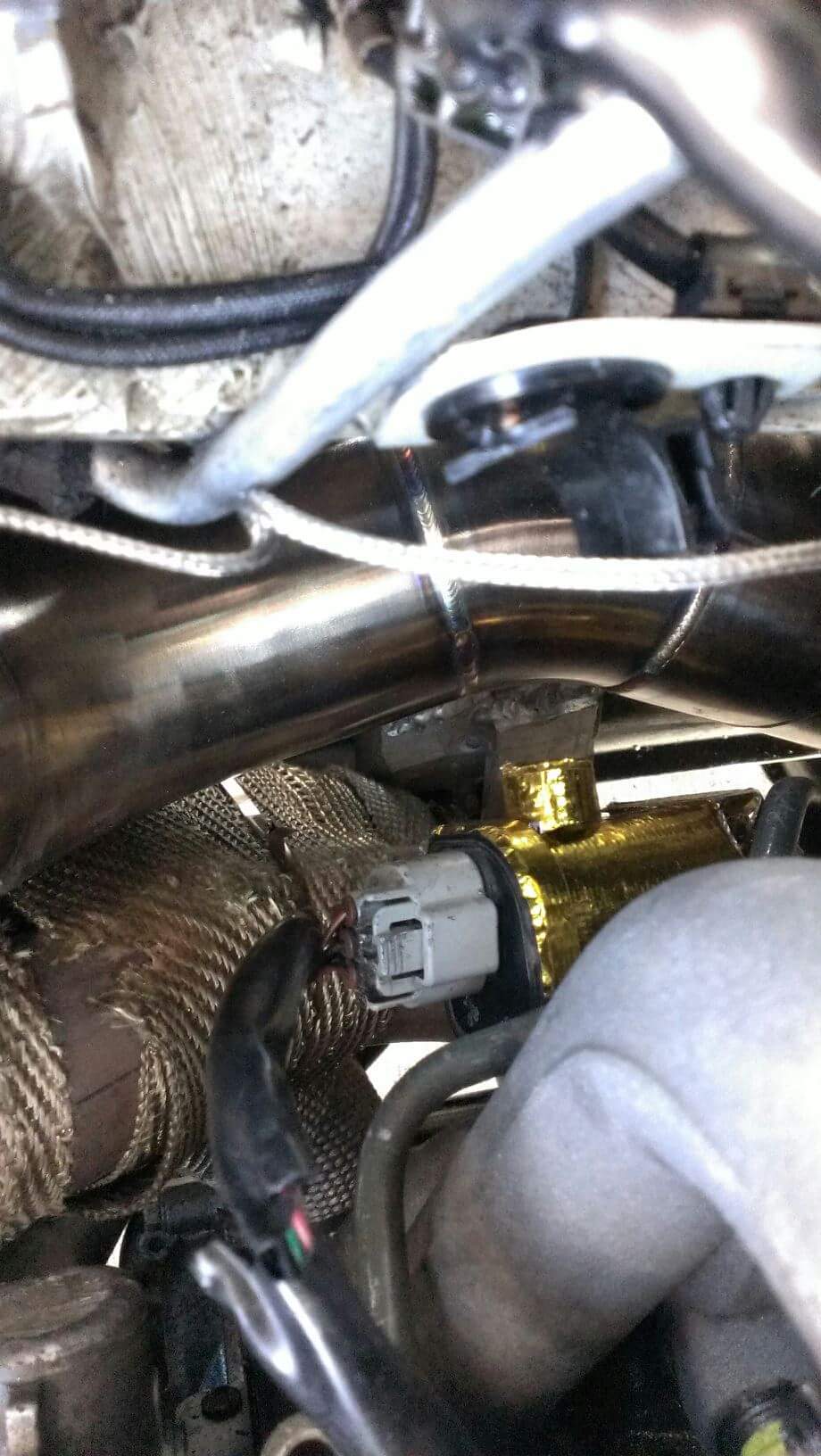

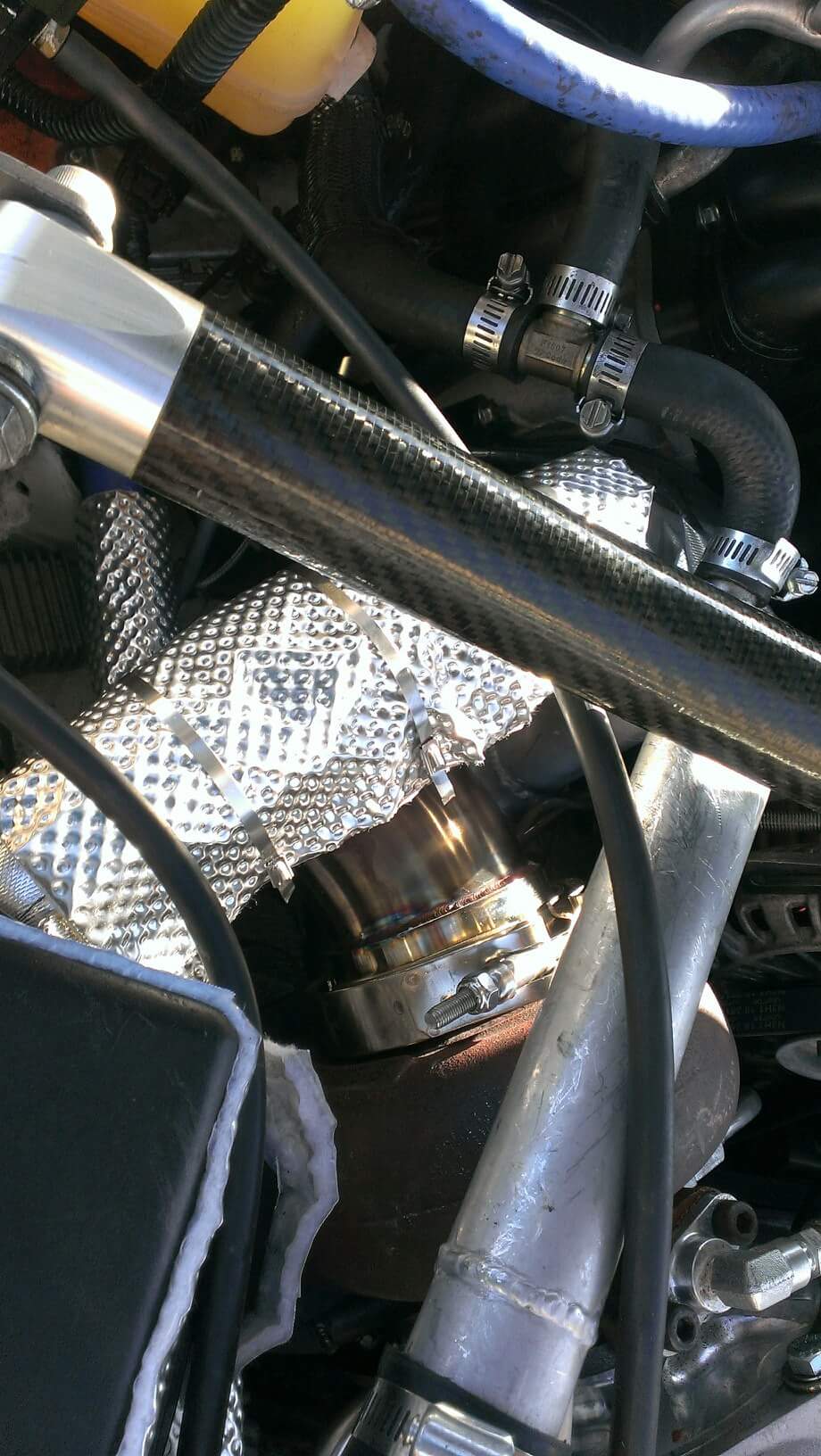

Pics of the turbo kit

Attached Thumbnails

Modified turblown top mount dyno-img_38312509608901.jpeg

Modified turblown top mount dyno-img_38298621760157.jpeg

Modified turblown top mount dyno-img_38319629220305.jpeg

Modified turblown top mount dyno-img_38364337096330.jpeg

Modified turblown top mount dyno-img_38356110834249.jpeg

Modified turblown top mount dyno-img_38369839420546.jpeg

Modified turblown top mount dyno-img_38383301487312.jpeg

Modified turblown top mount dyno-img_38376656470231.jpeg

Modified turblown top mount dyno-img_38403401770013.jpeg

Modified turblown top mount dyno-img_38325319994834.jpeg

Oct 21, 2015 | 08:37 AM

#14

yomomspimp06

El Jefe

Joined: Mar 2007

Posts: 1,833

Likes: 7

I can't believe you were out of fuel. Stock primaries?

Oct 21, 2015 | 08:46 AM

#15

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

YEAH STOCK REDS, and uncapped p2's.

Oct 21, 2015 | 09:57 AM

#16

9krpmrx8

SARX Legend

iTrader: (46)

Joined: Jan 2007

Posts: 33,788

Likes: 462

From: San Antonio, Texas

Yeah it will be interesting to see what Hoss-05 makes on the dyno with the larger injectors installed since you have similar turbos.

Oct 21, 2015 | 10:38 AM

#17

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

When is his car going to be done?

Oct 21, 2015 | 12:10 PM

#18

hoss -05

Lucky #33

iTrader: (4)

Joined: Feb 2009

Posts: 2,851

Likes: 5

From: San Antonio, SARX Garage

I'll be done when i feel like it.

After seeing your fueling issues I need to redo my fuel plan a bit. I'll have primary reds p2 1000cc units from five0 and blues in aux. Are your aux injectors un-capped as well?

Oct 21, 2015 | 12:15 PM

#19

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

Quote:

Originally Posted by hoss -05

I'll be done when i feel like it.

After seeing your fueling issues I need to redo my fuel plan a bit. I'll have primary reds p2 1000cc units from five0 and blues in aux. Are your aux injectors un-capped as well?

NO, I only have uncapped p2's everything else is stock.

Oct 21, 2015 | 12:19 PM

#20

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

gonna replace the reds with the auto blues. Let me know how you like those Five 0 injectors.

Oct 21, 2015 | 02:42 PM

#21

Brettus

Boosted Kiwi

iTrader: (2)

Joined: Apr 2006

Posts: 20,853

Likes: 1,806

From: Y-cat-o NZ

If you are going to fit aftermarket injectors ........... fit the same ones in P2 AND sec positions so the latency tables can be adjusted correctly .
Personally ........... I prefer using the stock Denso injectors as the latency info is reliable and I know they work properly .
I currently run yellow/blue /uncapped yellow and they have been good for 400whp .................

Last edited by Brettus; Oct 21, 2015 at 03:00 PM.

Oct 21, 2015 | 02:43 PM

#22

9krpmrx8

SARX Legend

iTrader: (46)

Joined: Jan 2007

Posts: 33,788

Likes: 462

From: San Antonio, Texas

Quote:

Originally Posted by 05rx8mazda

NO, I only have uncapped p2's everything else is stock.

OHHHHHHHH, man I thought you were running uncapped yellows in P2 and aux. I misunderstood you, no wonder you ran out of fuel.

Oct 21, 2015 | 02:43 PM

#23

Brettus

Boosted Kiwi

iTrader: (2)

Joined: Apr 2006

Posts: 20,853

Likes: 1,806

From: Y-cat-o NZ

Are you running RX7 depth Apexs ?

Last edited by Brettus; Oct 21, 2015 at 02:46 PM.

Oct 21, 2015 | 02:48 PM

#24

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

Quote:

Originally Posted by Brettus

Are you running RX7 depth Apexs ?

NO SIR, they are standard rx8 depth.

Oct 21, 2015 | 02:50 PM

#25

05rx8mazda

Thread Starter

B.I.G

iTrader: (4)

Joined: Aug 2007

Posts: 1,401

Likes: 1

From: AT---EIL

Quote:

Originally Posted by 9krpmrx8

OHHHHHHHH, man I thought you were running uncapped yellows in P2 and aux. I misunderstood you, no wonder you ran out of fuel.

yeh, gonna swap the reds for blues, and send all 4 yellows to get cleaned. along with uncapping the other two yellows that are stock. should yield me some more fuel wiggle room.
