Old 11-13-2015, 03:16 AM   #51
Registered

Join Date: Oct 2015
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by logalinipoo View Post
I'd guess it's a plug fir the screen maybe you pulled a wire from inside a plug if you pulled the radio hard.

Just a side note. If you pull the vents above the radio you have much better access to the back of the radio and plus. You don't have to pull on the wires.
Thanks, i already pull out everything and check every wire and plug and everything looks good. But still not working
Update:
The panel still dont working but, if i pull out the cd and return the sound working and the control from the srearing wheel as well

Last edited by idanav; 11-13-2015 at 04:16 AM.
idanav is offline   Reply With Quote
Old 11-15-2015, 10:40 AM   #52
New Member

Join Date: Oct 2015
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
Aux cable from eBay

I got it from my birthday and after installing it, nothing happens!!!!!! I pressed cd, I pressed tape/md, I unplugged and replugged it back in and nothing is happening
joseayala9 is offline   Reply With Quote
Old 11-15-2015, 01:04 PM   #53
weeeeeeeeee
iTrader: (11)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,110
Thanks: 0
Thanked 1 Time in 1 Post
if you have 9.55 firmware you should just buy my grom

https://www.rx8club.com/rx-8-parts-s...on-kit-260598/
ShellDude is offline   Reply With Quote
Old 11-15-2015, 02:02 PM   #54
New Member

Join Date: Oct 2015
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
Aux cord

I assumed it would work, and i plugged it in and nothing happened. No aux setting on any button on the radio, so ill just spend the money buying a good one instead of going off ebay to have it shipped from CHINA and wait 2 weeks for nothing..........
joseayala9 is offline   Reply With Quote
Old 12-01-2015, 11:43 AM   #55
Rex8

Join Date: Sep 2015
Location: South africa
Posts: 30
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by logalinipoo View Post
Hey Ivan did you try out that cable yet?
Received cable, plugged it in, works.. The USB is not picking up thou.. Put in 16gig and it won't read?. Read somewhere that must use 4gig
Ivan2terrible is offline   Reply With Quote
Old 12-01-2015, 09:22 PM   #56
Registered

kickerfox's Avatar

Join Date: Dec 2012
Location: Illinois
Posts: 707
Thanks: 0
Thanked 1 Time in 1 Post
Read the instructions. Some of those adaptors want a paticular file size/layout.
kickerfox is offline   Reply With Quote
Old 01-20-2016, 01:18 PM   #57
New Member

Join Date: Jan 2016
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Where to buy?

Hello, I was just wondering what the cable is called and where I can buy it from?
James Ball is offline   Reply With Quote
Old 01-20-2016, 01:43 PM   #58
New Member

Join Date: Oct 2015
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
cable

Quote:
Originally Posted by James Ball View Post
Hello, I was just wondering what the cable is called and where I can buy it from?
dont ever buy it. It doesnt work. it was a waste of money. i got it on ebay and it was the worse mistake of my life, now my cd player wont work
joseayala9 is offline   Reply With Quote
Old 01-20-2016, 01:46 PM   #59
New Member

Join Date: Jan 2016
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Oh okay, thanks for that. I am new to the RX8 club.
James Ball is offline   Reply With Quote
Old 03-01-2016, 09:02 PM   #60
New Member

Join Date: Oct 2015
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
which cable did you get
joseayala9 is offline   Reply With Quote
Old 03-13-2016, 02:23 PM   #61
New Member

Join Date: Feb 2016
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by UHATEIT View Post
I wanted to get that one above since it has a USB for charging at the same time. But it will not work with the Firmware versions under 9.55 like mine which is 9.50.

I went with this unit:

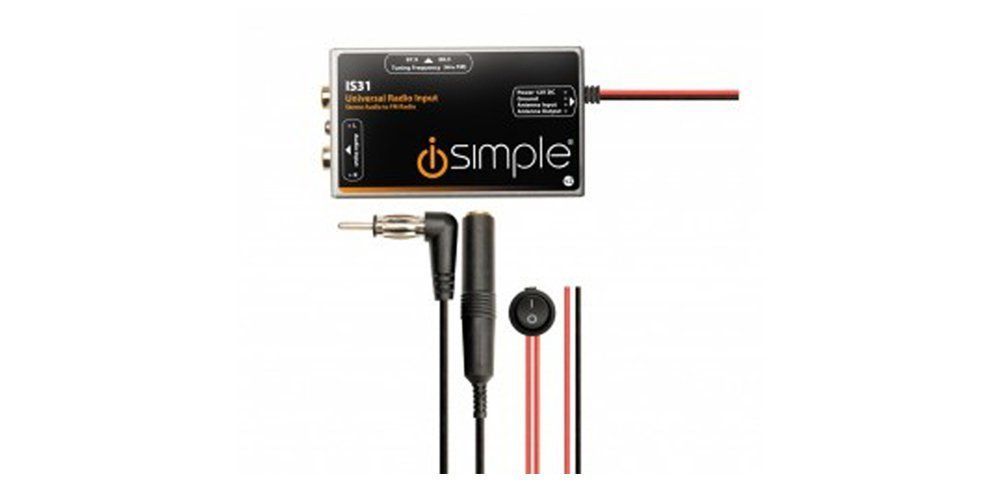

The iSimple IS31 was $24 and creates a set of RCA outputs, so you just have to get any RCA to >>> whatever adapter you want. So for $2.50 I bought a RCA to 3.5mm male plug that was 6 feet long. it runs off of the antenna port and comes with a switch to swap from antenna/radio to this unit. There is no static on this and I just plug my cell phone in whenever I want since I can control the equilizer from there and it has a shuffle mode
Hey I have the same firmware as you and I'm installing my iSimple kit right now... What wires did you splice the 12v ignition wire to? I'm assuming you spliced the ground to the black wire, but if not what did you connect it to? Thanks!
jakealva12 is offline   Reply With Quote
Old 03-13-2016, 10:27 PM   #63
Registered

kickerfox's Avatar

Join Date: Dec 2012
Location: Illinois
Posts: 707
Thanks: 0
Thanked 1 Time in 1 Post
Quote:
Originally Posted by joseayala9 View Post
What file name system does it use? Do you have to name the folders 001 002 ect for the disc skip to work?
kickerfox is offline   Reply With Quote
Old 03-14-2016, 08:42 AM   #64
New Member

Join Date: Oct 2015
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
CD option

once installed, press the CD button and it gives you the EX option.
joseayala9 is offline   Reply With Quote
Old 03-14-2016, 09:37 AM   #65
Registered

kickerfox's Avatar

Join Date: Dec 2012
Location: Illinois
Posts: 707
Thanks: 0
Thanked 1 Time in 1 Post
Quote:
Originally Posted by joseayala9 View Post
once installed, press the CD button and it gives you the EX option.
I know that. I mean what are the file names and directory structure on the USB flash drive to make it work?
kickerfox is offline   Reply With Quote
Old 03-29-2016, 07:41 PM   #66
Registered

Join Date: Nov 2014
Location: Poland
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
Is anybody of you has working that plain aux cable from ebay? I bought it recently, plugged it into radio and i can't get into EX mode..I've got 2006 US spec 6AT RX8
sybreeder is offline   Reply With Quote
Old 03-29-2016, 08:00 PM   #67
New Member

Join Date: Oct 2015
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
version

Before buying it, did you check the version of your radio to see if it was compatible? You press the "text/audio" button and press the number "1" and it should tell you. If the version is old, then the aux cable won't work.
joseayala9 is offline   Reply With Quote
Old 03-29-2016, 08:03 PM   #68
New Member

Join Date: Oct 2015
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
KickerFox: I have the USB option on my aux cable, I believe you press "3" for "RPT" and it should switch it onto the USB but i have not tried it because i always use my iphone for music
joseayala9 is offline   Reply With Quote
Old 08-05-2017, 11:31 PM   #69
New Member

Join Date: Jul 2017
Location: Puerto Rico
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by sybreeder View Post
Is anybody of you has working that plain aux cable from ebay? I bought it recently, plugged it into radio and i can't get into EX mode..I've got 2006 US spec 6AT RX8
You need to follow this instructions: http://www.whatsmyip.org/lib/rx8-aux-ipod-input/?page=end

Then, take the ebay cable and cut off the white connector leaving only 3 wires: red, white and yellow. Solder the yellow cable to the "R" on the radio green card. The white cable to the "L" and the yellow cable to the "G".

Burn a Silence CD (not blank) and load into the cd player. Play that CD and connect tge 3.5mm auxiliary jack (male or female connector) to your phone or iPod and enjoy the music.
Rennsport is offline   Reply With Quote
Old 08-06-2017, 10:10 AM   #70
Registered

Join Date: Nov 2009
Location: Ohio
Posts: 750
Thanked 7 Times in 7 Posts
wannawankel is offline   Reply With Quote
