Rear Fog Light Install
#1
Recovered Modaholic
Thread Starter
Rear Fog Light Install

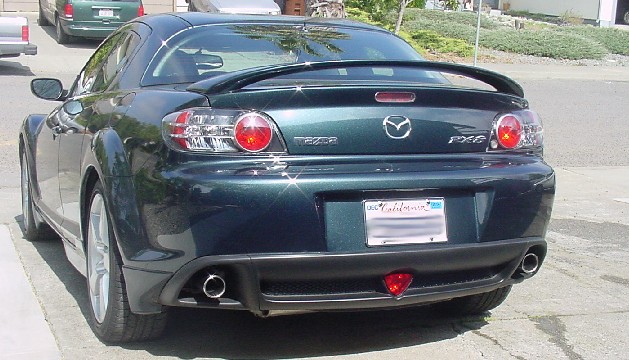

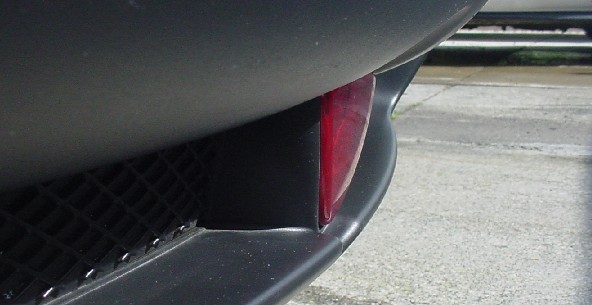

I know this has been done before but here's another rear fog install. I had to lose the rear accent. By the time I cut it down to fit over the Fog Light there was so little left it didn't look right.
#4
RainMan is Back
Join Date: May 2003
Location: SF Bay Area
Posts: 2,650
Likes: 0
Received 0 Likes
on
0 Posts
Looks great dosdog. Maybe another idea is to paint the outside rim with metallic paint, somebody wrote a DIY about making inexpensive rotary accents. I'll try to find that thread.
#5
RainMan is Back
Join Date: May 2003
Location: SF Bay Area
Posts: 2,650
Likes: 0
Received 0 Likes
on
0 Posts
Found these links on paiting accents:
https://www.rx8club.com/showthread.p...threadid=12722
https://www.rx8club.com/showthread.p...rotary+accents
https://www.rx8club.com/showthread.p...threadid=12722
https://www.rx8club.com/showthread.p...rotary+accents
#8
Registered
Join Date: Jul 2003
Location: Mississauga, Ontario, Canada
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Looks nice! Did you install it yourself or did you have it done? Is it the full rear fog kit or did you just install the light? Are you using it as a rear fog or have you got it hooked up to your running lights or brake light?
I've got the just the light housing and the switch sitting in a box waiting until the nice weather comes. Still looking for the proper connectors though for both pieces. Can anyone help?
I've got the just the light housing and the switch sitting in a box waiting until the nice weather comes. Still looking for the proper connectors though for both pieces. Can anyone help?
#9
Recovered Modaholic
Thread Starter
Broose,
Yes, I installed it myself with my handy dremel. It's the whole kit but I haven't installed the wiring yet. That's this weekend's project. It will operate only as fog light. I have a schematic in the instructions which includes the relays and cpu that come with the kit. I'll scan it and post just in case it will help.
Yes, I installed it myself with my handy dremel. It's the whole kit but I haven't installed the wiring yet. That's this weekend's project. It will operate only as fog light. I have a schematic in the instructions which includes the relays and cpu that come with the kit. I'll scan it and post just in case it will help.
#13
Lubricious
Join Date: Oct 2003
Location: SF Bay Area, California
Posts: 3,425
Likes: 0
Received 4 Likes
on
4 Posts
DosDog, here's a .gif with the connectors you were asking about. Also I ran across another thread by Omicron which you might find useful; his installation was fairly complex, with a homebrew pulse-width modulation device but did have some connector info and pics.
Hope this helps
Hope this helps
#14
Stuck in a love triangle

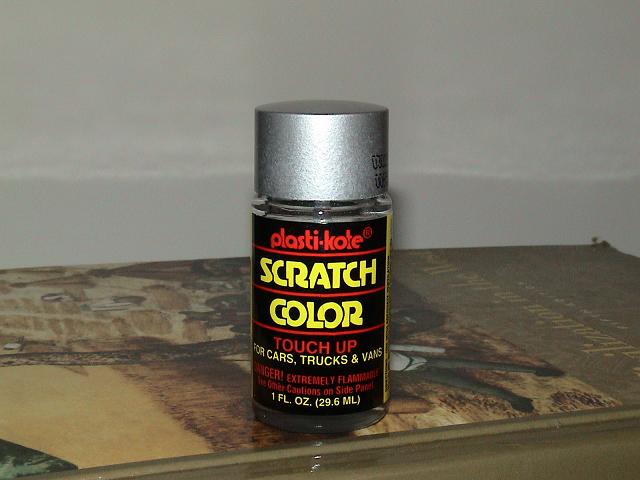

The plastikote will do thetrick since its touch up paintand it has its own little nail polish brush w/the tube. But the paint I used was a little brighter than the plastikote touch up. RX-8 2004 recommended it after he did his mesh -- Testors Silver Enamel paint and I bought a #4 brush. If youare going to paint around there I thinkyou should also tape up the bottom of the bumper otherwise you may have to use black paint to cover up silver spots of paint that may accidently driponto the bottom of the bumper as you are painting the mesh or symbol. I agree w/BrotherVoodoo the rear fog mightlook better w/the accent painted or maybe even the mesh. Also I reallylike how the fog light lookson your green Rx8.
#15
Registered
Join Date: Jul 2003
Location: Mississauga, Ontario, Canada
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Thanks Nubo for posting the wiring diagram. What I was referring to when I asked if anyone could help me out with connectors, I mean the physical harnesses that will match up with my dash switch and the rear fog light housing. I didn't buy the whole kit as I didn't want to install it that way. But now I need connectors for both the switch and light so I can begin installing it.
If anyone can help out please let me know. Or, if someone has the whole kit and hasn't installed it yet, could they post a detailed picture of the connector that hooks into the light housing and the dash switch (and/or a picture of the the switch and light ports). Maybe if people knew what it was, they may know of a common Mazda part that might fit. Thanks in advance.
If anyone can help out please let me know. Or, if someone has the whole kit and hasn't installed it yet, could they post a detailed picture of the connector that hooks into the light housing and the dash switch (and/or a picture of the the switch and light ports). Maybe if people knew what it was, they may know of a common Mazda part that might fit. Thanks in advance.
#16
Recovered Modaholic
Thread Starter
I finished the wiring on the rear fog light. As it turns out the wiring in the kit does not exactly fit US spec 8s. DSC, keyless and fog light connections are fine but the connections to the cluster switch are totally reversed. Thankfully there are only 2 wires in this plug that actaully connect to the 8 (Yellow/Red & Light Green/Black). So two spices and it was done. There is also a connection to the speedo cluster that I assume is for an indicator but I stongly suspect the US speedo assy does not support this feature. I'll convert this to an LED at some point in the future. With the CPU and relays installed the rear light will only come on if the front fogs and headlights are on. If either is turned off the rear fog goes off. When they are turned back on you must push the rear fog button to turn it back on.
Something to consider if you are not getting the whole kit and want to use the OEM rear fog switch - This switch is not the on/ off type. It is only on when you are pushing it. Therefore if you're thinking of wiring it straight to the fog light you may get tired of driving with your finger on the button
All in all this wasn't a bad install. If anyone is interested I put together a "things I wish I had known" list for anyone else interested in installing the rear fog with OEM wiring.
Something to consider if you are not getting the whole kit and want to use the OEM rear fog switch - This switch is not the on/ off type. It is only on when you are pushing it. Therefore if you're thinking of wiring it straight to the fog light you may get tired of driving with your finger on the button
All in all this wasn't a bad install. If anyone is interested I put together a "things I wish I had known" list for anyone else interested in installing the rear fog with OEM wiring.
Last edited by TheDosDog; 04-04-2004 at 06:12 PM.
#17
Recovered Modaholic
Thread Starter
Splicing in the OEM JDM rear fog harness yeilded an interesting result. The front fog lights come on with the marker lights when the fog light switch is the "off" position. Turn it "on" and the fogs will come on with the low beams (normal). I'm sure this is not the intended functionality but it allows me to use the fog lights, front and rear, with or without the xenons. Cool
#18
Registered
Join Date: Jul 2003
Location: Mississauga, Ontario, Canada
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Something to consider if you are not getting the whole kit and want to use the OEM rear fog switch - This switch is not the on/ off type. It is only on when you are pushing it. Therefore if you're thinking of wiring it straight to the fog light you may get tired of driving with your finger on the button
#20
New Member
It is a pain to wire them... I read through them and although I know Japanese, I gave it to my dealer to fix it, 6 hours and A$200 later it works perfectly. They have to take the side plastic, rear seat and rear side carpet and rear bumper off...
I admire that you can do it yourself
It is what I have taken
https://www.rx8club.com/showthread.p...threadid=15016
I admire that you can do it yourself
It is what I have taken
https://www.rx8club.com/showthread.p...threadid=15016
#21
Recovered Modaholic
Thread Starter
Rear Fog Indicator Mod
The OEM Rear fog kit has a red wire that goes to the cluster in order to illuminate an indicator that informs you when the rear fog light is on. Unfortunately the US spec instrument cluster does not have this indicator. If you have installed this kit you realize the need for one. I recently installed the illuminated shift **** and subsequently realized a solution. I wired the indicator lead to the shift **** illumination. It was too bright for my taste any way. Now when the rear fog light is on the shift **** glow bright.
Last edited by TheDosDog; 08-22-2004 at 01:38 PM.
#22
RainMan is Back
Join Date: May 2003
Location: SF Bay Area
Posts: 2,650
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by TheDosDog
I wired the indicator lead to the shift **** illumination. It was too bright for my taste any way. Now when the rear fog light is on the shift **** glow bright.
Last edited by brothervoodoo; 08-18-2004 at 07:48 PM.
