PICS of padded arm rest console ;) $0.05 fix!
08-30-2009, 02:39 PM
#1
Registered User
Thread Starter
iTrader: (1)
Join Date: Jun 2009
Location: near the Twin Cities
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts

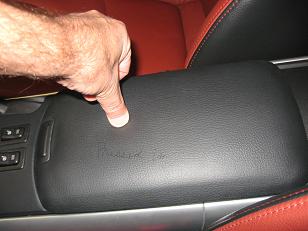

PICS of padded arm rest console ;) $0.05 fix!
Padded cover has the ribbed sill sealer material, found at any building supply or visit a new house construction site because they throw out tons of this stuff after framing the walls to the foundation.
The padding foam can be cut to within a half inch of the underside plastic cover, slide it in by leaving the cover's front edge(latch side) attached.
The padding foam can be cut to within a half inch of the underside plastic cover, slide it in by leaving the cover's front edge(latch side) attached.
08-30-2009, 05:17 PM
#6
Clemson, NOT Auburn
Join Date: Jun 2004
Location: Greenville, SC
Posts: 565
Likes: 0
Received 0 Likes
on
0 Posts
Just swung by Lowes, didn't make the purchase because I don't need 50' of the stuff, which was all they had. Looks like I may be hitting up some construction sites. I hope to get this done within the next couple days though.
08-30-2009, 06:01 PM
#7
Registered User
Thread Starter
iTrader: (1)
Join Date: Jun 2009
Location: near the Twin Cities
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
TIP: If you don't want any sign of the padding to show from beneath, as in a step-off edge, then I'd cut the foam to go within a 1/4" of the front latch side edge and trim the sides of the padding to be an inch from the edges. This will allow for the stretched fabric over it and shouldn't leave any sign of the padding's edge.
Also, be sure the RIBBED side of the foam is facing down against the oem plastic backing piece.
I wonder if all model years have the same attachment design for this cover?
I haven't done the rear console because I have no clue how to remove that cover yet..suggestions on that welcome
08-30-2009, 06:04 PM
#8
Registered User
Thread Starter
iTrader: (1)
Join Date: Jun 2009
Location: near the Twin Cities
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Yes, if you remove the OEM cover on only_ the sides and back, then you can still slide in the piece of the white styrofoam type sill sealer material. Place the ribbed side of the foam face down against the cover's base plate, this way the smooth side of the foam pading will be against the underside of the OEM vinyl cover. Think of it as sliding your hand into a glove, your hand is the foam piece you cut to fit with rounded edges on all corners.
08-31-2009, 10:20 AM
#12
When I drive back from running or cycling I'm quite sweaty and dust accumulation occurs from the dirt trails, so I rather just keep my right arm on the steering wheel or shifter.
08-31-2009, 08:46 PM
#14
Registered User
Join Date: Mar 2008
Location: Saratoga, NY
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Hey - Think I might do this. But I have a problem where the latch on the front of the armrest has broken. Any idea where to get a fix or replacement (other than the dealer)??
09-01-2009, 08:31 AM
#20
Registered User
Thread Starter
iTrader: (1)
Join Date: Jun 2009
Location: near the Twin Cities
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Yup. Use the sill sealer material or something that won't absorb moisture. It shouldn't be more than a 1/8" thick so the oem cover can stretch over it. Keep the edge of the padding back a good 1/2" or more from the latch side so it doesn't force the oem cover to pull away from the glued down edging.
