Help please: QuBit HiFi Mute
Just got my QuBit HiFi Mute set for Bose from ProClips today. The instructions leave much to be desired, and there is absolutely nothing on the Bose specific harness.
I think I have most everything worked out, but I'm wondering about a couple of dangling yellow leads, associated with the mute function.
All in all there are three mute wires. Two are on the hands-free connector that goes to the phone kit, labeled "Mute out" and "Mute in". The third comes directly out of the Bose head unit harness. I used another thread here that has the head unit connector pin-outs to determine that it was connected to the "mute" pin on the that connector.
My question is: What do I do with the two extra mute leads, the one described as "Mute out" on the H-F connector, and the lead spliced directly to the mute pin on the head-unit harness. Has anyone out there installed this unit? I searched the threads but found nothing specific to actual installation.

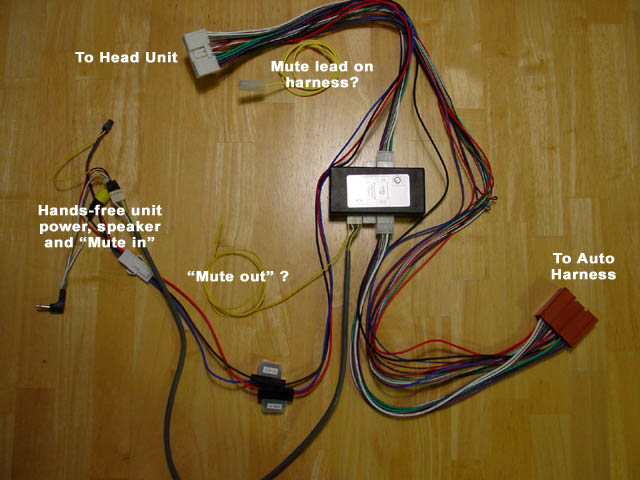

Here's a picture for all who's interested.
I think I have most everything worked out, but I'm wondering about a couple of dangling yellow leads, associated with the mute function.
All in all there are three mute wires. Two are on the hands-free connector that goes to the phone kit, labeled "Mute out" and "Mute in". The third comes directly out of the Bose head unit harness. I used another thread here that has the head unit connector pin-outs to determine that it was connected to the "mute" pin on the that connector.
My question is: What do I do with the two extra mute leads, the one described as "Mute out" on the H-F connector, and the lead spliced directly to the mute pin on the head-unit harness. Has anyone out there installed this unit? I searched the threads but found nothing specific to actual installation.
Here's a picture for all who's interested.
#2
Not sure if this will help, but this tread talks about the same unit you have....
https://www.rx8club.com/series-i-interior-audio-electronics-24/hands-free-speaking-system-installation-build-car-radio-36891/
P.S. much better mute button you have now....
https://www.rx8club.com/series-i-interior-audio-electronics-24/hands-free-speaking-system-installation-build-car-radio-36891/
P.S. much better mute button you have now....
#3
Nerd with a gun...
Thread Starter
Join Date: Jan 2005
Location: Piedmont-Triad, North Carolina
Posts: 70
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by modena
Not sure if this will help, but this tread talks about the same unit you have....
https://www.rx8club.com/showthread.php?t=36891
P.S. much better mute button you have now....
https://www.rx8club.com/showthread.php?t=36891
P.S. much better mute button you have now....
#4
Registered User
Join Date: Sep 2004
Location: Austin, TX
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by datasmith
My question is: What do I do with the two extra mute leads, the one described as "Mute out" on the H-F connector, and the lead spliced directly to the mute pin on the head-unit harness. Has anyone out there installed this unit? I searched the threads but found nothing specific to actual installation.
I ended up just leaving that line and the other one unconnected. The radio mutes, but the display doesn't show "mute". I didn't find that to be enough of an issue to worry about.
