KuzuRyuuSen

Does anyone know the type of bulb in the ash tray and dome light bulb? Thanks.

jstkilntim

Check here.

KuzuRyuuSen

no information about ash tray light.

btw, is DE3175 the same as 3022 for dome light?

Wing5

[Bumpity]
Been lookin for this info as well, anyone?

ElPaco13

yes

here is a conversion chart...

d j

...it's a 194 bulb for the ash tray light

RotorMotor

^ +1 Just removed mine (removed, not replaced). It's a 194....

Wing5

How'd you go about doing that? sorry for all the questions, just got my 8. I couldnt figure out how to remove the red film in the removeable tray so I wanna just take out the light

RotorMotor

I took the console apart to install some accent LEDs and removed it at that time. It's relavtively easy. Remove the shift ****. Pop top the top of the console off with a electrical tape-wrapped screwdriver. Remove the two screws holding the ashtray in and voila, you've got access to it all. I don't think you can get to the bulb without tearing the console down.

There are lots of instructions around here. Any instructions related to the stereo (aux-in, iPod adapter, etc.) will tell you how to take the console apart.

huhsler

Is the bulb different in the 2004 RX-8? I just bought a set of 194s from Advance Auto (It says 194 bulbs right on the package) and after removing my ashtray bulb, the end connector on the OEM bulb is about half the width (versus thickness) of my replacements.

I will post pictures if I can, but I can't fit my replacement bulbs in that connector at all. Any ideas?

I looked at the bulbs that Advance Auto sells and didn't see one that looks like it would fit. It looks like the same bulb that lights up the shift panel.

I'm currently supporting OIF and am nowhere near my good mechanics, so no one here has a clue.

Help!

huhsler

Btw, please e-mail me if you have a solution. I can't check this site on government computers, so I need to do it on my painfully slow connection at my hooch. Thanks all!

huhsler

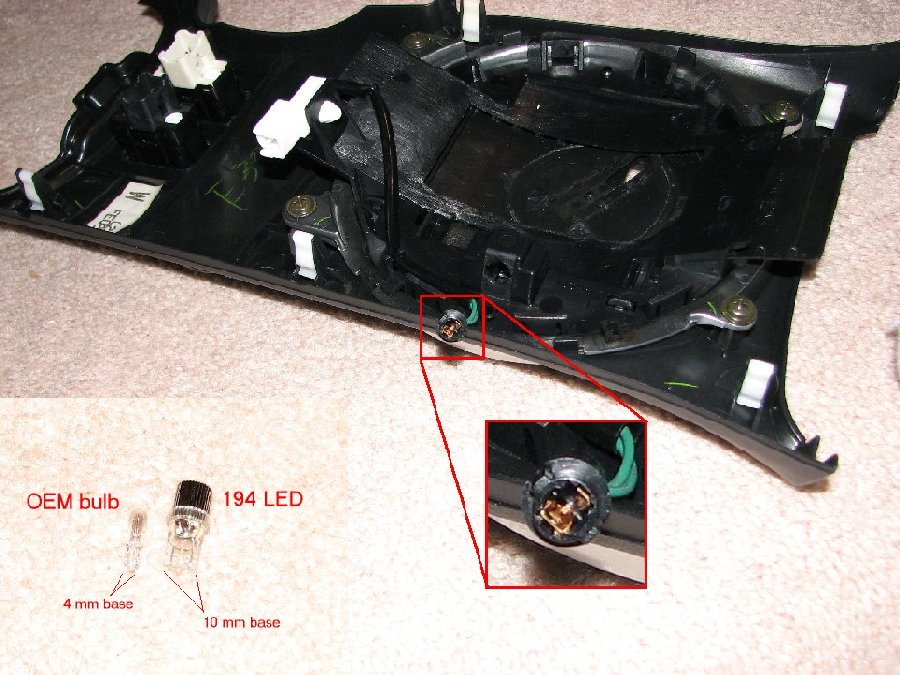

Here's a pic attachment. Any help is appreciated. Thanks.

P.S. Holy mac and cheese, the original 200K attempt and current 143K file uploads took about 40 minutes! - H

Diaggello

I used Sylvania 74LL.BP2. Found it at Advanced Auto Parts for $4.99 for a 2-pack.
