Hey guys,

After getting tired of the lack of bottom end in my Bose equipped RX8, I took the plunge and went for a real solution.


Before my rx8, I had a grand cherokee...before that I had an eclipse (third gen)...and before that I had an older eclipse (first gen)...all of these vehicles share the cabin's airspace with the trunk. I've never had a system with less than 2 12" subs, but I really didn't want to take up that much room in my car.


Knowing that the rx8's electrical system was a bit weak lead me to go with a class D mono amp and one 10" sub (to save trunk space). I'm 27 now, so impressing people is no longer a goal. I'm only interested in how it sounds to me inside the car. I was pretty nervous because I've never had a system this small.


Crutchfield was running a special on the Alpine MRP-M450 amp so I decided to jump on the deal. ($150)


After getting the amp, I started subwoofer shopping. The M450 does 400 watts rms x 1 @ 2ohm, so I needed a 2 ohm sub that could handle somewhere around 400 watts.


I shopped and read reviews for quite a while and decided on the Infinity Kappa 104.7w subwoofer.($180)


It has a switch that changes the series/parallel wiring without having to wire the voice coils. It is rated for 50-350 watts RMS (1400 watts peak power), so I felt it was a good match.


It has a top mounting depth of 4-13/16", so I knew it would go well in a shallow box too. The sub recommends 0.53-0.98 cu. ft. of airspace for a sealed box, so that also fit the bill.


For the power, I bought a Rockford Fosgate 8 ga amp wiring kit from best buy. ($40)
I'm using a Navone Engineering LOC with the signal tapped after the bose amp. ($15)
I tapped the remote wire at the rear power receptacle.


I built my own box out of 3/4" MDF from Lowes and carpeted it with black automotive carpet from wal-mart.
The box's dimensions are 24" wide x 8" deep x 13" high.


This gives the box 0.97 cu ft of air without the sub.
I had to make the subwoofer box 24" wide to mount the amp next to the sub. I wanted the height to be 13" because I wanted it to fit snugly up against the metal support bar on the rear deck. The only real dimension I could alter was the depth, which needed to stay around 8" for it to be stable (don't want it tilting backward!).


box materials - wood glue, silicone, caulk gun, 2" drywall screws, panhead sheet metal screws, scrapers, wood filler, carpet, etc.

Total cost of box materials $70.



Now to the build photos..........

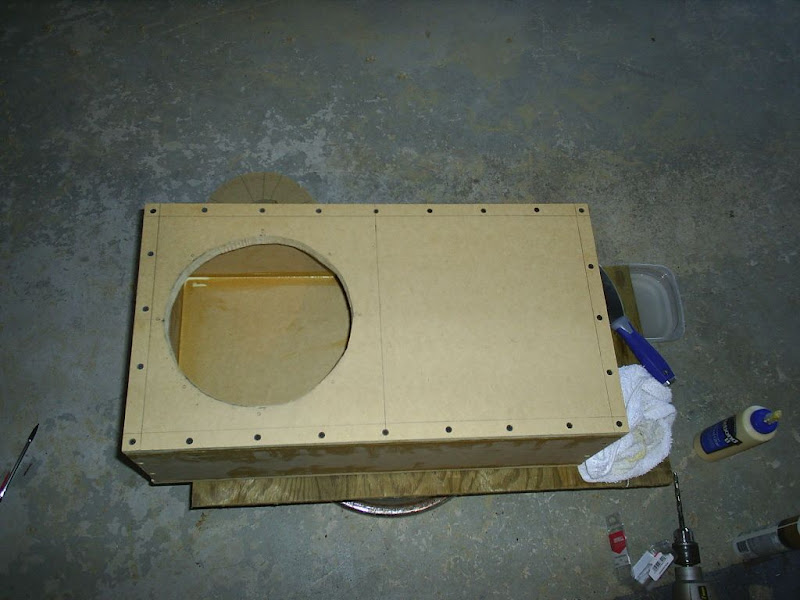

Yes - I need a rotozip




Luckily my jigsaw did fine.

I recruited the help of my wife to hold some of the pieces while I pre-drilled, countersunk, glued, and screwed the pieces together.










After hooking up the system in the car, I could tell that my fears weren't needed. This 1 10" sub is exactly what I needed to fill out the sound in my car. It can do way more than fill the lows if I want it to. It gets very loud inside the car, but not outside of the car. That's fine by me.

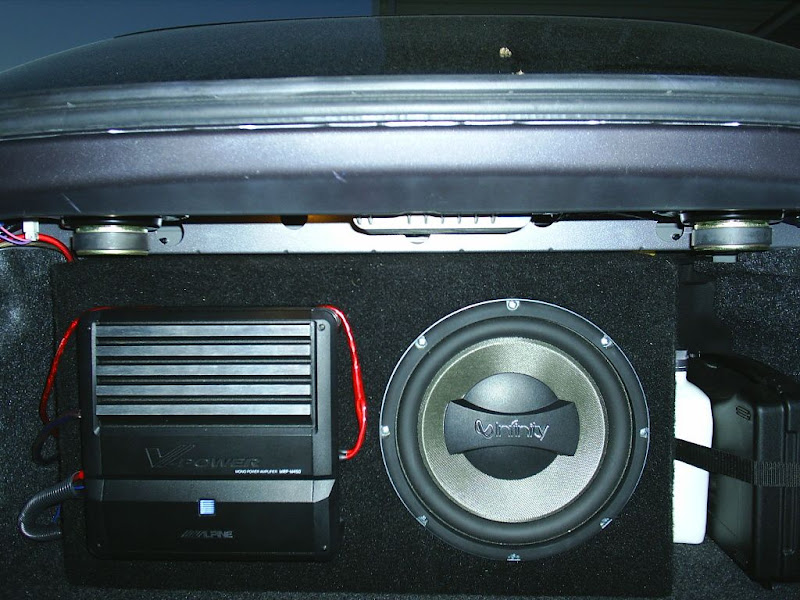

Here are some shots after carpeting the box. I may try and clean up the wiring some more too.

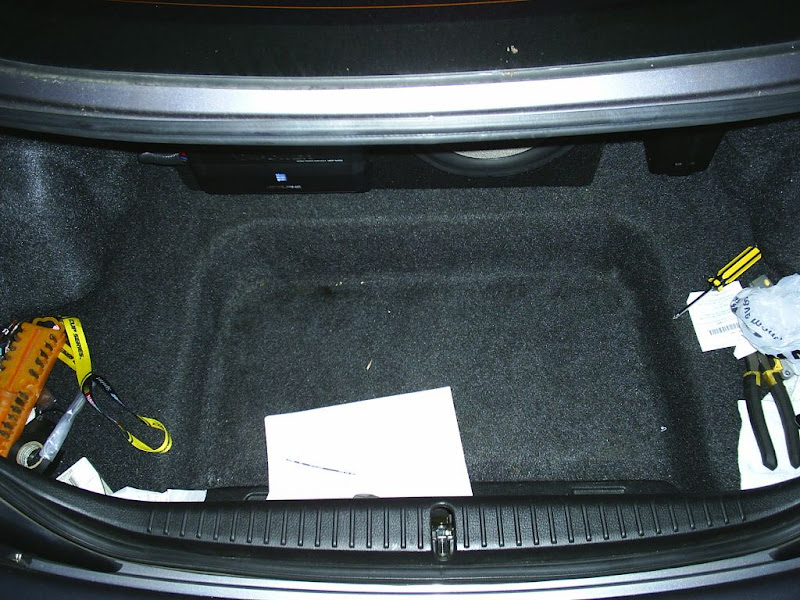

I still have lots of trunkspace left too.








amp $150
loc $15
wiring $40
sub $180
box $70
8 ga pwr/gnd terminals $10 - 5 pack from circuit city

total cost $465

The sub is a great match for the amp and it bumps pretty hard. I am very pleased with how it turned out (this is the first time I've built my own sub box too).



What do you guys think? If you have any questions, just ask.
