gregs

iTrader: (7)

looking to mount and install my emanage ultimate i want to run the ultimate in the glove box, my question is does anyone have a picture i can use as a reference where to place the harness through the firewall? looks like the heater box is behind the glove box...pictures would help alot

thanks

greg

first-rotary04

iTrader: (4)

hahahah I'm in that same boat with you

don't where to mount it

Phish806

iTrader: (4)

If you remove the washer fluid tank and pull back the insulation on the firewall you will see where the steering would have came through on a right hand drive car. This works perfect for making a hole to pass through there, there is enough space on the inside of the firewall where you will not drill into anything and it will pass out right behind the glove box. when feeding the wires from the engine to the interior you will need to direct the wires slightly downward and you will see them emerge into your floorboard. There is a pic somewhere on the boards. I think it was in a thread for routing the power wire for an amp.

gregs

iTrader: (7)

thanks alot for the help!

first-rotary04

iTrader: (4)

so i still have to drill it ??
I thought that there was gonna be a hole already made.

am i wrong ?

staticlag

yup, you have to drill it.

tdiddy

I took a picture for you but forgot to upload it last night. It shows where to drill/cut the hole in the firewall. I will upload it tonight.

tdiddy

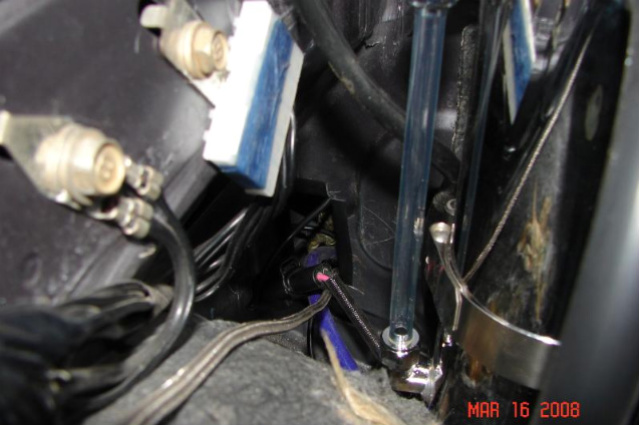

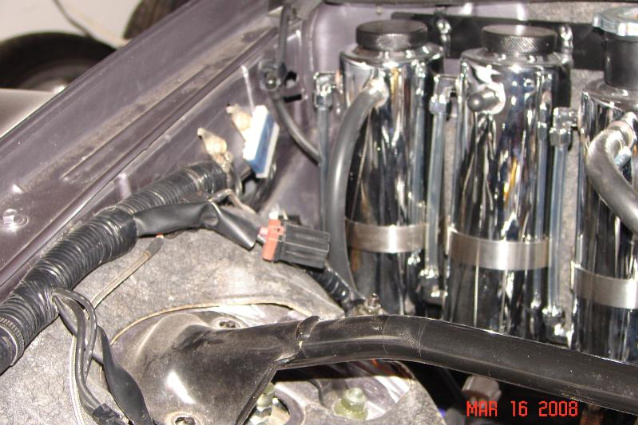

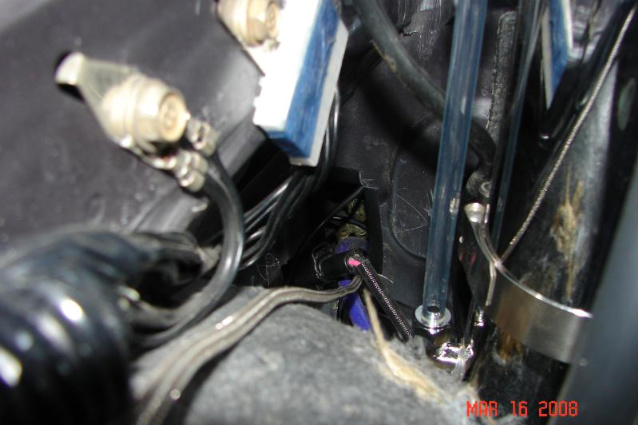

As promised. Pics of where I cut the hole for my EMU harness.

gregs

iTrader: (7)

makes alot more sense thanks tdiddy
