Can some of you guys looking at the pics tell me if this CZ has been upgraded for the coils issue? The diods for the idle issue are cut.
Thanks



can't see the daughter board...under the wires at the top....



How's it now.

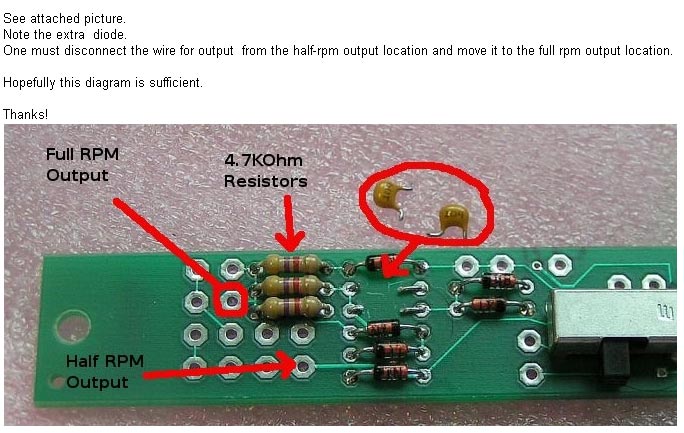

Mine had diodes where the jumpers are...like this picture

Yours has had the capacitors cut..and is set for full RPM maps....



I found this post of yours:https://www.rx8club.com/showpost.php...9&postcount=38
with the pic of the board just like mine.

So, mine is the upgraded board for the coils? Is that right?
I did the full RPM mode.


EDIT:Reading more and more aperantly my board is not upgraded. I have to replace the jumpers with two 1n4148 diodes to prevent the coils burning.



I think you need the other diodes for the full rpm circuit? follow the circuit path and see if the diodes are in it....you need them



Its not easy to trace it if you don't have the scheme.
So I just added the damn diodes.:-)
Better $1.39(10 of them) than $40 for the coils.



Good idea ......got another pic of the completed board?



f*ck, I just put it all back togheter. But its the same as the pic you posted. Just replaced the jumpers with diodes.
I can get a pic if you want. That is the least I can do for your help.:-)
Just say so.
Thanks



Don't bother...just wanted to see how neat you were...and if you got the polarity right on the diodes



I know this things, you know...
No wories.
