Old 05-20-2015, 12:20 PM   #26
Registered

Join Date: Jan 2015
Location: Canada, Ontario
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
Steering wheel nut size.

Would anyone happen to know what size socket for the center nut to take the steering wheel off an 06 rx-8?
BradyMayhew is offline   Reply With Quote
Old 05-21-2015, 05:19 AM   #27
Too old for PC

Signal 2's Avatar

Join Date: Jul 2004
Location: Midwest
Posts: 234
Thanks: 0
Thanked 1 Time in 1 Post
Educated guess...21mm. Why is it critical to know in advance?
Signal 2 is offline   Reply With Quote
Old 05-22-2015, 10:29 AM   #28
Registered

Join Date: Jan 2015
Location: Canada, Ontario
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
Just nice to know, in case it was some wack size I for some reason didn't have so I'd be able to pick one up from work instead of running back into town after having my steering wheel apart only to realize I don't have the proper size. But thank you for the response, cheers :D
BradyMayhew is offline   Reply With Quote
Old 05-31-2015, 07:38 PM   #29
Registered
iTrader: (3)

Join Date: Aug 2014
Location: Dallas TX
Posts: 547
Thanks: 0
Thanked 4 Times in 4 Posts
Just an FYI

If you try to do this, and need to pull the wheel, some pulling kits won't come with metric bolts. I just did it today, and it was a PITA. Having gone to Home Depot and bought new bolts, I wanted others to know. m8 1.25 x 90mm. With the right tools, it can be done. Without them, you will curse the day you ever bought the thing.

Last edited by BigBadChris; 05-31-2015 at 10:16 PM. Reason: Replaced most with some
BigBadChris is offline   Reply With Quote
Old 05-31-2015, 08:57 PM   #30
Too old for PC

Signal 2's Avatar

Join Date: Jul 2004
Location: Midwest
Posts: 234
Thanks: 0
Thanked 1 Time in 1 Post
Most chain parts stores will rent a puller with both SAE and metric.
I have this kit... http://www.harborfreight.com/steerin...set-68982.html it also has both.
If I made my living with these tools, I'd have probably bought some more expensive name brand. But it's pretty inexpensive and I've probably used it a dozen times or more on my cars and others.
Signal 2 is offline   Reply With Quote
Old 05-31-2015, 10:15 PM   #31
Registered
iTrader: (3)

Join Date: Aug 2014
Location: Dallas TX
Posts: 547
Thanks: 0
Thanked 4 Times in 4 Posts
The crappy autozone kit I rented was only SAE.
BigBadChris is offline   Reply With Quote
Old 06-01-2015, 06:54 PM   #32
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 19,107
Thanks: 0
Thanked 34 Times in 31 Posts
I got mine off without a puller, no problem.
TeamRX8 is offline   Reply With Quote
Old 11-04-2015, 10:03 AM   #33
weeeeeeeeee
iTrader: (11)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,110
Thanks: 0
Thanked 0 Times in 0 Posts
quick question regarding the airbag connectors. I'm proceeding with a very light hand. Do the connectors come out completely or just at the 90 degree bend?
ShellDude is offline   Reply With Quote
Old 11-04-2015, 10:06 AM   #34
RIDE HARD
iTrader: (9)

200.mph's Avatar

Join Date: Aug 2008
Location: BALLS DEEP
Posts: 4,376
Thanked 53 Times in 48 Posts
why are you pulling the airbag shell?
200.mph is online now   Reply With Quote
Old 11-04-2015, 10:08 AM   #35
weeeeeeeeee
iTrader: (11)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,110
Thanks: 0
Thanked 0 Times in 0 Posts
I'm putting my A/T steering wheel back on with the MT buttons. The wheel I got from RR (off eBay) has the leather separating around the 10 o'clock seam. I had asked the shop to do the swap when they had it for 6 months but they just slapped the MT wheel on.

Trying to make this thing be as presentable as possible.
ShellDude is offline   Reply With Quote
Old 11-04-2015, 10:19 AM   #36
weeeeeeeeee
iTrader: (11)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,110
Thanks: 0
Thanked 0 Times in 0 Posts

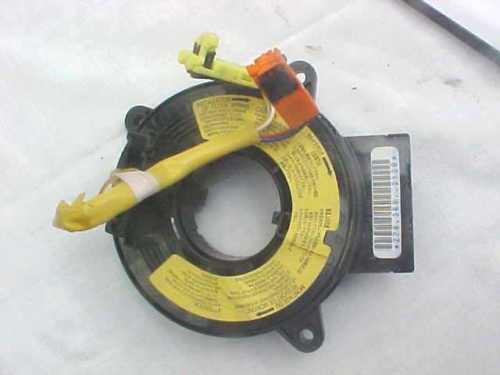

I think this covers it.... looks like they just pull completely out.
Attached Thumbnails
DIY Steering Wheel Removal-%24t2ec16fhjggffmzhlbf-br6nhkmg-%7E%7E60_12.jpg
ShellDude is offline   Reply With Quote
Old 11-04-2015, 10:44 AM   #37
Registered
iTrader: (3)

Join Date: Aug 2014
Location: Dallas TX
Posts: 547
Thanks: 0
Thanked 4 Times in 4 Posts
Get a fingernail or the end of a flathead screwdriver into the back of the connector. It has a retaining clip, you get that loose (loose, not off) and the orange and yellow things will pull clean off the back
BigBadChris is offline   Reply With Quote
Old 11-04-2015, 10:48 AM   #38
weeeeeeeeee
iTrader: (11)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,110
Thanks: 0
Thanked 0 Times in 0 Posts
so the yellow one came right off without messing with the retaining clip... i figured it out after looking at some pictures online that don't show the clip at all.

The orange one is being a little more difficult... armed with a little flathead now.
ShellDude is offline   Reply With Quote
Old 11-04-2015, 10:56 AM   #39
weeeeeeeeee
iTrader: (11)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,110
Thanks: 0
Thanked 0 Times in 0 Posts
that did it... came right off just as soon as I released the clip with a clock makers flathead
ShellDude is offline   Reply With Quote
Old 07-16-2017, 05:37 PM   #40
Dodging those Corollas
iTrader: (2)

Footman's Avatar

Join Date: Oct 2006
Location: Stouffville, Ontario, Canada
Posts: 4,593
Thanks: 0
Thanked 0 Times in 0 Posts
guys, sorry to revive this for so long. I just got the autoexe wheel and trying to install it. Mazda installed a wire clip on the left screw hole beside the nut. I can't take this clip off, so I can only use one side of the free thread hole to use a steering wheel puller (wheel won't come off)... will it still work with one side only?
Footman is offline   Reply With Quote
