DIY: RP (AFE) Short Shifter install.
04-05-2005, 08:16 AM
#51
Shifty Bastard.
Thread Starter
Join Date: Feb 2004
Location: Melbourne, Australia.
Posts: 4,835
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Rasputin
Gomez' fitting instructions, now on one document (sort of, had to split it to put it on here), in PDF format.
Cheers,
Fabrice
Cheers,
Fabrice
04-05-2005, 12:01 PM
#53
04 and still lovin it
Join Date: Jun 2004
Location: Toronto
Posts: 297
Likes: 0
Received 0 Likes
on
0 Posts
All in one file
I put this together into one file .
I'm hoping to instal my shifter next week after the 24k service.
I hope the attachment gets posted......
Sorry file is too large 500k.......
If someone wants a one piece PDF format of Gomez's intructions PM me
I'm hoping to instal my shifter next week after the 24k service.
I hope the attachment gets posted......
Sorry file is too large 500k.......
If someone wants a one piece PDF format of Gomez's intructions PM me
04-18-2005, 07:33 PM
#54
Registered
I used this guide to install mine. I must say the guide is great. Took me like 45 minutes to do the actual install once I had metric tools :b
I have to say, this shifter is outstanding. The shifts are short and extremely precise. I dont think I've ever been able to do a 1-2 shift this fast. 5/6 will take some getting used to as the travel is so short from neutral, but that's never a bad thing.
Great work Richard. Thanks for the guide, gomez.
I have to say, this shifter is outstanding. The shifts are short and extremely precise. I dont think I've ever been able to do a 1-2 shift this fast. 5/6 will take some getting used to as the travel is so short from neutral, but that's never a bad thing.
Great work Richard. Thanks for the guide, gomez.
06-01-2005, 03:40 AM
#57
Registered User
Join Date: Oct 2003
Location: Sydney, AUSTRALIA
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
Just installed my Short Shifter
Hi All,
Recently installed my shifter and I must say EXCELLENT! After Hymee's exhaust, this has got to be the next best modification to do to your RX8.
After fitting my short shifter I noticed a very tight (close) clearance between 3rd and 5th and 4th and 6th gears. I also used a very light grade grease which gave an "unpleasant" feel when shifting from 5th to 6th.
So what I did is I loosened the 3 bolts that hold the plate to the gearbox, checked for sideways movement and found probably 0.5mm of travel (in the two dowel pins and matching locating holes), and retightened the 3 bolts whilst applying pressure to the shift lever in the right hand direction. Upon assembly I probably gained about 1.5mm extra side freeplay in the shifter and I am more comfortable with the feel now. I also re-applied a thicker grade grease (especially on the reverse lockout tang where it butts and slides against the 3 bolt plate side edge) which also helped the over all feel of the shifter.
The grease I used is CASTROL APXT Hi-Lo temperature, enhanced thickness grease. It is Blue in colour.
I know there is not much in it, but there is a difference between a razor blade and a scalpel!
Joe
Recently installed my shifter and I must say EXCELLENT! After Hymee's exhaust, this has got to be the next best modification to do to your RX8.
After fitting my short shifter I noticed a very tight (close) clearance between 3rd and 5th and 4th and 6th gears. I also used a very light grade grease which gave an "unpleasant" feel when shifting from 5th to 6th.
So what I did is I loosened the 3 bolts that hold the plate to the gearbox, checked for sideways movement and found probably 0.5mm of travel (in the two dowel pins and matching locating holes), and retightened the 3 bolts whilst applying pressure to the shift lever in the right hand direction. Upon assembly I probably gained about 1.5mm extra side freeplay in the shifter and I am more comfortable with the feel now. I also re-applied a thicker grade grease (especially on the reverse lockout tang where it butts and slides against the 3 bolt plate side edge) which also helped the over all feel of the shifter.
The grease I used is CASTROL APXT Hi-Lo temperature, enhanced thickness grease. It is Blue in colour.
I know there is not much in it, but there is a difference between a razor blade and a scalpel!
Joe
06-30-2005, 11:13 AM
#58
Registered User
Join Date: Sep 2003
Location: Riverside, CA
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Gomez
Okay, here's my DIY on the Richard Paul (Axial Flow Engineering) Short Shifter install. Hope you enjoy it.....
First, undo the shift ****. It's a standard R/H thread, undo by twisting counterclockwise. If you have an illuminated shift ****, take extreme care not to damage the wiring, you may wish to release the shifter cover to check on the wiring layout underneath first.
Removing the shifter cover:
You have to gain access to the rear R/H tab of the shifter cover. Remove the small panel located forward of the cupholders. Check out the pic below.....
Edit: Tip for those with long fingers......If you release the handbrake, you can push this handbrake adjust access panel aft by reaching through the gap at the back of the handle and lifting the tang from inside. (Thank's Hymee for this tip)
First, undo the shift ****. It's a standard R/H thread, undo by twisting counterclockwise. If you have an illuminated shift ****, take extreme care not to damage the wiring, you may wish to release the shifter cover to check on the wiring layout underneath first.
Removing the shifter cover:
You have to gain access to the rear R/H tab of the shifter cover. Remove the small panel located forward of the cupholders. Check out the pic below.....
Edit: Tip for those with long fingers......If you release the handbrake, you can push this handbrake adjust access panel aft by reaching through the gap at the back of the handle and lifting the tang from inside. (Thank's Hymee for this tip)
Hey Gomez,
I just finished this and thanks for the instructions, but the difficult part for me was the tang or tab. I was reading this as lifting or pulling the tab towards the inside of the console. That was a mistake. After about 15 minutes of being gentle and not breaking my car, I desided to push to the tab to the outside (direction of the passenger door) and shazam it came off.
Bill
06-30-2005, 11:15 AM
#59
Registered
Join Date: Sep 2004
Location: Europe
Posts: 581
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by maxrx8
Hey Gomez,
I just finished this and thanks for the instructions, but the difficult part for me was the tang or tab. I was reading this as lifting or pulling the tab towards the inside of the console. That was a mistake. After about 15 minutes of being gentle and not breaking my car, I desided to push to the tab to the outside (direction of the passenger door) and shazam it came off.
Bill
I just finished this and thanks for the instructions, but the difficult part for me was the tang or tab. I was reading this as lifting or pulling the tab towards the inside of the console. That was a mistake. After about 15 minutes of being gentle and not breaking my car, I desided to push to the tab to the outside (direction of the passenger door) and shazam it came off.
Bill
Fabrice
07-05-2005, 03:03 PM
#60
Registered User
Join Date: Jan 2005
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
hey gomez, does all this stuff work for automatic too? like how u remove the pannel and stuff. cause im making my auto rx-8 into a show car and i need to change the auto stick to make it look like a manuel. sound dumb but can you?
07-05-2005, 05:06 PM
#61
National Beer of Texas
Join Date: Apr 2005
Location: Deep in the heart of...
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
You really need to change push left on the tab to push toward passenger door for LHD or driver door for RHD models... thank god i read the entire thread before i tried being more forcefull...
07-08-2005, 01:16 AM
#62
Registered User
Join Date: Jul 2005
Location: NY
Posts: 145
Likes: 0
Received 0 Likes
on
0 Posts
Hi guys,
i got the shifter and installed it today. The shifts are extremely precise and extremely short.
i wouldn't use the word "silky" though as the shifts are very "clicky" and lock into place...
One thing some of you can help me on is that -- w/ the shifter installed, at the low gears and high rev bands, there seems to be a whirling noise from the gear box or shifter area... much more than the stock used to make. My girlfriend actually said "that doesn't sound right" although i think it sounds manly. .. However, the sound is actually a "whirling" sound, and i can't quite describe it. Also, the clicks of the shifter are pretty loud...
Is this normal?
Help!
i got the shifter and installed it today. The shifts are extremely precise and extremely short.
i wouldn't use the word "silky" though as the shifts are very "clicky" and lock into place...
One thing some of you can help me on is that -- w/ the shifter installed, at the low gears and high rev bands, there seems to be a whirling noise from the gear box or shifter area... much more than the stock used to make. My girlfriend actually said "that doesn't sound right" although i think it sounds manly. .. However, the sound is actually a "whirling" sound, and i can't quite describe it. Also, the clicks of the shifter are pretty loud...
Is this normal?
Help!
07-08-2005, 01:22 AM
#63
National Beer of Texas
Join Date: Apr 2005
Location: Deep in the heart of...
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
I definitely have that whirling noise... I think that's the big drawback to the shifter... 3 days later and its still driving me insane... Almost to the point of pulling the shifter out... I'm going to buy some dynomat extreme and see what I can rig up to dampen some of the sound...
07-08-2005, 04:54 AM
#64
Shifty Bastard.
Thread Starter
Join Date: Feb 2004
Location: Melbourne, Australia.
Posts: 4,835
Likes: 0
Received 0 Likes
on
0 Posts

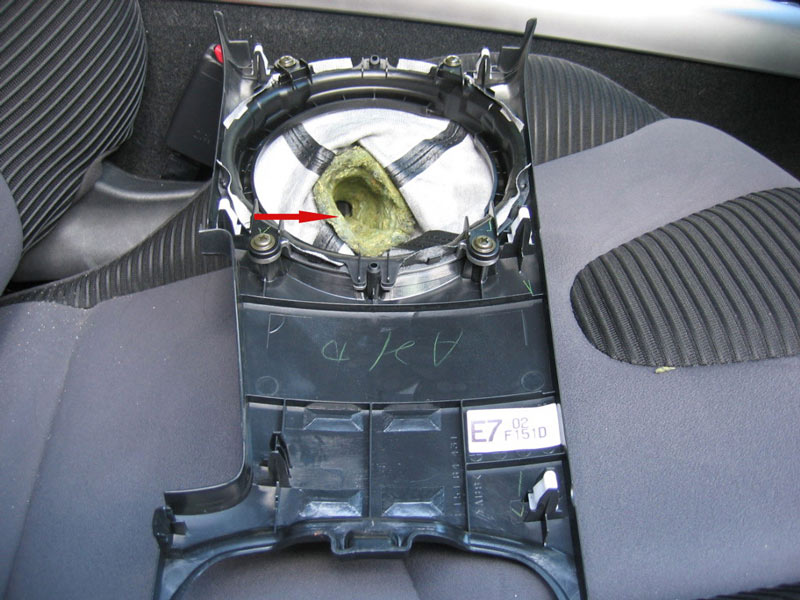

Unclip the upper cover and remove the green cotton wadding from under the shift boot. Reduces the gear noise by about 60%, IMO. I believe it works by allowing the shifter to rest free of pressure supplied when the **** is screwed up tight against the shift boot. This pressure holds the shifter against the selector in the top of the box and transmits gear noise into the cabin. You'll notice that resting your hand on the shifter when driving increases the gear noise in a similar way.
Removing the wadding and unscrewing the **** a little allows the shifter to find a static stability, free of forces holding it against the selector.
I know it seems bizarre....but it works.
You can further reduce the noise by moving the white ring down on the shifter. See this thread for more info.
Gomez.
Removing the wadding and unscrewing the **** a little allows the shifter to find a static stability, free of forces holding it against the selector.
I know it seems bizarre....but it works.
You can further reduce the noise by moving the white ring down on the shifter. See this thread for more info.
Gomez.
07-08-2005, 03:01 PM
#66
National Beer of Texas
Join Date: Apr 2005
Location: Deep in the heart of...
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
funny thing, but since I've done the shifter and removed the green thing the leather boot actually feels much cooler... and I'm in the middle of the same weather you're in Jenkines (Arlington)
07-08-2005, 05:52 PM
#68
Originally Posted by jenkins-crew
Sweet! I will have to do this one then!
Are you saying that your car has noise??
Also didn't you work on a car belonging to a girl on the forum. Did her car have noise???
I have a customer coming over in an hour from now and I'm going to try is car and he mine. He has not complained about noise though.
Fanman if your listining let me know if you think your car has noise.
07-09-2005, 02:50 PM
#73
I think the noise is standard. It is just not a huge thing like some people say. There is no rubber in the shaft so some more transfer of gear whine is going to come through. It's no big deal, lots of cars like Ferrari and others have solid shafts. It just adds more flavor of mechanical connection with the driver.
I guess that's why I don't notice it at all as I'm used to Ferrari.
Pretend it's Italian.
People say it's worse when they lean on it, that is true because you're pushing the shift fork against the syncro holder. The noise you hear is the wearing out of your transmission, don't do it.
Leaning your hand on the stick while you drive is maintenence waiting to happen. If you use it right it will last for the life of the car, otherwise it's your money. Keep your hands off, rest your hand on the hand brake. Maybe that's why they call it "hand."
Nice to hear from you again Dazygirl. Where do you hang out I never see you?
I think you should get together with Rx8girl on the Australia forum. You'll like her.
I guess that's why I don't notice it at all as I'm used to Ferrari.
Pretend it's Italian.
People say it's worse when they lean on it, that is true because you're pushing the shift fork against the syncro holder. The noise you hear is the wearing out of your transmission, don't do it.
Leaning your hand on the stick while you drive is maintenence waiting to happen. If you use it right it will last for the life of the car, otherwise it's your money. Keep your hands off, rest your hand on the hand brake. Maybe that's why they call it "hand." Nice to hear from you again Dazygirl. Where do you hang out I never see you?
I think you should get together with Rx8girl on the Australia forum. You'll like her.
07-09-2005, 02:54 PM
#74
National Beer of Texas
Join Date: Apr 2005
Location: Deep in the heart of...
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
I was thinking about taking the upper part of the shaft and wrapping it in a mass loading sound dampener to see if it'll cut out some of the upper frequencies...
I think I'm just more sensitive to the frequencies that are coming out... I'm getting used to it slowly... but i hear enough whirring and high pitched frequencies everyday at work in the dental office...
I think I'm just more sensitive to the frequencies that are coming out... I'm getting used to it slowly... but i hear enough whirring and high pitched frequencies everyday at work in the dental office...
