got the unit out, taking a quick break to eat. I haven't seen much mentioned of those various bastard white clamps previously so let me just say...those came straight from the inner rings of Hades. I can't recall being more overwhelming irritated with an inanimate object before in my life.
07-20-2013, 09:18 PM
#453
Registered
Join Date: Jan 2005
Location: San Francisco, CA
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
Thank you RX8 Club...great DIY - pic of hidden bolt
Just wanted to say that the fix went together well even though I'm no expert solder. I do have a few suggestions for those who are going to be tackling this DIY. I used my iPhone front camera to be able to see under the radio which did help a bit. I placed it face up under the radio so I had a virtual view of the plugs. I was able to see the connectors a bit better and was able to get them off without too much trouble. It does take some serious effort to get them off though.

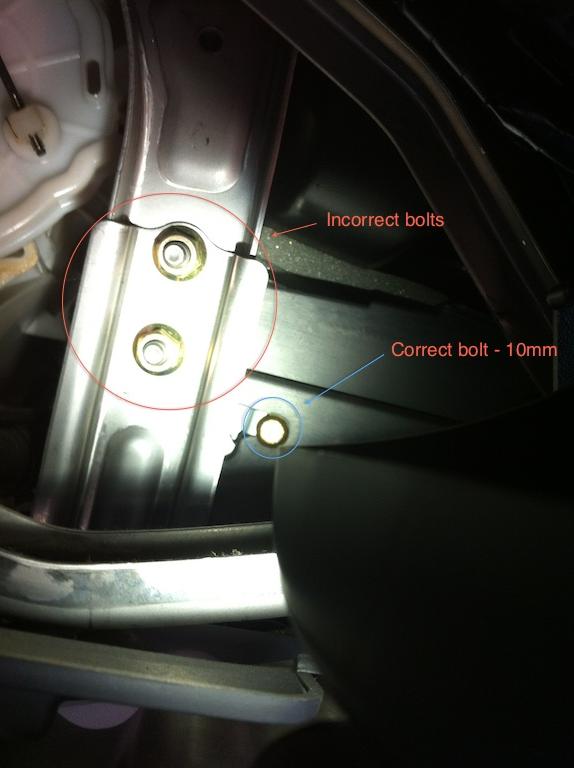

Also, here is a photo of the mysterious "hidden bolt" that I was able to snap a small shot of with my iPhone. I used a ratchet with a 10" extension to remove it. Thanks again for all of the help in this posting. It's almost like a new car again ;-) now that I can actually control the temperature.
http://i1256.photobucket.com/albums/...radio-bolt.jpg
Also, here is a photo of the mysterious "hidden bolt" that I was able to snap a small shot of with my iPhone. I used a ratchet with a 10" extension to remove it. Thanks again for all of the help in this posting. It's almost like a new car again ;-) now that I can actually control the temperature.
http://i1256.photobucket.com/albums/...radio-bolt.jpg
08-11-2013, 02:09 PM
#454
Registered
Join Date: Jul 2009
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Sub Assembly Parts Listed
Hi,
I've listed some sub assembly parts for the ac heater control unit on EBAY. ie. The circuit board may be of value to someone who's first soldering attempt went horribly wrong.
Mod Edit: The sale of items belong in the Classifieds Forum. Also, EBay links to items ForSale are against RX8Club rules.
https://www.rx8club.com/faq.php?faq=..._section_rules
I've listed some sub assembly parts for the ac heater control unit on EBAY. ie. The circuit board may be of value to someone who's first soldering attempt went horribly wrong.
Mod Edit: The sale of items belong in the Classifieds Forum. Also, EBay links to items ForSale are against RX8Club rules.
https://www.rx8club.com/faq.php?faq=..._section_rules
08-11-2013, 09:42 PM
#455
New Member
Join Date: Jul 2013
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Thank you, from a new 8 owner
After swapping out the stock radio and several pulls of the new one to add something else, my A/C stopped working. This DIY saved me time and money. I already had the dash apart so this only took an extra 20 minutes to fix after an hour of searching. A sincere thank you for the write up.
09-26-2013, 10:33 AM
#456
Registered
Join Date: Oct 2009
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Repeat Offender
Has anyone had to repeat this procedure? I thought I did a great job soldering two years ago and haven't had any trouble until the last month. Suddenly my control just decides to change settings without me touching it. It started during the last hot days of summer, jumping from a 0 to 1, 2, 3, or 4. Now that the weather has cooled, it rarely goes to 0, but jumps around between 1 and 8. It will often correct itself if I hit the on/off and scan up buttons again (or repeatedly). I haven't had time to pull it out, but I guess I'll have to try it again unless someone has another suggestion?
09-27-2013, 02:31 PM
#458

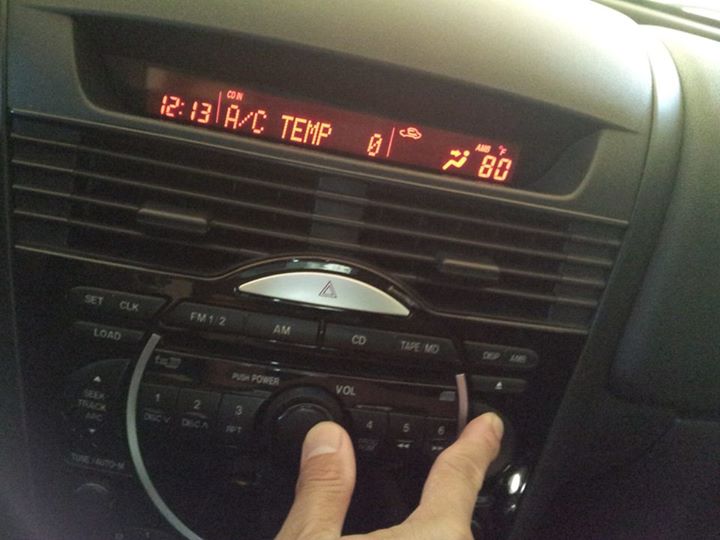

1. Insert your key and turn it to AC.
2. Turn ON your radio, the radio have to be on for this test to work.
3. Simultaneously press and hold the POWER and SCAN UP buttons for at least three seconds.
4. Turn the control **** clockwise, the digital display should show all numbers from "0" through "16" as you adjust it.
A good indication that the control **** is broken will show in the test that the numbers intermittently jumps back to "0" or skips a number.
09-29-2013, 09:09 PM
#459
Registered
Join Date: Nov 2008
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Took me about 4 hours, but I'm really bad at FYI.
Fixed the problem BUT I spent 30 minutes troubleshooting my LED and radio not coming out. The little screw tabbies will break and make sure everything is PUSHED in tight.
Whew.... I'm beginning to dislike car fixing in a time crunch but I should know that car issues are never quick fixes.
Thank you OP for this post! How did you know this was the issue?
Fixed the problem BUT I spent 30 minutes troubleshooting my LED and radio not coming out. The little screw tabbies will break and make sure everything is PUSHED in tight.
Whew.... I'm beginning to dislike car fixing in a time crunch but I should know that car issues are never quick fixes.
Thank you OP for this post! How did you know this was the issue?
09-30-2013, 12:44 PM
#460
Possibly, you would have to perform the A/C Temp. test.
1. Insert your key and turn it to AC.
2. Turn ON your radio, the radio have to be on for this test to work.
3. Simultaneously press and hold the POWER and SCAN UP buttons for at least three seconds.
4. Turn the control **** clockwise, the digital display should show all numbers from "0" through "16" as you adjust it.
A good indication that the control **** is broken will show in the test that the numbers intermittently jumps back to "0" or skips a number.
1. Insert your key and turn it to AC.
2. Turn ON your radio, the radio have to be on for this test to work.
3. Simultaneously press and hold the POWER and SCAN UP buttons for at least three seconds.
4. Turn the control **** clockwise, the digital display should show all numbers from "0" through "16" as you adjust it.
A good indication that the control **** is broken will show in the test that the numbers intermittently jumps back to "0" or skips a number.
Checked it, numbers arent working. I'll be using your tutorial. Thanks
Last edited by DVerdeyen; 09-30-2013 at 05:06 PM.
10-07-2013, 09:10 AM
#465
Registered
Join Date: Nov 2008
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
be VERY careful about:
- the jesus bolt, i actually dropped it and need to get around to replacing it (probably wont)
- putting the radio back together, all screws must be flush, otherwise no power to radio/LED. It's actually a common problem that isn't noted. (the ones that actually go into the plastic case itself, that was the cause of my error. even though it was cracked i shoved it back in and it worked)
- the jesus bolt, i actually dropped it and need to get around to replacing it (probably wont)
- putting the radio back together, all screws must be flush, otherwise no power to radio/LED. It's actually a common problem that isn't noted. (the ones that actually go into the plastic case itself, that was the cause of my error. even though it was cracked i shoved it back in and it worked)
11-15-2013, 10:18 PM
#466
be VERY careful about:
- the jesus bolt, i actually dropped it and need to get around to replacing it (probably wont)
- putting the radio back together, all screws must be flush, otherwise no power to radio/LED. It's actually a common problem that isn't noted. (the ones that actually go into the plastic case itself, that was the cause of my error. even though it was cracked i shoved it back in and it worked)
- the jesus bolt, i actually dropped it and need to get around to replacing it (probably wont)
- putting the radio back together, all screws must be flush, otherwise no power to radio/LED. It's actually a common problem that isn't noted. (the ones that actually go into the plastic case itself, that was the cause of my error. even though it was cracked i shoved it back in and it worked)
Last edited by Grace_Excel; 11-16-2013 at 02:21 AM.
11-24-2013, 05:00 PM
#469
New Member
Join Date: Nov 2013
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Didnt even break a nail
This post is the reason I joined this group and it will be the reason I stay! Didnt have any issues, just had to teach myself how to solder and now I have new tool to play with
11-24-2013, 06:24 PM
#470
I just now finished the job and after trying out 5 old soldering guns and finally buying a new one, it works! Just make sure you hand loosen and tighten the bolt near the steering column to avoid trouble. Thanks so much!
Posted From RX8Club.com Android App
Posted From RX8Club.com Android App
12-14-2013, 07:19 PM
#472
Registered
Join Date: Dec 2011
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
guys... you all did get the stereo out...now could you give me a clue how can't i fit it in correctly.Look what's happening to me VID 20131213 172622 - YouTube
12-15-2013, 04:40 AM
#474
Registered
Join Date: Dec 2011
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
12-15-2013, 05:32 AM
#475
Your face plate screws might be loose... But I doubt that is the cause, do you remember the black covered wire that runs from the back of the radio to it's side and front? Make sure the wire that connects to it is firmly in place and the small rectangular male end forward is correctly connected to the faceplate. Sometimes you end up breaking the circuit board or may have bent those little prongs. I'll see if I can dig up mine, which I broke, and take a picture of it... BTW your sig-picture is too large, might consider resizing it?
