Old 06-14-2013, 02:11 PM
  #101
GEAUX8
iTrader: (1)

BigGunz's Avatar

Join Date: Feb 2013
Location: Oahu, Hawaii
Posts: 58
Likes: 0
Received 0 Likes on 0 Posts
The resonator behind the cat is what is rattling. I have the same problem. It's extremely annoying but my CAT is not clogged.
Old 06-15-2013, 10:53 AM
  #102
New Member

Mike Knight's Avatar

Join Date: Jun 2013
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
UK

just an update took the cat off, gutted it (wasnt that difficult) but noticed when i rattled the back exhaust pipe some of the cat had blown through, stuck the hoover up got it all out.started it it started faster than it ever had took it for a little drive to get it nice and warm (felt a bit better driving it although its true there is a smell) got home turned off left 5 mins didnt start took 45 mins to cool down before it started again and then it struggled.
took coils out one has a white mark on it (from front to back the second one in) others look fine have not checked plugs yet but will do tomorrow, could this one coil be the problem for the struggling to start ? help please
Old 06-15-2013, 11:14 AM
  #103
You gonna eat that?
iTrader: (1)

BigCajun's Avatar

Join Date: Jan 2013
Location: Kansas City, Mo.
Posts: 6,007
Received 2,600 Likes on 2,115 Posts
Hi Mike. I'm not an expert on 8s, but I do have some firsthand experience.
First off, I went back and read your first post where you said you put premium gas in "for a change".
You should ALWAYS use premium.
If you haven't, this could be a problem.

If there are any chunks of cat in your exhaust or muffler, that could affect your performance and possibly damage your engine. Be sure there are no chunks in your exhaust.

If your cat broke up, it quite possibly was due to misfires. It would be a good idea to get a scan for any stored codes once you eliminate possibility of blockage.

White mark on coil is not necessarily a bad coil. Definitely pull plugs and check them.
IMO, I would start with troubleshooting these things first.
Good luck!

Last edited by BigCajun; 06-15-2013 at 11:21 AM.
Old 06-15-2013, 11:19 AM
  #104
You gonna eat that?
iTrader: (1)

BigCajun's Avatar

Join Date: Jan 2013
Location: Kansas City, Mo.
Posts: 6,007
Received 2,600 Likes on 2,115 Posts
Also, I forgot to add most importantly, hot start problems are an indication of low compression, so it would be a good idea if you can get it running decently, to get a compression check before you sink too much money into it.
Old 06-15-2013, 11:45 AM
  #105
New Member

Mike Knight's Avatar

Join Date: Jun 2013
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
THANKS BIGC will post some pics tomorow of bad coil and plugs when i get them out, your right about taking it for a compression test just not got the funds to do that at the moment, like i said cat and exhaust r completely unblocked now , fingers crossed that the bad cat has caused it only to be bad plugs
Old 06-15-2013, 12:16 PM
  #106
You gonna eat that?
iTrader: (1)

BigCajun's Avatar

Join Date: Jan 2013
Location: Kansas City, Mo.
Posts: 6,007
Received 2,600 Likes on 2,115 Posts
Mike, were you not using premium fuel?
Old 06-15-2013, 03:00 PM
  #107
New Member

Mike Knight's Avatar

Join Date: Jun 2013
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
no the premium fuel in the uk is 97 the cheaper fuel is 92 and i was told of to ok use in rx8
Old 06-15-2013, 03:01 PM
  #108
Registered
iTrader: (2)

RIWWP's Avatar

Join Date: Oct 2007
Location: Pacific Northwest
Posts: 16,684
Likes: 0
Received 240 Likes on 110 Posts
Different octane measuring methods. Your 92 is about equal to our 87, which is NOT ok. You need the premium fuel to avoid engine damage from detonation.
Old 06-15-2013, 03:05 PM
  #109
New Member

Mike Knight's Avatar

Join Date: Jun 2013
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
sounding more and more like a rebuild
Old 06-15-2013, 03:08 PM
  #110
New Member

Mike Knight's Avatar

Join Date: Jun 2013
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
just a thought though the car was running fine (apart from the hot start issue) never cut out on me until 10 mins after putting premium probabally just a coincidence though just to confuse me dont u think
Old 06-16-2013, 11:02 AM
  #111
New Member

Mike Knight's Avatar

Join Date: Jun 2013
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts

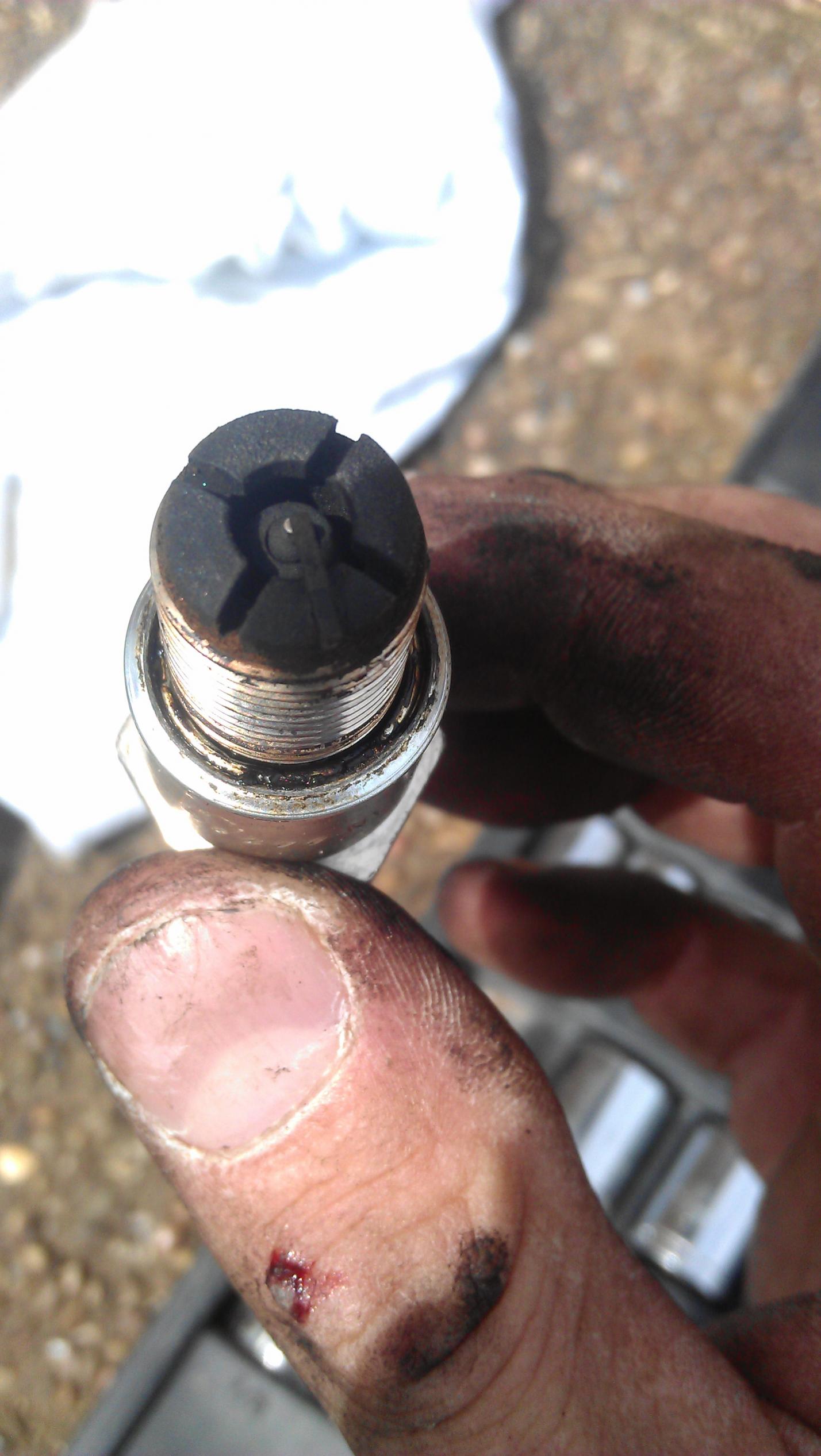

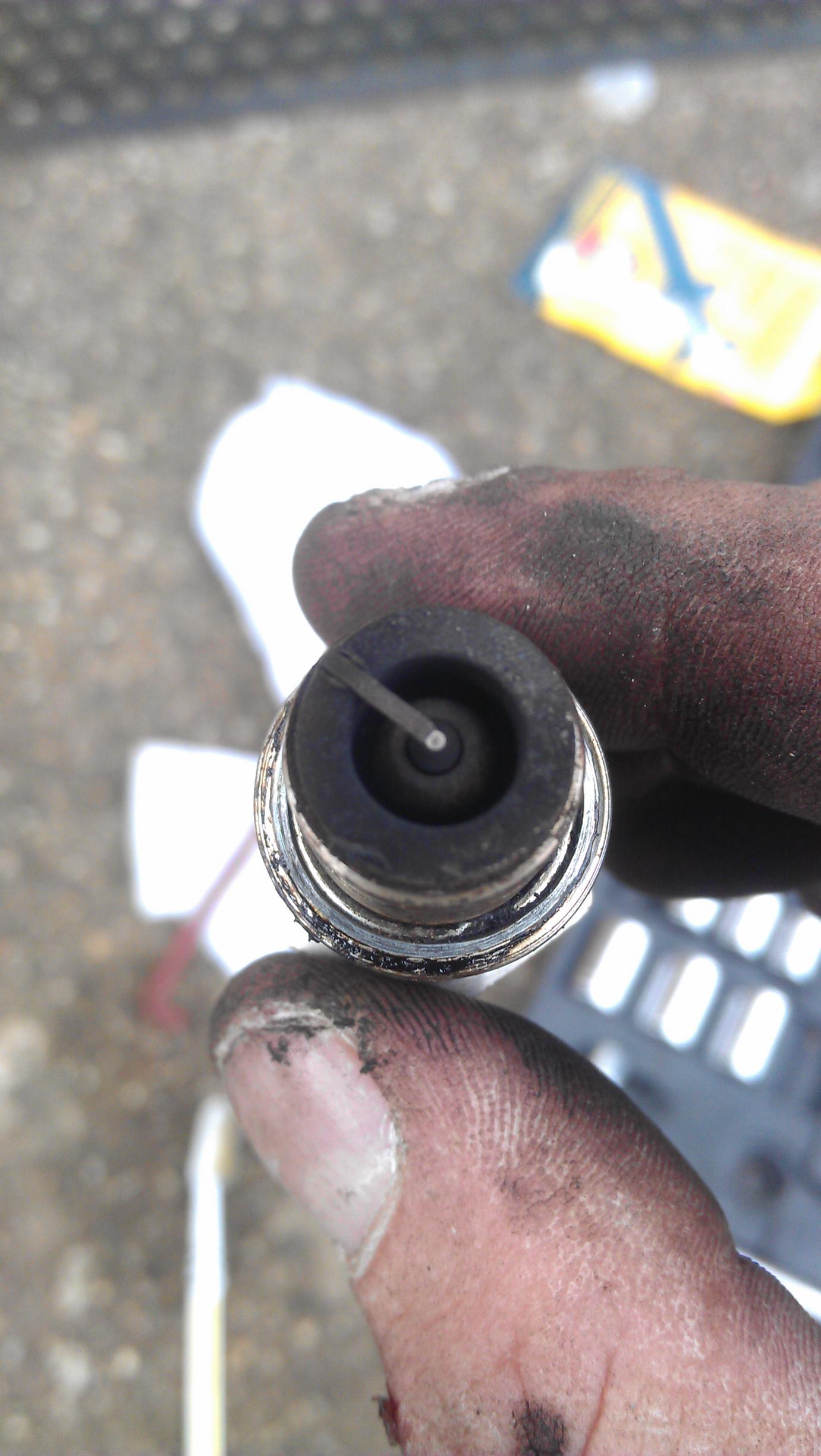

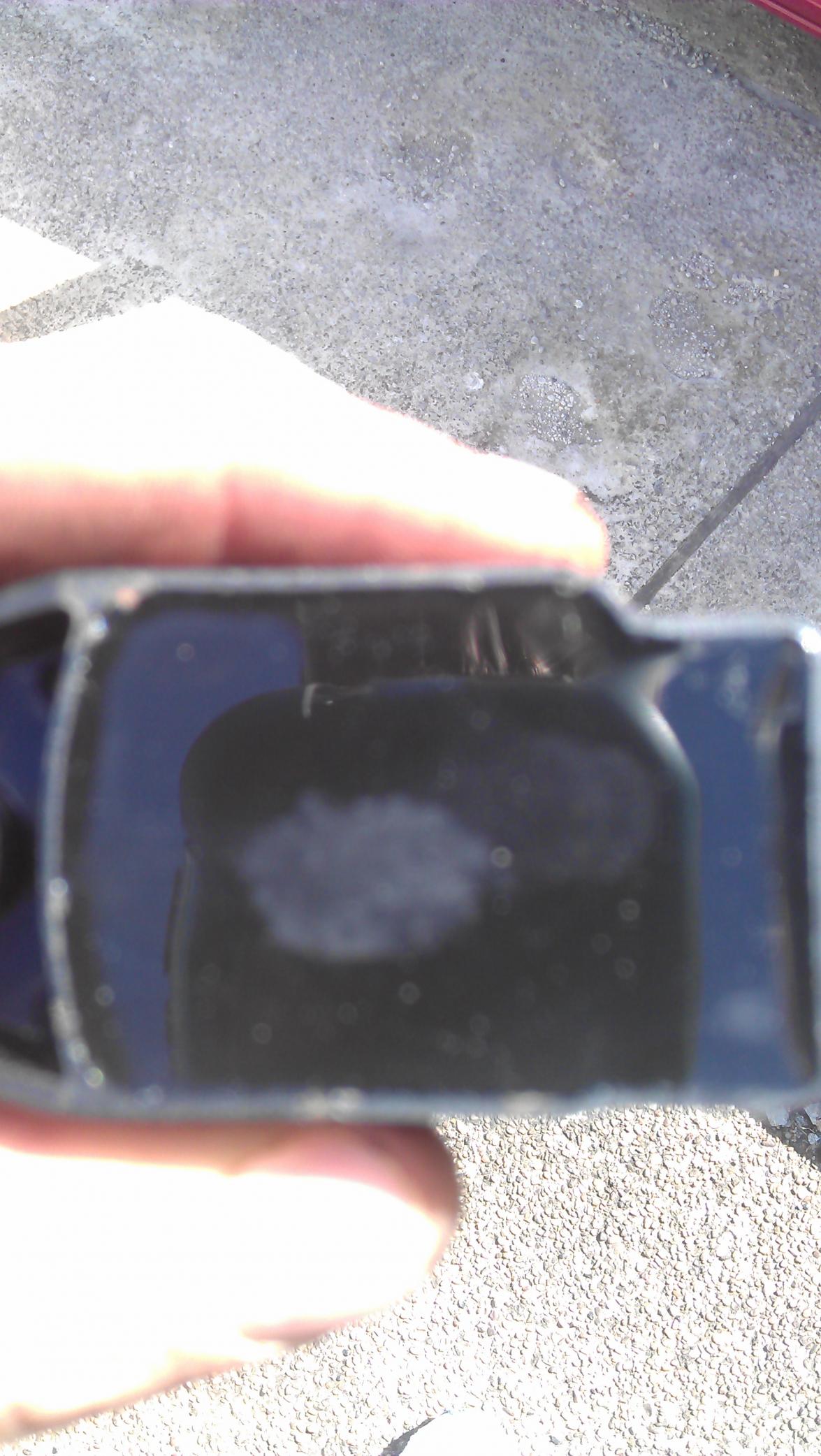

here r a couple of pics of plugs b4 i cleaned them and the one coil with white spot
Attached Thumbnails DIY: Gutting out your Catalytic Converter-imag0268.jpg   DIY: Gutting out your Catalytic Converter-imag0270.jpg   DIY: Gutting out your Catalytic Converter-imag0265.jpg
Old 06-16-2013, 11:05 AM
  #112
New Member

Mike Knight's Avatar

Join Date: Jun 2013
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts

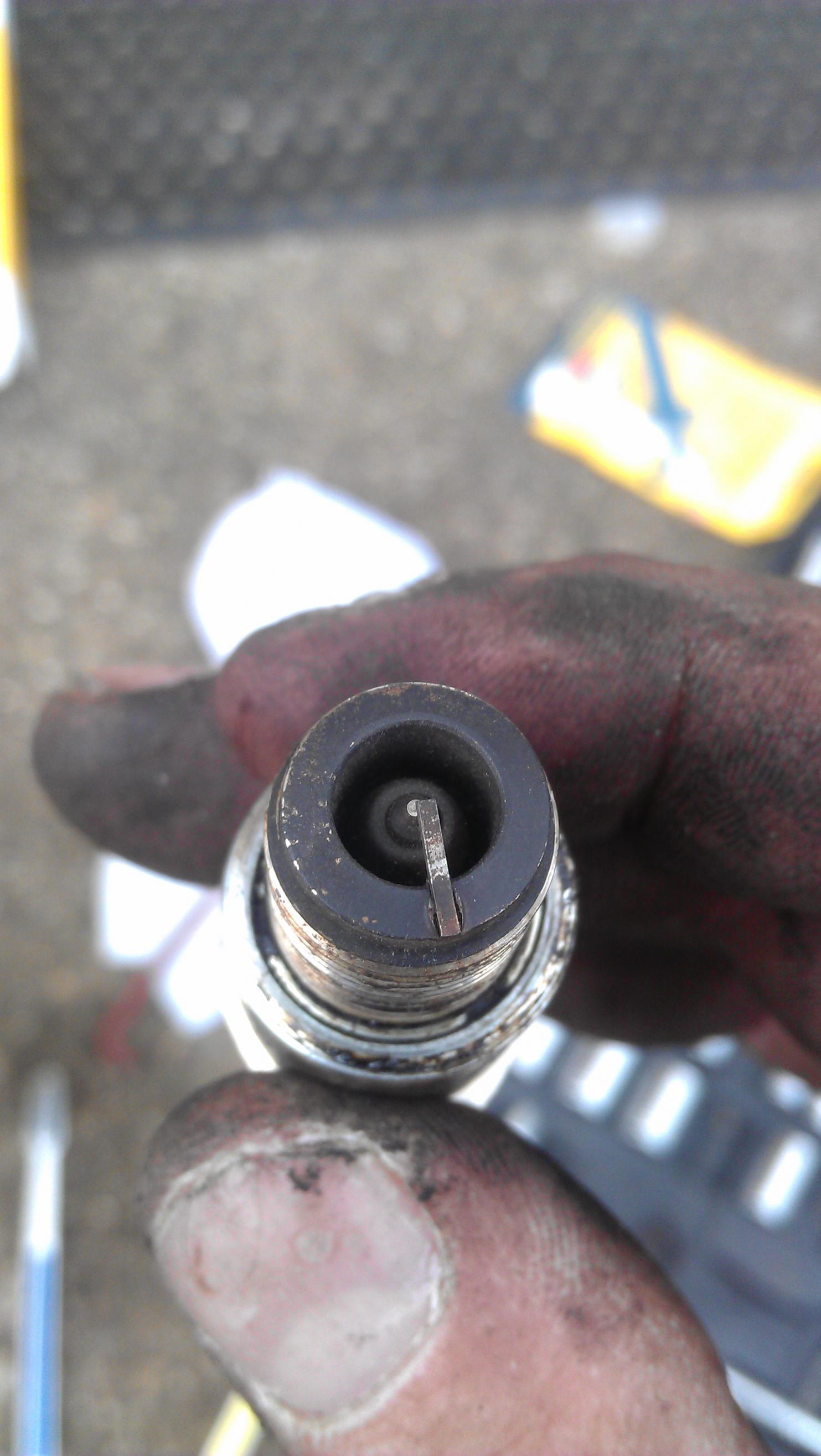

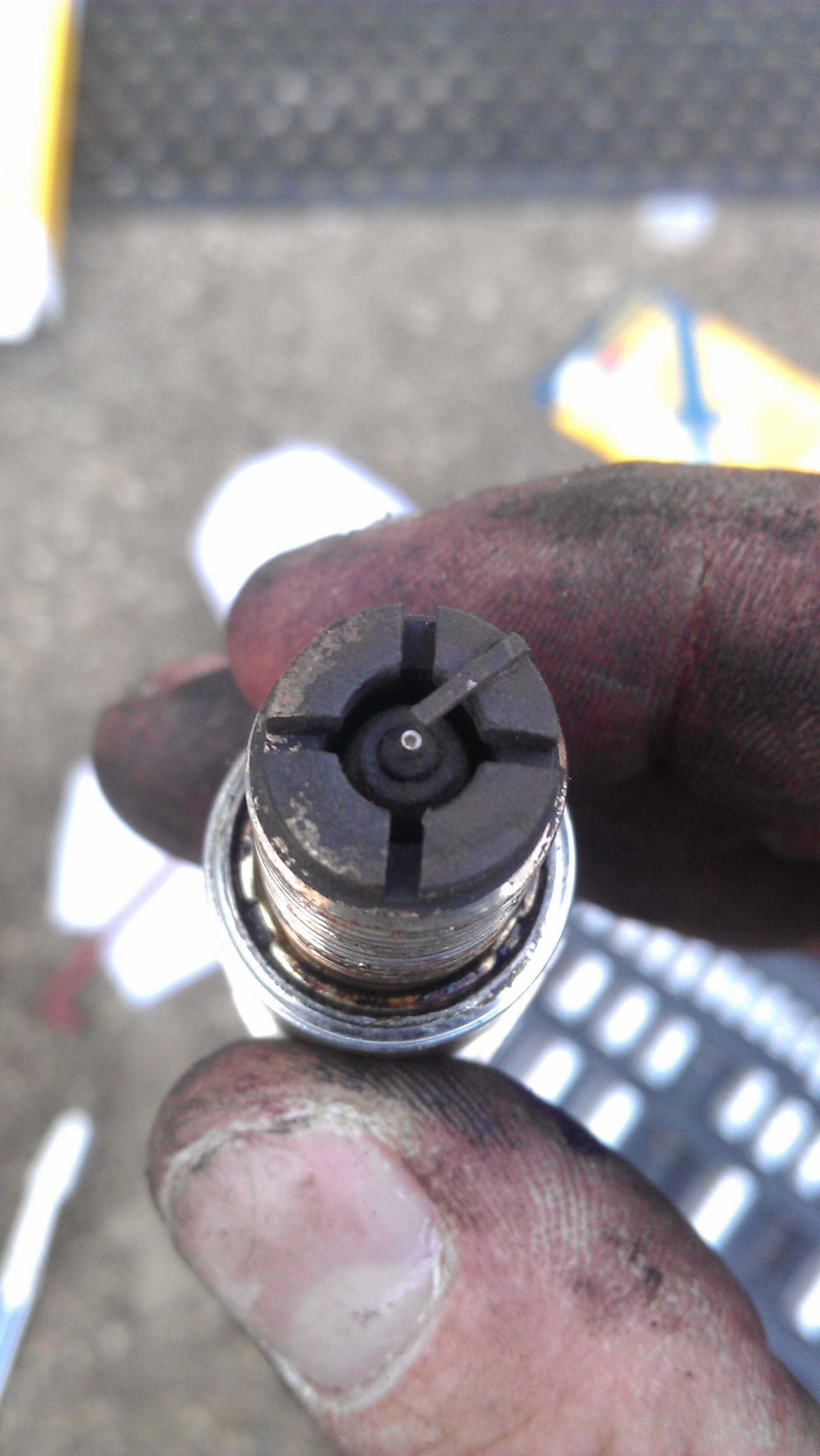

here r plugs after cleaning. do u think new plugs and/or coils would help.
please note after i clened plugs car wouldnt even start at all and there was a strong smell of petrol someone help please i am lost and dont know what to do next.
Attached Thumbnails DIY: Gutting out your Catalytic Converter-imag0269.jpg   DIY: Gutting out your Catalytic Converter-imag0271.jpg
Old 06-16-2013, 11:42 AM
  #113
wcs
no agenda
iTrader: (2)

wcs's Avatar

Join Date: Feb 2005
Location: Ontario
Posts: 5,210
Received 62 Likes on 54 Posts
The plugs don't look too bad. Maybe the one looks to have excessive soot.
White spot doesn't indicate bad coil.

How did you clean the plugs.
The tips are sensitive to abrasion. They are coated with iridium.
You may have ruined them ...

Strong smell of fuel would seem to me like it is flooded.
Or a fuel leak.
Old 06-16-2013, 12:03 PM
  #114
New Member

Mike Knight's Avatar

Join Date: Jun 2013
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
I cleaned them with a toothbrush and a tiny bit of brake cleaner, sprayed on the toothbrush not the plug, don't think I would have flooded it as I didn't touch the accelerator or shut it off cold, or r there other ways of flooding ?
Old 06-16-2013, 12:39 PM
  #115
wcs
no agenda
iTrader: (2)

wcs's Avatar

Join Date: Feb 2005
Location: Ontario
Posts: 5,210
Received 62 Likes on 54 Posts
@OP Well we've completely hi-jacked this topic.
Maybe you should start a new thread in the troubleshoot section or New member sub forum.
One of the Mods my help you out by snipping some of the posts here and put them in your new thread.

Tooth brush and brake cleaner should be ok to use on the plugs IMO

If you've got poor ignition/weak battery you can flood the engine even if it was warmed up properly.



The throttle on the engine is electronically controlled (drive by wire there is no direct linkage to the throttle). Pressing the gas will not flood the engine.
In fact part of the deflood procedure is to hold the gas peddle all the way down. This cuts the fuel during the cranking procedure.

If you don't think its flooded then you're only left with looking for a fuel leak.

Last edited by wcs; 06-16-2013 at 12:42 PM.
Old 06-17-2013, 12:58 AM
  #116
New Member

Mike Knight's Avatar

Join Date: Jun 2013
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
to deflood do i start cranking then push the gas pedal to the floor or push the pedal to the floor first and then start cranking, also what order do i release
Old 06-17-2013, 03:22 AM
  #117
Charles Bundy
iTrader: (5)

Grace_Excel's Avatar

Join Date: Jun 2010
Location: Sherman Oaks, CA
Posts: 2,395
Received 7 Likes on 5 Posts
Mike, I think it's time you use the search feature. Use the key words: "Deflooding for the average Joe" and take and hour or two so you can start reading the first few pages in these helpful threads, most of your concerns have been discussed before:

Congratulations, you got an 8!
New and Potential Owners START HERE!
Suffering a misfire, START HERE!
Old 07-24-2013, 11:54 PM
  #118
Gulf Coast Rotaries
iTrader: (1)

Chino_rx3's Avatar

Join Date: Nov 2011
Posts: 604
Received 0 Likes on 0 Posts
Im going to gut my Cat , thanks for pushing me lmao.. Is getting clogged I got a cel I just prefer gutting than taking a chance on messing my 8.
Old 07-28-2013, 05:37 AM
  #119
Registered

Shoreguy926's Avatar

Join Date: Apr 2012
Location: Central NJ
Posts: 48
Likes: 0
Received 0 Likes on 0 Posts
Well I Didn't gut my cat,I only threw a 1.5" pipe threw the center..Well that was a waste of time.. One of the Sections fell into the opening (Which explains a lot) I found this out after dropping Cat again to put Anti Fouler in,Good thing I did..Needless to say NOW she is GUTTED,and the Fouler trick seems to be working.. No code yet.. But time will tell.. but 2 things are instantly noticeable now.. 1 Butt Dyno tells me she can get out of her own way..and 2 I better learn to like the smell of Rotten Eggs..lol
Old 12-21-2013, 09:43 PM
  #120
New Member

bebout's Avatar

Join Date: Dec 2013
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
We gutted the cat on 2004 and now security light is flashing and car won't fire! Does anyone have an idea what went wrong?
Old 12-22-2013, 02:16 AM
  #121
Charles Bundy
iTrader: (5)

Grace_Excel's Avatar

Join Date: Jun 2010
Location: Sherman Oaks, CA
Posts: 2,395
Received 7 Likes on 5 Posts
Originally Posted by bebout
We gutted the cat on 2004 and now security light is flashing and car won't fire! Does anyone have an idea what went wrong?
Security Light? When you have the rapid flashing red key light, it is something electrical. By removing the Cat-Converter, it would not trip your ECU and prevent you from starting the car. What steps did you take, could you list what you did before you removed the Cat?
Old 12-23-2013, 05:49 PM
  #122
New Member

bebout's Avatar

Join Date: Dec 2013
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
The car first started losing power and I was having to shift down in places I hadn't in the past. This happened a couple of days and we began reading up on things on here. What we came up with was cat and MAF. With plans to gut cat on Saturday it stalled on me Friday night. After about 20 minutes it started then stalled trying to climb steep driveway. Next morning it started and I pulled it in garage where my husband gutted cat and cleaned MAF per directions on here. When I got in car and tried to start it the engine turns over but wont fire. Flashing key light was on and we tried the battery and brake trick to no avail.
Old 03-16-2014, 01:53 AM
  #123
Registered

Pbdynastyfan's Avatar

Join Date: Aug 2013
Posts: 19
Likes: 0
Received 0 Likes on 0 Posts
So I read through this thread and I'm considering gutting my cat. My concern is getting a cel after doing it. I know some ppl have said they didn't get it. If I do though is there a way to clear the light permanently so if I get a real code I would know. Thanks!
Old 03-16-2014, 08:11 AM
  #124
You gonna eat that?
iTrader: (1)

BigCajun's Avatar

Join Date: Jan 2013
Location: Kansas City, Mo.
Posts: 6,007
Received 2,600 Likes on 2,115 Posts
You'd have to get an AccessPort to mask it permanently, or if you have an Android phone you could get the Torque app & Bluetooth dongle to clear it.
That's what I do.
Old 03-16-2014, 09:24 AM
  #125
Registered

Pbdynastyfan's Avatar

Join Date: Aug 2013
Posts: 19
Likes: 0
Received 0 Likes on 0 Posts
Okay ill read up on the access port, and just to make sure im not missing anything here, putting a midpipe on is the moral equivilant of a gutted cat, which will throw codes as well?
