Thanks Omicron for your quick reply.
I don't know how to attach a pic yet.
But I can explain to you that my black/white wire is equivalent to the brown wire. IE. the smaller wire (near the driver's side rear) of the FOG relay (black relay near the driver's side front) of the fuse box. This wire leads to the large black relay labeled TAIL.
So seems like the color is the only difference.
I will try the connectors later and see if it helps.
What I can tell is different right now as I have patched it to the ACC relay is the green driving light on the instrument (light that shows two lights pointing left and right) is OFF in the headlight switch "normal/rest" position. All other functions and indicators appear the same.
I don't know how to attach a pic yet.
But I can explain to you that my black/white wire is equivalent to the brown wire. IE. the smaller wire (near the driver's side rear) of the FOG relay (black relay near the driver's side front) of the fuse box. This wire leads to the large black relay labeled TAIL.
So seems like the color is the only difference.
I will try the connectors later and see if it helps.
What I can tell is different right now as I have patched it to the ACC relay is the green driving light on the instrument (light that shows two lights pointing left and right) is OFF in the headlight switch "normal/rest" position. All other functions and indicators appear the same.
#104
Registered User
Join Date: Feb 2004
Location: Thousand Oaks, CA
Posts: 299
Likes: 0
Received 0 Likes
on
0 Posts
I know this is an old thread, but I just wanted to say that I did this mod today. (the one with the fog's as running lights) Wanted to say thanks to all that came up with it. Made the wiring a piece of cake. Great forum.
#105
Registered User
Join Date: Aug 2003
Location: T.O. Canada
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
OK, I have had a chance to open the fusebox again.
I have looked at my fusebox time after time and "looks" like my black/white wire is equivalent to everyone else's brown wire.

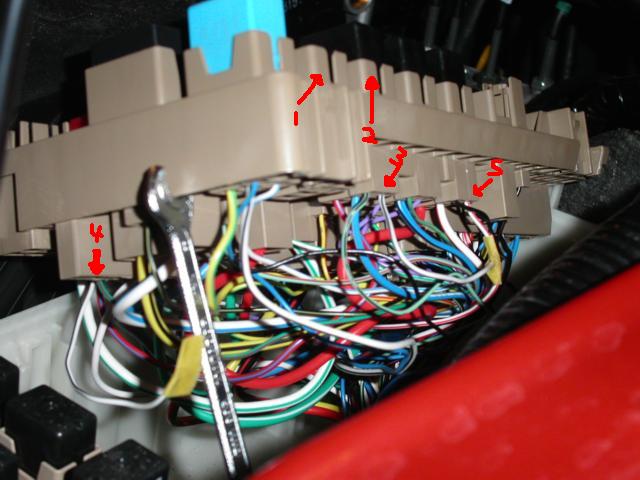

Take a look at my temporary (non-working) mod.
Yellow tape shows connection.
1. Empty plug for REAR FOG
2. First black box for FOG
3. My "brown" wire coming out of the FOG black box
4. Other end of the "brown" wire that was cut, going to TAIL box
5. Wire coming out of the ACC black box
I have looked at my fusebox time after time and "looks" like my black/white wire is equivalent to everyone else's brown wire.
Take a look at my temporary (non-working) mod.
Yellow tape shows connection.
1. Empty plug for REAR FOG
2. First black box for FOG
3. My "brown" wire coming out of the FOG black box
4. Other end of the "brown" wire that was cut, going to TAIL box
5. Wire coming out of the ACC black box
#106
Registered User
OK AcuraEL, I've done some comparing.
Yes, the wiring is different on your 8 than it is on my 8.
I believe all the successful mods were done on US spec cars.
Dumb question time -- is your car a US spec car?
Our brown wire does NOT go to TAIL relay (that's what those black boxes are), but rather goes into the wiring loom.
Question: how do you want the fog lights to work? I might be able to figure out how to do it.
And no, you are not hooking to the wrong wire; your car is different for some reason.
Yes, the wiring is different on your 8 than it is on my 8.
I believe all the successful mods were done on US spec cars.
Dumb question time -- is your car a US spec car?
Our brown wire does NOT go to TAIL relay (that's what those black boxes are), but rather goes into the wiring loom.
Question: how do you want the fog lights to work? I might be able to figure out how to do it.
And no, you are not hooking to the wrong wire; your car is different for some reason.
#107
Registered User
Join Date: Aug 2003
Location: T.O. Canada
Posts: 52
Likes: 0
Received 0 Likes
on
0 Posts
Hi Bob, thanks for the confirmation that I was in the right direction.
My car "should" be a Canadian model, as I bought it in Toronto, Canada.
I just want the simple mod to use the foglights in the middle of the three headlight switch position. So that I can turn it on in foggy weather without the xenons overpowering it. That's it.
If you can help, that would be great. Thanks all.
My car "should" be a Canadian model, as I bought it in Toronto, Canada.
I just want the simple mod to use the foglights in the middle of the three headlight switch position. So that I can turn it on in foggy weather without the xenons overpowering it. That's it.
If you can help, that would be great. Thanks all.
#108
Sponge Bob RotorPants
Join Date: Aug 2002
Location: Maryland
Posts: 466
Likes: 0
Received 0 Likes
on
0 Posts
so if I connect the brown wire to the black/red wire as maniac described on page 5, that will connect the fogs to the parking lights? is that correct? Even though its the tail light fuse, those are only one with the parking lights right?
Will that afford the availability of having the parking/fog on without the headlights as well as having the fogs and the highs on at the same time? Did I read that correctly?
Will that afford the availability of having the parking/fog on without the headlights as well as having the fogs and the highs on at the same time? Did I read that correctly?
#110
First, to those who posted the "how to" and the pics... you guys ROCK!
That was SOOOO easy! My Mini Cooper had driving lights that came on with just the parking lights or headlights and I missed that feature. Not anymore!
Thanks again!!!
That was SOOOO easy! My Mini Cooper had driving lights that came on with just the parking lights or headlights and I missed that feature. Not anymore!
Thanks again!!!
#111
Registered User
Join Date: Nov 2003
Location: in the moment
Posts: 603
Likes: 0
Received 0 Likes
on
0 Posts
Add me as one more happy Club member. This mod took ~10 minutes and gave gratification on both ends. First, because I had an excuse to drive to the store to by the connectors and second, to drive it knowing I had control over the fog lights. Great stuff guys.
I also put in the gutter guard screens in front of my Oil Coolers. Easy to do and it seems like it will work fine. Much easier than the HYMEE kit albeit perhaps not quite as elegant. However, I may still look to something a little more secure and long lasting such as a metal screen of some sort once it warms up and I feel like crawling on the ground.
I also put in the gutter guard screens in front of my Oil Coolers. Easy to do and it seems like it will work fine. Much easier than the HYMEE kit albeit perhaps not quite as elegant. However, I may still look to something a little more secure and long lasting such as a metal screen of some sort once it warms up and I feel like crawling on the ground.
#112
When in doubt XcelR8!!!!!
Join Date: Jan 2004
Location: Michigan
Posts: 147
Likes: 0
Received 0 Likes
on
0 Posts
This is what the an owners forum is all about!! Excellant work to all that put the time in to figuring the wiring out. Maniac - I followed your step-by-step instructions for the rewire and they were perfect. Thank you. I only took enough time to do in between coats of paint on my calipers!
#113
Banned
iTrader: (3)
Originally posted by XcelR8
This is what the an owners forum is all about!! Excellant work to all that put the time in to figuring the wiring out. Maniac - I followed your step-by-step instructions for the rewire and they were perfect. Thank you. I only took enough time to do in between coats of paint on my calipers!
This is what the an owners forum is all about!! Excellant work to all that put the time in to figuring the wiring out. Maniac - I followed your step-by-step instructions for the rewire and they were perfect. Thank you. I only took enough time to do in between coats of paint on my calipers!
I can't even remember how they were before I made the mod...
#114
Registered User
Join Date: Mar 2004
Location: western NY
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Just finished r&r highbeam,parking,turn signal and fogs to a hid like Philips bluevision and am very happy even the chrome reflectors look blue in the daylight.changed the turnsignals to siver bulbs that light up yellow but off look silver further enhancing the effect.
this was not as cheap as I first thought and taking the frontbumper off really made me mad that the fogs had no chance of removing bulbs any other way.
rewired the fogs using this threads pointers,really made easy work of it used m/f covered spades so easy retro.
did them on the acc trip wire.
thanks for the well laid out photo's
Robert
this was not as cheap as I first thought and taking the frontbumper off really made me mad that the fogs had no chance of removing bulbs any other way.
rewired the fogs using this threads pointers,really made easy work of it used m/f covered spades so easy retro.
did them on the acc trip wire.
thanks for the well laid out photo's
Robert
#115
Last night I rewired my foglights. First off, thank you everyone who posted here previously... I went and spliced the brown relay wire into the green/white wire. This way I could turn the fogs on with my parking lights or full lights. It was really easy after analyzing the wires, the diagram on the fuse cover, and the posts here. One thing I have to say though.... Maniac/MazdaManiac, the Black/Red wire you pointed out goes to my rear defroster circuitry. I don't know if this is the way on all vehicles, but you might want to recheck things to make sure. my power source was a low gage Green with a white stripe wire that led to the back light assembly. anyway, the mod works and I love it.
-JiM
-JiM
#117
On time, on target
Join Date: Mar 2004
Location: ABQ
Posts: 642
Likes: 0
Received 0 Likes
on
0 Posts
I also wanted to say thanks, especially to bob...i didn't get it done as fast as other people, but I am no means a whiz with wiring...in fact, this was my first ever electric DIY project, and the instructions and pics posted here were helpful to no end...
#118
Riot Controller
Join Date: Jan 2004
Location: Orlando, FL
Posts: 2,142
Likes: 0
Received 0 Likes
on
0 Posts
Alright I did this mod as per Omicron's instructions, but I didn't like the fogs on as DRL's and I didn't like having to switch them on and off with my parking lights.
So I followed the original instructions that connects them to the TAIL relay, but I added a little twist. I don't have my camera so I'll try my best. This way isn't as clean (who cares its in a box under the hood!) but it's alot easier.
Remove the tail relay and located the top spade terminal that runs parallel to the front of the car. there's two that go left/right and two up/down. this is the terminal that the heavier gauge green/white wire runs to from underneath.
use a piece of low gauge wire and strip about an inch off the end. insert the stripped end into the previously mentioned terminal.
replace the relay, being sure the wire doesnt come out of the hole
run the wire through the vent holes to the left of the relay and across the bottom of the fuse block. cut and cap the brown wire from the fog relay and use a tap or splice the two (extension wire that your provide, and the brown wire)
now the fog switch only works when the parking lights are on!
So I followed the original instructions that connects them to the TAIL relay, but I added a little twist. I don't have my camera so I'll try my best. This way isn't as clean (who cares its in a box under the hood!) but it's alot easier.
Remove the tail relay and located the top spade terminal that runs parallel to the front of the car. there's two that go left/right and two up/down. this is the terminal that the heavier gauge green/white wire runs to from underneath.
use a piece of low gauge wire and strip about an inch off the end. insert the stripped end into the previously mentioned terminal.
replace the relay, being sure the wire doesnt come out of the hole
run the wire through the vent holes to the left of the relay and across the bottom of the fuse block. cut and cap the brown wire from the fog relay and use a tap or splice the two (extension wire that your provide, and the brown wire)
now the fog switch only works when the parking lights are on!
#120
Riot Controller
Join Date: Jan 2004
Location: Orlando, FL
Posts: 2,142
Likes: 0
Received 0 Likes
on
0 Posts
i havent read over the entire thread in awhile...
but the other method involved running a wire and using a spade to connect it underneath the relay, mine did the same thing from above. i found it diffifult to access the bottom of the fuse block, so i did that part at least from the top.
or maybe you did the same thing, and i just missed it. sorry
but the other method involved running a wire and using a spade to connect it underneath the relay, mine did the same thing from above. i found it diffifult to access the bottom of the fuse block, so i did that part at least from the top.
or maybe you did the same thing, and i just missed it. sorry
#121
Originally posted by Omicron
Brilliant? WOW, that's a nice thing to say... nice enough, in fact, that you motivated me to not only go check but also to take a pic of my mod and try to figure out how to post it here. :D
I used a "red" wiretap to tap into the white with red stripe wire leading away from the "ACC" relay, which is in the 5th position in the same row as the fog relay, or 2 positions to the right of the fog relay if you look at the fuse box from the right. I picked this wire by removing the relay, then testing with a DMM to find a wire that was "hot" with the ignition key on only.
Hope this helps!
Brilliant? WOW, that's a nice thing to say... nice enough, in fact, that you motivated me to not only go check but also to take a pic of my mod and try to figure out how to post it here. :D
I used a "red" wiretap to tap into the white with red stripe wire leading away from the "ACC" relay, which is in the 5th position in the same row as the fog relay, or 2 positions to the right of the fog relay if you look at the fuse box from the right. I picked this wire by removing the relay, then testing with a DMM to find a wire that was "hot" with the ignition key on only.
Hope this helps!
I just got to do this mod tonight. it was kind of a pain to work with the short wires. if it wasn't for that, it would be a 30 second job.
I drove on some back roads after doing this (where it was real dark). with just parking lights & fogs, you can't see very far ahead (i was going slow and the moon was almost full tonight).
but I often find myself in situations where I wish I could turn on only the fogs, or just parking lights & fogs, so this is perfect. thanks again.
#122
...F U, I'm out!
Join Date: Jun 2004
Location: Cleveland, Ohio
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
I just got this mod done today, I was so jealous to see other cars at dusk driving down the road with just the parks and fogs on. Now... I've got it too, and the fact that the ambers don't come on with the parks, only for the turn signals just sets off the front of the car, I saw people staring like... Deer in headlights! Hmmm, strange... cause... mine weren't on!
#123
ok...so my car is wierd...followed the directions, and when i turn on the parking lights...for some reason, my high beams come on...i hooked up the male/female disconnects, and when i wire it back to normal, everything works like normal...any ideas???
#124
Registered
Join Date: Oct 2001
Location: Boulder County, Colorado
Posts: 7,966
Likes: 0
Received 4 Likes
on
3 Posts
Yup, hate to say it, but you miswired things. Check the instructions closely and try again. Usually it's something like tapping into the wrong wire, or tapping the wrong end of the light brown wire into things.
#125
i verified the right end of the brown, and that it is going into the green/white cable...i am going to post a pic later tonight...see if anyone can spot what i am missing...i figured it was a wiring thing, but i don't see what i am missing...guess we will see in a few hours.
