DIY: Brake Cooling Ducts for Track Use

Old 07-03-2017, 11:40 AM
  #26
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 21,051
Received 347 Likes on 282 Posts
That doesn't necessarily mean they need cooling. I'm not aware of any of the other racers having rear brake issues. You might consider an aluminum hat/improved rotor disc setup instead like Racing Brake etc.

Will cut 5 lbs of rotating mass too

Two-piece rotor (Open Slot) - RX8 REAR 04-11
TeamRX8 is online now
Old 07-03-2017, 01:28 PM
  #27
New Member

Join Date: Jul 2014
Location: Wellington, New Zealand
Posts: 8
Likes: 0
Received 0 Likes on 0 Posts
👍
Doofenator is offline
Old 07-07-2017, 08:42 AM
  #28
1% evil, 99% hot gas.
iTrader: (21)

wankelbolt's Avatar

Join Date: Nov 2007
Location: Forest Hill, MD
Posts: 1,064
Received 58 Likes on 45 Posts
Originally Posted by TeamRX8 View Post
Holy crap are those expensive. Speed really does cost money.
wankelbolt is offline
Old 07-16-2017, 03:01 PM
  #29
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 21,051
Received 347 Likes on 282 Posts
The rotor material is way superior to OE, and way more durable with aggressive track pads ...





.

Last edited by TeamRX8; 07-23-2017 at 07:34 PM.
TeamRX8 is online now
Old 07-23-2017, 03:19 PM
  #30
OD4
Registered

Join Date: Mar 2014
Location: Virginia
Posts: 16
Likes: 0
Received 2 Likes on 2 Posts

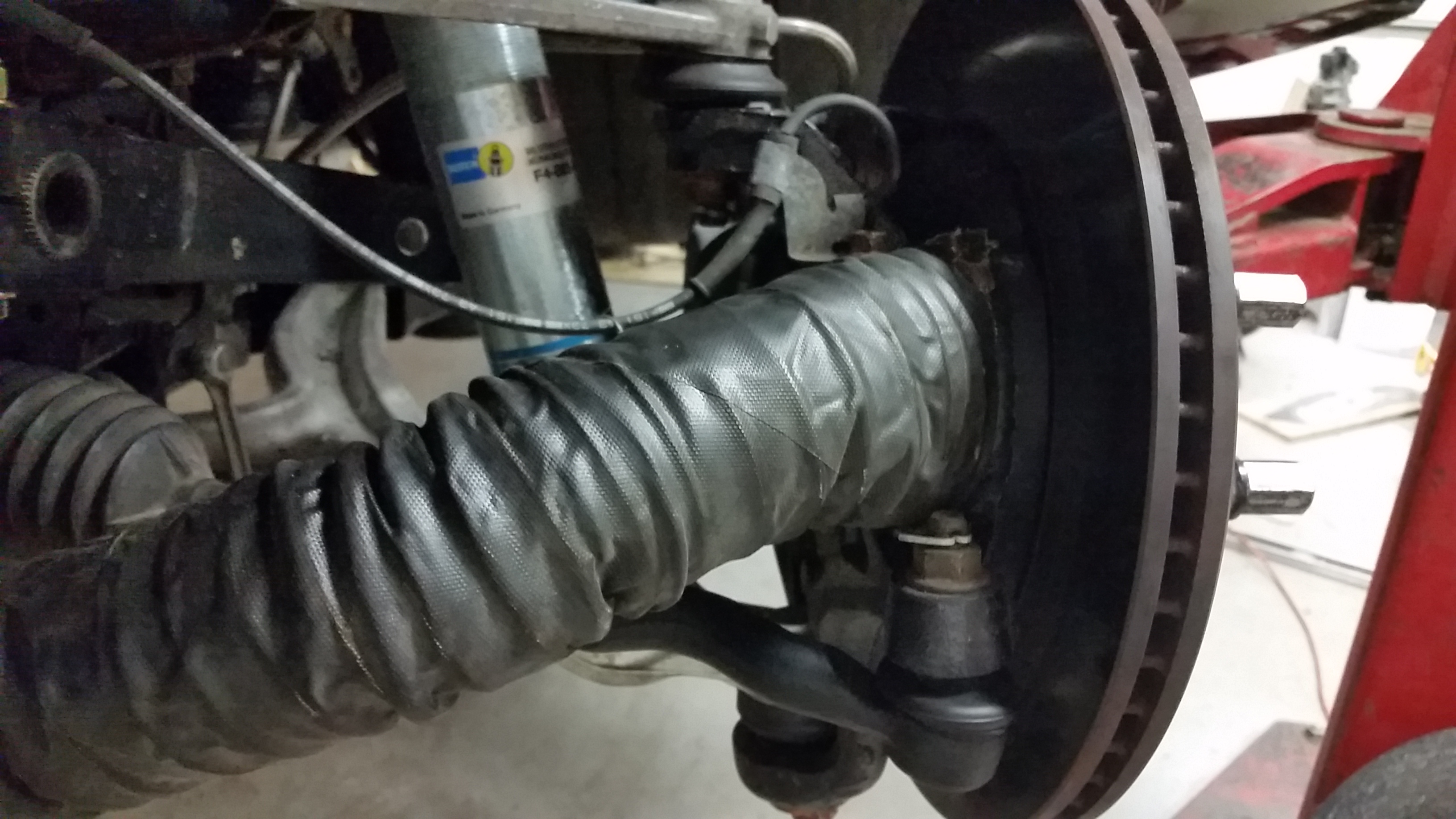

I just updated my brake ducts on the dedicated track car. (SCCA T4 class) I had ducts running from the old fog lights but with the new oil coolers I needed more space. I did something similar to this thread. I have the mx5 ducts on the rotor/hub to carry the air into the hub itself. a 2.5" hose fits nicely so I found some parts at home depot to add some 2.5" ducts to the plastic that scoops air to the radiator.

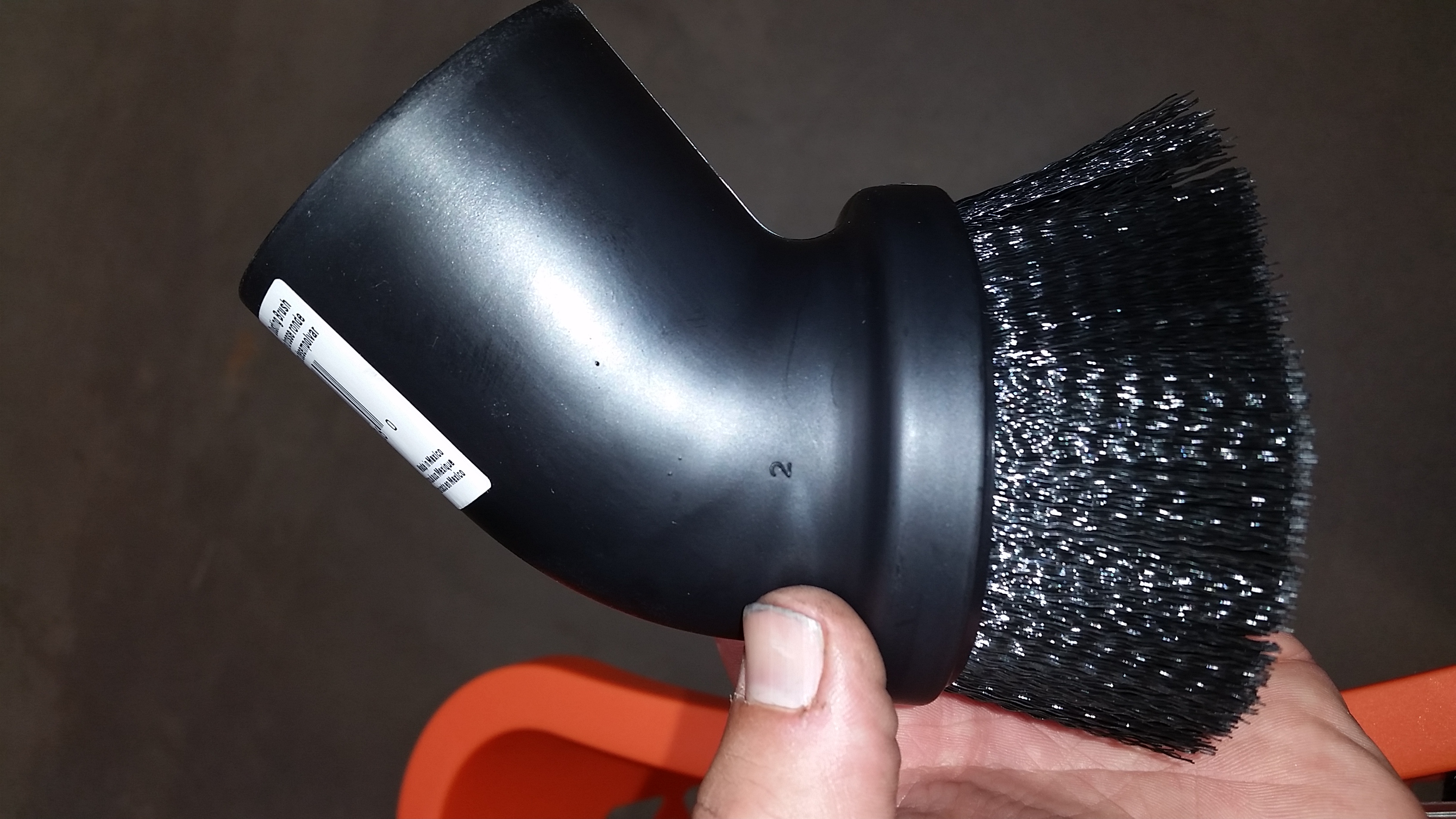

I found shop vacuum hoses are 2.5" and the little round end worked well. ($9 each)

Pulled the bristles off and cut it back to make a snorkel.

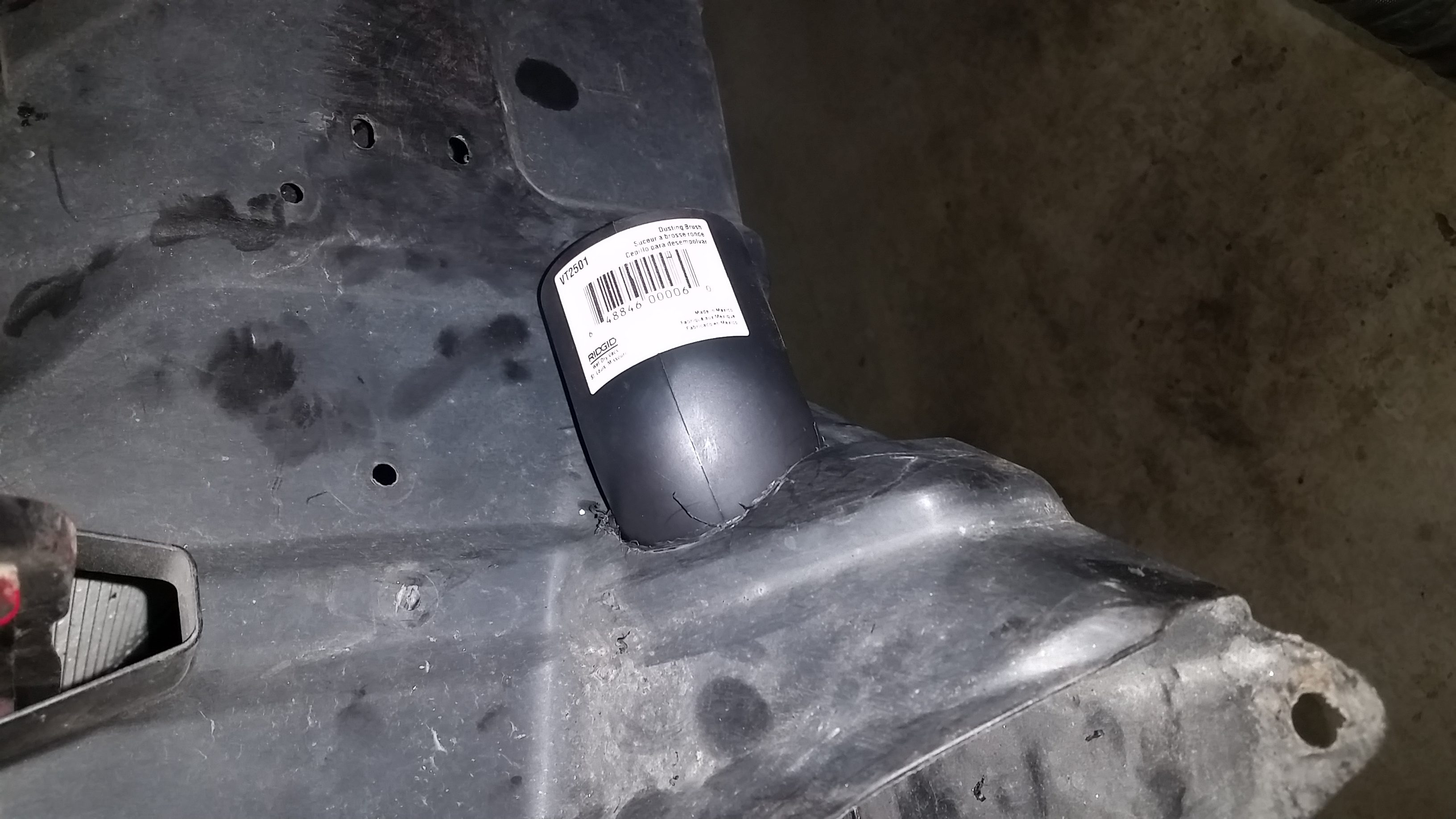

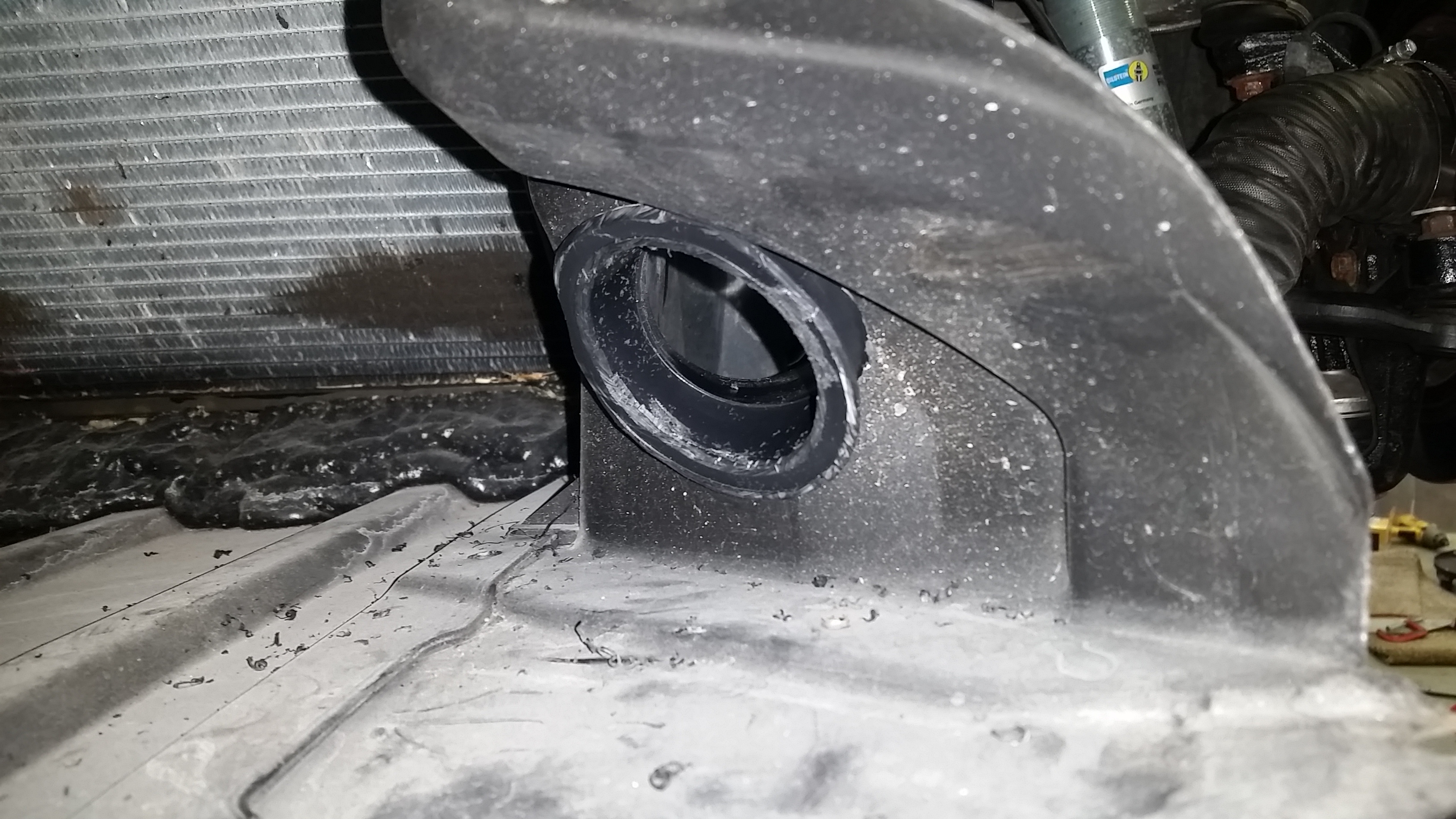

I drilled a 2.5" hole in the side of the plastic to insert the shop vac end in.

Used a couple rivets and epoxy to hole it in place.

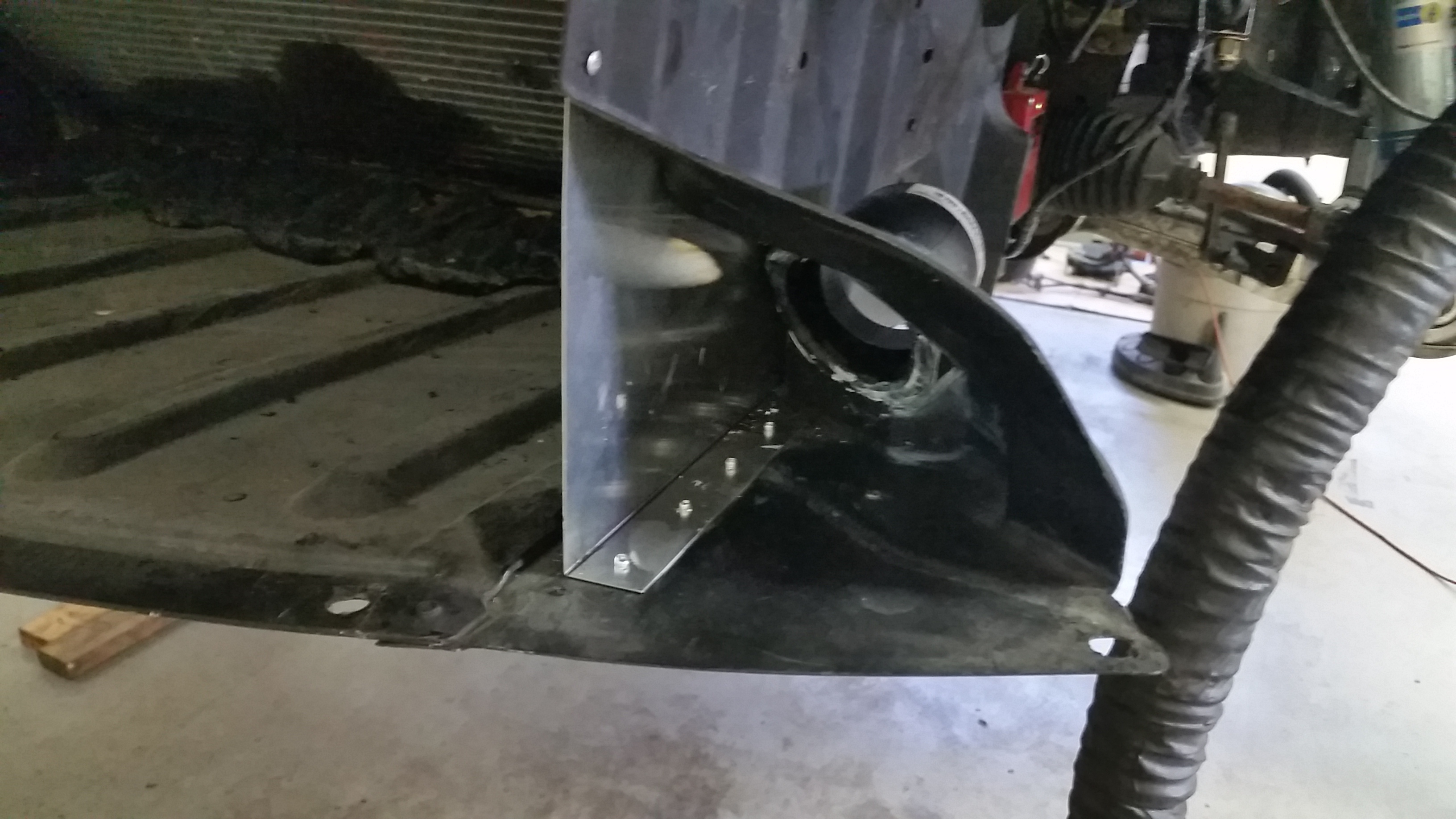

Then to seal off that area I cut a piece of thin aluminum ($7 for 12"x12" enough for both sides) and riveted it to the plastic so separate the brake duct area from the radiator area.
Attached Thumbnails DIY: Brake Cooling Ducts for Track Use-20170715_155949.jpg   DIY: Brake Cooling Ducts for Track Use-20170715_163632.jpg   DIY: Brake Cooling Ducts for Track Use-20170715_163644.jpg   DIY: Brake Cooling Ducts for Track Use-20170715_163700.jpg   DIY: Brake Cooling Ducts for Track Use-20170715_163708.jpg

DIY: Brake Cooling Ducts for Track Use-20170715_181515.jpg   DIY: Brake Cooling Ducts for Track Use-20170718_203328.jpg   DIY: Brake Cooling Ducts for Track Use-20170718_203333.jpg
OD4 is offline
The following users liked this post:
wankelbolt (07-23-2017)
Old 08-13-2017, 10:14 AM
  #31
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 21,051
Received 347 Likes on 282 Posts

Last edited by TeamRX8; 08-13-2017 at 10:18 AM.
TeamRX8 is online now
The following users liked this post:
comebackqid (08-16-2017)
Old 12-13-2017, 01:15 PM
  #32
Registered

Nadrealista's Avatar

Join Date: Feb 2011
Location: Here
Posts: 509
Likes: 0
Received 8 Likes on 6 Posts
OD4 where in VA are you?

Need to do this myself as well. I was thinking about skipping the aluminum bracket you put there to split the airflow - wonder if that will impact the cooling in the heat of the summer on the track?

which hose did you use?

Last edited by Nadrealista; 12-13-2017 at 01:24 PM.
Nadrealista is offline
Old 12-14-2017, 07:09 AM
  #33
OD4
Registered

Join Date: Mar 2014
Location: Virginia
Posts: 16
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Nadrealista View Post
OD4 where in VA are you?

Need to do this myself as well. I was thinking about skipping the aluminum bracket you put there to split the airflow - wonder if that will impact the cooling in the heat of the summer on the track?

which hose did you use?
I'm in the Warrenton area. I didn't have an issue with the engine temps after doing them but I do have a huge radiator and no AC radiator.

Not sure on the brand of hose it was left over for something else. It was 2.5" if I remember. OG racing sells some good stuff.

Last edited by OD4; 12-14-2017 at 07:12 AM.
OD4 is offline
Old 01-25-2018, 03:13 AM
  #34
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 21,051
Received 347 Likes on 282 Posts
.

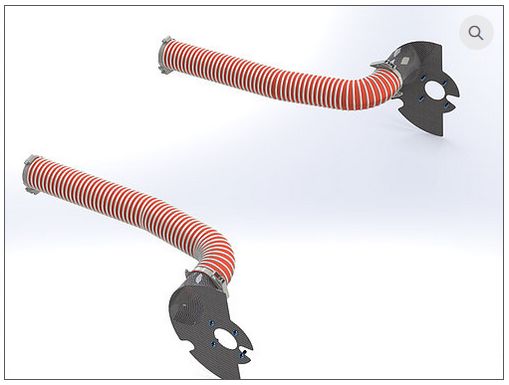

Coming Soon: Carbon Fiber brake cooling kit.

Keep your brake temps at optimum levels for those aggressive braking zones. Each kit includes:

- 2 Carbon fiber brake duct plates
- SCEET 3" tube
- Adel clamps
- Hardware kit

Lead Time: 2 weeks

$300
Built 2 Apex




.
Attached Thumbnails DIY: Brake Cooling Ducts for Track Use-bd.jpg

Last edited by TeamRX8; 01-25-2018 at 03:20 AM.
TeamRX8 is online now
