Digital_Damage

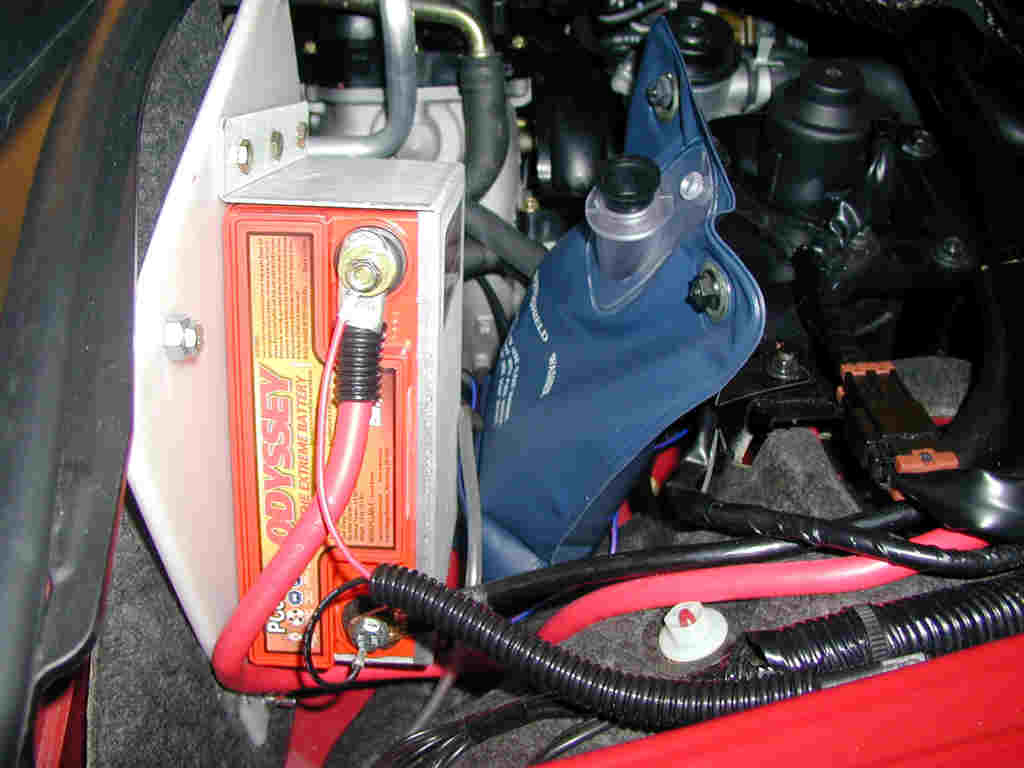

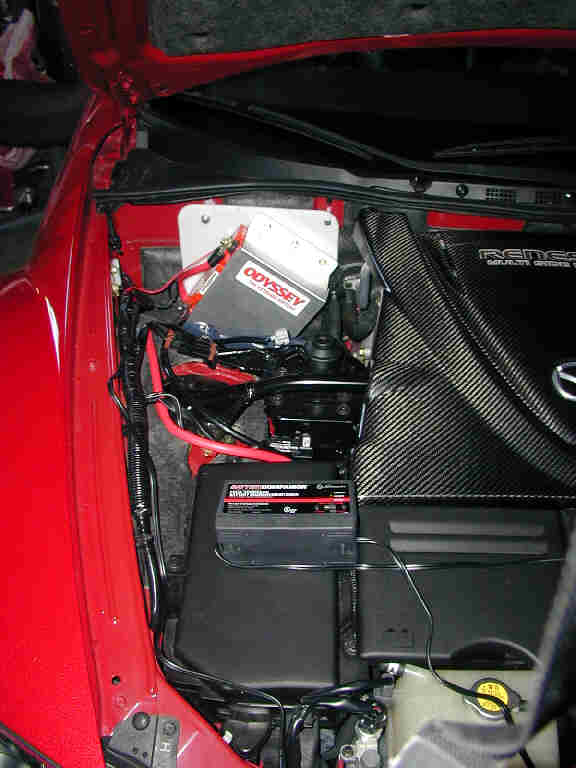

So I made my own, can't find the digi cam so here ae some crapy phone pics.

jird20

Well done sir,

But now, should not be the battery in the upright position?

Nice, and professional looking kit

Cheers

jird20

mysql101

Looks good. Did you install a smaller wiper fluid container, or leaving it off all together?

Digital_Damage

Thanks,

It is a gel battery is can be mounted in any position.

Digital_Damage

That is the small tank on the left side, I should have taken a picture after I put the pump in (It is in the bottom).

It actually only holds just a little less that the stock tank which surprised me.

VarneyMazda

wow good idea.

ddub

Nice job, you should make and sell those.

mikeschaefer

I think I'd rather mount mine in the trunk

swoope

iTrader: (5)

looks very nice, why the move????

beers

Cody Red

yeah.

-Cody

Digital_Damage

I have to free up some space in the front

woodysjh

How much does that weight approximately?

I think you should make and sell those too.

Digital_Damage

The battery Weighs 24.5 lbs, I would say the tray and tank about two pounds so 26-27 pounds all together.

Spin9k

Very neat & professionally done, esp. with the built in washer bottle . You must have a metal shop to get such nice work. Excellent choice of location too

The only question I have is why did you use so heavy a battery? Your choice saves only ~13lbs off the stock battery, the Odyssey PC680 saves 26lbs and starts the car fine.

Digital_Damage

It was all done with a dremmel and a lot of patience. I had it tig welded at mazsport.

The choice of battery is about reliability the 680 has 17 amp hours, just not enough for a daily driver that is going to have a lot of electronics. Not to mention if the car sits for a month the battery will die ( I travel and will some times be away from home three weeks at a time).

The 928 has 28 amp hours and is rated way above the stock unit. I will gladly trade 26 lbs for the piece of mind that everytime I get into my car it will start.

Spin9k

All you say is true and good reason to do what you did. Still if saving weight in the car is important, 26lbs is HUGE! You can find threads on here how difficult a task that is in this car.

I did this mod for performance reasons, handling, weight placement, acceleration, on track, that sort of thing. I can always put back the stocker, and do when I'm not tracking for periods of time, or in the winter.

Digital_Damage

That is part of the problem, I will not have a place for the stock battery soon.

mike1324a

Why? A turbo on the way?

mikeschaefer

Well if your new washer tank doesn't sacrifice too much capacity then I'd have to say I second the notion to make and sell these things.

Spin9k

My guess, is you've signed up for Pettit Racing's SC install??? I mean, they're next door practically, yes?

Digital_Damage

I will crunch some numbers and I'll see what I can come up with.

Digital_Damage

Going a little closer I live right by Mazsport

redcivic

Dude, please make that for me!

SmokeyTheBalrog

I believe all the wiring to the trunk adds a lot of weight. So, if you are looking to cut as much weight as possible this mod is better.

On the other hand if you need more space in the engine bay and want more weight in the rear then the trunk option might server you better.

redcivic

All my previous cars have had batteries relocated and the wiring does not add much weight at all. My CRX has the battery in the hatch and I have it grounded there so there is only one cable that runs up front. However, the RX8 has perfect 50/50 balance so I would use this idea, as it would not screw things up as much weight wise as would moving the factory battery or equivilent to the trunk. Also, my CRX only has engine electronics and basic lighting and that is it. The RX8 would require a more complicated grounding structure.
