Clutch Pedal Bracket, Solutions, and Explanations# NOW RECALL
#26
I'm getting ready to install mine today. not looking forward to the 3 hours of pain but I am looking forward to a better clutch feel. Specially now that it started to snow. I'll report back after I'm done
#27
I have had a sqeaky clutch pedal for a few months now, went to drive this morning and my clutch pedal was sunk all the way to the floor. after wiggling a bit i got it to come back up, but after i push it down a few times it sinks to the floor again.. I Did not see any cracks on the pedal, however it is wiggling from side to side a bit.. would this be a faulty clutch pedal? or a clutch slave/master? i replace the slave cylinder maybe 10k miles ago so im pretty sure it wouldnt be that..
#28
I have had a sqeaky clutch pedal for a few months now, went to drive this morning and my clutch pedal was sunk all the way to the floor. after wiggling a bit i got it to come back up, but after i push it down a few times it sinks to the floor again.. I Did not see any cracks on the pedal, however it is wiggling from side to side a bit.. would this be a faulty clutch pedal? or a clutch slave/master? i replace the slave cylinder maybe 10k miles ago so im pretty sure it wouldnt be that..
#30
Registered
Join Date: Dec 2010
Location: Georgetown, KY
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
just bought and installed this, absolutely night and day difference. i also bought a used assembly off ebay that wasnt broken and installed the bracket on it. my old one had completely broken of the left side. THANK YOU RACE ROOTS A++++ PRODUCT.
#33
Extraordinary Engineering
If your bracket was failing you'd have a lot more play than that but get the bracket reinforcement anyway: It's a great upgrade for both pedal feel, stability and security.
#35
Registered
iTrader: (17)
Join Date: Nov 2009
Location: The Big Apple
Posts: 141
Likes: 0
Received 0 Likes
on
0 Posts
CEL P0704 "clutch switch input circuit malfunction" !?
Hey guys..so I got a new clutch pedal assembly installed by my local dealer last wednesday for free because of a recall (faulty clutch pedal brackets) that was issued in October. Saturday I intalled a revi intake and then sunday outa nowhere my CEL comes on. At first I thought it might have something to do with the intake until I went to autozone and got the code for the CEL which is P0704 "clutch switch input circuit malfunction".
I'm guessing the technicians screwed something up while installing the new clutch pedal assembly ? I tried taking the car back but now the service guy s over here giving me BS telling me how that could be anything and the CEL did not come on because of the new clutch pedal,so basically he wants me to come in and pay $135 just for a diagnosis....YEA RIGHT! Also, first day I came back from the dealer I noticed while parking in front of my house that when Im in 1st gear or reverse, with clutch and brake down ONLY, the engine continuously revs by itself without having my foot on the gas. I called the service guy back that same day and explained this to him and he told me not to worry that this sounds normal to him and I jut have to let it break in.....ehh idk. What do you guys think!?
Please help
I'm guessing the technicians screwed something up while installing the new clutch pedal assembly ? I tried taking the car back but now the service guy s over here giving me BS telling me how that could be anything and the CEL did not come on because of the new clutch pedal,so basically he wants me to come in and pay $135 just for a diagnosis....YEA RIGHT! Also, first day I came back from the dealer I noticed while parking in front of my house that when Im in 1st gear or reverse, with clutch and brake down ONLY, the engine continuously revs by itself without having my foot on the gas. I called the service guy back that same day and explained this to him and he told me not to worry that this sounds normal to him and I jut have to let it break in.....ehh idk. What do you guys think!?
Please help
#36
I just had mine replaced. looking at this picture, can you tell me if they installed it right? I had it for week, and now i can't shift gears with the car on and mazda is saying i need a new clutch kit installed.
#40
Registered User
Assembly bracket #2
Its the beginning of the end again for the replacement bracket currently installed on my 04. The clicking noise has been ongoing for the 3rd week now. When pressing it in about an inch. Only 53 days after being installed by the dealer. From information I have gathered the replacement was on backorder and either was rushed and poorly made, yet again. Or, it is a mere re-manufactured version from the original product. I will be ordering the reinforcement bracket as soon as I figure out what the more beneficial way to go is. $300 Pre-installed bracket or the $135 bracket itself. Would the dealer even bother putting the bracket on? or would it be all around easier/inexpensive to get the $300 Pre-installed bracket and just have the dealer replace it?
Thanks in advance.
Thanks in advance.
#41
Its the beginning of the end again for the replacement bracket currently installed on my 04. The clicking noise has been ongoing for the 3rd week now. When pressing it in about an inch. Only 53 days after being installed by the dealer. From information I have gathered the replacement was on backorder and either was rushed and poorly made, yet again. Or, it is a mere re-manufactured version from the original product. I will be ordering the reinforcement bracket as soon as I figure out what the more beneficial way to go is. $300 Pre-installed bracket or the $135 bracket itself. Would the dealer even bother putting the bracket on? or would it be all around easier/inexpensive to get the $300 Pre-installed bracket and just have the dealer replace it?
Thanks in advance.
Thanks in advance.
That being said I have offered them the Clutch Pedal brackets and they can not offer them to the customers that come in with complaints because it is not a Mazda OEM part.
If you do know the mechanics you can ask them if they will install it.
Let them know it will take about an hour ot two MAX for a competent mechanic to install. Which includes removing the pedal, installing the bracket, reinstalling the pedal.
#43
Surf Hard, Drive Hard
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes
on
9 Posts
Assuming it has not changed at all since mine....................
Using a 5/16 size drill bit carefully drill a hole through the bracket using the external hole as a guide.
Then drill through to the internal hole on the other side and drill through.
Refer to the photos for the direction the long reinforcement bracket, bolts, washers and nuts should be inserted.
Tighten bolts and nuts completely.
Using a 3/16 drill bit, drill a hole through the long reinforcement brace using the hole in the brace as a guide. Debur as necessary
Using a 5/16 size drill bit carefully drill a hole through the bracket using the external hole as a guide.
Then drill through to the internal hole on the other side and drill through.
Refer to the photos for the direction the long reinforcement bracket, bolts, washers and nuts should be inserted.
Tighten bolts and nuts completely.
Using a 3/16 drill bit, drill a hole through the long reinforcement brace using the hole in the brace as a guide. Debur as necessary
#47
Need help with RR bracket install

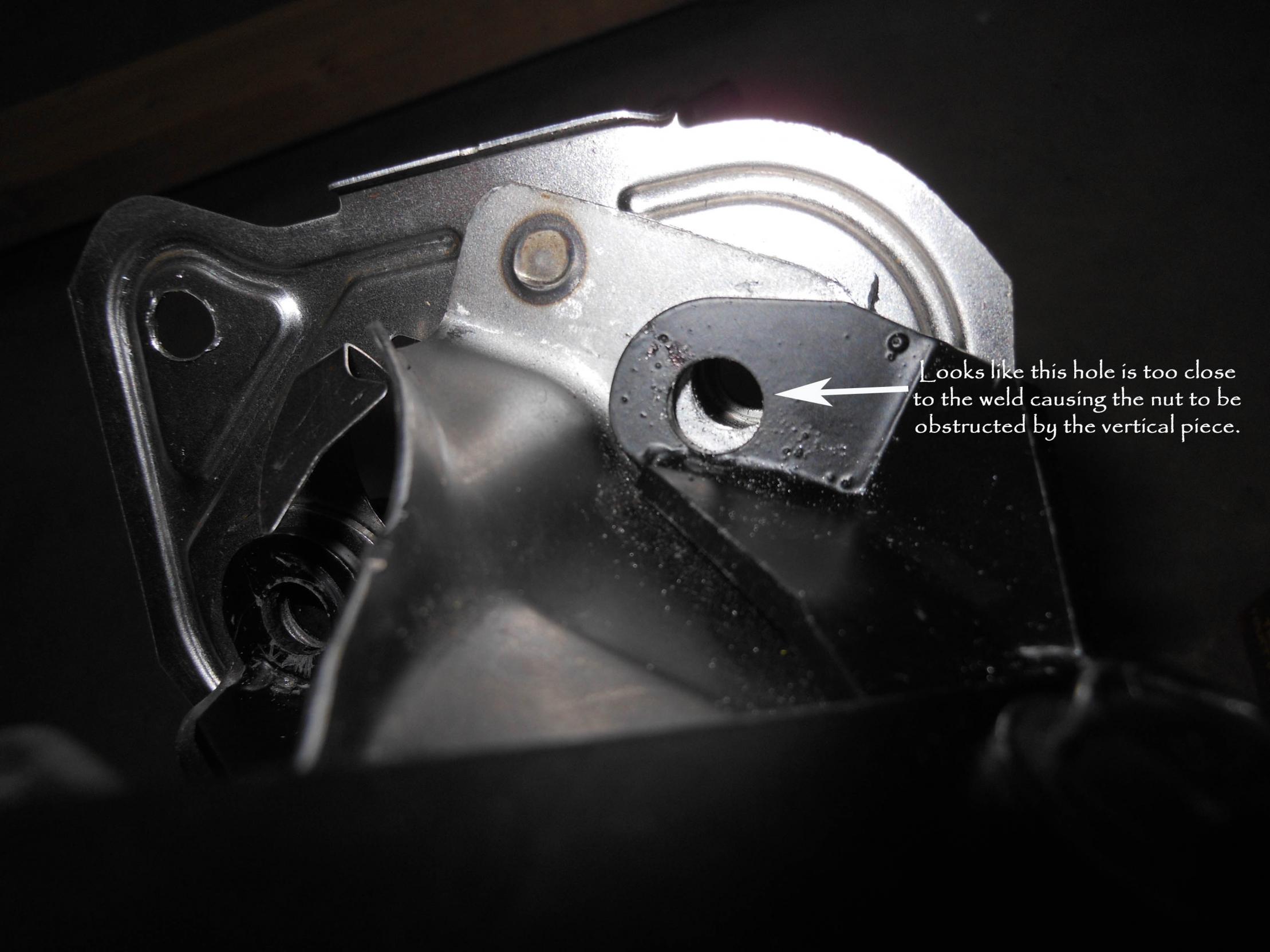

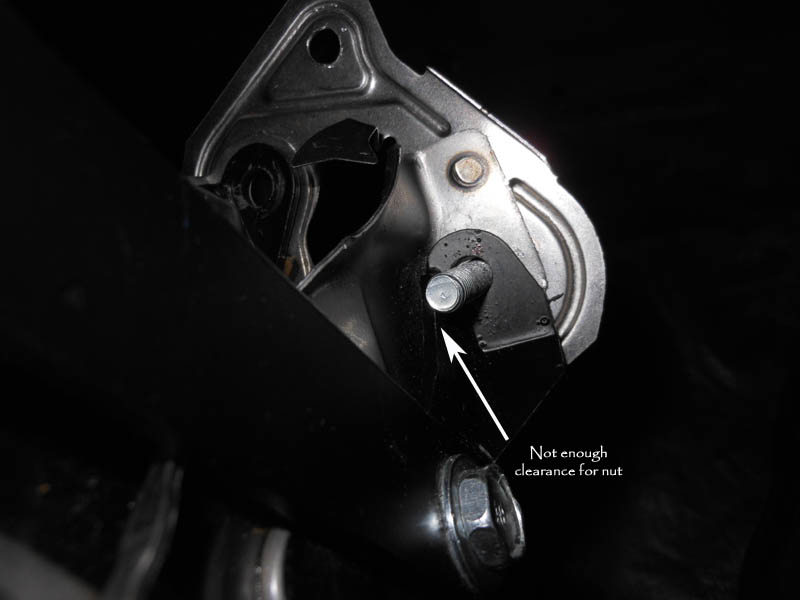

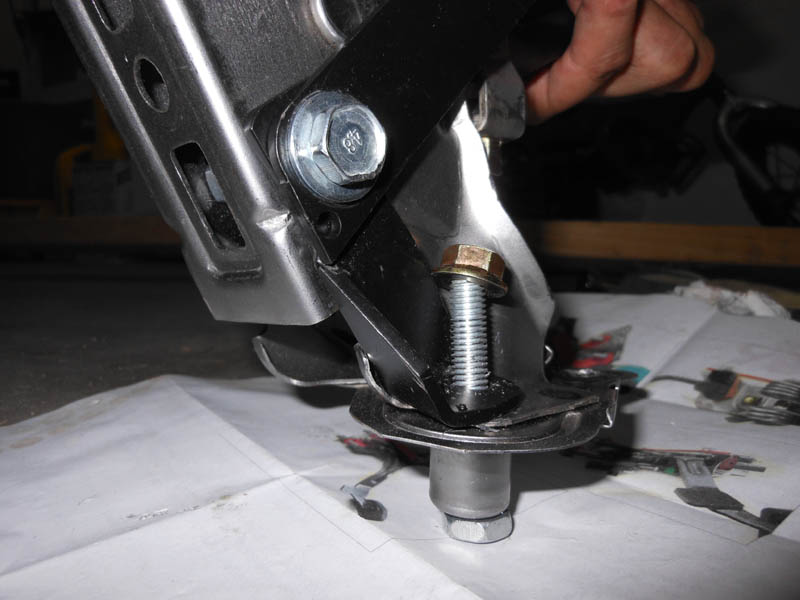

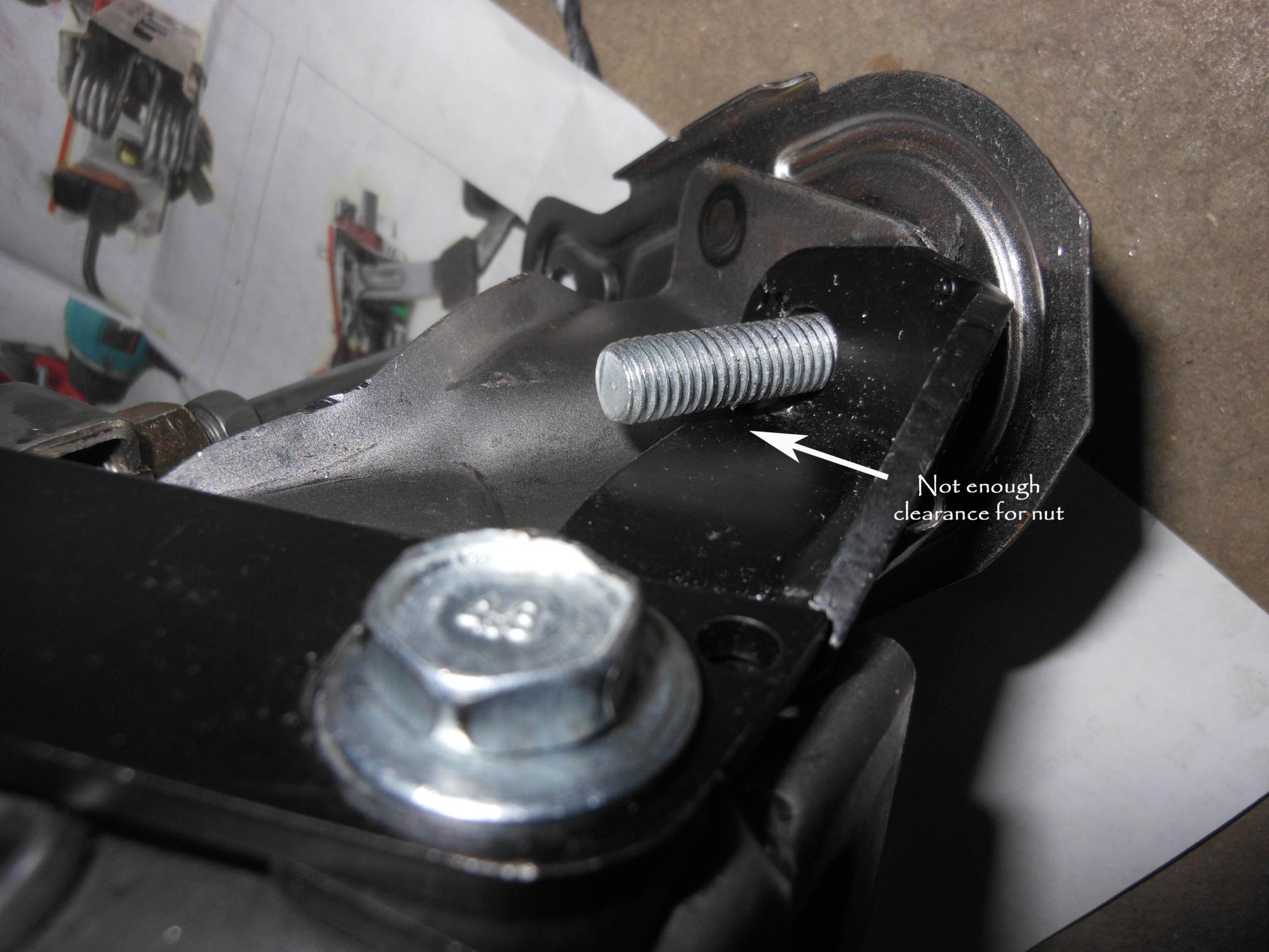

I spent 3 hours often in contorted positions last night removing the clutch pedal, installing the Race Roots bracket and reinstalling partially. My problem is that the RR bracket is obstructing the way for one of the nuts for reattachment to the firewall. Of course it had to the most difficult nut on the left side so it took a while for me to figure out it just wasn't going to work. I removed the pedal again and took some pics.
Any one had this problem? The hole in the RR bracket is maybe 1/8" inch off compared with the hole in the original pedal. This causes the nut to be obstructed by the vertical part of the bracket. Is this a manufacturing fault in one of the batches?? Only thing I can think of doing is taking to the bracket with a dremel to extend the hole but that would be a major pain. Hopefully I there's a better solution.
Any ideas?
Any one had this problem? The hole in the RR bracket is maybe 1/8" inch off compared with the hole in the original pedal. This causes the nut to be obstructed by the vertical part of the bracket. Is this a manufacturing fault in one of the batches?? Only thing I can think of doing is taking to the bracket with a dremel to extend the hole but that would be a major pain. Hopefully I there's a better solution.
Any ideas?
#49
Thanks, Brice (Race Roots). Apparently one slipped through the cracks and the hole was drilled in the wrong place as I suspected. Brice kindly offered to send a replacement or issue a credit.
I will dremel out the hole tonight as I need to use my car to go to work and it was quite a pain to get the nuts tightened between the bracket and the pedal frame. There's a little hole where you can grab the nut with long-nose pliers. Perhaps a ring spanner would have worked but I don't have one.
I'm 3hrs into it...another late night coming up.....
I will dremel out the hole tonight as I need to use my car to go to work and it was quite a pain to get the nuts tightened between the bracket and the pedal frame. There's a little hole where you can grab the nut with long-nose pliers. Perhaps a ring spanner would have worked but I don't have one.
I'm 3hrs into it...another late night coming up.....
