LS6 swap parts list and how to paperwork
#53
#54
Registered
Join Date: Jan 2012
Location: G'vegas, SC
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
mdoffroad
Just realized you were the one to answer the questions I posted on ls1tech.com
Kinda strange to see someone actually come through with what they claim on forums!
Just realized you were the one to answer the questions I posted on ls1tech.com
Kinda strange to see someone actually come through with what they claim on forums!
#57
Registered
Join Date: Jan 2012
Location: G'vegas, SC
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
Lsx/T56 Mazda Rx8 Build Thread.. Pics inside - Page 3 - LS1TECH
Here is the link for some Q/A for this swap.
Here is the link for some Q/A for this swap.
#60
Registered
Thread Starter
Join Date: Sep 2012
Location: Arkansas
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
#61
Registered
Thread Starter
Join Date: Sep 2012
Location: Arkansas
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
#66
Registered
Join Date: Jan 2012
Location: G'vegas, SC
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
Stand alone harness for the ls1 so enmissions would most likely plug in to that harness' obdII.
Mdoffroad what did you do for speedometer without abs?
Mdoffroad what did you do for speedometer without abs?
Last edited by RX what?; 04-28-2013 at 08:33 PM.
#67
Registered
Thread Starter
Join Date: Sep 2012
Location: Arkansas
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
Correct, I have all emission through the OBDII port wiring.
For the speed sensor I just used the speed sensor from the LS1 ECM due to it have in that information available through the transmission speed sensor.
#68
Registered
Thread Starter
Join Date: Sep 2012
Location: Arkansas
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
Not to the RX8 OBDII port but the LS1 OBDII port. You could tie them all into the RX8 port if you wanted to but I have mine under the hood at this time.
#69
Registered
Thread Starter
Join Date: Sep 2012
Location: Arkansas
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
#70
Registered
Join Date: Jan 2012
Location: G'vegas, SC
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
Interesting I always thought that the RX8 got it's speed readings from the abs module. How would using the LS1 ecm show you the speed on the RX8 gauge though? Like how is it wired specifically?
#71
Registered
Thread Starter
Join Date: Sep 2012
Location: Arkansas
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
The RX8 speedometer is nothing but a digital gauge that read a pulse. The LS1 also reads a pulse. Tie the LS1 pulse into the same wire that goes to the RX8 speedometer and yes you can find that wire tied into the ABS system…. I think it was a solid green wire but not sure.
#74
Registered
Join Date: Jan 2012
Location: G'vegas, SC
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
The RX8 speedometer is nothing but a digital gauge that read a pulse. The LS1 also reads a pulse. Tie the LS1 pulse into the same wire that goes to the RX8 speedometer and yes you can find that wire tied into the ABS system…. I think it was a solid green wire but not sure.

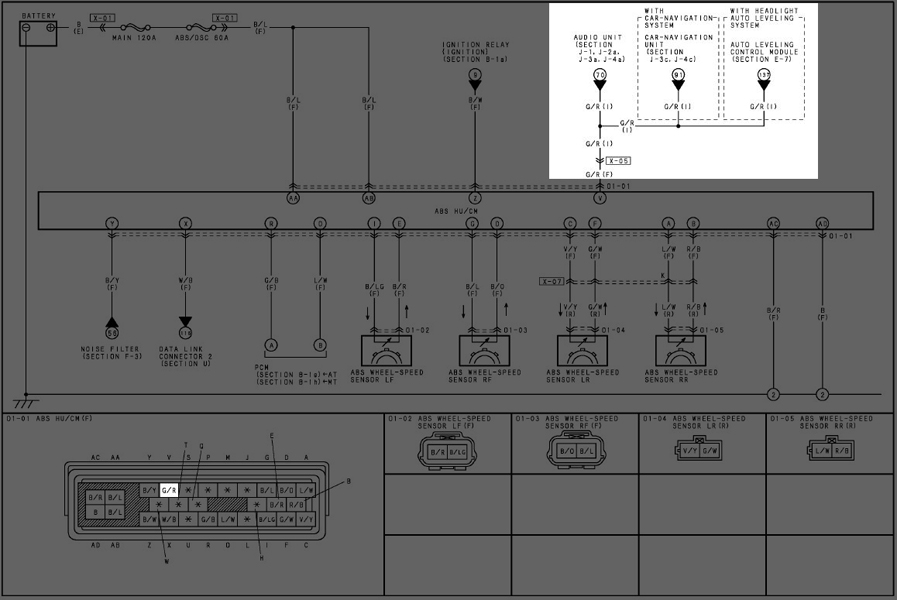

So I guess get that G/R wire from the abs connector then connect the t56 VSS sensor to that and let the rx8 PCM do it's job (is that what you did?)

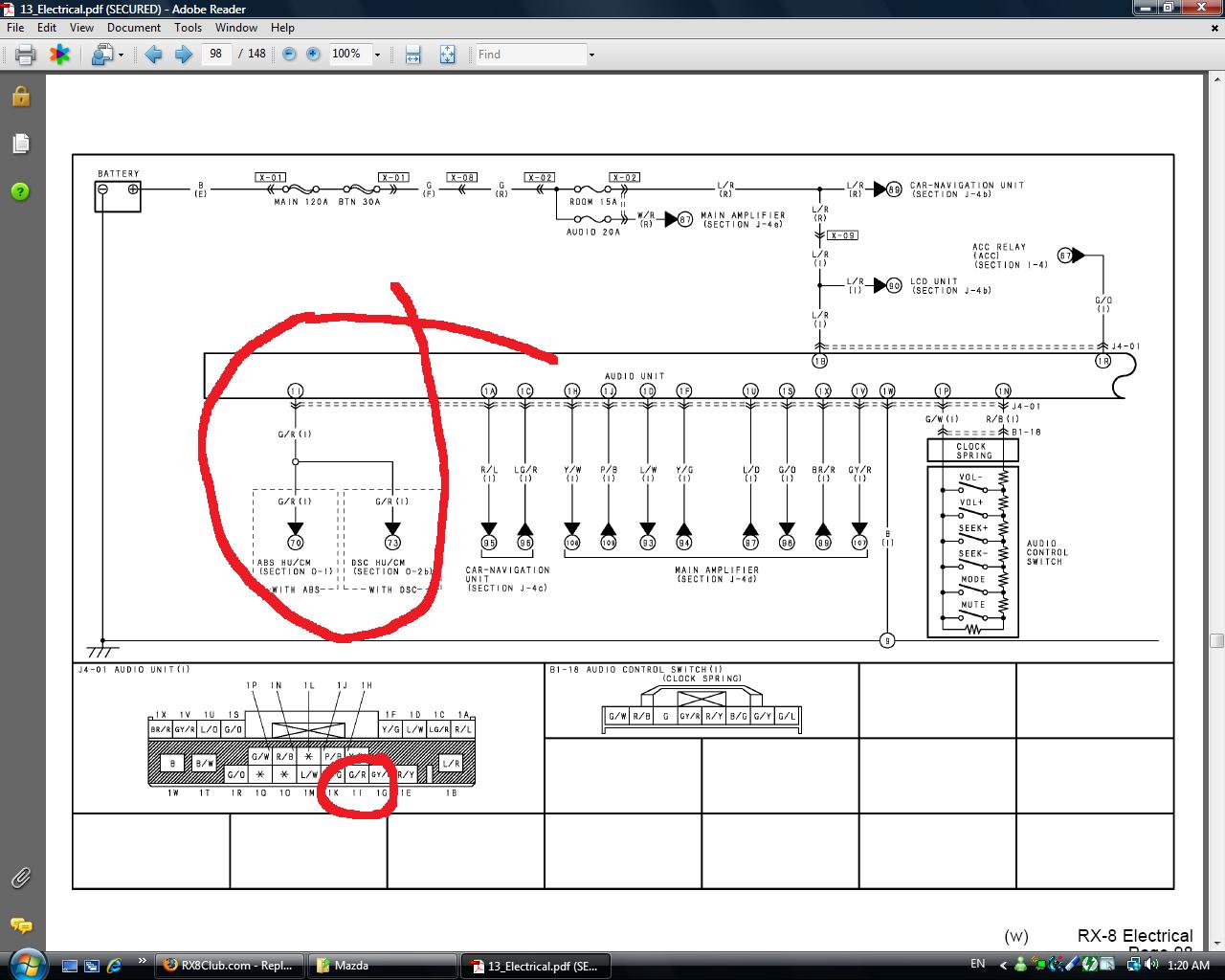

Also what's up with the speed sensor wire in the Audio head unit, has the signal in that wire been translated by the PCM? What is the point of this wire though? A nav system should calculate speed via distance/time.
Link for reference of Audio Head Unit wire:
https://www.rx8club.com/attachments/...ation-wire-jpg
https://www.rx8club.com/attachments/...ions-radio-jpg
P.S. any chance you can post the word file on your swap in a public google document? I've sent you an email as you mentioned on post #1 with no reply.
