Aftermarket alarm install

Apr 17, 2018 | 02:18 AM

JoyBed

Thread Starter

Registered

Joined: Nov 2017

Posts: 23

Likes: 0

Aftermarket alarm install

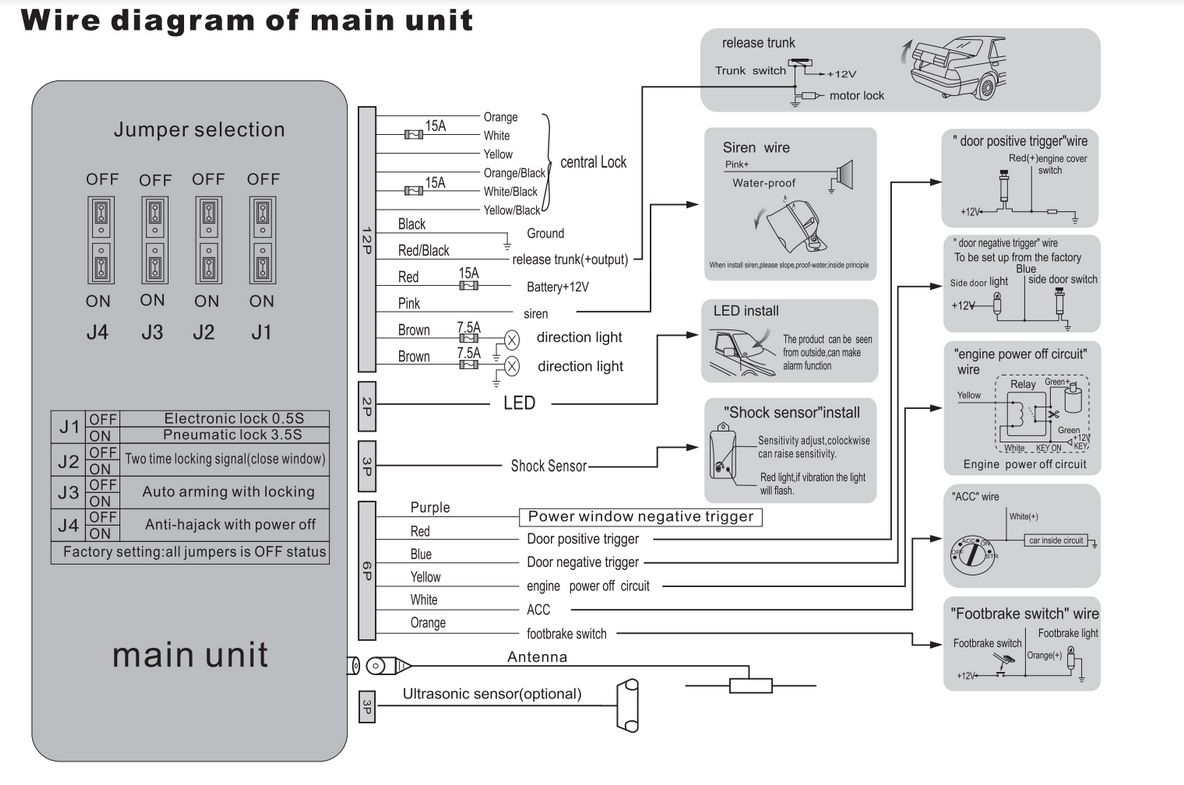

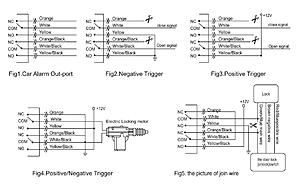

Hi! I want to install a new aftermarket alarm system, but i cant find wiring diagrams for the door switches and lock actuators... Can someone please help me find them? With the alarm came these diagrams(in attachment). Also I am happy to be a user here, and I am very happy that i own an RX8. EDIT: Any help will be good.

Attached Thumbnails

Last edited by JoyBed; Apr 17, 2018 at 04:39 AM.

Apr 18, 2018 | 02:12 AM

JoyBed

Thread Starter

Registered

Joined: Nov 2017

Posts: 23

Likes: 0

Sorta figured out most of it... I found(finally) wiring diagrams of all electrical systems in RX8 so it helped me.

Apr 18, 2018 | 11:36 AM

9krpmrx8

SARX Legend

iTrader: (46)

Joined: Jan 2007

Posts: 33,788

Likes: 462

From: San Antonio, Texas

See what happens when you search?

Apr 18, 2018 | 12:03 PM

JoyBed

Thread Starter

Registered

Joined: Nov 2017

Posts: 23

Likes: 0

Quote:

Originally Posted by 9krpmrx8

See what happens when you search?

i searched but i was in work so it can happen that i missed out something... i was hoping for some answers... nevermind... i found it and thats the point
