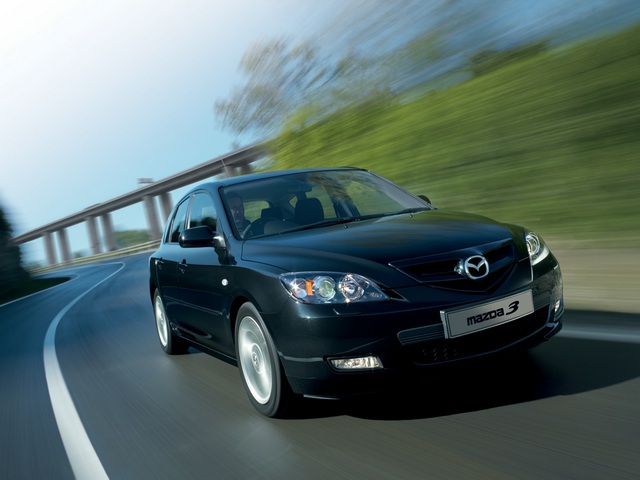

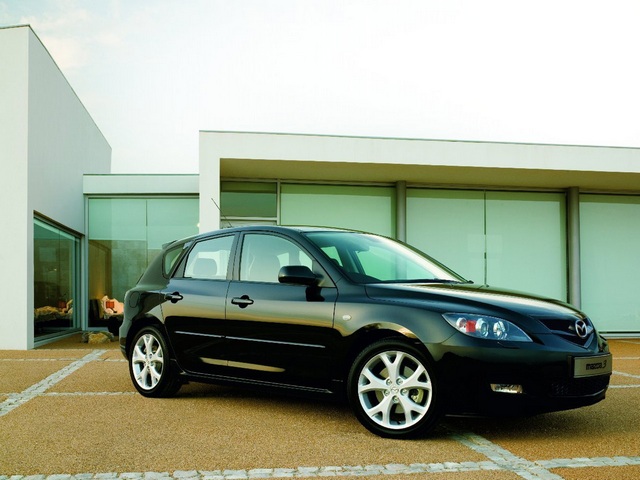

Geneva- Mazda3 2.0 MZR-CD Turbo Diesel
New Mazda 3 Sporty Turbo-Diesel Version
• New 2.0-litre common-rail turbo diesel with 360 Nm of torque and 143 PS
• Low NVH levels for enhanced driving comfort
• Larger stabilizers and brakes; dynamic stability control standard
Beginning in the summer of 2006, Mazda completely renewed and expanded the Mazda3 line up. It began with the introduction of a major facelift and, at the end of 2006, with the launch of the high-performance sports compact flagship, Mazda3 MPS. And the good news now continues with another major addition to the Mazda3 line up, the 143 PS, MZR-CD 2.0 common-rail turbo diesel engine in both sedan and hatchback models.
This top-grade Mazda engine is meant to appeal to Europeans looking for sporty driving enjoyment with low fuel consumption . And it will make Mazda3 even more popular. Through December 2006, Mazda has sold almost 275,000 Mazda3s in Europe, making it Mazda Motor Europe’s best- selling car. But Mazda3 popularity is a global phenomenon as well, and production of the compact reached the 1 million- unit mark at the beginning of September 2006, making it the fastest Mazda ever to achieve this milestone.
Powertrain – New Sporty and Frugal Common-rail Turbo Diesel
The MZR-CD 2.0 turbo diesel is a great addition to the Mazda3 line up. Its output of 105 kW/ 143 PS at 3,500 rpm is plenty of power for a compact car, and its high torque of 360 Nm (amongst the very top offers in the category , and approaching the MPS flagship) at just 2,000 rpm gives the already agile-handling Mazda3 a truly sporty nature.
The engine’s variable-geometry turbocharger provides high maximum output and torque across a wide range of engine speeds. In fact, most of the engine’s high torque is available as low as 1,500 rpm, ensuring quick and powerful engine response to accelerator pedal input, which makes Mazda3 2.0 MZR-CD a fun car to drive. Strong, linear acceleration and smooth engine operation is delivered by its high-pressure common-rail technology . The new model’s drive shafts are strengthened specifically to handle the new engine’s high torque output.
Sporty and refined, it also uses just 6.0 litres of fuel per 100 km (combined) for both sedan and hatchback. It realizes this via six-hole injectors, for optimal fuel atomization; by electronically controlling injection volume, frequency and timing (up to 1800 bar , up to 6 injections per cycle ), and by employing a low compression ratio of 16.7 : 1. The result is a sporty driving experience and comfortable motorway cruising, without high fuel costs.
The engine also comes standard with Mazda’s maintenance- free, diesel particulate filter system that lowers particulate matter emissions to almost nothing and ensures Euro Stage IV compliance and low operating costs. The engine is coupled to a precise and smooth-shifting, six-speed manual transmission based on the one found in the high- performance Mazda3 MPS . An especially good match to the MZR-CD 2.0 turbo diesel’s power and high torque, this gearbox contributes much to the sporty nature of this engine.
Exterior & Interior – Low Cabin Noise and Enhanced Driving Comfort
Discreet design changes were introduced with the Mazda3 facelift in 2006 that enhanced even further the car’s already high emotional appeal, while adding a host of convenience features like the advanced keyless entry and start system , a 20 gigabyte hard-disc drive (HDD) audio system (according to market) and a seven-speaker Bose® sound system . In developing the new Mazda3 MZR-CD 2.0 turbo diesel, Mazda engineers focussed on cabin and drive comfort, keeping engine noise, vibration and harshness (NVH) as low as possible. This ensured that the top-end Mazda3 turbo diesel delivers undiluted sporty fun without any inconvenience in the cabin.
Mazda3 2.0 MZR-CD employs high pressure common-rail injection technology, which is smooth running and refined, coupled with NVH enhancements introduced with the Mazda3 facelift like low roll-noise tyres and extensive sound insulation . For added comfort, an auxiliary water heater system with a larger heater core is introduced and cruise control is also available that makes motorway driving in sixth gear over long distances practical and comfortable.
Chassis and Safety – Enhanced Body Stiffness and Suspension
To translate the MZR-CD 2.0 turbo diesel’s high torque into controllable and reliable traction, engineers installed special body shell reinforcements from the high-performance Mazda3 MPS – the front suspension upper plate, front cowl member and larger middle tunnel cross member. Mazda3 facelift’s MacPherson strut front suspension and multi-link rear suspension are enhanced for this engine with larger stabilizers , and coil spring rates and dampers optimized to deliver agile Zoom-Zoom handling that is a good compromise between sporty and comfortable. Taken together, these chassis features provide superior road hold and even more linear steering response from the car’s hydraulic power assist steering system , making a Mazda3 with the new 143 PS turbo diesel an exhilarating experience on the road.
Active safety is also specially enhanced for the Mazda3 2.0 MZR-CD to ensure reliable deceleration in all situations. Larger discs are onboard ( 300 mm ventilated discs in front, 280 mm solid discs at the back) and form the basis for ABS, dynamic stability control (DSC) and traction control (TCS), electronic brakeforce distribution (EBD) and emergency brake assist, all standard . Active safety options include automatic light and rain-sensing systems .
Passive safety is the same as all Mazda3 facelift models and includes seatbelt pretensioners with load-limiters for front occupants, front, side and curtain airbags , and a seatbelt reminder system for all passengers. New safety padding on the steering column is combined with a new steering wheel adjustment lever, designed to further decrease the risk of injury to the driver’s knees in case of frontal collision.
Mazda3 2.0 MZR-CD “At a Glance”
Powertrain
• Sporty MZR-CD 2.0 common-rail turbo-diesel engine with maximum power of 105 kW/143 PS at 3,500 rpm, maximum torque of 360 Nm at 2,000 rpm
• Maximum speed of 205 km/h (sedan) and 203 km/h (hatchback)
• Euro Stage IV compliant with maintenance-free diesel particulate filter system
• Low fuel consumption of just 6.0 litres per 100 km (combined)
• 6-speed manual transmission based on high-performance flagship Mazda3 MPS
• Stronger drive shafts to match higher torque
• Newly-designed exhaust system
• Available ‘fuel warmer’ for the fuel filter (depending on market)
Functionality, Equipment and Comfort
• Auxiliary water heater system with larger heater core (32 mm vs. 20 mm) standard (depending on market)
• Enhanced driving comfort with available cruise control
Chassis and Safety
• Front suspension upper plate, front cowl member and larger middle tunnel cross member reinforcements from the high-performance Mazda3 MPS, for a stiffer body shell
• Front and rear coil spring rates and dampers specially fine-tuned
• Larger stabilizers (+ 2 mm): 23 / 22 mm (front /rear)
• Larger brakes 300 mm / 280 mm (front / rear) with ABS, DSC, TCS, EBD and emergency brake assist standard
• Hydraulic power assisted steering for more sporty driving fun
Mazda3 2.0 MZR-CD – Technical Data
Mazda3 Hatchback Mazda3 Sedan
Body Type Monocoque Monocoque
Doors 5 4
Seats 2 front sports-type 2 front sports-type
3 rear bench-type 3 rear bench-type
with 60/40 split with 60/40 split
Coefficient of drag 0.30 0.29
External Dimensions
Overall length w /
without plate holder mm 4415 / 4405 (1) 4490 / 4475 (2)
Overall width mm 1755 1755
Overall width mirror to mirror mm 1935 1935
Overall height mm 1465 1465
Wheelbase mm 2640 2640
Boot measurements
Volume all seats up l 346 413
Volume 2nd row down
(floor to ceiling) l 1285 N.A.
(1) + 20 mm with Sports Appearance Package (+25 mm for Italy and Switzerland)
(2) + 25 mm with Sports Appearance Package
2.0 MZR-CD
Engine Type In-line 4-cylinder, SOHC turbo diesel
Displacement cm3 1998
Bore x stroke mm 86 x 86
Valves 4 per cylinder
Camshaft drive Timing belt
Fuel injection system Common-rail direct injection
Compression ratio 16.7 : 1
Emission control system Oxidation catalyst and diesel particulate filter
Max. power kW 105 at 3500 rpm
PS 143 at 3500 rpm
Max. torque Nm 360 at 2000 rpm
Fuel tank capacity l 55
Transmission 6 M/T
Powertrain Front-wheel drive
Gear ratios
1st 3.538
2nd 1.913
3rd 1.218
4th 0.880
5th 0.809
6th 0.673
Reverse 3.831
Final Drive ratio 1st~4th: 3.611
5th~6th: 3.095
Suspension and Wheels
Front suspension / damper Independent strut type / Twintube
Rear suspension / damper Independent multi-link / Monotube
Stabilizers (front / rear) mm 23 / 22
Wheel size Aluminium 16 x 6 1⁄2 J
Aluminium 17 x 6 1⁄2 J
Tyre type / size Bridgestone 205/55 R 16 91V
Bridgestone 205/50 R 17 89V
2.0 MZR-CD
Steering
Type Rack and pinion with hydraulic power assist
Turning circle (wall to wall) m 10.9
Brakes
Type / diameter front Ventilated discs / 300 mm
Type / diameter rear Solid discs / 280 mm
Scheduled maintenance Every 20,000 km
or 12 months
Mazda3 Hatchback Mazda3 Sedan
Performance
Top speed km/h 203 205
Acceleration 0-100 km/h* s 9.9 9.9
Fuel Consumption**
Urban l/100 km 7.1 7.1
Extra urban l/100 km 5.4 5.4
Combined l/100 km 6.0 6.0
CO 2 emissions (combined) g/km 162 162
Emissions ranking Euro Stage IV Euro Stage IV
Weight and Payload
Min. curb weight*** kg 1485 1470
Max. permissible weight kg 1945 1925
Permissible tow weight,
trailer without brakes kg 600 600
Permissible tow weight,
trailer with brakes
(12% slope) kg 1500 1500
Max. roof load capacity kg 75 75
* Under Mazda test conditions
** According to EC-Guidelines 1999/100/EC in its latest version
*** According to 92/21/EWG in its latest version (including 75 kg driver)
• New 2.0-litre common-rail turbo diesel with 360 Nm of torque and 143 PS
• Low NVH levels for enhanced driving comfort
• Larger stabilizers and brakes; dynamic stability control standard
Beginning in the summer of 2006, Mazda completely renewed and expanded the Mazda3 line up. It began with the introduction of a major facelift and, at the end of 2006, with the launch of the high-performance sports compact flagship, Mazda3 MPS. And the good news now continues with another major addition to the Mazda3 line up, the 143 PS, MZR-CD 2.0 common-rail turbo diesel engine in both sedan and hatchback models.
This top-grade Mazda engine is meant to appeal to Europeans looking for sporty driving enjoyment with low fuel consumption . And it will make Mazda3 even more popular. Through December 2006, Mazda has sold almost 275,000 Mazda3s in Europe, making it Mazda Motor Europe’s best- selling car. But Mazda3 popularity is a global phenomenon as well, and production of the compact reached the 1 million- unit mark at the beginning of September 2006, making it the fastest Mazda ever to achieve this milestone.
Powertrain – New Sporty and Frugal Common-rail Turbo Diesel
The MZR-CD 2.0 turbo diesel is a great addition to the Mazda3 line up. Its output of 105 kW/ 143 PS at 3,500 rpm is plenty of power for a compact car, and its high torque of 360 Nm (amongst the very top offers in the category , and approaching the MPS flagship) at just 2,000 rpm gives the already agile-handling Mazda3 a truly sporty nature.
The engine’s variable-geometry turbocharger provides high maximum output and torque across a wide range of engine speeds. In fact, most of the engine’s high torque is available as low as 1,500 rpm, ensuring quick and powerful engine response to accelerator pedal input, which makes Mazda3 2.0 MZR-CD a fun car to drive. Strong, linear acceleration and smooth engine operation is delivered by its high-pressure common-rail technology . The new model’s drive shafts are strengthened specifically to handle the new engine’s high torque output.
Sporty and refined, it also uses just 6.0 litres of fuel per 100 km (combined) for both sedan and hatchback. It realizes this via six-hole injectors, for optimal fuel atomization; by electronically controlling injection volume, frequency and timing (up to 1800 bar , up to 6 injections per cycle ), and by employing a low compression ratio of 16.7 : 1. The result is a sporty driving experience and comfortable motorway cruising, without high fuel costs.
The engine also comes standard with Mazda’s maintenance- free, diesel particulate filter system that lowers particulate matter emissions to almost nothing and ensures Euro Stage IV compliance and low operating costs. The engine is coupled to a precise and smooth-shifting, six-speed manual transmission based on the one found in the high- performance Mazda3 MPS . An especially good match to the MZR-CD 2.0 turbo diesel’s power and high torque, this gearbox contributes much to the sporty nature of this engine.
Exterior & Interior – Low Cabin Noise and Enhanced Driving Comfort
Discreet design changes were introduced with the Mazda3 facelift in 2006 that enhanced even further the car’s already high emotional appeal, while adding a host of convenience features like the advanced keyless entry and start system , a 20 gigabyte hard-disc drive (HDD) audio system (according to market) and a seven-speaker Bose® sound system . In developing the new Mazda3 MZR-CD 2.0 turbo diesel, Mazda engineers focussed on cabin and drive comfort, keeping engine noise, vibration and harshness (NVH) as low as possible. This ensured that the top-end Mazda3 turbo diesel delivers undiluted sporty fun without any inconvenience in the cabin.
Mazda3 2.0 MZR-CD employs high pressure common-rail injection technology, which is smooth running and refined, coupled with NVH enhancements introduced with the Mazda3 facelift like low roll-noise tyres and extensive sound insulation . For added comfort, an auxiliary water heater system with a larger heater core is introduced and cruise control is also available that makes motorway driving in sixth gear over long distances practical and comfortable.
Chassis and Safety – Enhanced Body Stiffness and Suspension
To translate the MZR-CD 2.0 turbo diesel’s high torque into controllable and reliable traction, engineers installed special body shell reinforcements from the high-performance Mazda3 MPS – the front suspension upper plate, front cowl member and larger middle tunnel cross member. Mazda3 facelift’s MacPherson strut front suspension and multi-link rear suspension are enhanced for this engine with larger stabilizers , and coil spring rates and dampers optimized to deliver agile Zoom-Zoom handling that is a good compromise between sporty and comfortable. Taken together, these chassis features provide superior road hold and even more linear steering response from the car’s hydraulic power assist steering system , making a Mazda3 with the new 143 PS turbo diesel an exhilarating experience on the road.
Active safety is also specially enhanced for the Mazda3 2.0 MZR-CD to ensure reliable deceleration in all situations. Larger discs are onboard ( 300 mm ventilated discs in front, 280 mm solid discs at the back) and form the basis for ABS, dynamic stability control (DSC) and traction control (TCS), electronic brakeforce distribution (EBD) and emergency brake assist, all standard . Active safety options include automatic light and rain-sensing systems .
Passive safety is the same as all Mazda3 facelift models and includes seatbelt pretensioners with load-limiters for front occupants, front, side and curtain airbags , and a seatbelt reminder system for all passengers. New safety padding on the steering column is combined with a new steering wheel adjustment lever, designed to further decrease the risk of injury to the driver’s knees in case of frontal collision.
Mazda3 2.0 MZR-CD “At a Glance”
Powertrain
• Sporty MZR-CD 2.0 common-rail turbo-diesel engine with maximum power of 105 kW/143 PS at 3,500 rpm, maximum torque of 360 Nm at 2,000 rpm
• Maximum speed of 205 km/h (sedan) and 203 km/h (hatchback)
• Euro Stage IV compliant with maintenance-free diesel particulate filter system
• Low fuel consumption of just 6.0 litres per 100 km (combined)
• 6-speed manual transmission based on high-performance flagship Mazda3 MPS
• Stronger drive shafts to match higher torque
• Newly-designed exhaust system
• Available ‘fuel warmer’ for the fuel filter (depending on market)
Functionality, Equipment and Comfort
• Auxiliary water heater system with larger heater core (32 mm vs. 20 mm) standard (depending on market)
• Enhanced driving comfort with available cruise control
Chassis and Safety
• Front suspension upper plate, front cowl member and larger middle tunnel cross member reinforcements from the high-performance Mazda3 MPS, for a stiffer body shell
• Front and rear coil spring rates and dampers specially fine-tuned
• Larger stabilizers (+ 2 mm): 23 / 22 mm (front /rear)
• Larger brakes 300 mm / 280 mm (front / rear) with ABS, DSC, TCS, EBD and emergency brake assist standard
• Hydraulic power assisted steering for more sporty driving fun
Mazda3 2.0 MZR-CD – Technical Data
Mazda3 Hatchback Mazda3 Sedan
Body Type Monocoque Monocoque
Doors 5 4
Seats 2 front sports-type 2 front sports-type
3 rear bench-type 3 rear bench-type
with 60/40 split with 60/40 split
Coefficient of drag 0.30 0.29
External Dimensions
Overall length w /
without plate holder mm 4415 / 4405 (1) 4490 / 4475 (2)
Overall width mm 1755 1755
Overall width mirror to mirror mm 1935 1935
Overall height mm 1465 1465
Wheelbase mm 2640 2640
Boot measurements
Volume all seats up l 346 413
Volume 2nd row down
(floor to ceiling) l 1285 N.A.
(1) + 20 mm with Sports Appearance Package (+25 mm for Italy and Switzerland)
(2) + 25 mm with Sports Appearance Package
2.0 MZR-CD
Engine Type In-line 4-cylinder, SOHC turbo diesel
Displacement cm3 1998
Bore x stroke mm 86 x 86
Valves 4 per cylinder
Camshaft drive Timing belt
Fuel injection system Common-rail direct injection
Compression ratio 16.7 : 1
Emission control system Oxidation catalyst and diesel particulate filter
Max. power kW 105 at 3500 rpm
PS 143 at 3500 rpm
Max. torque Nm 360 at 2000 rpm
Fuel tank capacity l 55
Transmission 6 M/T
Powertrain Front-wheel drive
Gear ratios
1st 3.538
2nd 1.913
3rd 1.218
4th 0.880
5th 0.809
6th 0.673
Reverse 3.831
Final Drive ratio 1st~4th: 3.611
5th~6th: 3.095
Suspension and Wheels
Front suspension / damper Independent strut type / Twintube
Rear suspension / damper Independent multi-link / Monotube
Stabilizers (front / rear) mm 23 / 22
Wheel size Aluminium 16 x 6 1⁄2 J
Aluminium 17 x 6 1⁄2 J
Tyre type / size Bridgestone 205/55 R 16 91V
Bridgestone 205/50 R 17 89V
2.0 MZR-CD
Steering
Type Rack and pinion with hydraulic power assist
Turning circle (wall to wall) m 10.9
Brakes
Type / diameter front Ventilated discs / 300 mm
Type / diameter rear Solid discs / 280 mm
Scheduled maintenance Every 20,000 km
or 12 months
Mazda3 Hatchback Mazda3 Sedan
Performance
Top speed km/h 203 205
Acceleration 0-100 km/h* s 9.9 9.9
Fuel Consumption**
Urban l/100 km 7.1 7.1
Extra urban l/100 km 5.4 5.4
Combined l/100 km 6.0 6.0
CO 2 emissions (combined) g/km 162 162
Emissions ranking Euro Stage IV Euro Stage IV
Weight and Payload
Min. curb weight*** kg 1485 1470
Max. permissible weight kg 1945 1925
Permissible tow weight,
trailer without brakes kg 600 600
Permissible tow weight,
trailer with brakes
(12% slope) kg 1500 1500
Max. roof load capacity kg 75 75
* Under Mazda test conditions
** According to EC-Guidelines 1999/100/EC in its latest version
*** According to 92/21/EWG in its latest version (including 75 kg driver)
