Rear Sway Bar Problem

Jun 3, 2009 | 09:33 PM

UNLTDREDLINE

Thread Starter

Registered

Joined: Feb 2007

Posts: 56

Likes: 0

From: Mississauga, Ontario (Meadowvale)

Rear Sway Bar Problem

Guys,

I have a bit of an issue. I removed my rear sway bar for my suspension install because an endlink was too rusted to remove. The problem is when I tried to put the sway bar back I broke the bolt it sits on. It must have been over torqued when it was put on before. How do I fix this? Can I buy this bolt readily from the dealer? I need to bang it out but the exhaust heat shield is in the way so I'm having a bit of an issue.

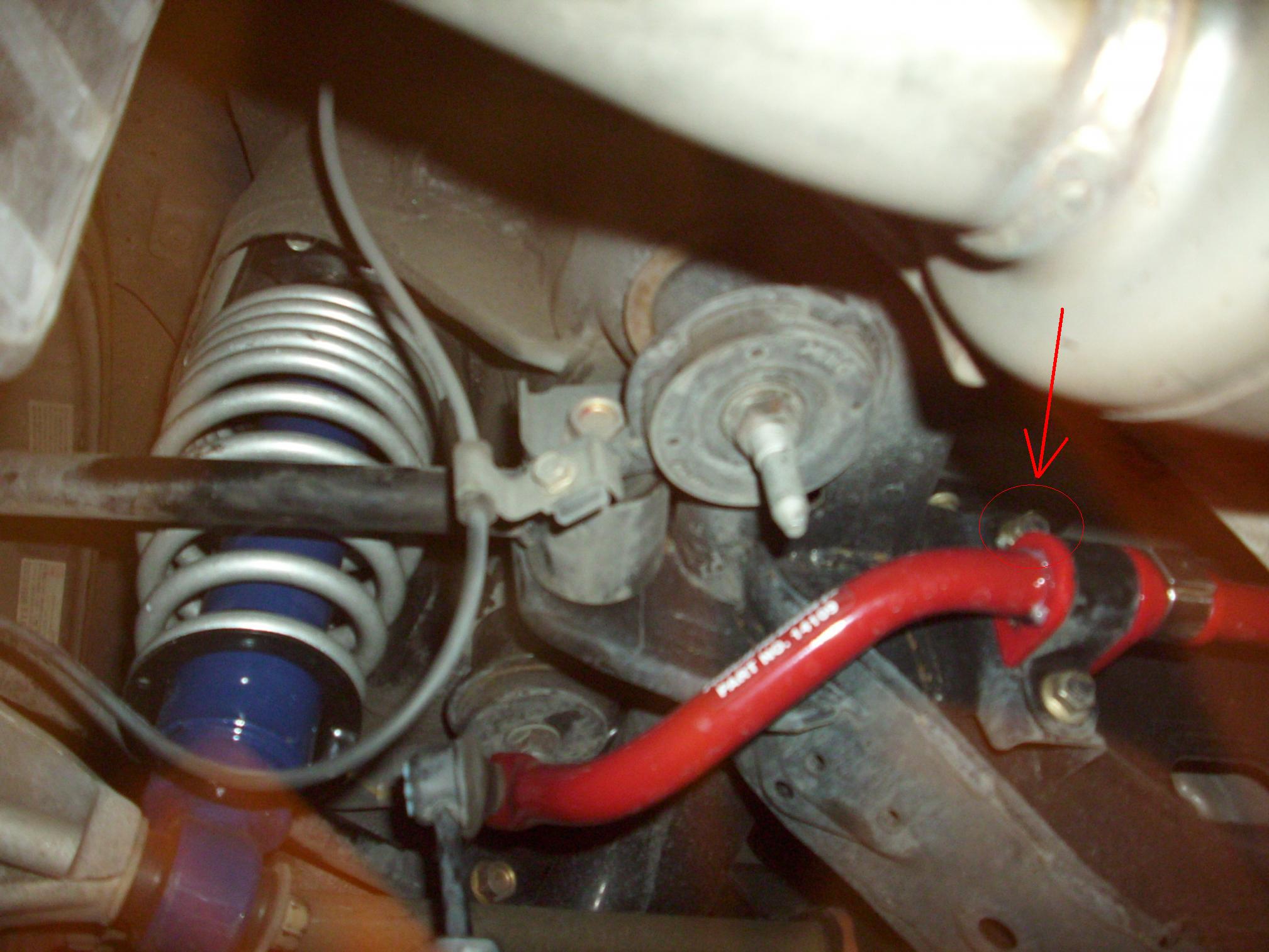

This is the bolt I broke. What do I do??

Attached Thumbnails

Jun 3, 2009 | 09:41 PM

alnielsen

Registered

iTrader: (4)

Joined: Aug 2004

Posts: 12,255

Likes: 8

From: Buddhist Monastery, High Himalaya Mtns. of Tibet

Drill it out and put a new nut and bolt one it. Mine are rusted and I'm going to have to do that to mine. I'll probably replace all 4 with stainless steel.

Jun 3, 2009 | 11:53 PM

Thief

Reppin Lightning Yellow

Joined: Mar 2008

Posts: 1,451

Likes: 0

From: Scarlem

It's probably a 10mm anyway.

Jun 4, 2009 | 10:43 AM

UNLTDREDLINE

Thread Starter

Registered

Joined: Feb 2007

Posts: 56

Likes: 0

From: Mississauga, Ontario (Meadowvale)

My only concern with putting in a random bolt is I think these are the kinds of bolts that have groves in the front that allow it to sit in place like a lug nut bolt. I wouldn't want to put another type of bolt and ruin the grooves. What do you think?

Thanks for the help!

Jun 4, 2009 | 06:26 PM

eMpTy265

Registered

Joined: Dec 2008

Posts: 136

Likes: 0

You could remove the other bolt, measure it and order / buy an identical bolt to replace the broken one.

It is possible that your local NAPA store will have the bolt that you need.... and hopefully the guys there will know exactly what bolt you need.

http://www.napaonline.ca/

A few things you should make sure they know:

Is the bolt metric / SAE
Bolt strength
Size
Thread per inch / tread pitch
shank length (if any)
Coating etc...

I'd recommend getting all 4 bolts replaced just for safety, but 1 bolt will probably fix your problems.

Alternatively, your local CT / home depot may also have the bolt you need.

Good luck

Jun 4, 2009 | 08:01 PM

RXeckless

Rotorless

iTrader: (5)

Joined: Jul 2008

Posts: 1,135

Likes: 4

From: Delhi, ON Canada

Try Brafasco, not sure if they do automotive but everything else, their specialty is fastners. They are located around the GTA.

Jun 4, 2009 | 09:29 PM

UNLTDREDLINE

Thread Starter

Registered

Joined: Feb 2007

Posts: 56

Likes: 0

From: Mississauga, Ontario (Meadowvale)

Thanks a lot for your feedback and thoughts.

That bolt is the WORST. I couldn't even get it off after heating the sucker up. I ended up drilling it and putting another bolt through. Sway bar is back on with a new end link.
