GTA - Install BHR ignition. Shop or driveway job?

Old 07-04-2014, 02:58 PM
  #1
R34ME
Thread Starter

Join Date: Oct 2012
Location: Toronto, ON
Posts: 219
Likes: 0
Received 0 Likes on 0 Posts
ON GTA - Install BHR ignition. Shop or driveway job?

Just received my BHR ignition and plugs from Charles for an 09 R3.... have an AEM intake so getting to the ignition seems a bit easier than with the OEM box but not 100% confident on how to reach the plugs/wires and ensure leading/trailing are connected properly.

Maybe just over thinking it but wanting to know if this a simple driveway job or one best handled by a shop? If so, any recommendations in the GTA? Located in Milton
Unoriginalusername is offline
Old 07-04-2014, 03:07 PM
  #2
Unruly Newb
iTrader: (3)

Gravey's Avatar

Join Date: Sep 2013
Location: Burlington Ontario
Posts: 782
Received 8 Likes on 5 Posts
I'd say you'd have to be the judge on that, it is fairly straight forward though.

BTW. Nice Fuelly rating, do you do almost all highway driving? How many Km's do you get to the tank?

Gravey is offline
Old 07-04-2014, 03:29 PM
  #3
Dark Moderator
iTrader: (18)

Williard's Avatar

Join Date: Jul 2011
Location: PA, Shamokin. Ho-bud
Posts: 2,044
Received 56 Likes on 49 Posts
In all reality if your worried about it, mabye you would be best taking it to a shop. If you are decent with tools and are familiar with the system you really wont have any trouble. An easy way to do it is mark each coil as you pull them off which number they are just leave the wires attached until the BHR kit is installed. Once done, attach new wires one by one, then do the plugs one by one.

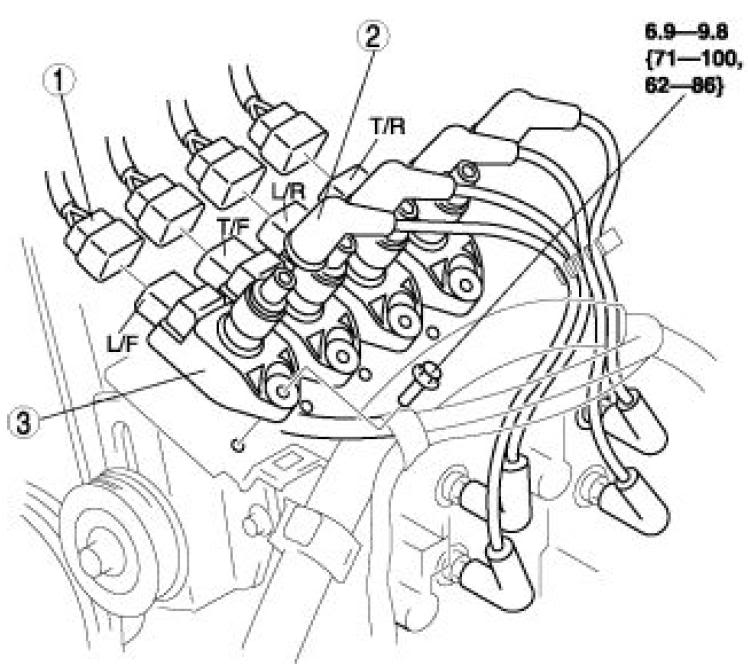

Below i attached the diagram for them though, figured you could use it.
Attached Thumbnails GTA - Install BHR ignition.  Shop or driveway job?-coils.jpg
Williard is offline
Old 07-04-2014, 03:54 PM
  #4
Registered
iTrader: (2)

G_ man's Avatar

Join Date: Apr 2011
Location: Oshawa
Posts: 1,127
Received 0 Likes on 0 Posts
Do it yourself in the driveway. Instructions from Charles are clear and easy to follow.
G_ man is offline
Old 07-04-2014, 07:12 PM
  #5
weeeeeeeeee
iTrader: (12)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,160
Received 20 Likes on 17 Posts
Originally Posted by g_ man View Post
do it yourself in the driveway. Instructions from charles are clear and easy to follow.
++1
ShellDude is offline
Old 07-04-2014, 07:31 PM
  #6
Registered
iTrader: (13)

comebackqid's Avatar

Join Date: Mar 2010
Location: California
Posts: 973
Received 14 Likes on 12 Posts
too easy driveway job take 20mins+ maybe even less if your fast.
comebackqid is online now
Old 07-04-2014, 10:47 PM
  #7
running on double cream!
iTrader: (1)

Join Date: Aug 2005
Location: Doylestown, PA
Posts: 870
Likes: 0
Received 1 Like on 1 Post
It's 20 minutes if you've done it before.. Doing it the first time is a PITA. That harness.. and you ALWAYS drop one of the 10mm nuts. Always.
rickeo is offline
Old 07-05-2014, 10:08 AM
  #8
R34ME
Thread Starter

Join Date: Oct 2012
Location: Toronto, ON
Posts: 219
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Gravey View Post
I'd say you'd have to be the judge on that, it is fairly straight forward though.

BTW. Nice Fuelly rating, do you do almost all highway driving? How many Km's do you get to the tank?

How to replace RX8 coils, leads, spark plugs/Jak wymienic cewki, kable i swiece MAZDA RX8 - YouTube
Thanks, this looks straight forward enough.

I am not getting as good this year which lead me to look into the bhr kit, that and being at 60,000km. Hoping it goes back up, yes mostly hwy
Unoriginalusername is offline
Old 07-05-2014, 01:16 PM
  #9
Moderator Noir
iTrader: (4)

alnielsen's Avatar

Join Date: Aug 2004
Location: Buddhist Monastery, High Himalaya Mtns. of Tibet
Posts: 12,257
Received 1 Like on 1 Post
Originally Posted by G_ man View Post
Do it yourself in the driveway. Instructions from Charles are clear and easy to follow.
I bought mine 2nd hand, without instructions. The installation wasn't difficult at all. You just have to route the right wire to the proper spark plug.
alnielsen is offline
Old 07-05-2014, 01:37 PM
  #10
RIP Furai
iTrader: (3)

obliterx8's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 225
Received 7 Likes on 6 Posts
This took me about 3 hours to do while also cleaning everything I took off. This was my first ignition install. I was also bring very careful and double checking everything. You have to take off the front driver side wheel to get to the plugs.

I ended up with a high voltage to the air flow sensor CEL but cleared it and it was fine. I've driven about a thousand miles since then and everything is running great. So don't freak out of you get something similar.

Posted From RX8Club.com Android App
obliterx8 is offline
Old 07-05-2014, 03:10 PM
  #11
nowakm99

nowakm99's Avatar

Join Date: Aug 2011
Location: Etobicoke, Canada
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Just do it yourself. It is very simple if you follow Charles' instructions and the YouTube video that one of the other members provided a link for.

I have very little experience working on my car and it took me an hour to do the whole thing with the stock intake box. With an air intake, it should take less time.

Charles labels the plug wires, so it's really difficult to screw this up.
nowakm99 is offline
Old 05-31-2015, 03:19 PM
  #12
New Member

Join Date: Jun 2013
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
are HST and Customs Duties added to the cost of the kit when importing to Canada?
RND PWR is offline
Old 05-31-2015, 04:24 PM
  #13
nowakm99

nowakm99's Avatar

Join Date: Aug 2011
Location: Etobicoke, Canada
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Yes, customs and taxes are USUALLY added. When I bought the ignition kit, I just picked it up from Charles in Scottsdale as I happened to be there on vacation.

That said, I just bought the BHR midpipe ($450 US) two weeks ago and asked Charles to ship it by USPS as UPS charges ridiculous broker fees. The extra customes/taxes charges came to $78 CND. I hope that helps.
nowakm99 is offline
Old 05-31-2015, 04:31 PM
  #14
Registered

Join Date: May 2015
Location: Toronto
Posts: 16
Likes: 0
Received 0 Likes on 0 Posts
Just wondering if there is a place/shop that would sell the ignition kit and install it here in the Toronto area? Or if you had it shipped and brought it to a Mazda dealer would they install it for you?
CptnPicard is offline
Old 06-01-2015, 04:02 AM
  #15
nowakm99

nowakm99's Avatar

Join Date: Aug 2011
Location: Etobicoke, Canada
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
To the best of my knowledge, no one in Toronto sells the kits. I would just buy it online from BHR and have it shipped. When you do, consider buying new spark plugs as well, depending on how old yours are.

As far as installation is concerned, my recommendation would be to do it yourself. It is quite simple if you follow the instructions that come with the kit. I was just starting to wrench on my car when I bought this and it took less than an hour.

I had the same dilemma as you and then decided to do it myself one evening.

If you're not comfortable with it most garages will be able to do it.
nowakm99 is offline
Old 06-01-2015, 09:20 AM
  #16
Registered

2hit6's Avatar

Join Date: Apr 2009
Location: Markham, ON
Posts: 1,105
Received 0 Likes on 0 Posts
I think I saw a couple of used sets on the forum or on the GTA RX8 Club Facebook page.
2hit6 is offline
Old 06-01-2015, 12:03 PM
  #17
Registered

Scottobot's Avatar

Join Date: Oct 2008
Posts: 124
Received 1 Like on 1 Post
This thread's a year old. @Unoriginalusername, did you end up DIY'ing it or did you have it done for you?
Scottobot is offline
Old 06-01-2015, 06:59 PM
  #18
Registered

Join Date: May 2015
Location: Toronto
Posts: 16
Likes: 0
Received 0 Likes on 0 Posts
I want to do the BHR/spark plug upgrades... seen YouTube videos and not all sure I am able. Just got my 2009 R3 2 months ago and it only has 37000km. Not sure I should/need to do it just yet...what are your opinions? Thanks
CptnPicard is offline
Old 06-01-2015, 08:05 PM
  #19
You gonna eat that?
iTrader: (1)

BigCajun's Avatar

Join Date: Jan 2013
Location: Kansas City, Mo.
Posts: 4,579
Received 804 Likes on 627 Posts
Originally Posted by CptnPicard View Post
I want to do the BHR/spark plug upgrades... seen YouTube videos and not all sure I am able. Just got my 2009 R3 2 months ago and it only has 37000km. Not sure I should/need to do it just yet...what are your opinions? Thanks
If the coils have not been changed yet, it's time to do it.
30k is recommended.
The BHR kit is a little trickier than the normal setup, less room for it, but it's not too difficult if you have some mechanical aptitude.
The biggest thing is to be sure you don't get the coils & plugs mixed up.
Plenty of threads & DIYs on it.

Easy to follow instructions.
BigCajun is online now
Old 06-01-2015, 08:10 PM
  #20
nowakm99

nowakm99's Avatar

Join Date: Aug 2011
Location: Etobicoke, Canada
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Charles, you are correct! There are no duties, the charge is simply Ontario sales tax.

The $78 bucks that I was charged for the BHR midpipe order at delivery translates to provincial sales tax. ($450 X approx 1.25 for exchange rate difference X 13% works out to $78 plus/minus a dollar or two).
nowakm99 is offline
Old 06-23-2015, 04:12 PM
  #21
Registered

Join Date: Dec 2014
Location: Toronto
Posts: 103
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by rickeo View Post
It's 20 minutes if you've done it before.. Doing it the first time is a PITA. That harness.. and you ALWAYS drop one of the 10mm nuts. Always.
yes my harness is only on 1 nut now, the rest in the undercarriage

I ended up installing my kit with my friend (2.5 hrs) could have been 30 minutes.

Didn't take the wheel off to get to plugs just ran my hand in and connected. real simple
Kim Jong Illest is offline
Old 06-25-2015, 05:01 PM
  #22
Rotorless
iTrader: (5)

RXeckless's Avatar

Join Date: Jul 2008
Location: Delhi, ON Canada
Posts: 1,124
Received 1 Like on 1 Post
Originally Posted by Kim Jong Illest View Post
I ended up installing my kit with my friend (2.5 hrs) could have been 30 minutes.

1.0 hrs 2-3 Beers and talk about removing old coils & wires
0.25 hrs remove old coils & wires
1.0 hrs 2-3 Beers and talk about how to replace new coils & wires
0.25 hrs replace new coils & wires
RXeckless is offline
Old 06-25-2015, 08:54 PM
  #23
wcs
no agenda
iTrader: (2)

wcs's Avatar

Join Date: Feb 2005
Location: Ontario
Posts: 5,057
Received 9 Likes on 8 Posts
Originally Posted by rxeckless View Post

1.0 hrs 2-3 beers and talk about removing old coils & wires
smoke 6 cigarettes
0.25 hrs remove old coils & wires
1.0 hrs 2-3 beers and talk about how to replace new coils & wires
smoke 8 cigarettes
0.25 hrs replace new coils & wires
2 hours drink the rest of the beer and smoke the rest of the cigarettes
back in to neighbors car
fixed
wcs is offline
Old 06-26-2015, 01:38 AM
  #24
Registered

Join Date: Dec 2011
Location: Boston
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
I've done it twice, first to my car then for a friend of mine. First time doing it I ran into a bunch of problems (breaking the bolts because of rust being one of them). Second time around it was completed in around 30 minutes.

I'd say do it in the driveway if your comfortable with the instructions and are good with tools. Good luck!
PTQLam is offline
Old 06-26-2015, 05:49 AM
  #25
Rotorless
iTrader: (5)

RXeckless's Avatar

Join Date: Jul 2008
Location: Delhi, ON Canada
Posts: 1,124
Received 1 Like on 1 Post
Originally Posted by wcs View Post
fixed


Forgot:
drink pint of Grand Marnier
back in to neighbors car
$1500 install plus coils & wires
RXeckless is offline
