Check out this months issue of Modified Mag....
Page 74 is the first article for Modified's Project RX-8 where I'm building/porting their engine.
Lots more technical info and the entire engine build process in the up-coming issues.
Go buy it!
Edit: Its the May 2011 issue btw!
Lots more technical info and the entire engine build process in the up-coming issues.
Go buy it!
Edit: Its the May 2011 issue btw!
04-27-2011, 12:02 AM
#2
Fixatedonthingsthatrotate
Join Date: Jul 2010
Location: Mississauga, Ontario
Posts: 76
Likes: 0
Received 0 Likes
on
0 Posts
. i could never find a clear cut answer for that. and dont be afraid to get all technical
04-27-2011, 10:20 PM
#7
Rebuilds anyone?
Thread Starter
iTrader: (1)
Join Date: Mar 2005
Location: Kitchener Ontario Canada
Posts: 381
Likes: 0
Received 0 Likes
on
0 Posts
Here are some pics of ported Rotaries I've done over the years. **these are not Renesis engines**

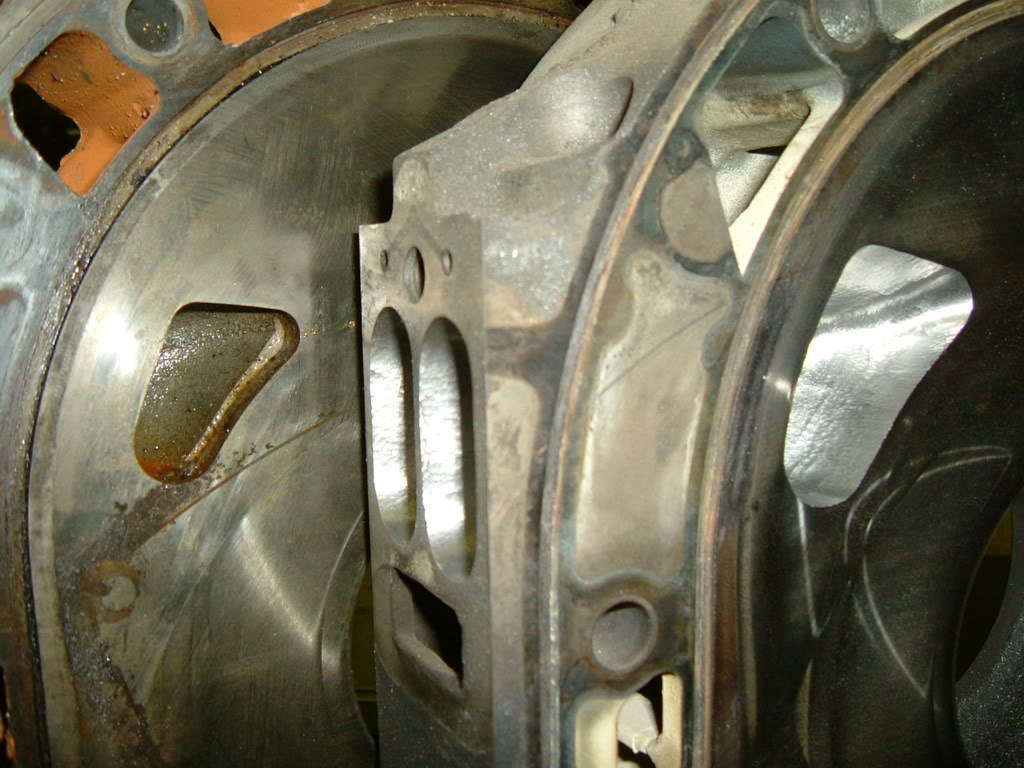

Compare stock FC T2 port to Uber Port

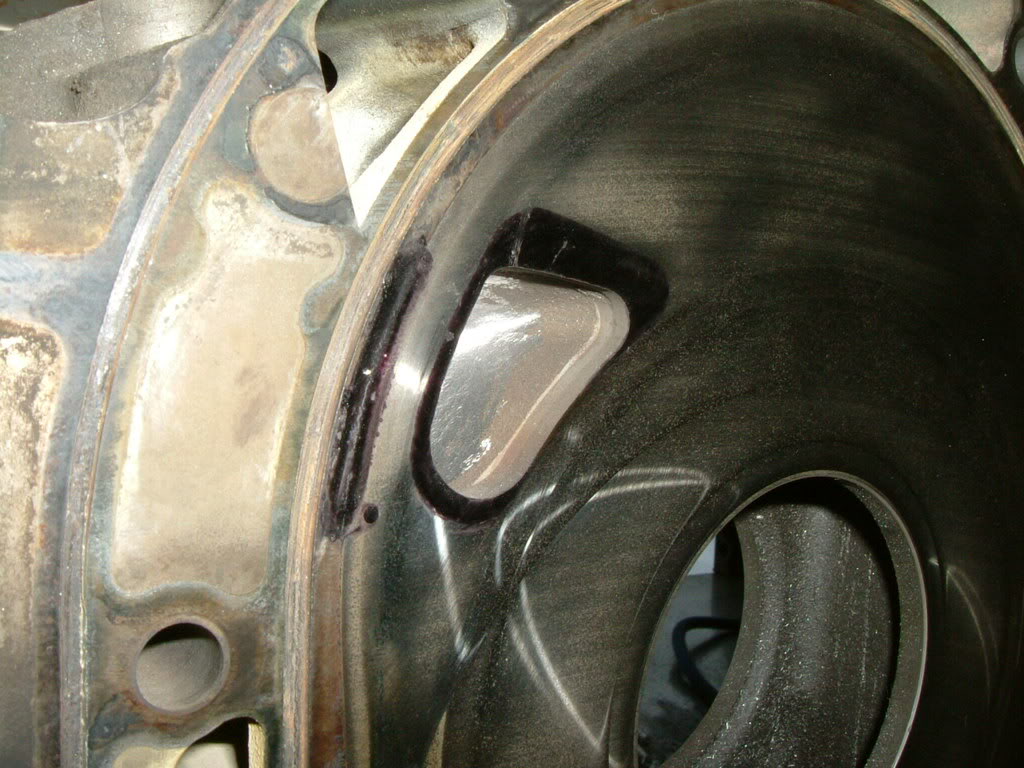

Here is the outline of how much material is removed

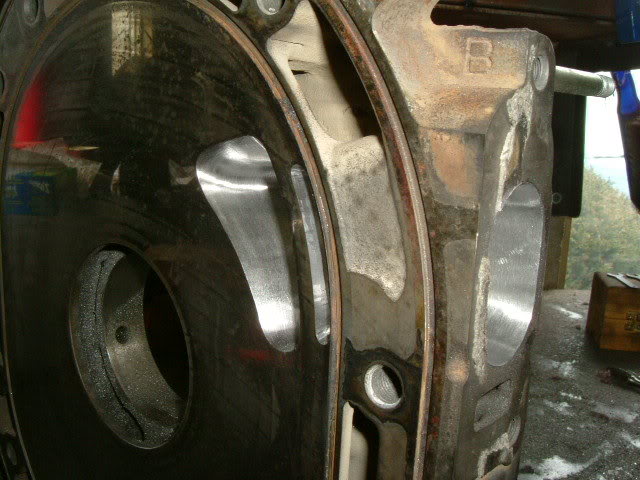

This was a custom made Bridge Port I came up with for an FC turbo block using RX-8 rotors, the bridge port needed to be located very close to the coolant seal groove.

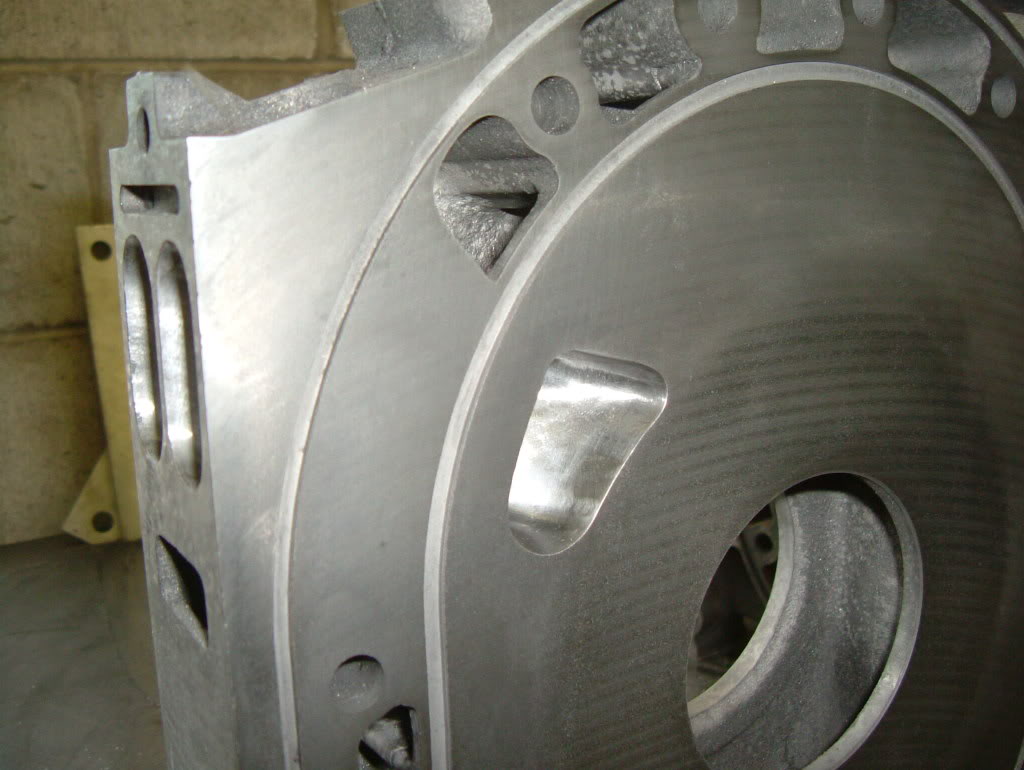

Brand new ported FD iron

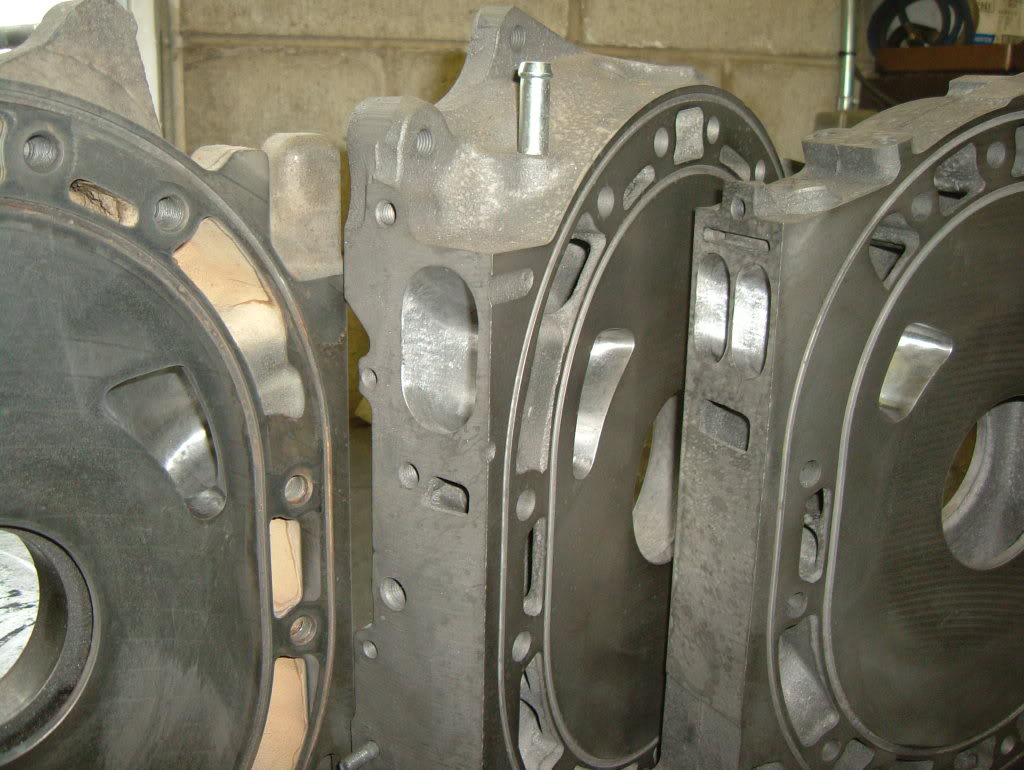

Full FD engine ported, primary iron on the right, secondaries to the left.
Compare stock FC T2 port to Uber Port
Here is the outline of how much material is removed
This was a custom made Bridge Port I came up with for an FC turbo block using RX-8 rotors, the bridge port needed to be located very close to the coolant seal groove.
Brand new ported FD iron
Full FD engine ported, primary iron on the right, secondaries to the left.
04-27-2011, 11:11 PM
#8
Spinning Dorito Junkie
iTrader: (2)
Join Date: Jul 2003
Location: Halifax, Nova Scotia, Canada
Posts: 747
Likes: 0
Received 1 Like
on
1 Post
Congrats on the exposure Joe. I'll make a point to pick it up. I've been following the project since he posted about it.
If I get a chance to pick up a copy of Modified on the way to DGRR will you autograph it for me?
... and one of those porting pictures looked kind of familiar...
If I get a chance to pick up a copy of Modified on the way to DGRR will you autograph it for me?
... and one of those porting pictures looked kind of familiar...
04-28-2011, 09:07 PM
#10
Joe, does the renesis have the little rubber "erasers" in the corner seals like the old 13b's?
( IF they do not have the lil rubber thingy)
I imagine you used the RB templates, if so, can you port out to around half the cornerseal like the ol schools, or is there some limit from going crazy on them?
Ive got a spare engine I might do over the winter......
( IF they do not have the lil rubber thingy)
I imagine you used the RB templates, if so, can you port out to around half the cornerseal like the ol schools, or is there some limit from going crazy on them?
Ive got a spare engine I might do over the winter......
04-28-2011, 10:22 PM
#11
Rebuilds anyone?
Thread Starter
iTrader: (1)
Join Date: Mar 2005
Location: Kitchener Ontario Canada
Posts: 381
Likes: 0
Received 0 Likes
on
0 Posts
Nope no rubber eraser thingys in the Renesis, they have a solid plug type deal instead. I'll take pictures next week when I'm back at the shop.
The porting templates I am using for the Modified engine build are from Racing Beat, I dont have enough experience porting the Renny engine yet to start tackling my own porting just yet. So for now, I'll folow Racing Beat's guidlines and see how it goes.
The porting templates I am using for the Modified engine build are from Racing Beat, I dont have enough experience porting the Renny engine yet to start tackling my own porting just yet. So for now, I'll folow Racing Beat's guidlines and see how it goes.
04-29-2011, 01:03 PM
#12
Registered
Join Date: Mar 2004
Location: Toronto
Posts: 1,637
Likes: 0
Received 0 Likes
on
0 Posts
We have had posts before about modifying engines, beware when you make one change you must make a host of others. When you change the internal airflow of an engine you must also change fuel and airflow into the engine, ignition timing etc etc. In the old days it was easy, you changed the timing with your adjustment of your distibutor and changed the jets in the carburetor. Now its a little more complicated. Racing Beat already knows this!
http://www.racingbeat.com/RX8/Electronics.html
http://www.racingbeat.com/RX8/Electronics.html
05-10-2011, 12:12 AM
#13
Soooooo Good
iTrader: (1)
Join Date: May 2006
Location: Paris, Ontario
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Great article! Looking forward to the rest of the RX-8 build!
Oh sweet the MoTeC is free from racing beat! Carbs are for dinosaurs.
We have had posts before about modifying engines, beware when you make one change you must make a host of others. When you change the internal airflow of an engine you must also change fuel and airflow into the engine, ignition timing etc etc. In the old days it was easy, you changed the timing with your adjustment of your distibutor and changed the jets in the carburetor. Now its a little more complicated. Racing Beat already knows this!
http://www.racingbeat.com/RX8/Electronics.html
http://www.racingbeat.com/RX8/Electronics.html
