This is for those paranoid people who want the extra security from someone stealing their car.
I know that we already have an immobilize system in place, but that won't help if someone takes your keys (like if someone breaks into your house and takes them).

Now the idea of a kill switch was not my idea, credit goes out to Vyndictive for that.
He wanted some kind of kill switch setup and I helped him figure out the best way to do it.
He had a previous vehicle stolen (actually watched it drive away) and that has left him worried that history might repeat itself.

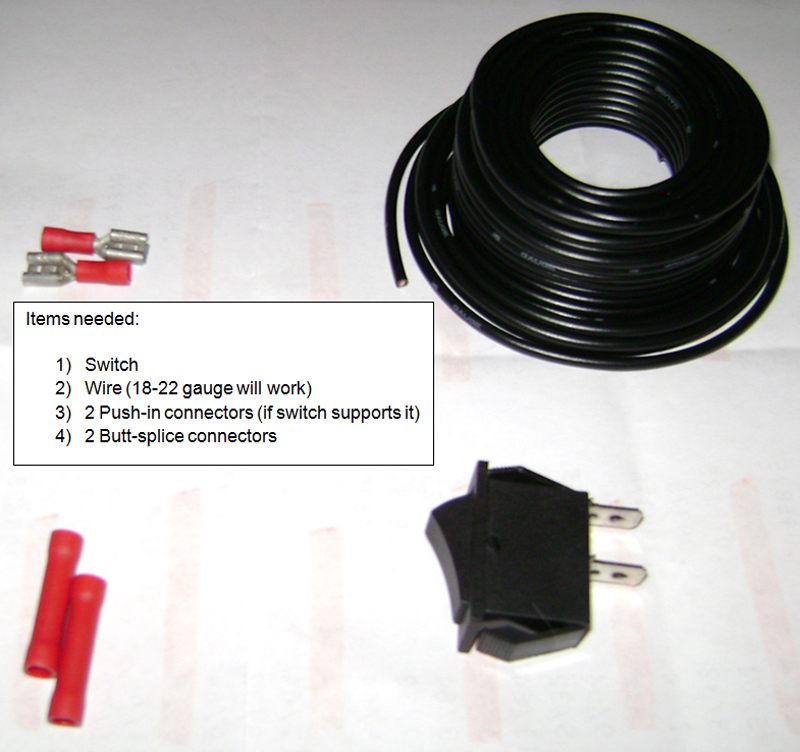

The kill switch can be installed anywhere and you can use many different styles of switches.
I wanted a stealthy switch that is difficult to see and other people who get in the car with you won't notice you flip the switch (like if the switch was under the dash).

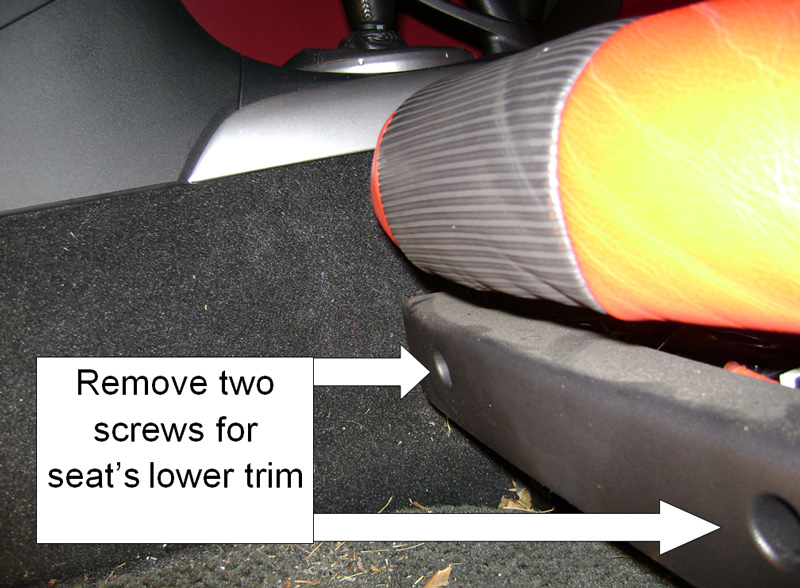

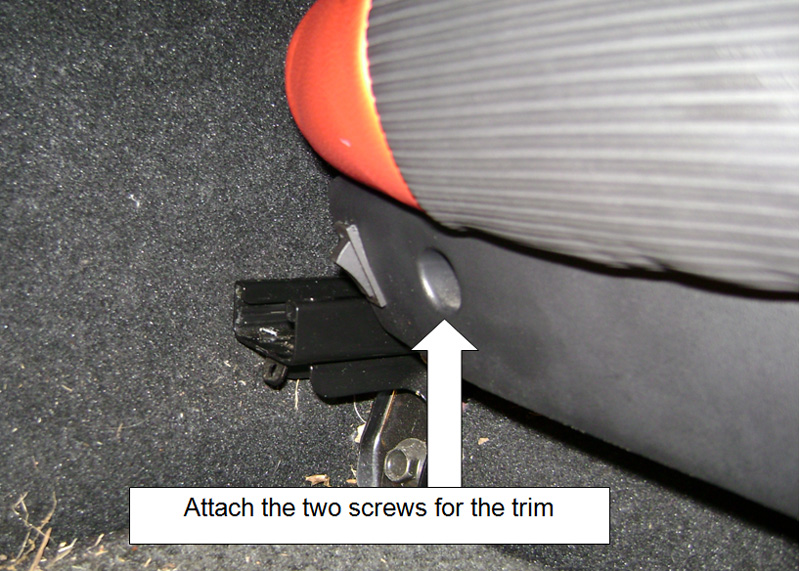

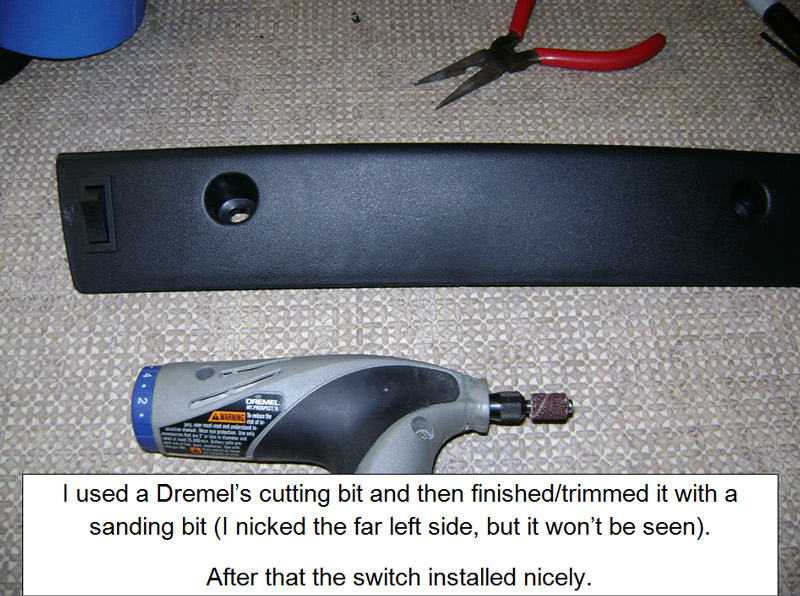

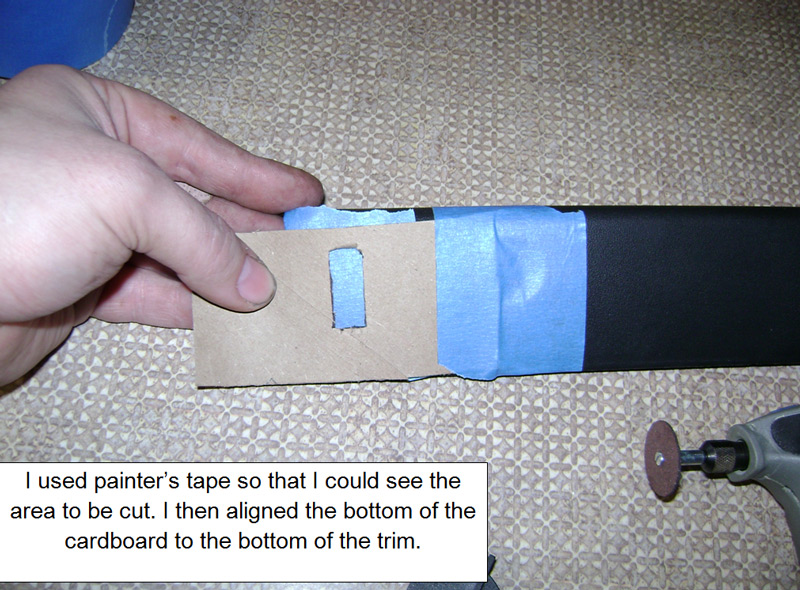

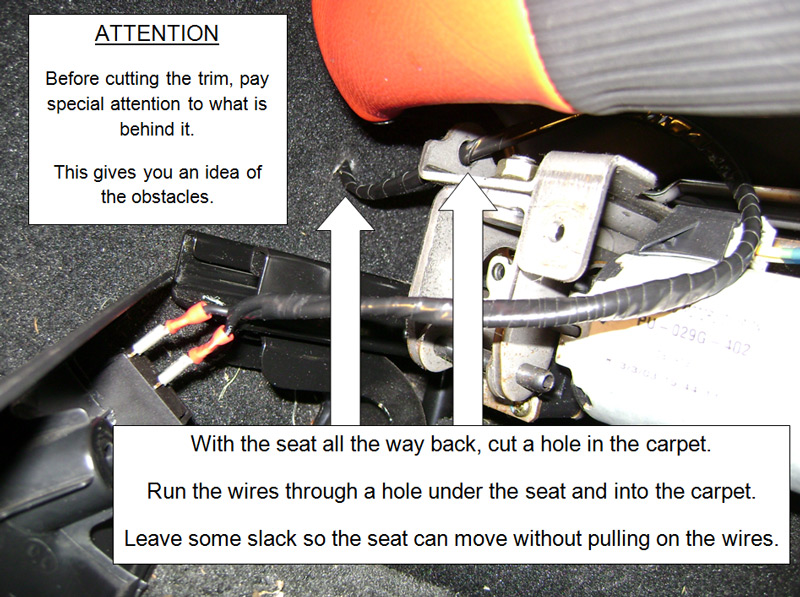

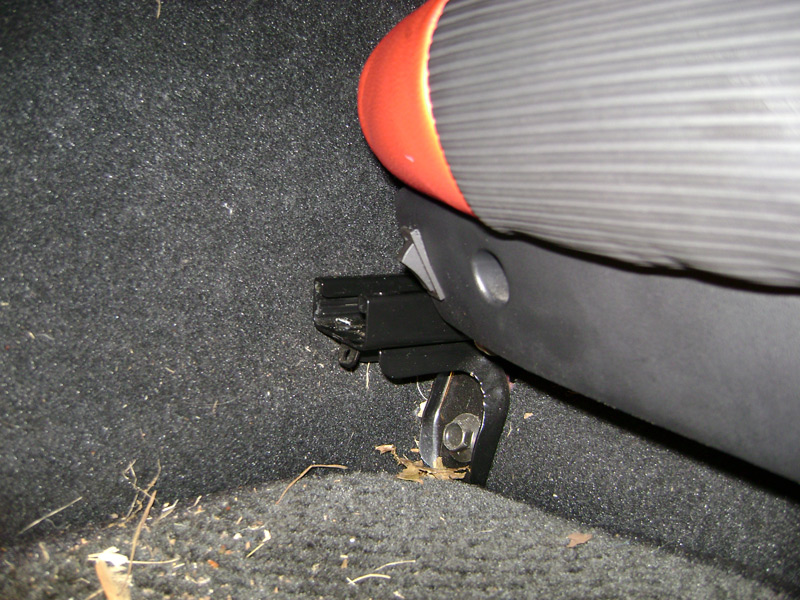

I decided to install it under the seat on the front trim:


Again, you can mount your kill switch anywhere.

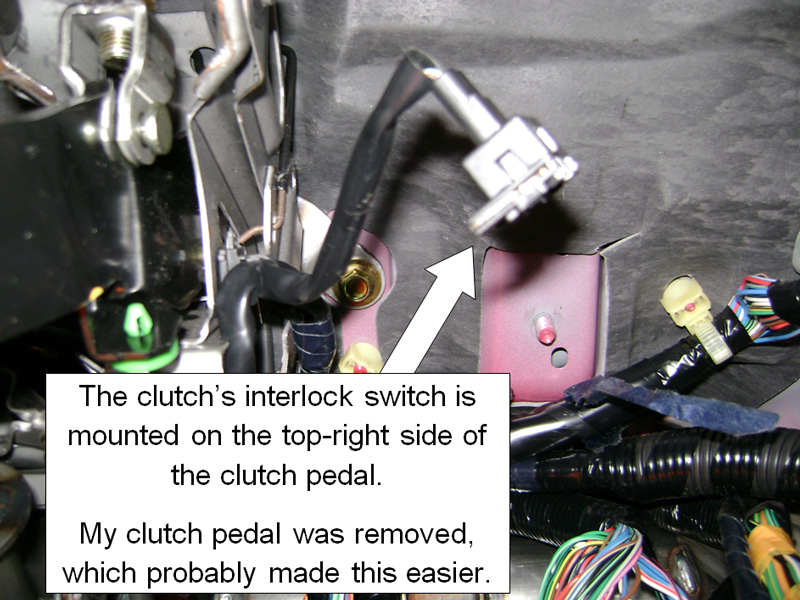

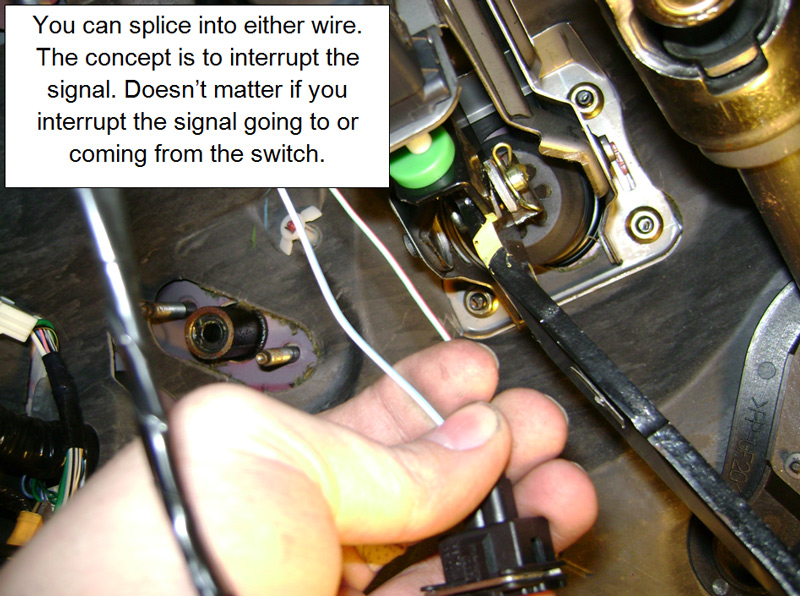

I decided to wire the switch to the clutch's interlock switch.
This way, even if you press the clutch pedal in to start the car, it still won't work (until the switch is enabled).

Jon316G

iTrader: (1)

Jon316G

iTrader: (1)

Jon316G

iTrader: (1)

Jon316G

iTrader: (1)

Jon316G

iTrader: (1)

Jon316G

iTrader: (1)

Jon316G

iTrader: (1)

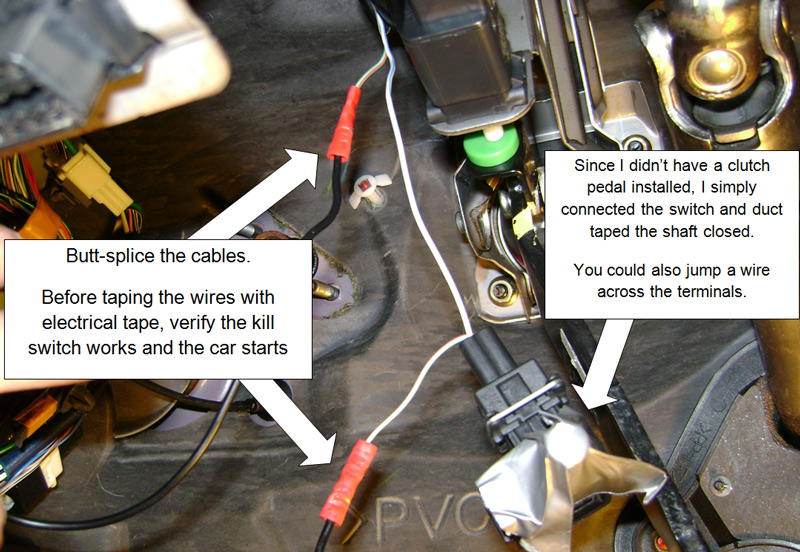

After you verified everything works, reassembly in reverse order.

Vyndictive

iTrader: (28)

Very nice! There is no way that my execution of this idea would have been this complete.

It is important for people to know also that your clutch pedal is missing in the photos... because I have it.


And before this thread gets into a theft discussion, this is just another theft deterrent... if you're dealing with a pro, they'll probably catch this pretty quick... but this will really slow down your average smash and grab baddie. I know nothing makes a car unstealable, but that doesn't mean we need to make it easy.


Great DIY Jon with lots of pictures. Perfect!

Jon316G

iTrader: (1)

Yeah... and my car feels naked without it.

Truthfully its still hard to find, even when you know its there.
The first few times, it took a few seconds of feeling around to find it.

All in all... this was a fun little project to occupy my afternoon.
Writing this DIY took longer than the installation itself!

8 Maniac

iTrader: (1)

plus there are a number of places to put it.. so even if you feel that's too obvious, you could put it some where else. I cant imagine too many people have this though... so if the car didnt start I dont think they'd start looking for switches.

georx8

In the US specs RX8 you have to press the clutch to start the engine?

Jon316G

iTrader: (1)

Yeah... or just remove the switch and jump the terminals so its a permanently closed circuit.

georx8

Can you think of an alternative switch,fuse,........ inside the car were you can wire the kill switch since the EU specs rx8 dont have that clutch switch?

Jon316G

iTrader: (1)

We threw out other ideas originally like the fuel pump, but I wanted to keep it simple.

If you want to stay within the car, first thing that comes to mind is the ignition switch for the 'start' position.

Shinka_MJR

Would you like this converted to a PDF like i did Vyn's Catch Can DIY?

Nice job on this Jon. this may be next weekend's project for me.

Jon316G

iTrader: (1)

If you want!
I actually already started converting this into a PDF DIY.
I have the file size down to 2MB, but its 30 pages.
I wanted to make it more "print friendly".
But if you're bored and want to do this for me, great!
If not, I can do it later.
