Series II Technical and Trouble shooting Discuss technical details for the Series II RX-8 and any issues or problems you are facing


Old 10-15-2010, 01:45 AM
Registered User
Thread Starter
Join Date: Apr 2010
Posts: 61
Likes: 0
Received 0 Likes on 0 Posts

My 2009 has developed a creaking sound coming from the rear left side somewhere, in the suspension department, or that what it sounds like. Low speed over speed humps or undulating roads, also at low speed (less that 5mph). SC not interested as it's not life threatening...any offers?
Albmw is offline
Old 10-17-2010, 05:57 PM
Super Moderator
ASH8's Avatar
Join Date: Apr 2005
Location: Australia
Posts: 10,624
Received 156 Likes on 113 Posts
That is about the Only issue I have had with my it appears I am not alone...

I have not gone to dealer to does not bother me, but it is a creak, almost/sort of metal to metal sound (tingle)....had it from about day 10.

So IF you can find out what is really is, let me know please.

I thought it could be rear muffler swinging a little??

I must have another look and see if I can see any wear marks..

I also get it if I do a right turn slowly over uneven surfaces, so to me it is either muffler or rear suspension links/ball joint...OR...see pic.

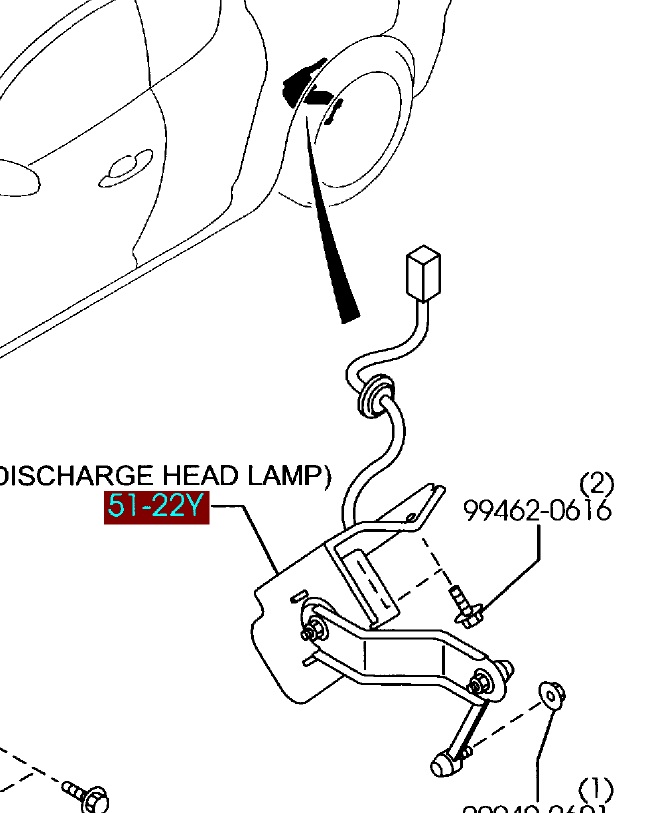

OR it could be the Auto Headlight leveler pivot arms, MMmmm, it is on the left rear side, the more I think about it the more I think this is where it may come from.??

EDIT: It is a S2 Specific Part Number F189-51-22Y , it has not been modified and is $450 USD!!

Attached Thumbnails Creak-1.jpg

Last edited by ASH8; 10-17-2010 at 06:01 PM.
ASH8 is offline
Old 10-19-2010, 05:57 AM
Join Date: Nov 2008
Location: Long Beach, CA
Posts: 603
Likes: 0
Received 0 Likes on 0 Posts
My 2009 has developed a suspension related creak also, but I'm sure it's coming from the right front. I'll look closer when I do the next oil change.

I wonder if this is a Series II issue. I haven't noticed any other posts about it before...
PeteInLongBeach is offline
Old 10-24-2010, 09:52 PM
Registered User
Thread Starter
Join Date: Apr 2010
Posts: 61
Likes: 0
Received 0 Likes on 0 Posts
I don't know if I found out what the problem was, but squirting a few cans of Waxoil all over the back axle assembly seems to have cured the creaking noise.
Albmw is offline
Old 11-01-2010, 08:30 AM
Software Engineer
DarkLord7854's Avatar
Join Date: Sep 2008
Location: Fort Lauderdale, Florida
Posts: 1,376
Likes: 0
Received 0 Likes on 0 Posts
I've had this noise for months now, dealership and Pettit haven't been able to figure out where it's coming from. Only happens every so often when turning and over bumps.
DarkLord7854 is offline
Old 11-01-2010, 09:32 AM
2009 RX-8 Touring
fyrstormer's Avatar
Join Date: Oct 2009
Location: Gaithersburg, MD USA
Posts: 574
Received 1 Like on 1 Post
My Passat used to have a rattling sound over bumps that only happened when the weight distribution in the car was just-so. Took me months to replicate it when the car wasn't in motion. Ultimately what reproduced the sound was standing on the door sill and bouncing the car up and down. It turned out to be the swaybar linkage was worn-out. On a 2009, it shouldn't be worn-out yet, but it might be loose.
fyrstormer is offline
Old 11-29-2010, 02:19 PM
iTrader: (2)
omgitspeeb's Avatar
Join Date: Apr 2010
Location: Eastern Shore of MD
Posts: 53
Likes: 0
Received 0 Likes on 0 Posts
I have a creaking sound when backing into my garage. Have to do it an an angle to fit beside my wife's Odyssey so the wheels go over the garage floor lip one at a time. It's only an inch or so off the driveway but enough to make this 'creeeeeeeeeak' sound. I guess it's normal since other's have similar issues.
omgitspeeb is offline
Old 11-29-2010, 04:29 PM
Super Moderator
ASH8's Avatar
Join Date: Apr 2005
Location: Australia
Posts: 10,624
Received 156 Likes on 113 Posts
Yeah, I am pretty sure it is the Headlight Leveler Pivot thing on the Left Side of the Rear..
ASH8 is offline
Old 12-10-2010, 10:10 AM
Maude Rater
iTrader: (15)
paimon.soror's Avatar
Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
Getting some creaking lately from the car when going over some bumps. It is more pronounced when the car is cold though so I am not sure if its the cold weather affecting the body or a lubed up area.
paimon.soror is offline
