So I installed the BHR ignition kit the other day and now at hightower rpms above 7500k it's missing only under light throttle though if I'm at wot it doesn't miss. I'm almost positvie that I got the order right what elese could be causing this. Mabey a loss plug wire? I'm still using the Stock plugs but they only have 9000 miles on them could that be it? Should I have rest the ecu any help please?



I'd start with reseting the ECU's eprom (on series 1 it's the 20 brakes at ignition on) and I would check the plug condition (maybe a little cleaning with chemicals and a wire brush) and make sure all the wires are seated well. I will make the assumption you chose a good ground since you don't have issues under stress.

If all that checks out and your still having issues you can: 1) Use a timing light on each wire to verify firing (but if it was such an issue I would think you'd see startup/idle issues), 2) Could run fuel injector cleaner, the injectors may have a an issue when not opened up (kinda a shot in the dark), 3) Could be a vacuum leak that is causing the system to lean out (I believe the RX-8 like many other OBDII's use Open Loop fueling below a certain TPS reading), 4) If you know someone with an OBDII logger or a scanguage2 see if you can get sensor readings from the time of misfire.

Couple other things to think about, OBDII for emissions reasons prefers Open Loop where the car runs off internal maps and learned data in the EPROM up to a certain TPS reading. This means it's not monitoring the O2 sensors for fueling use. Misfires can be the result of weak spark, timing off and excess lean or rich mixtures.

Have you read all the codes off? Is it just a misfire code?

Just my $0.02 and I hope it helps at least a little.



Just talk to Charles from BHR, im sure he will see this thread soon enough by the title and respond, heres a free bump to get it to the top of new posts so hopefully he sees it.

He will always help with any of his products dont worry about it, he will know whats wrong and be able to tell you ways to fix it

=]



try resetting the ECU
The only things I can think of that could cause issues with this kit are usually related to user install error.

• loose wire (double check them at the plugs, you should have heard a click when they were in all the wya
• Broken wire. I've seen this happen if the wires were twisted at the ignition coil after being put on or were removed too quickly from the coil. If you have a broken wire, you can trouble shoot this with an igntion light.
• bad ground. Where did you ground?
• coils are not plugged in correctly. Did you double check the order?

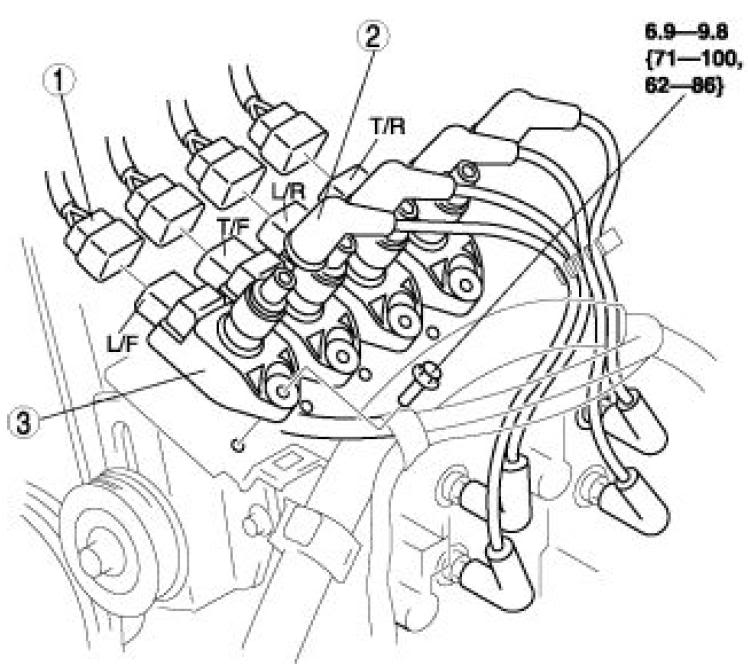

Here's a diagram of how the coils should be plugged in





either way, contact Ray and he'll help you out. I'm sure he'll ask many of the questions above so be prepared.
His number should be on the invoice or you can just PM him.

In case he doesn't see this thread, maybe this will help...



Me and my friend checked the order like 5 times so I'm pretty shore that's not it. I'm leaning towards a bad connection, ecu rest, or a vaccum leak since I had to remove a part of my cai to make it easier. I will check it out after work and keep u guys posted. Does anyone know how to resetva 09 ecu?



I would imagine disconnecting the battery for a while might do the trick.



[Thread Hijack]
Sorry but I'm interested in this.......
This suggestion goes against everything I have ever been told.
Can you really do this?
[/Thread Hijack]



So I tired another grounding location, i think I rest the ECU, and checked the CAI and its still misfiring at high RPM but at low under 7.5k it runs great. That's as far as I got since it started to pour down rain I guess tomorrow I will check all the connections and go from there.



^ +1 lol i love this



he could always try the CRH phone too!



Calling you would be my last step I would like to see if I can fix the problem myself since 90% chance the issue is related to a bad install on my part. I'm going to go over it again today to see if I can figure it out. I might look in to cai and see if any of the screens came loose also. If I can't figure it out you will be getting a call On Monday morning from me ganenteed



so people can completely bypass your phone number as they think that there question might be stupid and a waste of your time but then you end up going online and solving their problem anyway.


some people just want 35 answers telling them the same thing instead of the ONE that matters



I do not recommend cleaning our spark plugs, the Iridium plugs don't take too kindly to this.
better to simply replace



installed mine yesterday. no problems at all. it now runs smoother than any car i've ever owned :D

ideas for you to verify:
make sure none of the plug wires are touching... they carry a very high voltage that is capable of crossing an air gap (preferably only at the plug). a small microhole in a cable can bleed over, causing a miss. a good way to check is to view the engine compartment in total darkness.

also, it may have been a miss that was present before you installed the kit; since things are smoother now, you can notice the miss easier. at 7,500 there are other issues i have seen on these threads that can cause missing; if your air intake system is stock, make sure that the filter is clean and that there are no foreign objects in the airbox etx. if your air intake is not stock, make sure there is nothing loose/disconnected/etc



part of the reason a lot of people buy from BHR is that calling Ray every 5 mins asking "what's the weather like" is part of the deal

in all seriousness, never hesitate to call him. He actually seems to like talking to people



I do have a aem intake but I checked it today and it seems good. I know for a fact some plug wires are touching so I will address that tomarrow but it seems the idle is now fluttering dropping to about 700rpms then up a bit then down a bit. I also get some pops/backfiring in my exsaust at the high rpms above 7500 idk if that helps any. I am running turbo xs catback and mid. I will be calling bhr to help me out when I get a day off to devote enough time to the issue.



I am having the exact issue. I installed a couple weeks ago and I am having stuttering real bad above 7500 RPMs. Like yours, mine is the same, runs great below 7500.

I reset E-shaft sensor, checked connections, checked ground. I havent resolved the issue yet, but Charles has been very quick to answer emails.



Do you have a 2009 and above? If you do, do you think that has something to do with it or we just made the same mistake. Let me now if you come up with anything.



yeah BHR is a great company... they support what they sell :D



My guess is a broken wire if you're getting sputtering. That tells me maybe one of the plugs isn't firing.

time to borrow an ignition timing light. Those have a clamp that you can put around a spark plug wire.
once the car is on, gently clamp around one of the wires, if the light starts flashing the wire is good. Repeat for all 4 wires.

I had similar symptoms when I had a broken wire which is why I'm sharing.



Its not an "09 issue". Its a "i didnt follow CRHs instructions very well" issue.

Ive had BHR coils on my 09 for a year with no issue.



BHR even made it even easier to install by installing the grounding end and not installing the plug wires on the coils for an easier install. I would uninstall it and install the kit again maybe there is something simple you are over looking or you broke one of the plug wires. Talk to Charles first before you do anything



be VERY VERY careful if you decide to do this.
The plug wires are a very tight fit and when you pull them off the coil, there is a high chance of breaking the inside of the wire if you're not careful.



This is the best advice that can be given. With well over 300 kits sold to date Charles has fielded every single installation snag people have encountered. I would spare yourself a lot of grief and just give him a call.



It was less than 6k...more like 2k probably. I had only owned the car about two months when I purchased the BHR kit. I was the 1st R3 with a BHR ignition!
