Metra Dash kit

Old 01-19-2010, 11:17 AM
  #1
Registered User
Thread Starter

Join Date: Dec 2009
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Metra Dash kit

Just wanted to say that I finally got my Metra dash kit for my 2009 and I have to say that I am reasonably happy with the results. Seems to be good quality and a very good fit. I went with the flat black instead of the gloss, in hindsight I think I might have preferred the gloss coat.

Install was pretty straightforward, only thing I noted was some places said the 10mm bolt on the side of the radio was on the passenger side. It's on the driver's side for my car at least. Very easy to find though as it was the only 10mm bolt in that area!

I'm a bit disappointed in myself though as I forgot to cover the gearshift and scratched the heck out of the factory face when I took it out.

I'm quite happy with the Clarion FZ709 and would say it is far superior to the crazy CD changer my car came with. The bluetooth integration is very nice and I have no real complaints about the sound quality.

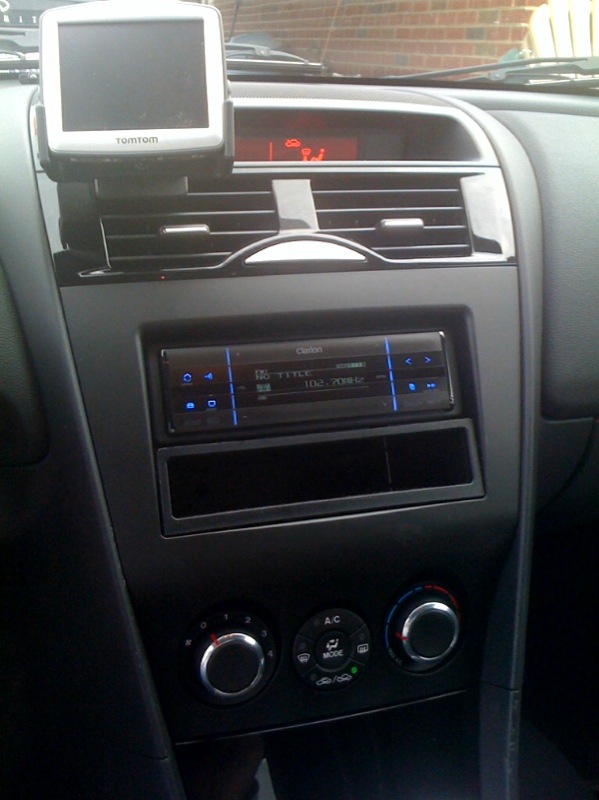

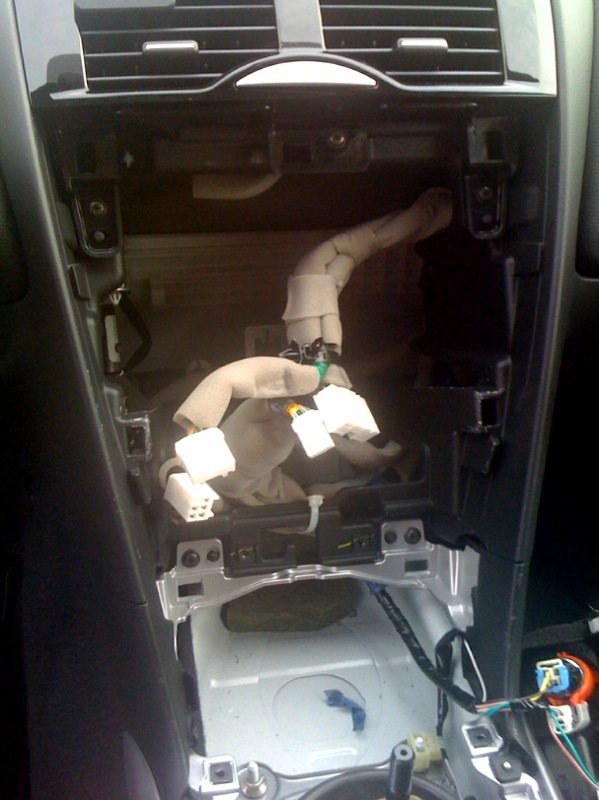

Attached Thumbnails Metra Dash kit-before.jpg   Metra Dash kit-after.jpg
Phase888 is offline
Old 01-19-2010, 02:27 PM
  #2
Registered
iTrader: (1)

michaelsk8er's Avatar

Join Date: Jan 2009
Location: Wilmington, DE
Posts: 147
Likes: 0
Received 0 Likes on 0 Posts
Interesting. I like the cubby in the center. It would probably look surprisingly good in gloss black.
michaelsk8er is offline
Old 01-19-2010, 05:11 PM
  #3
Registered

Join Date: Oct 2009
Location: Indianapolis
Posts: 34
Likes: 0
Received 0 Likes on 0 Posts
Looks pretty good - definitely agree that the gloss black would have been even better.

Wiring question - where did you get the harness and do the steering wheel radio controls still function? Those are a must have for me...
DoctorWho is offline
Old 01-19-2010, 06:24 PM
  #4
I zoom therefore I am.

laythor's Avatar

Join Date: Mar 2007
Location: San Jose, CA
Posts: 4,919
Likes: 0
Received 5 Likes on 5 Posts
pac swi = full steering wheel controls

harnesses can be found at most car audio shops.

I like the HU you picked out.. i still think that cubby looks "slapped on" and wish Metra had done something a little nicer.
laythor is offline
Old 01-20-2010, 08:25 AM
  #5
Registered User
Thread Starter

Join Date: Dec 2009
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
As Laythor said, you can get wiring stuff at any car audio shop - I picked mine up at Best Buy since they happened to be open and I was driving past. As for the steering controls I am pretty sure you can get them working but I really never worried about that much. I guess you would have to shop your stereo with that as a primary feature.

Yes, the cubby thing is a little cheap looking but I put it in there until the rest of my stuff comes in. Rather have a cheap plastic thing in there than a big hole. I think this one would have looked better if I would have used the Metra trim ring instead of the Clarion ring. Given the choice though I would rather just have an option for a block off plate.

Still pretty amazed at the mounting depth the car can handle. I've had bigger cars that were majorly more of a pain to do an install in than this one.
Phase888 is offline
Old 01-21-2010, 03:44 PM
  #6
Registered User

Join Date: Jan 2010
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
can i have a link to the kit?
R3PWNr is offline
Old 01-21-2010, 07:54 PM
  #7
I zoom therefore I am.

laythor's Avatar

Join Date: Mar 2007
Location: San Jose, CA
Posts: 4,919
Likes: 0
Received 5 Likes on 5 Posts
laythor is offline
Old 01-22-2010, 05:22 AM
  #8
Registered User
Thread Starter

Join Date: Dec 2009
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts

actually, Crutchfield is wrong - they admit they have 'no data' on the 2009.
http://www.sonicelectronix.com/item_...99-7515HG.html
is the one you want for the 2009+
Phase888 is offline
Old 01-22-2010, 07:21 PM
  #9
2010 Sparkling Black Mica

Join Date: Jan 2010
Location: Fort Campbell KY
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
Wiring Harness

From what I could find the web list the Protege wiring harness under 2009 and up RX8 as being the correct Harness has anybody confirmed this, or if I am wrong list the correct one.
Kpoc is offline
Old 01-22-2010, 09:37 PM
  #10
Registered User
Thread Starter

Join Date: Dec 2009
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Pretty sure the Protege harness is the one I used. I'll double check it tomorrow when I get out and about - I think I kept the part number from the one I used.
Phase888 is offline
Old 01-23-2010, 01:18 PM
  #11
2010 Sparkling Black Mica

Join Date: Jan 2010
Location: Fort Campbell KY
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
Yep Protege

Went ahead and bought it since it was only 12 dollars for the part. Sure enough it worked. Installed my eclipse AVN 4430 this morning and it is all working exepct the steering wheel audio. Will continue to work on that later. Now if only the metra kit arrives as it should on Monday I will be happy and complete lol.
Attached Thumbnails Metra Dash kit-img00013-20100125-1335.jpg

Last edited by Kpoc; 01-26-2010 at 09:29 AM. Reason: finished picture
Kpoc is offline
Old 01-25-2010, 09:27 AM
  #12
Registered User
Thread Starter

Join Date: Dec 2009
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Sorry, couldn't find the orginal packaging but I did find my receipt and it does say:
MAZDA PROTEGE HARNESS 2002+
and that one worked very well.
Phase888 is offline
Old 07-17-2011, 01:51 PM
  #13
Registered User

Join Date: Jul 2011
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
HVAC controls

Originally Posted by Kpoc View Post
Went ahead and bought it since it was only 12 dollars for the part. Sure enough it worked. Installed my eclipse AVN 4430 this morning and it is all working exepct the steering wheel audio. Will continue to work on that later. Now if only the metra kit arrives as it should on Monday I will be happy and complete lol.
Sorry I know this is an old thread but.. since you have an 09 and so do I how did you get the HVAC display to continue working since Metra on makes a wiring kit for 04-08 rx-8? I really want to put a new HU in but I don't want to lose functionality in the HVAC display but i also don't want to keep the old HU in the Car. Any ideas would really help.
Thanks
Rob
rstar is offline
Old 07-17-2011, 11:00 PM
  #14
Registered
iTrader: (3)

Join Date: Apr 2004
Posts: 4,325
Likes: 0
Received 0 Likes on 0 Posts
The only time the Metra kit doesn't work is if you have auto climate control as far as I know, but I could be wrong, best thing to do is give them a call and ask. The kit allows full functionality of hvac plus customizable text in the display etc.
canaryrx8 is offline
Old 07-18-2011, 07:01 PM
  #15
Registered User
Thread Starter

Join Date: Dec 2009
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by rstar View Post
... how did you get the HVAC display to continue working since Metra on makes a wiring kit for 04-08 rx-8? I really want to put a new HU in but I don't want to lose functionality in the HVAC display but i also don't want to keep the old HU in the Car

In the 09 I didn't lose anything for HVAC display as already stated. Of course I covered up the HVAC display with my GPS mount - doh! It's been so long since I've even seen the top part of my dash I had to actually go look to remember what it was supposed to do.
Phase888 is offline
Old 11-01-2012, 07:48 AM
  #16
Registered

Vorsanss's Avatar

Join Date: Aug 2011
Location: Peoria, IL
Posts: 124
Likes: 0
Received 0 Likes on 0 Posts
I finished my install last night and i will be doing a DIY on installing the AVIC X940BT / axxess controls but i have one little problem my AC button is stuck depressed LOL any ideas on how to loosen it a bit without pulling everything back out?
Vorsanss is offline
Old 04-22-2013, 10:41 PM
  #17
UK Owner

DannyJames's Avatar

Join Date: Apr 2013
Location: Manchester UK
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Very nice, I'm awaiting the arrival of mine in high gloss. I'll be grinding mine down for an iPad Mini fit though.

For anyone wondering...

Installation of this kit in a series 2, you will retain all climate control functionality. The clock remains on the LCD display until you remove the battery in which case the ambient temperature will then take its place, however this will display a maximum of 70F or 21C.
DannyJames is offline
Old 05-17-2013, 12:30 PM
  #18
RX8."It Just Feels Right"
iTrader: (1)

Topwiz's Avatar

Join Date: Sep 2012
Location: Brampton, Ont.
Posts: 55
Likes: 0
Received 0 Likes on 0 Posts
just to put this out there, the finish on the high gloss kit looks like crap..looks like they spray painted the matte..be careful as it scratches easy too.
Topwiz is offline
Old 05-17-2013, 12:40 PM
  #19
Maude Rater
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
I have the gloss kit for the S2 and it looks fine to me
paimon.soror is offline
Old 05-17-2013, 04:17 PM
  #20
UK Owner

DannyJames's Avatar

Join Date: Apr 2013
Location: Manchester UK
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
I agree! It is spray painted and not actual polished plastic but it looks perfectly fine and matches the rest of the dash
DannyJames is offline
Old 05-23-2013, 12:59 AM
  #21
New Member

Join Date: Jul 2010
Location: Chandler, AZ
Posts: 8
Likes: 0
Received 0 Likes on 0 Posts
Love my Metra and Car Computer Setup

I wrote this blog article on my experience with my Car Computer and Metra installation... check it out.. IntelligentSystem - The Evolution of the Intelligent Car Computer and Touch Screen
KensterRX8 is offline
Old 10-31-2013, 01:04 PM
  #22
New Member

PTY_507_Night_Fury's Avatar

Join Date: Oct 2013
Location: Panama
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Issues with the metra kit AXXESS

I successfully installed mine plus the steering controls and everything is working perfectly fine. but I'm having a BIG situation... The Manual included with the kit says to plug "the factory" LCD display cable on the back of the axxess unit but the cable end plug is BIGGER than the axxess port where it's supposed to fit.

Does anyone knows if there's maybe an adapter or something??? I can't stand not having the LCD screen display anymore!
PTY_507_Night_Fury is offline
Old 10-31-2013, 02:30 PM
  #23
Maude Rater
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,562
Received 14 Likes on 13 Posts
err. The metra AXXESS is a SWC module. You shouldn't be plugging anything into it. You would only be connecting the power, ground, and the two signal wires to the corresponding steering wheel signal lines.

Are you in the right section? This is for the S2 rx8
paimon.soror is offline
Old 06-25-2014, 07:05 PM
  #24
Registered
iTrader: (1)

LiveWire's Avatar

Join Date: Mar 2012
Location: Richfield
Posts: 438
Likes: 0
Received 0 Likes on 0 Posts
Double checking

Hey, so despite being an electrical engineer, I am pretty worried about this install, mainly because I have never done/seen a head unit install before. If someone would help me out here I would be very thankful! I just want to make sure I am not missing any components before I being the install (its my dd). So just to clarify, are these the only things I need for the install of a basic single din head unit?

Protege Wiring harness: Tandem Recumbent Protege Harness 160mm Bracket Kit Part 8000 3 Sale | eBay

Metra Kit Double din kit: Metra 99-7515HG (met-997515hg) Single or Double DIN Installation

And finally a 1 layer head unit (havent decided what to get yet).

I thought there was some other wiring kit I needed based on other metra kit threads, however they were installing units with screens. Could that be the difference?
LiveWire is offline
Old 07-13-2014, 08:01 PM
  #25
Registered

Join Date: Sep 2013
Location: Chicago
Posts: 28
Likes: 0
Received 0 Likes on 0 Posts
The Metra dash kit is correct, but I have no idea what that Protege harness thing is.

You'll want Metra 70-7903T wire harness.

Also, with the dash kit for the RX8, you are not constrained to a Single-DIN headunit. The kit will accomodate a Single-DIN while giving you a small pocket, or you cut the pocket area out and a Double-DIN fits perfect. My advice would be pick the headunit that gives you exactly the features you want and not worry about what size it is. I would recommend, however, that you select a unit that has adjustable light colors. The orange color in our dash is hard to match.
lakersfan1 is offline
