ARRG! Broken caliper bolt, need help finding part number.
#1
Registered
Thread Starter
Join Date: Apr 2008
Location: Michigan
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
ARRG! Broken caliper bolt, need help finding part number.
Basically I was a dumb *** and forgot to tighten everything down, after bedding in my brakes I inspected the calipers and brake pads only to notice that the hinge to open the caliper was open, and that the bolt head holding it shut was broken off. I already failed at using an "easy out" to get the bolt out of the socket. So my last option is to oder it from the dealership. I couldn't find the part number online or in the service manual. Does anyone know if I can order it individually from Mazda? (I will die if I have to buy a whole new caliper to get that one part.)

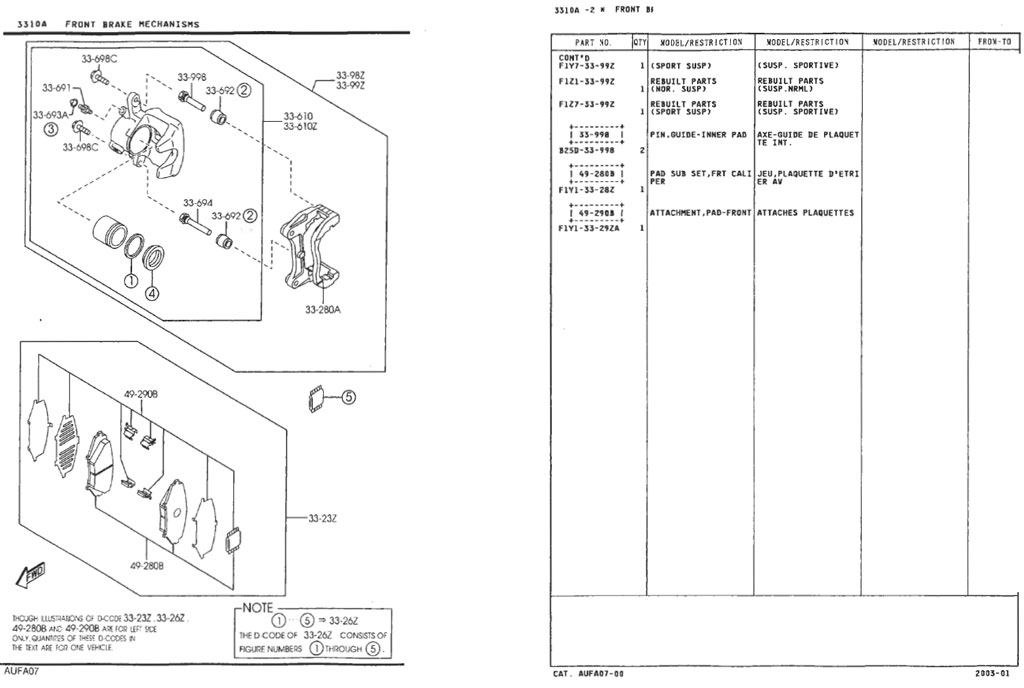

I circled the part in red for a reference, I know this is a long shot so any help will be much appreciated!
I circled the part in red for a reference, I know this is a long shot so any help will be much appreciated!
Last edited by Boyd; 10-18-2008 at 01:56 PM.
#2
Administrator
iTrader: (7)
First off, love the avatar.
2nd: I had something similar happen to me recently. Let me check to see if I put the part numbers in my thread.
be right back...
2nd: I had something similar happen to me recently. Let me check to see if I put the part numbers in my thread.
be right back...
#3
Administrator
iTrader: (7)
boyd: I looked and I don't have the part number handy. all you need is the screw that holds the slider bolt or do you also need the slider bolt and rubber sleeve?
#5
Registered
Thread Starter
Join Date: Apr 2008
Location: Michigan
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
Bolt:33698C
Slider bolt: 33694
Thanks for the quick response guys! I'm going to give the dealer a call monday and hopefully they will have them in stock.
#8
Registered User
Join Date: Dec 2007
Location: Raleigh, NC
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
I hate to resurrect an old thread, but I'm having an issue finding the correct part.
I was swapping pads last weekend when I noticed the lower slide pin on one side was tight. The dust boot had come loose, and there was corrosion (rust) on the pin and inside the bore. I cleaned it up best I could, and re-lubed, but figured I'd go above and beyond and replace the slide pin.

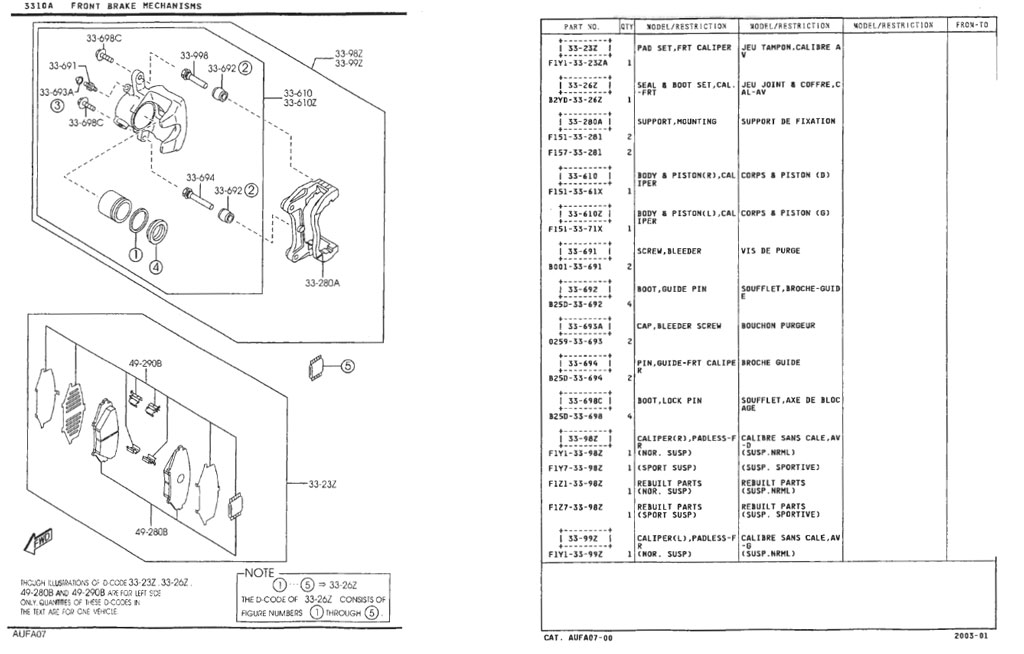

Boyd had originally posted a drawing with a part circled in red, lower slide pin, which has the little black rubber sleeve on it. That's the part I was after to repair my caliper, so I looked in the Mazda parts diagrams, which show a slightly different part, 33-694. I figured, "no big deal, they just left off the detail of the rubber sleeve in the larger assembly drawing". Well, I ordered a 33-694 from Montgomery Mazda, and what I got in the mail today was a lower caliper slide bolt, sure enough, but with no rubber sleeve, and no recess for the sleeve.
What's the deal - did any of you guys determine the correct Mazda part number for the lower slide pin with the rubber sleeve? Or has Montgomery sent me the incorrect part?
Thanks for any help...
I was swapping pads last weekend when I noticed the lower slide pin on one side was tight. The dust boot had come loose, and there was corrosion (rust) on the pin and inside the bore. I cleaned it up best I could, and re-lubed, but figured I'd go above and beyond and replace the slide pin.
Boyd had originally posted a drawing with a part circled in red, lower slide pin, which has the little black rubber sleeve on it. That's the part I was after to repair my caliper, so I looked in the Mazda parts diagrams, which show a slightly different part, 33-694. I figured, "no big deal, they just left off the detail of the rubber sleeve in the larger assembly drawing". Well, I ordered a 33-694 from Montgomery Mazda, and what I got in the mail today was a lower caliper slide bolt, sure enough, but with no rubber sleeve, and no recess for the sleeve.
What's the deal - did any of you guys determine the correct Mazda part number for the lower slide pin with the rubber sleeve? Or has Montgomery sent me the incorrect part?
Thanks for any help...
Last edited by gojackets; 03-04-2009 at 07:10 PM.
#9
I also have this question. I went to change my pads back to street last night and found a pin stuck. I didnt want to pull it out fully without having a good one to put back in. However, I noticed one of the other pins had a rubber sleeve on it, but two other just had notched slots down the length. I was curious if anyone knew if the pins where interchangeable.
#10
Registered User
Join Date: Dec 2007
Location: Raleigh, NC
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
I don't know if it will help you, but the pin I ordered from Montgomery will NOT fit in the caliper. I checked it this weekend, and it appears to be loo large in diameter to fit. I ended up cleaning up the pin with the rubber sleeve with an emery cloth (take the sleeve off first), and then re-greasing, but it still seems very tight compared to the one on the opposite side of the car. I was going to try my local Mazda parts counter and see if they can find the part number of the one with the rubber sleeve.
#11
I don't buy Kool-Aid
For the og poster. You never know what other part numbers you might need.
https://www.rx8club.com/showpost.php...50&postcount=9
https://www.rx8club.com/showpost.php...50&postcount=9
#13
Registered User
Join Date: Dec 2007
Location: Raleigh, NC
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
33-692 is the part number for the rubber dust boot on the slide pin. The rubber sleeve I was referring to is shown on the first illustration in the post, which indicates it is to be replaced along with the dust boot. The rubber sleeve slides on to a recessed area on the slide pin. The slide pin part 33-694 shown in the detail drawing does not have the recessed area for the rubber sleeve, and is not the correct diameter to fit in the caliper.
#15
Registered User
Join Date: Dec 2007
Location: Raleigh, NC
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
Answer from the parts thread:
https://www.rx8club.com/showthread.p...=1#post2914158
Parts on order...
https://www.rx8club.com/showthread.p...=1#post2914158
Parts on order...
#18
Registered
iTrader: (4)
For the og poster. You never know what other part numbers you might need.
https://www.rx8club.com/showpost.php...50&postcount=9
https://www.rx8club.com/showpost.php...50&postcount=9
http://www.mazdamotorsports.com/pdfs/RX/04rx8.pdf
#19
I was changing the breaks on my car and the caliper bolt snapped in half, we got a easy out but we can't drill deep enough into the bolt to get it to work. Are there any other things we can do to fix this?
