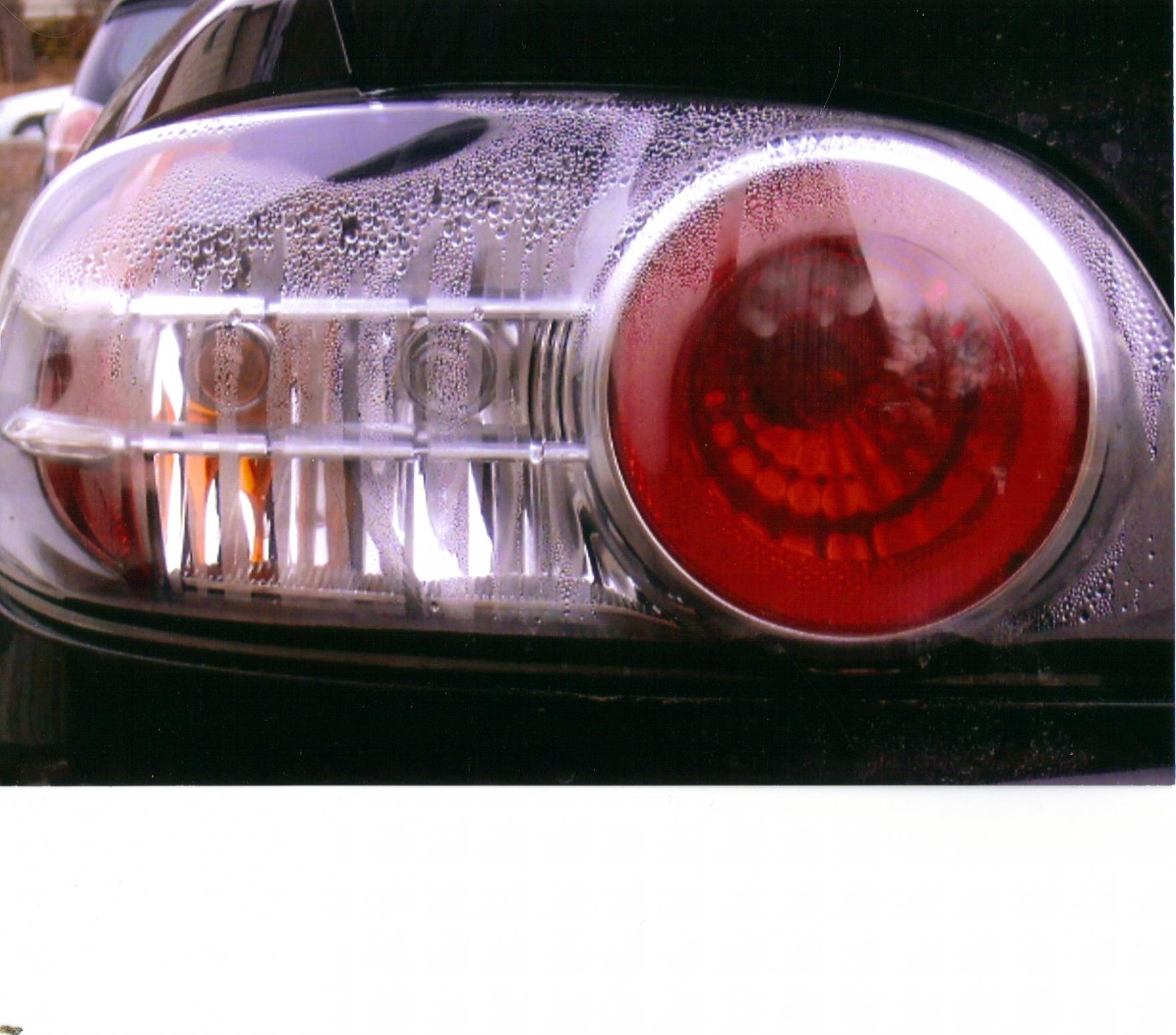

Water in tail light normal: TSB 09-016/09
Registered
Joined: Feb 2005
Posts: 185
Likes: 0
From: SoCal
There is a DIY on drilling and to put in the new gasket.
Total bullshit. I called my dealer and got so frustrated I told the woman on the phone to give me the boss because it was clear that I was talking to a stump.
Seals are now available BTW - $58. I am trying to get the dealership to pay for it - *********.
Total bullshit. I called my dealer and got so frustrated I told the woman on the phone to give me the boss because it was clear that I was talking to a stump.
Seals are now available BTW - $58. I am trying to get the dealership to pay for it - *********.
Registered User
Joined: Jul 2009
Posts: 10
Likes: 0
From: Halifax.. Nova Scotia and everywhere in between...
Normal
Yes, Mazda used to have a TSB for repairing RX8s with water in the tail lights. That TSB has been superceded by TSB 09-016/09 which says this is now "normal" for all model years 2004-2009. It goes on to say "DO NOT attempt repairs as this is considered normal." In other words, no warranty fix for water in tail light (or any light for that matter).
Oh yeah, it also says it's normal for 2003-2009 Mazda6, 2004-2010 Mazda3, 2006-2009 Mazda5, 2007-2009 Mazda CX-7 and 2007-2009 CX-9. Essentially the ENTIRE MODEL range Mazda produces.
Oh yeah, it also says it's normal for 2003-2009 Mazda6, 2004-2010 Mazda3, 2006-2009 Mazda5, 2007-2009 Mazda CX-7 and 2007-2009 CX-9. Essentially the ENTIRE MODEL range Mazda produces.
Yup, this looks normal...Mazda Canada...they said too bad...so sad...
Changed the gaskets myself with the new ones...Two Yrs later...same thing... Plus this baby is garaged and very seldom see,s rain unless caught in a freak downpour... drilling... have to give that some serious thought but may be an option...maybe driving it in reverse @ 160KPH would dry it out...
when this happened to me a while ago mazda replaced the gasket, it didnt work, and ended up replacing the whole assembly. I will be drilling next time it happens, but the dealer def was on my side to get mazdausa to replace it free before, now it looks like we ****D
Registered User
Joined: Jul 2010
Posts: 68
Likes: 0
hey guys i found a temporary solution to the problem (that worked for me),
If you know/think it is the gasket (which it normally is), then do what i did
1. remove light
2. clean current gasket and body of car behind the light
3. i used wax on the paint couple of layers on the paint where the light goes (So water flows better)
4. clear out all water and condensation out of light cluster
5. then i used vaseline (apply a fair bit) on the gasket (ONLY WHERE IT CONTACTS THE CAR and where you dont want water to go) and around the light bulb holes then placed the light bulb in carefully.
Also DONT vaseline the middle bit of the gasket where water flows through
6. bolt everything back together
This has stopped condensation and water in my tail light for almost 1-1.5 years, so i am happy and still hasnt leaked touchwood.
P.S. Make sure you get all water droplets out otherwise it condenses
Also i live in New Zealand, Auckland and it rains alot here and the rx is my everyday car so it seen its fair share of weather.
i dont have picts but if i do it again in the future i might document it but its preety straight forward.
If you know/think it is the gasket (which it normally is), then do what i did
1. remove light
2. clean current gasket and body of car behind the light
3. i used wax on the paint couple of layers on the paint where the light goes (So water flows better)
4. clear out all water and condensation out of light cluster
5. then i used vaseline (apply a fair bit) on the gasket (ONLY WHERE IT CONTACTS THE CAR and where you dont want water to go) and around the light bulb holes then placed the light bulb in carefully.
Also DONT vaseline the middle bit of the gasket where water flows through
6. bolt everything back together
This has stopped condensation and water in my tail light for almost 1-1.5 years, so i am happy and still hasnt leaked touchwood.
P.S. Make sure you get all water droplets out otherwise it condenses
Also i live in New Zealand, Auckland and it rains alot here and the rx is my everyday car so it seen its fair share of weather.
i dont have picts but if i do it again in the future i might document it but its preety straight forward.
