EBC Slotted Rotors and Brake Pads Questions
#1
PoloRican Rotary
Thread Starter
Join Date: Feb 2004
Location: Maryland
Posts: 1,501
Likes: 0
Received 0 Likes
on
0 Posts
EBC Slotted Rotors and Brake Pads Questions
Ok... this is going to be a ignorant question that I think I know the answer to, but I want to make sure before I do the install.
I ordered the EBC Slotted Rotors and EBC Red Brake Pads. I wasn't paying attention and went to take pictures of the rotors and brakes. Well while putting the rotors back in the box I noticed the numbers on the outside of the box.
The back rotors are the 7172's and the front are 7171. But they seem to have a L and R on the label. Did I just screw up something or are both L and R the same size for the back and front?
Also as you can see in the second picture of rotors and pads, one brake pad has a medal clip at the end. Is there suppose to be another one with a medal clip, or does our car have 1 medal clip on the rear brakes?
Thanks for the help and excuse my ignorance on the matter.... I'm just being cautious before I do the install.
I ordered the EBC Slotted Rotors and EBC Red Brake Pads. I wasn't paying attention and went to take pictures of the rotors and brakes. Well while putting the rotors back in the box I noticed the numbers on the outside of the box.
The back rotors are the 7172's and the front are 7171. But they seem to have a L and R on the label. Did I just screw up something or are both L and R the same size for the back and front?
Also as you can see in the second picture of rotors and pads, one brake pad has a medal clip at the end. Is there suppose to be another one with a medal clip, or does our car have 1 medal clip on the rear brakes?
Thanks for the help and excuse my ignorance on the matter.... I'm just being cautious before I do the install.
#3
PoloRican Rotary
Thread Starter
Join Date: Feb 2004
Location: Maryland
Posts: 1,501
Likes: 0
Received 0 Likes
on
0 Posts
#5
PoloRican Rotary
Thread Starter
Join Date: Feb 2004
Location: Maryland
Posts: 1,501
Likes: 0
Received 0 Likes
on
0 Posts
#6
PoloRican Rotary
Thread Starter
Join Date: Feb 2004
Location: Maryland
Posts: 1,501
Likes: 0
Received 0 Likes
on
0 Posts
One thing I did notice, say you look at the top rotors in the above picture (front rotors) and you just stood them both straight up, the left one has the slots going towards the front of the car but pointing towards the middle of the rotors as well.
#8
Registered
iTrader: (7)
This should help you
You are here: Home > Tech Tips > Direction of Rotation
--------------------------------------------------------------------------------

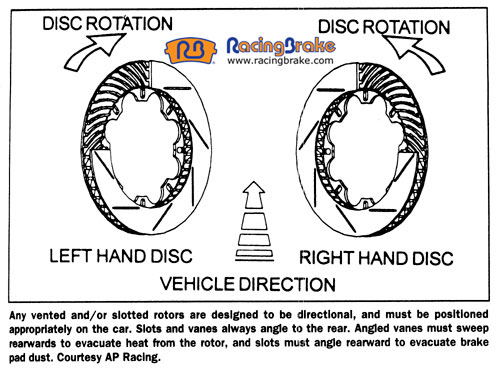

Direction of Rotation
For optimal performance follow these instructions:
DIRECTION OF ROTATION
- Ready to install. Final precision grinding and balance are done at factory.
- Clean friction surfaces with brake cleaner.
- Torque lug nuts to O.E. specifications. Never over torque.
- Follow break-in procedures if new pads are installed.
Note: The above direction of rotation is to show the surface slotting and/or drilling direction of straight vane rotors.
If the rotors have curved (directional) vanes, the cooling vanes were made in opposite direction to these slottings for optimum performance as illustrated below:
http://www.racingbrake.com/v/main/te...tent=Direction of Rotation
You are here: Home > Tech Tips > Direction of Rotation
--------------------------------------------------------------------------------
Direction of Rotation
For optimal performance follow these instructions:
DIRECTION OF ROTATION
- Ready to install. Final precision grinding and balance are done at factory.
- Clean friction surfaces with brake cleaner.
- Torque lug nuts to O.E. specifications. Never over torque.
- Follow break-in procedures if new pads are installed.
Note: The above direction of rotation is to show the surface slotting and/or drilling direction of straight vane rotors.
If the rotors have curved (directional) vanes, the cooling vanes were made in opposite direction to these slottings for optimum performance as illustrated below:
http://www.racingbrake.com/v/main/te...tent=Direction of Rotation
#9
PoloRican Rotary
Thread Starter
Join Date: Feb 2004
Location: Maryland
Posts: 1,501
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, this helped a lot!
This should help you
You are here: Home > Tech Tips > Direction of Rotation
--------------------------------------------------------------------------------
Direction of Rotation
For optimal performance follow these instructions:
DIRECTION OF ROTATION
Attachment 164184
- Ready to install. Final precision grinding and balance are done at factory.
- Clean friction surfaces with brake cleaner.
- Torque lug nuts to O.E. specifications. Never over torque.
- Follow break-in procedures if new pads are installed.
Note: The above direction of rotation is to show the surface slotting and/or drilling direction of straight vane rotors.
If the rotors have curved (directional) vanes, the cooling vanes were made in opposite direction to these slottings for optimum performance as illustrated below:
Attachment 164185
http://www.racingbrake.com/v/main/te...tent=Direction of Rotation
You are here: Home > Tech Tips > Direction of Rotation
--------------------------------------------------------------------------------
Direction of Rotation
For optimal performance follow these instructions:
DIRECTION OF ROTATION
Attachment 164184
- Ready to install. Final precision grinding and balance are done at factory.
- Clean friction surfaces with brake cleaner.
- Torque lug nuts to O.E. specifications. Never over torque.
- Follow break-in procedures if new pads are installed.
Note: The above direction of rotation is to show the surface slotting and/or drilling direction of straight vane rotors.
If the rotors have curved (directional) vanes, the cooling vanes were made in opposite direction to these slottings for optimum performance as illustrated below:
Attachment 164185
http://www.racingbrake.com/v/main/te...tent=Direction of Rotation
#13
Registered
iTrader: (9)
Join Date: Jun 2006
Location: Seattle, WA
Posts: 1,285
Likes: 0
Received 0 Likes
on
0 Posts
#16
Has anybody pictures, where this brakerotors are installed on a lefthanddrive RX8?
#17
Hate Scrape 8
how are these? Did you install them? Are they noise like someone else said above? Im looking into the same setup, please let me know asap I have to make a choice asap
#18
The direction of the rotors on the pic is correct!
Front left: https://www.rx8club.com/album.php?al...ictureid=24146
Rear left: https://www.rx8club.com/album.php?al...ictureid=24148
Front right: https://www.rx8club.com/album.php?al...ictureid=24149
Last edited by corres78; 02-17-2011 at 12:24 PM.
