Diagram of o2 sensor harness? Help
Well I collected a roadkill a diesel shot at me under my 8. In the process it managed to pull the wires right out of the harness that connects to what I'm assumeing is the O2 sensor in the exhaust. The wires are good and they will pop right back into the harness but unfortunately the colors of the wires change there so I cant just match them up. Can anyone help me on this? I tried my local dealers but no help there.
#3
Registered User
Thread Starter
Join Date: Jun 2006
Location: Riverside Ca.
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Front sensor. The wires are still intact going out the connection and into the sensor its the other side of connection that pulled out. Any help u can give would be appreciated. Thanks
#5
Metatron
iTrader: (1)
Sorry......

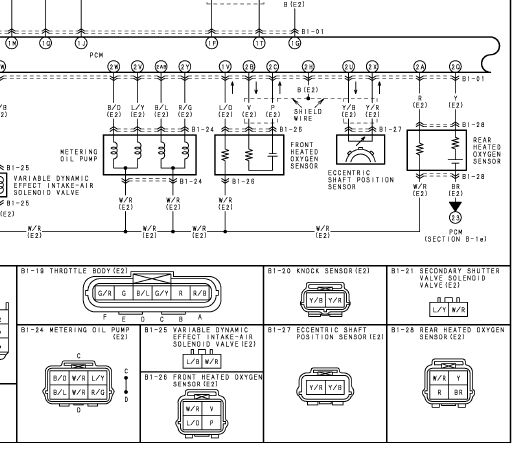

Sorry, I mis-interpreted the diagram, gave the wrong colors.
The diagram doesn't show what colors the actual sensor side of the connector is - and it's probably those that pulled out.
The wires from the ECU, as you look up into the open terminal side are -
yellow - top right
blue/red - bottom right
red - bottom left
white/red - top left
S
The diagram doesn't show what colors the actual sensor side of the connector is - and it's probably those that pulled out.
The wires from the ECU, as you look up into the open terminal side are -
yellow - top right
blue/red - bottom right
red - bottom left
white/red - top left
S
#6
Registered User
Thread Starter
Join Date: Jun 2006
Location: Riverside Ca.
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
The wires are still in the sensor and they are intact into the harness. The wires that pulled out are from the other side of the connector so you may have it right.
