CEL after changing spark plugs?

Thread Tools

Search this Thread

Rate Thread

Old 11-20-2005, 10:01 AM
  #1
Registered User
Thread Starter

mfreilly's Avatar

Join Date: Feb 2004
Location: NJ-USA
Posts: 35
Likes: 0
Received 0 Likes on 0 Posts
Question CEL after changing spark plugs?

Has any one experienced this? I did tighten the gas cap and disconnect the battery to reset it but it came right back on. I am using the factory plugs. I had them changed at a local garage that always does good work, but I am wondering if they got a leading and trailing swapped? The car is running fine.
Old 11-20-2005, 10:19 AM
  #2
He's as bad as Can

expo1's Avatar

Join Date: Feb 2004
Location: Manchester, NJ
Posts: 4,309
Likes: 0
Received 2 Likes on 2 Posts
make sure all four spark plug wires are on snug.
Old 11-20-2005, 10:34 AM
  #3
Registered

Go48's Avatar

Join Date: Jul 2004
Location: Fayetteville, PA
Posts: 2,598
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by mfreilly
Has any one experienced this? I did tighten the gas cap and disconnect the battery to reset it but it came right back on. I am using the factory plugs. I had them changed at a local garage that always does good work, but I am wondering if they got a leading and trailing swapped? The car is running fine.

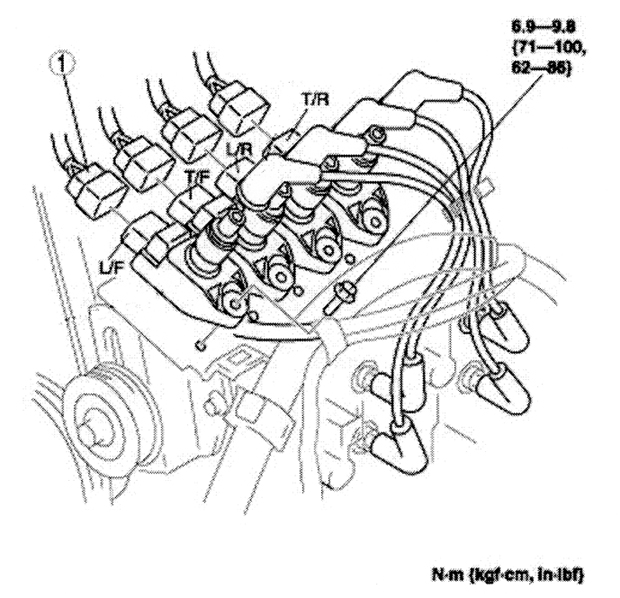

Not sure that swapping the plug wires would cause a CEL, but it's easy enough to verify that the wires are connected properly. See the attached diagram and use it to trace the plug wires between the coils and plugs.

L/F=Leading Front
T/F=Trailing Front
L/R=Leading Rear
T/R=Trailing Rear

L=Leading=Lower
T=Trailing=Top

However, I doubt that this is your problem. Could be that your local garage, who I assume is not a rotary engine ship, screwed up something in the process of changing the plugs or it could be that the CEL is totally unrelated. Have the dealer read the error codes.
Attached Thumbnails CEL after changing spark plugs?-rx8coils.jpg
Old 11-20-2005, 04:17 PM
  #4
Registered User
Thread Starter

mfreilly's Avatar

Join Date: Feb 2004
Location: NJ-USA
Posts: 35
Likes: 0
Received 0 Likes on 0 Posts
I do have an appointment at the dealer but not till friday. I am pretty sure they would have gotten the wires correct, but will check. I was thinking more, maybe the plugs themselves.
Old 11-20-2005, 08:11 PM
  #5
Registered User

Aseras's Avatar

Join Date: Mar 2005
Posts: 1,587
Likes: 0
Received 1 Like on 1 Post
did you put shims on the trailing pulgs? there's 2 crush washers before the plugs to recess them.

also there's diffrent temp plugs.. usually the leading are 7's and the trailing are 9's. you can use 9's all around...
