important int-x question
08-29-2006, 06:41 PM
#1
Registered User
Thread Starter
Join Date: Feb 2006
Location: huntsville, alabama
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
important int-x question

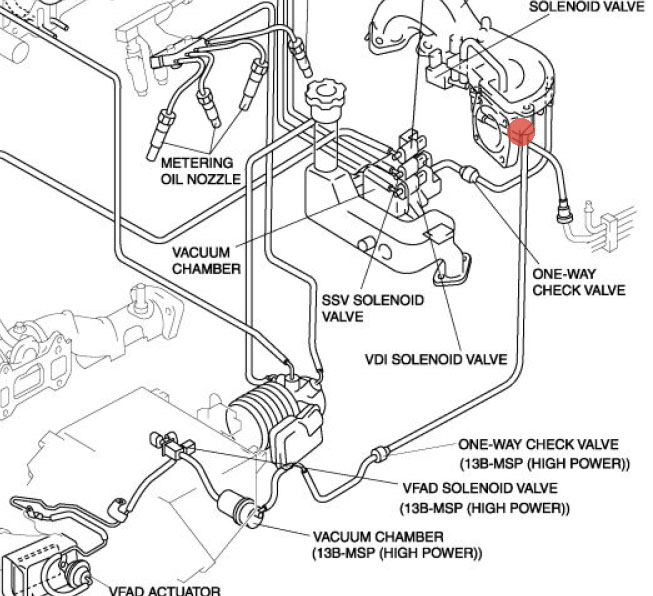

where do i hook the freaking vacuum hose to? i looked on the video and it shows the spot, but there is already a rubber hose in that spot and i cant pull it out. is there another spot to hook it to?
08-30-2006, 10:11 AM
#6
Mazsport.net
Join Date: Mar 2005
Location: In the shop
Posts: 753
Likes: 0
Received 0 Likes
on
0 Posts
GENTLY twist and pull on the hose while pulling down. Do NOT splice a tee into this hose please. If you want to keep your vfad intact, splice a tee into the hose on the top of the manifold. The Interceptor-X hose should not have anythig else spliced into it. Scott
08-30-2006, 06:14 PM
#7
Registered User
Thread Starter
Join Date: Feb 2006
Location: huntsville, alabama
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
k i got the vacuum hose connected, but now the int-x wont show power and my car will not start. i even took out the int-x and my car still wont start.. what is wrong with it?
08-31-2006, 09:05 AM
#8
Air + Fuel + Spark = Boom
Join Date: Nov 2005
Location: Brunei. Do u know where tht is?
Posts: 384
Likes: 0
Received 0 Likes
on
0 Posts
I've got 3 tees.... from vfad > int-x, boost controller, bov, defi boost guage sensor
would u recommend i take some of the other pressure sensor signals from elsewhere? If so which sensors, and from which port? There are 2 other ports... One on the left side and one behind the port where VFAD is
would u recommend i take some of the other pressure sensor signals from elsewhere? If so which sensors, and from which port? There are 2 other ports... One on the left side and one behind the port where VFAD is
08-31-2006, 09:22 AM
#9
Riot Controller
Join Date: Jan 2004
Location: Orlando, FL
Posts: 2,142
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by stickmantijuana
i kinda miss talking to scott... that's why i'm currently trying to blow up my motor. jk. scott, please give me a call, 9pm, 10pm, 1am, or pretty much as late as you want.
08-31-2006, 05:42 PM
#10
Registered User
Join Date: Nov 2005
Location: Apollo Beach, FL
Posts: 282
Likes: 0
Received 0 Likes
on
0 Posts
^^^Eh, you kind of DON'T get to talk to him. Just kidding. Mazsport has great support. I was up against the same wall doing my interceptor N/A install. The install video (available on his website) is very clear which hose to use, but just be sure that there isn't a 1-way check valve between the Interceptor and the manifold. The video shows an installation on the Greddy kit and assumes that the vacuum lines and check values have already been removed.
Check your battery, ground, etc. It should be pretty easy to trace back a bad electrical connection.
Check your battery, ground, etc. It should be pretty easy to trace back a bad electrical connection.
09-03-2006, 04:36 AM
#11
A turbo what?
Join Date: Nov 2003
Location: Wynne, AR
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
joshk118 k i got the vacuum hose connected, but now the int-x wont show power and my car will not start. i even took out the int-x and my car still wont start.. what is wrong with it?
I bet it is your small ecu fuse in the fuse box under the hood on the driver side.
Good luck,
I bet it is your small ecu fuse in the fuse box under the hood on the driver side.
Good luck,
