DIY: Replace Passenger side airbag cover thats splitting for $150.
#51
Sorry to bump old thread (came up in google search of topic)..
My 04 just started a small rip horizontally at the top.
Would removing it and gluing some thin material to it at the back of the tear to keep it from getting worse be a serious safety issue?
Something like.. idk.. craft paper.
or even thick trash bag material.
My 04 just started a small rip horizontally at the top.
Would removing it and gluing some thin material to it at the back of the tear to keep it from getting worse be a serious safety issue?
Something like.. idk.. craft paper.
or even thick trash bag material.
#52
Thanks for the great "How-to!" I followed your instructions and recovered mine with some 3M black carbon fiber material I got off Ebay for $17. Dash looks great with the carbon fiber material. I wish Mazda had used this on the entire dash. I have lots of material left over, so I plan to also recover my instrument cluster area on the driver's side to match. The whole thing cost me $17 and about one hour to remove, cover, and reinstall.
#55
Quick, Inexpensive, Attractive Repair
I bought a roll of 3M Carbon Fiber material off eBay for $17. Rocketman's instructions for removing the airbag made pulling the dash panel easy. The recovered airbag panel looks awesome. I've got material left over, so I'm going to do the center panel and the area over the instrument cluster to match.
#56
Never Blend In
iTrader: (2)
I bought a roll of 3M Carbon Fiber material off eBay for $17. Rocketman's instructions for removing the airbag made pulling the dash panel easy. The recovered airbag panel looks awesome. I've got material left over, so I'm going to do the center panel and the area over the instrument cluster to match.
#57
Registered
Join Date: Jan 2009
Location: Westerville Ohio
Posts: 76
Likes: 0
Received 0 Likes
on
0 Posts
I've got the hairline crack on my passenger airbag cover now as well. Has anyone tried filling this crack with something like Plasti Dip? I'd hate to drop $200-$300 to fix something that is purely cosmetic, but the crack is starting to drive me crazy.
#58
Registered
Join Date: Jan 2009
Location: Westerville Ohio
Posts: 76
Likes: 0
Received 0 Likes
on
0 Posts

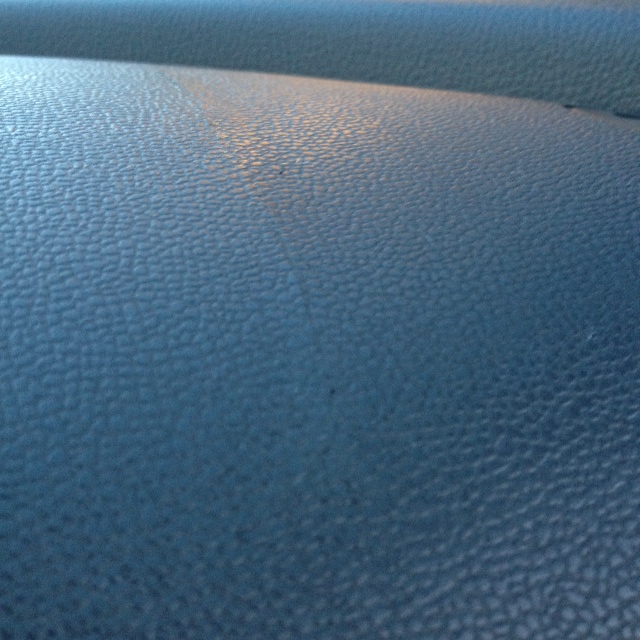

Well, decided to try my own idea of using Plasti Dip to fill the crack. Attached are some before and after pictures. You can still see the crack, but it is less noticeable.
#59
#60
#61
SARX Legend
iTrader: (46)
I would say it would depend on the material used. But I have seen people wrap the cracked piece and it does not hold up. Not in Texas anyway.
Last edited by 9krpmrx8; 03-05-2015 at 03:18 PM.
#62
Danny Rotstein
iTrader: (10)
Join Date: Dec 2009
Location: Chicago
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
Vinyl wrap wont hold up at all because of the texture. It would need to be sanded down first and then the cracks filled. I'll be wrapping my dash in suede once it warms up (got rid of my dash cover) to match all my pillars and headliner. I'll post pics when I'm finished
#63
Registered
I just did the 3M carbon fiber wrap. Had to do it twice to get it right, it gets rather tricky stretching that 3M film over the corner around the vent. Don't know how long it will last in SoCal, but if I have to do it again next year then oh well, it's cheap and it's super easy thanks to Rocketman's How-To... Thanks! Great tutorial!
#64
Registered
Join Date: Jan 2009
Location: Westerville Ohio
Posts: 76
Likes: 0
Received 0 Likes
on
0 Posts
#65
There's a huge difference in the noticeability of mine, depending on the ambient temperature, i.e. when it's warm you wouldn't even notice it but when cold it becomes quite obvious. I'm wondering if this characteristic can be harnessed to help fix it, or if it makes it hopelessly unfixable.
Obviously, I'm a total n00b here... but I'm fearless.
#66
Registered
Join Date: Jan 2009
Location: Westerville Ohio
Posts: 76
Likes: 0
Received 0 Likes
on
0 Posts
I actually sprayed some into a cup, and then used a small detail brush to fill in the crack. I waited a minute or two, then wiped off the excess. Repeated this about 4-5 times to build up enough to fill in the crack. It was still noticeable, but not as bad.
#67
weeeeeeeeee
iTrader: (12)
timely thread bump as mine is cracked now too. do I seriously have to scrounge eBay and partout threads to replace this thing?
Where the hell do we find just the cover? FEY1-57-K5X is $391 !!!
Where the hell do we find just the cover? FEY1-57-K5X is $391 !!!
Last edited by ShellDude; 03-17-2015 at 08:00 PM.
#69
I would be very hesitant to cover the dash with anything, CF, or vinyl. Mazda purposely scored the underside of the dash to create a sure-fail point in the event of airbag deployment. This is why the dashes all crack with the outline of the airbag. I doubt anyone has actually tested this with a vinyl or CF cover but intuition would say this would definitely impede the airbag deployment. If you were wondering how important proper airbag deployment is, check out this video done by Honda:
Horrifying airbag demonstration shows how a fraction of a second is the difference between life and death - Mirror Online
The plastidip/filler method will probably be fine, but the best method to fix this is to get a new or used factory dash piece and do your best to prevent heat from cracking the new one.
Horrifying airbag demonstration shows how a fraction of a second is the difference between life and death - Mirror Online
The plastidip/filler method will probably be fine, but the best method to fix this is to get a new or used factory dash piece and do your best to prevent heat from cracking the new one.
#71
Super Moderator
No....you can get online from a Mazda Dealer genuine for 30 bucks more with free shipping in US.
#72
Super Moderator
I would be very hesitant to cover the dash with anything, CF, or vinyl. Mazda purposely scored the underside of the dash to create a sure-fail point in the event of airbag deployment. This is why the dashes all crack with the outline of the airbag. I doubt anyone has actually tested this with a vinyl or CF cover but intuition would say this would definitely impede the airbag deployment. If you were wondering how important proper airbag deployment is, check out this video done by Honda:
Horrifying airbag demonstration shows how a fraction of a second is the difference between life and death - Mirror Online
The plastidip/filler method will probably be fine, but the best method to fix this is to get a new or used factory dash piece and do your best to prevent heat from cracking the new one.
Horrifying airbag demonstration shows how a fraction of a second is the difference between life and death - Mirror Online
The plastidip/filler method will probably be fine, but the best method to fix this is to get a new or used factory dash piece and do your best to prevent heat from cracking the new one.
#73
weeeeeeeeee
iTrader: (12)
however, i just ran a checkout test with shipping through tasca they expect me to dump $60 on shipping.
So um, onlinemazdaparts it is
#74
Super Moderator
YES it is true....
This US Mazda Dealer I have dealt with don't charge any shipping over $200 and their prices were cheaper than onlinemazdaparts..
Discount factory (OEM) Mazda parts and accessories at Park Mazda OEM Parts
This US Mazda Dealer I have dealt with don't charge any shipping over $200 and their prices were cheaper than onlinemazdaparts..
Discount factory (OEM) Mazda parts and accessories at Park Mazda OEM Parts
