Help...Fender Vents/Strakes Removal

Ok guys...dont make fun of me...but i was tryin to take off my fender vents and strakes....and now the vent is loose. i tried to take off the wheel well plastic to access the back of the vent...but i dont know how to get the plastic screws out without stripping them. i stripped one and stopped.

basically i need to take the vent out asap. its loose. the point of the strakes already dug into the paint a little. im dying here guys!!! this car is my mistress and i love her!!!!

i want to take the strakes and vents off so i can sell them and get the aluminum vents.

Last edited by tksnobords; 04-24-2007 at 12:58 PM. Reason: its not a DIY and i had it titled as a DIY
Old 04-22-2007, 10:22 PM
  #2
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
Originally Posted by tksnobords
Ok guys...dont make fun of me...but i was tryin to take off my fender vents and strakes....and now the vent is loose. i tried to take off the wheel well plastic to access the back of the vent...but i dont know how to get the plastic screws out without stripping them. i stripped one and stopped.

basically i need to take the vent out asap. its loose. the point of the strakes already dug into the paint a little. im dying here guys!!! this car is my mistress and i love her!!!!

i want to take the strakes and vents off so i can sell them and get the aluminum vents.
Whoa.............they don't fully unscrew, they just turn about 1/2 turn then pop up, then the whole plastic piece comes out. You will see...........once the screw(as you call it) is pops out a little, get a flatblade screwdriver underneath the plastic tab that the screw goes into and pry gently. Actually after you pop the screw up, you can usually just pull it out without the screwdriver though.
Old 04-22-2007, 10:24 PM
  #3
DGAF
iTrader: (1)

Rootski's Avatar

Join Date: Jan 2006
Location: Austin, TX
Posts: 1,953
Likes: 0
Received 0 Likes on 0 Posts
They're not screws, they're pop rivets. Screw them a quarter turn, making sure the outside edge of the rivet doesn't turn, and the center should pop out. You can then gently pull it out. Sometimes turning them doesn't work, in which case you need to gently stick a SMALL flathead screwdriver (like the kind you repair sunglasses with) in the joint between the inner and outer parts and lift until the center pops.
Old 04-22-2007, 10:29 PM
  #4
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
AND............once you have access to the back of the vents, you will find that they need to be squeezed from the sides in three places along their length. Approx. at the top middle and bottom. You won't be able to see them.....you'll have to go by feel. Get you hand/arm in there, take your time and using middle finger on one side and thunmb on the other and kinda sqeeze a little bit. Once you see how they are held in, it's easy..........just be aware there are three places to do that squeeze(one at a time), DON'T just try and pry them out or you will dork them up.

Last edited by Mazurfer; 04-22-2007 at 10:48 PM.
Old 04-22-2007, 10:30 PM
  #5
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
Originally Posted by Rootski
They're not screws, they're pop rivets. Screw them a quarter turn, making sure the outside edge of the rivet doesn't turn, and the center should pop out. You can then gently pull it out. Sometimes turning them doesn't work, in which case you need to gently stick a SMALL flathead screwdriver (like the kind you repair sunglasses with) in the joint between the inner and outer parts and lift until the center pops.
Rivet is a much better term.....thanks....was having a brain fart and couldn't think of it.
Old 04-22-2007, 10:37 PM
  #6
TK
Thread Starter

tksnobords's Avatar

Join Date: Jan 2007
Posts: 362
Likes: 0
Received 1 Like on 1 Post
oh ok. no wonder the POP RIVET (not a screw lol) wouldnt come out. thanks so much guys. im so mad that i scratched my car! but ohwell. im going to work on it in the morning. i i had gotten the top part of the vent out fine...like you said. but i couldnt get the rest. i will pull off the wheel well in the morning and get this vent out.
Old 04-23-2007, 01:09 PM
  #7
TK
Thread Starter

tksnobords's Avatar

Join Date: Jan 2007
Posts: 362
Likes: 0
Received 1 Like on 1 Post
ok guys!!! with your help i got them out without a problem!!!!!!!! now im going to driving around without them in. im going to sell them on here and craigslist. i saw people selling the metal strakes on ebay for over $200! i think thats kind of high. but what do you guys think. what would be a fair price for the full set of strakes? i also saw the oem vents for about $50. lemme know what you guys think is a good price for them. i want to get a set of the aluminum vents.
Old 04-23-2007, 01:10 PM
  #8
Bigus Rotus
iTrader: (3)

Nemesis8's Avatar

Join Date: Jun 2004
Location: Missouri
Posts: 8,573
Likes: 0
Received 1 Like on 1 Post
This thread is not a DIY BTW IMO
Old 04-23-2007, 01:48 PM
  #9
TK
Thread Starter

tksnobords's Avatar

Join Date: Jan 2007
Posts: 362
Likes: 0
Received 1 Like on 1 Post
imo?
Old 04-23-2007, 09:44 PM
  #10
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
Originally Posted by Nemesis8
This thread is not a DIY BTW IMO
Nemesis8 is right............it's not a DIY, that's reserved for Do It Yourself and is where you actually explain(hopefully with pics) all parts of a particular installation.

IMO = In My Opinion

Anyway.......I never saw that you called it a DIY, I just saw you needed help. That should have been the title "Help with Vendor Vents". No harm, no foul.
Old 04-24-2007, 01:00 PM
  #11
TK
Thread Starter

tksnobords's Avatar

Join Date: Jan 2007
Posts: 362
Likes: 0
Received 1 Like on 1 Post
oh my mistake. i edited it. but i dont think it changed the main title.

i washed my car today thinking it would get rid of the marks left by the strakes. but there is still tape residue. got any suggestions on removing that?
Old 04-24-2007, 03:59 PM
  #12
Registered

Go48's Avatar

Join Date: Jul 2004
Location: Fayetteville, PA
Posts: 2,598
Likes: 0
Received 2 Likes on 2 Posts
Assuming what you're seeing is residue from the double sticky tape, get a bottle of Goo Gone, spray it on, let it set a few minutes then wipe it off. If what you're seeing is scratches, or etching from the glue, on the clear coat, try a little polishing compound and a buffer.
Old 04-24-2007, 08:45 PM
  #13
Carbonormous

savedsol's Avatar

Join Date: Aug 2003
Location: Chicago, IL
Posts: 882
Likes: 0
Received 0 Likes on 0 Posts
Post a pic without vents. I'm curious.
Old 04-24-2007, 09:42 PM
  #14
TK
Thread Starter

tksnobords's Avatar

Join Date: Jan 2007
Posts: 362
Likes: 0
Received 1 Like on 1 Post
ok ill get some pix up. it looks bad. i been drivin around without them in for days. discracing* the rx8!
Old 04-24-2007, 10:54 PM
  #15
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
Originally Posted by tksnobords
ok ill get some pix up. it looks bad. i been drivin around without them in for days. discracing* the rx8!
I'll bet..........it must look kinda nasty without them!
Old 04-25-2007, 05:47 PM
  #16
TK
Thread Starter

tksnobords's Avatar

Join Date: Jan 2007
Posts: 362
Likes: 0
Received 1 Like on 1 Post
here is how bad it looks without vents. i have to clean my vents and the residue off today. i got some goo gone!!!
Attached Thumbnails DIY: Fender Vents/Strakes Removal-fender-ventless-rx8club.com.jpg
Old 04-25-2007, 06:01 PM
  #17
TK
Thread Starter

tksnobords's Avatar

Join Date: Jan 2007
Posts: 362
Likes: 0
Received 1 Like on 1 Post

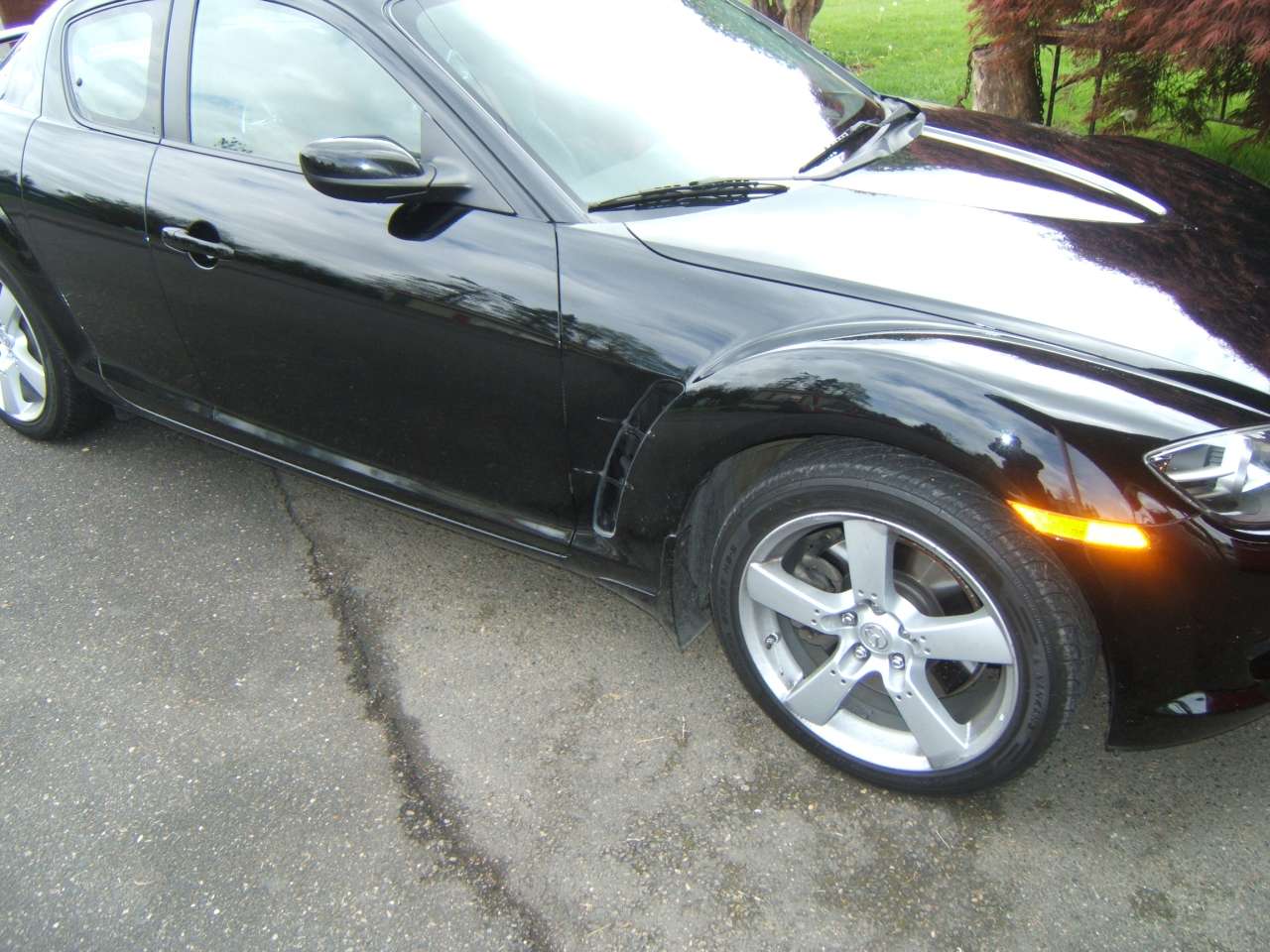

yeah its pretty ugly
Attached Thumbnails DIY: Fender Vents/Strakes Removal-rx8ventlesszoomeroutrx8club.com.jpg
Old 04-25-2007, 06:05 PM
  #18
TK
Thread Starter

tksnobords's Avatar

Join Date: Jan 2007
Posts: 362
Likes: 0
Received 1 Like on 1 Post

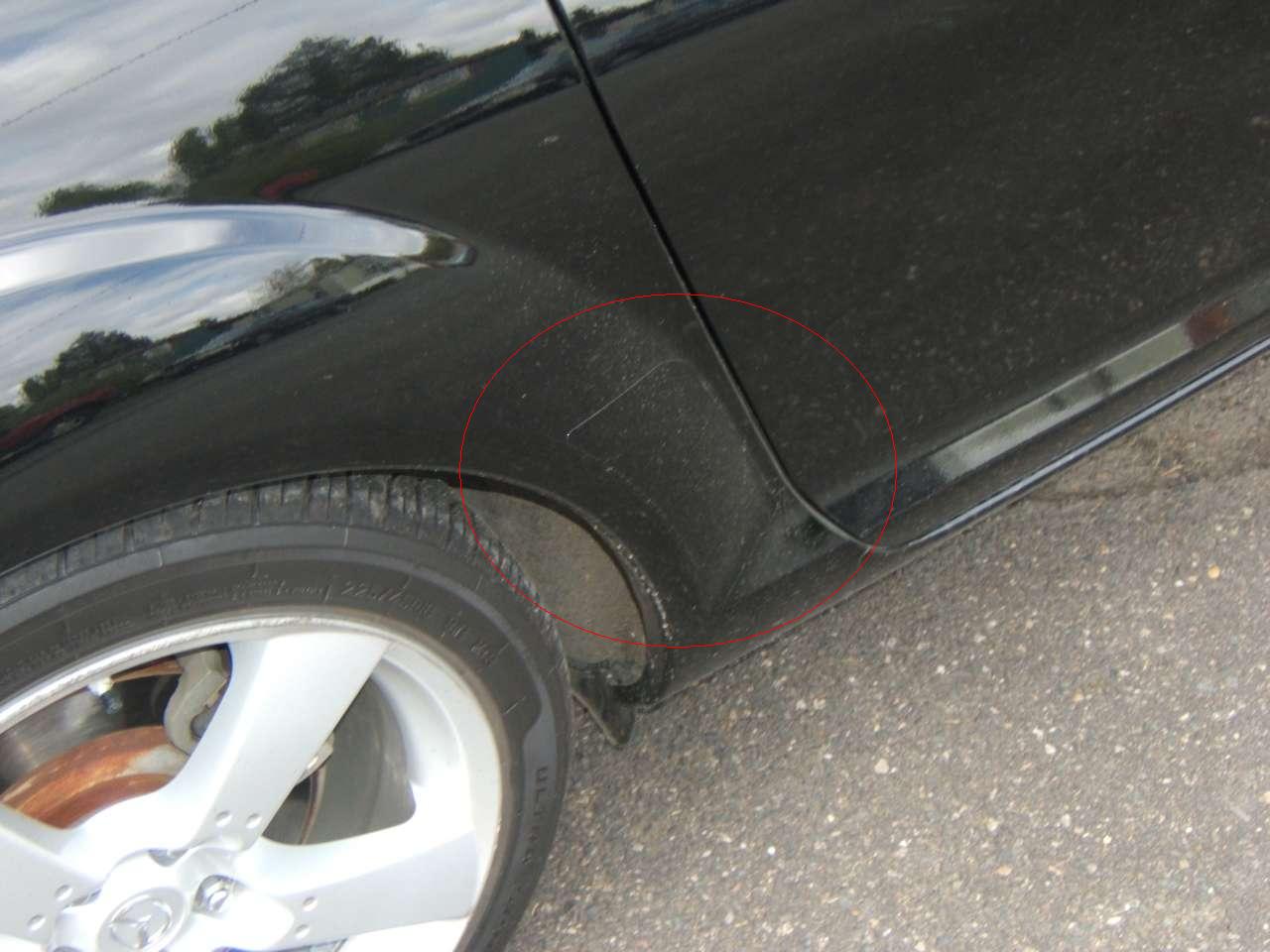

hey does anyone know what this vent looking sticker is on the back? can we take it off and put vents in like the front fenders or what?
Attached Thumbnails DIY: Fender Vents/Strakes Removal-rear-vent-lookin-thing-red-circle-rx8club.jpg
Old 04-25-2007, 06:24 PM
  #19
Registered

Go48's Avatar

Join Date: Jul 2004
Location: Fayetteville, PA
Posts: 2,598
Likes: 0
Received 2 Likes on 2 Posts
It's a vinyl stone guard. It can be removed, but there's nothing behind it but metal. You will also find more vinyl along the bottom of the rear door openings.
Old 04-25-2007, 06:27 PM
  #20
TK
Thread Starter

tksnobords's Avatar

Join Date: Jan 2007
Posts: 362
Likes: 0
Received 1 Like on 1 Post
oooooooo i see....i was hoping that i could put a vent there.
Old 04-25-2007, 07:32 PM
  #21
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
Originally Posted by Go48
It's a vinyl stone guard. It can be removed, but there's nothing behind it but metal. You will also find more vinyl along the bottom of the rear door openings.
Always wondered what that was, and if it could come off. Not that I ever wanted to take it off.
Old 05-03-2007, 08:14 PM
  #22
Buzz Buzz Buzz

Cromax's Avatar

Join Date: Mar 2005
Location: Melbourne, Victoria
Posts: 1,931
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by tksnobords
yeah its pretty ugly
Yeah, I was thinking it looked a bit ghetto as well!
Old 05-03-2007, 08:18 PM
  #23
Bigus Rotus
iTrader: (3)

Nemesis8's Avatar

Join Date: Jun 2004
Location: Missouri
Posts: 8,573
Likes: 0
Received 1 Like on 1 Post
Man your rotors are rusty

I have the same situation, I removed my strakes, and the residue left is a biatch to remove. I even tried WD40 - nothing gets it off. I think it is in the clear coat, so next is clay bar maybe.
Old 05-03-2007, 09:15 PM
  #24
TK
Thread Starter

tksnobords's Avatar

Join Date: Jan 2007
Posts: 362
Likes: 0
Received 1 Like on 1 Post
my friend does a killer wax job. the dealership said they couldnt warranty it until i waxed it. so im gettin waxed here soon. i tried goo gone and it didnt even touch it. i agree i think the clear coat has been rubbed away.
Old 06-07-2007, 06:00 PM
  #25
Registered User

rovic's Avatar

Join Date: Jan 2007
Posts: 79
Likes: 0
Received 0 Likes on 0 Posts
FYI

The pop rivet is also called a scrivet. I think I busted one of mine.
