Custom Light Weight Pullies...
07-12-2004, 09:19 PM
#26
Mazda Mole
Join Date: Aug 2003
Location: Cincinnati, OH
Posts: 498
Likes: 0
Received 0 Likes
on
0 Posts
Move yourself up Solidworks or Solidedge, that's where the power is at. Especially now since there are integrated FEA and dynamic analysis packages for each modeler.
I think they have student versions, otherwise they are relatively expensive.
Cortc, have you thought about getting your car featured in mags like Sport Compact Car? I think you have one of the most modified 8 on the forum that isn't a vendor car.
I think they have student versions, otherwise they are relatively expensive.
Cortc, have you thought about getting your car featured in mags like Sport Compact Car? I think you have one of the most modified 8 on the forum that isn't a vendor car.
07-13-2004, 12:04 AM
#27
Registered User
Thread Starter
Join Date: Mar 2004
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Those are good programs but I have to keep this on some sort of a budget... I may submit something to get the car featured; the titanium lugs get here in a week and this project should be done by the 15th of August...
07-15-2004, 04:56 PM
#28
Registered
Join Date: Sep 2003
Location: Diamond Bar, Ca
Posts: 1,473
Likes: 0
Received 0 Likes
on
0 Posts

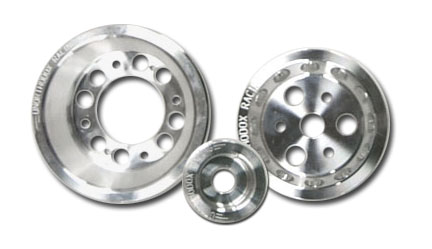

Hey Cortc.. Would you comment on the following post for me... I was thinking about waiting for Unorth to release their pullies but now I may just go for SR Motors...
Thankx.. Or wait for yours of course
https://www.rx8club.com/showpost.php...1&postcount=27
Thankx.. Or wait for yours of course
https://www.rx8club.com/showpost.php...1&postcount=27
07-24-2004, 03:59 PM
#29
Registered User
Thread Starter
Join Date: Mar 2004
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Under-driving does have some negatives to it, that is why I decided not to with my set... The under-driving only adds about 20% of the power gain, the rest comes from the weight reduction; so I have choosen to go as light as possible including the titanium nuts, bolts and hub... I will have the testing results soon (In a few weeks) and my goal is 8-12hp gain... The RX8 does not use a harmonic damper so it does not apply in this case...
Last edited by cortc; 07-24-2004 at 04:02 PM.
07-24-2004, 05:39 PM
#30
Registered User
Join Date: Feb 2003
Location: South Florida
Posts: 1,080
Likes: 0
Received 0 Likes
on
0 Posts
Hey, does the RX-8 have the same issue as the RX-7 regarding the main pulley hub? For the 7, many of the aftermarket main pulleys just bolt on to the existing hub, however Unorthodox replaces the whole thing. This is a more complete solution of course, but you have to be extremely careful when you loosen the eccentric shaft bolt or stuff inside the front cover gets out of whack and can be damaged. For more details go here. Again, just curious if this applies to the 8.
jds
jds
07-26-2004, 07:48 AM
#32
6Spd Blue 230
Join Date: May 2004
Location: U.K.
Posts: 254
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by cortc
I will post some weights tomorrow along with some more details... As soon as I get the actual pulleys will post pictures of those and then some of them installed on the car. I am going to do several dyno runs, one stock, one with pulleys only, one with pulleys and bolts and one with pulleys, bolts and crank hub...
Alex: Yes, I will post HP as well as torque figures...
Alex: Yes, I will post HP as well as torque figures...
You'll have to let us know how the car feels before, and after...
Thanks.
07-26-2004, 05:26 PM
#36
Allow me to enter my .02 cents.
The reduction of weight will not, can not add hp.
It can free up some power during fast acceleration.
But, the amount of help depends on the mass reduction and the polar moment. IE the distance from the center. So you can see where a flywheel can get some results. Taking mass off the center bolt will get you nothing.
If the outer bolts are on a large enough base circle there would be something. But they are not. The best place is the outer rim of the pulley. I don't know how big these are but the factory units are always thick. On top of that they are usually not round or true. they wobble That alone takes power away.
But if that helps why are you forgetting the wheels and the lugnuts. The lugnuts are bigger and on a larger base circle. As is the wheel rim. These are conected to the engine just as the pulleys are.
Having said all that, you can sell the pulleys on looks alone. Even if there is no gain in power. Should you find a market call me, we just got a new CNC lathe that needs paying for.
The reduction of weight will not, can not add hp.
It can free up some power during fast acceleration.
But, the amount of help depends on the mass reduction and the polar moment. IE the distance from the center. So you can see where a flywheel can get some results. Taking mass off the center bolt will get you nothing.
If the outer bolts are on a large enough base circle there would be something. But they are not. The best place is the outer rim of the pulley. I don't know how big these are but the factory units are always thick. On top of that they are usually not round or true. they wobble That alone takes power away.
But if that helps why are you forgetting the wheels and the lugnuts. The lugnuts are bigger and on a larger base circle. As is the wheel rim. These are conected to the engine just as the pulleys are.
Having said all that, you can sell the pulleys on looks alone. Even if there is no gain in power. Should you find a market call me, we just got a new CNC lathe that needs paying for.
Last edited by Richard Paul; 07-26-2004 at 05:31 PM.
07-27-2004, 01:16 AM
#37
Registered User
Join Date: Oct 2003
Location: Inland Empire, SoCalif
Posts: 382
Likes: 0
Received 0 Likes
on
0 Posts
Just out of curiosity....how much is all this costing you? You seem to be going to great lengths to reduce the weight of just about anything you can. I think it's a great idea; just wondering what all this costs.
07-30-2004, 04:47 PM
#39
M0D Squad -charter member
Join Date: Jan 2003
Location: Alabama
Posts: 1,498
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Richard Paul
But if that helps why are you forgetting the wheels and the lugnuts. The lugnuts are bigger and on a larger base circle. As is the wheel rim. These are conected to the engine just as the pulleys are.
07-30-2004, 09:46 PM
#41
Registered User
Thread Starter
Join Date: Mar 2004
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
I am also looking into having some two piece lightweight brake rotors with aluminum hats made up... They will be crossdrilled and sloted... Then some new calipers...
07-30-2004, 10:22 PM
#42
Registered
Join Date: Sep 2003
Location: Diamond Bar, Ca
Posts: 1,473
Likes: 0
Received 0 Likes
on
0 Posts
How much further beyond what SR Motorsports/Unorthadox are you going and what do expect to be the outcome?
There are a few people out there who have purchased pullies from these companies so maybe if you could expand on what you hope to further gain by replacing these other components would be great..
Above and beyond just the pullies of course..
thankx
There are a few people out there who have purchased pullies from these companies so maybe if you could expand on what you hope to further gain by replacing these other components would be great..
Above and beyond just the pullies of course..
thankx
07-31-2004, 11:01 AM
#43
Registered User
We have a very low torque car. Best way to free up as much of it as possible is to lighten every thing (Jenny Craig anyone?). Unsprung weight is more important than sprung weight. I think the rule of thumb is 1lb of unsprung weight is equal to 10lbs of sprung weight.
I very much applaud what cortc is doing.
I very much applaud what cortc is doing.
07-31-2004, 12:15 PM
#44
Registered User
Join Date: Jul 2003
Location: Houston
Posts: 200
Likes: 0
Received 0 Likes
on
0 Posts
The reduction of weight will not, can not add hp.
I saw a kit for a honda, I think Summit Racing. Surely having a constant speed water flow and minus the drag of the pump during high RPM operation would be a noticable difference. For short periods, the additional energy would come from the battery.
07-31-2004, 02:44 PM
#45
Unsprung vs. sprung refers to weight that moves up and down with the wheel vs. weight that does not. Reducing unsprung mass pays great dividends in grip over rough roads, but has no special meaning from linear accerlation standpoint.
We are talking about rotating vs. translational mass. Reducing rotating mass is more important than reducing translational mass in terms of increasing straight line acceleration, but it's not 10x. Not even close.
We are talking about rotating vs. translational mass. Reducing rotating mass is more important than reducing translational mass in terms of increasing straight line acceleration, but it's not 10x. Not even close.
07-31-2004, 05:05 PM
#46
Registered
Join Date: May 2004
Location: BHM, AL
Posts: 1,071
Likes: 0
Received 0 Likes
on
0 Posts
To (sort of) echo GeorgeH
The unsprung vs sprung would work if you were changing the wheels vs pulling your passenger seat out (changing to lighter wheels would be better due to the ratio mentioned). Since this is an engine component, the resistance on the engine it frees up will be more important than the amount of physical weight it removes from the vehicle.
The unsprung vs sprung would work if you were changing the wheels vs pulling your passenger seat out (changing to lighter wheels would be better due to the ratio mentioned). Since this is an engine component, the resistance on the engine it frees up will be more important than the amount of physical weight it removes from the vehicle.
07-31-2004, 06:02 PM
#47
Registered User
gee, I thought I said that.
to remove one pound of weight from the wheels (total) would be like removing 10 pounds from the interior (such as one car seat).
it's not exact, it's a rule of thumb :p .
And no it does not add horsepower. It "frees" horsepower. Technically an exhaust does not add HP, it "frees" it. There are few things that do add horsepower (Nitrous and FI).
Now when you get on a dyno that measures HP at the wheels you can see the "added" (freed) HP from removing unsprung weight or any other efficiency improvement (exhaust, pulleys, valves, pistons, rotors, flywheels etc.)
I'll repeat myself... Good Job Cortc, keep us informed as to the weight savings :D
to remove one pound of weight from the wheels (total) would be like removing 10 pounds from the interior (such as one car seat).
it's not exact, it's a rule of thumb :p .
And no it does not add horsepower. It "frees" horsepower. Technically an exhaust does not add HP, it "frees" it. There are few things that do add horsepower (Nitrous and FI).
Now when you get on a dyno that measures HP at the wheels you can see the "added" (freed) HP from removing unsprung weight or any other efficiency improvement (exhaust, pulleys, valves, pistons, rotors, flywheels etc.)
I'll repeat myself... Good Job Cortc, keep us informed as to the weight savings :D
07-31-2004, 06:29 PM
#48
Registered
Join Date: May 2004
Location: BHM, AL
Posts: 1,071
Likes: 0
Received 0 Likes
on
0 Posts
Yeah... you said it, but the point was, comparing, say, getting SSR Comps to getting a light weight flywheel and saying that the SSR comps will free up more horsepower is false and doesn't follow the 1:10 rule concerning freeing up power (well presumably, anyway... I've not tested this or any other particular example) because you are taking the weight off something the engine has to spin (ignoring that the engine does actually spin the rear wheels for the sake of simplicity... for arguments sake, if you don't want to give me the previous omission, we could say only getting the SSRs on the front wheels). Now, if you removed 10 pounds of passenger seats THAT would be worth one pound of wheel shave (assuming your 1:10 ratio was exactly correct, though, as you stated, it is a common/general estimate).
I was trying to reiterate GeorgeH but using more layman's terms, thus making it less complicated, but that fell through now :P The more I think about it, the more hairy it gets, so I'm assuming that we would be driving the car and attempting to feel freed up power, not sitting in a chair doing math...
I was trying to reiterate GeorgeH but using more layman's terms, thus making it less complicated, but that fell through now :P The more I think about it, the more hairy it gets, so I'm assuming that we would be driving the car and attempting to feel freed up power, not sitting in a chair doing math...
08-02-2004, 09:57 AM
#49
Apologies to cortc for hijacking the thread.
Can anybody tell me the origins of the 10:1 rule, and what measure of performance it is supposed to represent? I've seen several mathematical analyses of the effect of rotating weight, and done one myself, and while they tend to disagree somewhat, I have never seen anything above 4:1 (mine came out at 2:1). Clearly, pulling 10 lbs out of your wheels (or even your tires, which would have a bigger impact) would not have the same impact on, say, 1/4 mile times as 100 lbs out of the chassis. It just isn't true. Or at least, I haven't seen anything that would indicate as much. If I am wrong, I'd love to see a reference describing why.
Now, if you are looking at lap times around a race track, then perhaps I can see the 10:1 rule for unsprung weight (which could be wheels, tires, the brake caliper, wheel bearings, etc). But that would of course be highly dependent on the course - a smooth course would show a lower improvement than a rough course.
Now, bringing it back to lightweight pulleys, neither of the above scenarios is appropriate - the effect the pullyes will have on acceleration will vary with the gear you are in, as has already been stated in this thread. Yes, what cortc is doing is cool. Let's just keep it in perspective.
Can anybody tell me the origins of the 10:1 rule, and what measure of performance it is supposed to represent? I've seen several mathematical analyses of the effect of rotating weight, and done one myself, and while they tend to disagree somewhat, I have never seen anything above 4:1 (mine came out at 2:1). Clearly, pulling 10 lbs out of your wheels (or even your tires, which would have a bigger impact) would not have the same impact on, say, 1/4 mile times as 100 lbs out of the chassis. It just isn't true. Or at least, I haven't seen anything that would indicate as much. If I am wrong, I'd love to see a reference describing why.
Now, if you are looking at lap times around a race track, then perhaps I can see the 10:1 rule for unsprung weight (which could be wheels, tires, the brake caliper, wheel bearings, etc). But that would of course be highly dependent on the course - a smooth course would show a lower improvement than a rough course.
Now, bringing it back to lightweight pulleys, neither of the above scenarios is appropriate - the effect the pullyes will have on acceleration will vary with the gear you are in, as has already been stated in this thread. Yes, what cortc is doing is cool. Let's just keep it in perspective.
08-24-2004, 02:28 PM
#50
Registered User
Thread Starter
Join Date: Mar 2004
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
Some weights:
Stock Water Pump Bolts> .175oz x 3 = .525oz
TI Water Punp Bolts> .075oz x 3 = .225oz
Stock Hub Bolts> .325oz x 4 = 1.3oz
TI Hub Bolts> .125oz x 4 = .5oz
Stock Alt Nut> .9oz x 1 = .9oz
TI Alt Nut> .5oz x 1 = .5oz
Total All Stock Nuts & Bolts> 2.725oz
Total All TI Nuts & Bolts> 1.225oz
Stock Water Pump Bolts> .175oz x 3 = .525oz
TI Water Punp Bolts> .075oz x 3 = .225oz
Stock Hub Bolts> .325oz x 4 = 1.3oz
TI Hub Bolts> .125oz x 4 = .5oz
Stock Alt Nut> .9oz x 1 = .9oz
TI Alt Nut> .5oz x 1 = .5oz
Total All Stock Nuts & Bolts> 2.725oz
Total All TI Nuts & Bolts> 1.225oz
Last edited by cortc; 08-24-2004 at 02:59 PM.
