{ FS } Digital Oil/Water Temp , Oil Pressure Gauges + RB Gauge Pod + Sending units
10-25-2010, 09:46 AM
#1
Digital Oil/Water Temp , Oil Pressure Gauges + RB Gauge Pod + Sending units
Category: Audio/Video/Electronics
Price: $220
Private or Vendor Listing: Private Listing
Part Fits (you may select multiples): Series I
Location (US State/Canada/Int): NY
Item Condition: Used
Included:
Glowshift Digital Water Temp Gauge
Glowshift Digital Oil Temp Gauge
Glowshift Digital Oil Pressure Gauge
Glowshift Oil Pressure Sending Unit
Glowshift Oil Temp Sending Unit
Glowshift Water Temp Sending Unit
Prosport Oil Filter Sandwich Plate
Racing Beat Ashtray Gauge Pod
The Water temp and Oil pressure sending units are a mere 2 weeks old. Everything else I have had in the car for about 7 months.
Apart from one very tiny nick on the water temp and oil pressure gauge the only other problem is the Racing Beat Gauge pod. It is cracked in a place that you will -not- see with the gauges installed. Once again, the only time you will even notice the crack is there is when the gauges are not in the pod.
Apart from that there is nothing wrong with this setup. Looks really good and is easy on the eye at night.
I did an entire write up and review when I first installed these gauges. You can check my thread here: https://www.rx8club.com/showthread.php?t=192452l
I am asking for $220 shipped anywhere in the US.

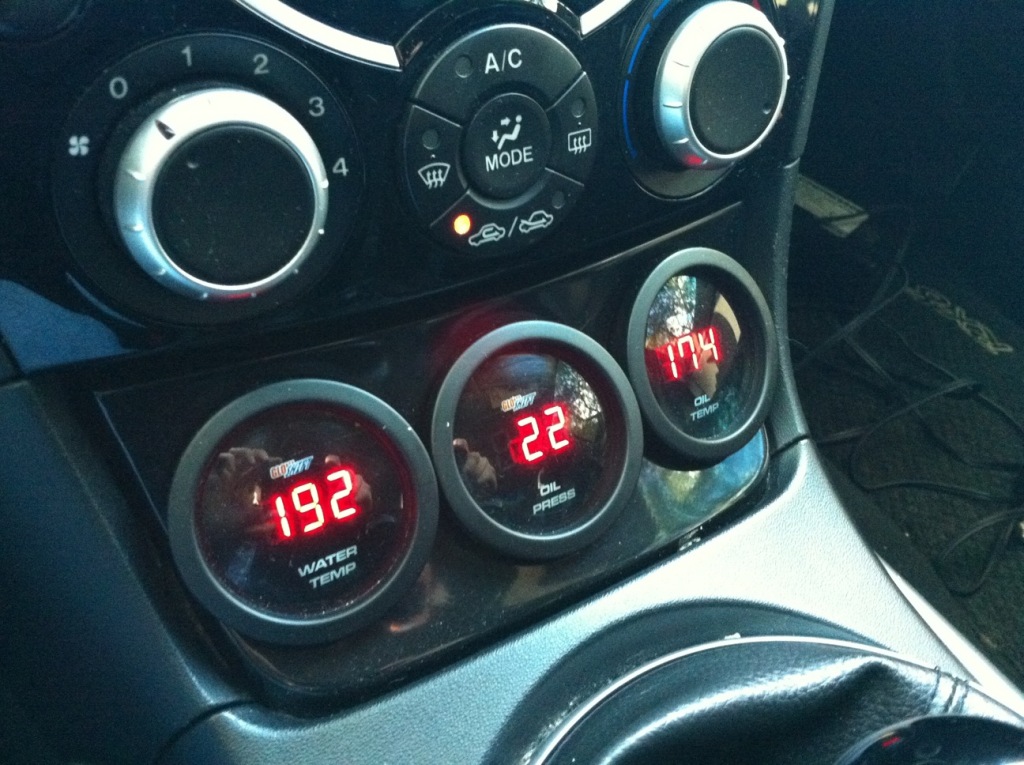

You can notice the tiny nick on the first two gauges in the picture below:
Last edited by alz0rz; 10-25-2010 at 09:49 AM.
10-25-2010, 10:26 AM
#2
Registered User
iTrader: (5)
Join Date: Feb 2010
Location: Lancaster, PA
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
ahh give me a few days..I'm a college student ha. w
Would you be willing to separate the rb ashtray cover and everything else? I'm particulary interested in everything BUT the cover..let me know man
Would you be willing to separate the rb ashtray cover and everything else? I'm particulary interested in everything BUT the cover..let me know man
10-25-2010, 10:31 AM
#3
Registered User
iTrader: (5)
Join Date: Feb 2010
Location: Lancaster, PA
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
also, I was just looking on glowshift's website. do they have a 3 pod pillar for our car? didn't see one on there. I don't want to put these in the ashtray..
10-25-2010, 10:37 AM
#4
and nope, there is no a-pillar pod for the rx8, there is however a lotek 3 gauge pod that goes ontop of your center dash piece but you have to cut up your stock dash piece to get it to fit. honestly, the rb is the cleanest solution for mounting gauges. imho of course.
10-25-2010, 10:42 AM
#5
Registered User
iTrader: (5)
Join Date: Feb 2010
Location: Lancaster, PA
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
yeah I was afraid of this, I just want to keep the functionality of the cigarette lighter..I charge my phone constantly. I may just take it all then, I'll let you know
10-25-2010, 10:45 AM
#8
pretty straight forward with a rudimentary knowledge of wiring.
in the engine bay you ground each of the 3 sending units. additionally each of the 3 sending units has it's own signal wire which you need to run into the cabin and to the gauge itself. the gauges themselves have another wire that runs for switched power. then they have their own ground. and lastly, they also have a 3rd wire which you can use to tap a wire which will give it dim functionality with your interior lights, but I didn't bother with that.
in the engine bay you ground each of the 3 sending units. additionally each of the 3 sending units has it's own signal wire which you need to run into the cabin and to the gauge itself. the gauges themselves have another wire that runs for switched power. then they have their own ground. and lastly, they also have a 3rd wire which you can use to tap a wire which will give it dim functionality with your interior lights, but I didn't bother with that.
Last edited by alz0rz; 10-25-2010 at 10:49 AM.
