My 04 BB GT Progress

Reply




Old 01-29-2017, 08:58 PM
  #201
Registered

Join Date: Dec 2014
Location: New England
Posts: 225
Thanked 0 Times in 0 Posts
Originally Posted by Jazer View Post
But in response to that, I have seen a few that look like they fit perfectly (in pictures)..

As for the brackets, once we complete them and verify them on my car he is going to be open to getting a batch together for others.
oh yeah, ive seen the HORRID Disasters with the CF's. but like i said, if i see one for like $100, why not try it lol. But anyways... what is ypur material of choice for the brackets?
xKp5609x is offline
Reply With Quote
Old 01-29-2017, 09:41 PM
  #202
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
Absolutely, haha.

I don't recall what he is using (he is the fabricator, I just took lots of measurements, lol)

I do know it is NOT aluminum. He doesn't like how soft it is. It is being drawn up in CAD(?) and laser cut.
Jazer is offline
Reply With Quote
Old 01-29-2017, 09:42 PM
  #203
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
For fun, this is a quick 'sketch' I drew (who knows maybe it will help someone having these), as a reference guide. These are the measurements I took, with what I have on hand to provide him.

I was also given some other lower bracket measurements from two other people, for further references. He is going to create them completely custom, using those as a reference, but making sure it sits properly with my parts (aka my measurements).

Blade w/upper brackets on the top - upper bracket side view middle - trunk/ mounting holes on the bottom.

Last edited by Jazer; 01-29-2017 at 09:48 PM.
Jazer is offline
Reply With Quote
Old 01-30-2017, 12:03 PM
  #204
Registered

Join Date: Dec 2014
Location: New England
Posts: 225
Thanked 0 Times in 0 Posts
Originally Posted by Jazer View Post
Absolutely, haha.

I don't recall what he is using (he is the fabricator, I just took lots of measurements, lol)

I do know it is NOT aluminum. He doesn't like how soft it is. It is being drawn up in CAD(?) and laser cut.
Ahhh gotcha! And depending on the Grade, Aluminum is a great material!!
Laser cut? I like lasers!
xKp5609x is offline
Reply With Quote
Old 01-31-2017, 04:02 PM
  #205
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
Took my daughter out for a picnic at a lake today. Here was the view from our picnic table

Jazer is offline
Reply With Quote
Old 01-31-2017, 06:52 PM
  #206
Registered

Join Date: Dec 2014
Location: New England
Posts: 225
Thanked 0 Times in 0 Posts
Originally Posted by Jazer View Post
Took my daughter out for a picnic at a lake today. Here was the view from our picnic table

Lucky you! While you were out having a blast, we got some annoying snow
xKp5609x is offline
Reply With Quote
Old 01-31-2017, 08:07 PM
  #207
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
Aww, haha. I do not miss that!
Jazer is offline
Reply With Quote
Old 02-02-2017, 07:52 AM
  #208
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
Bracket update - here is the 3d model getting printed. This is NOT what the final bracket will look like. This is JUST a fitment model. The outside shape may change slightly and it won't be solid, it will have the triangle shapes on the vertical section. Depending on how it looks, I may also have him make it a lil taller or lean back a bit more. Right now it leans back 20 degrees (as opposed to a perfectly upright L bracket). I also need to check placement of where the third mounting hole will go that mounts the lip to the bracket. This model is just to test we have our "mounting hole vs bracket bend" distances correct before going to the metal version with the final tweaks.


Last edited by Jazer; 02-02-2017 at 07:57 AM.
Jazer is offline
Reply With Quote
Old 02-02-2017, 08:27 AM
  #209
Registered

Join Date: Dec 2014
Location: New England
Posts: 225
Thanked 0 Times in 0 Posts
Originally Posted by Jazer View Post
Bracket update - here is the 3d model getting printed. This is NOT what the final bracket will look like. This is JUST a fitment model. The outside shape may change slightly and it won't be solid, it will have the triangle shapes on the vertical section. Depending on how it looks, I may also have him make it a lil taller or lean back a bit more. Right now it leans back 20 degrees (as opposed to a perfectly upright L bracket). I also need to check placement of where the third mounting hole will go that mounts the lip to the bracket. This model is just to test we have our "mounting hole vs bracket bend" distances correct before going to the metal version with the final tweaks.

Did you model that yourself?
xKp5609x is offline
Reply With Quote
Old 02-02-2017, 08:39 AM
  #210
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
No no. My friend did

While I suppose I could, I don't typically do 3d modeling and I don't have a 3d printer. I am a graphic designer so it's not out of my realm but i like free hand art as opposed to strict measurements, haha.
Jazer is offline
Reply With Quote
Old 02-02-2017, 08:42 AM
  #211
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
Not sure why my phone had posted that so large and distorted... o-well. I should have an image of the actual 3d printed model later today. Hopefully he can get them both in the mail by tomorrow and I can do the test fit sometime early next week. From there he will still need to redraw the model so it's friendly to a flat piece of steel (where the 3d printer actually prints it to shape)... and the steel will be laser cut, then bent to shape... and then he will be powder coating them.

He said he will offer these in black or chrome powdercoat for buyers.

Last edited by Jazer; 02-02-2017 at 08:46 AM.
Jazer is offline
Reply With Quote
Old 02-02-2017, 08:46 AM
  #212
Registered

Join Date: Dec 2014
Location: New England
Posts: 225
Thanked 0 Times in 0 Posts
Originally Posted by Jazer View Post
Not sure why my phone had posted that so large and distorted... o-well. I should have an image of the actual 3d printed model later today. Hopefully he can get them both in the mail by tomorrow and I can do the test fit sometime early next week. From there he will still need to redraw the model so it's friendly to a flat piece of steel (where the 3d printer actually prints it to shape), where the steel will be laser cut, then bent to shape... and then he will be powder coating them.

He said he will offer these in black or chrome powdercoat for other buyers.
Gotcha, and hmmm, i might mess around with drawing up some brackets for S&G's. Looking forward to seeing the 3D printed model. Is he using PLA or some type of epoxy resin?
xKp5609x is offline
Reply With Quote
Old 02-02-2017, 08:47 AM
  #213
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
I have NO idea. It's black? He sent me a few videos of the start of the print last night.. I never knew how slow the process was. Was supposed to be like a 6+ hr job for the printer, for 1 bracket, lol.

Last edited by Jazer; 02-02-2017 at 08:50 AM.
Jazer is offline
Reply With Quote
Old 02-02-2017, 12:09 PM
  #214
Registered

Join Date: Dec 2014
Location: New England
Posts: 225
Thanked 0 Times in 0 Posts
Originally Posted by Jazer View Post
I have NO idea. It's black? He sent me a few videos of the start of the print last night.. I never knew how slow the process was. Was supposed to be like a 6+ hr job for the printer, for 1 bracket, lol.
Ask him when you get a chance if you don't mind! And yes, "rapid prototyping" is not what we today would think of "fast" lol. But it's still fast when you think about it.
xKp5609x is offline
Reply With Quote
Old 02-02-2017, 08:42 PM
  #215
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
Here is the first 3D printed bracket. His printer jammed in the middle of the night last night and didnt finish the last section, but fortunately it had already finished everything that was actually important. It's just missing the outer edge of the bottom piece (which effects nothing anyways).


Jazer is offline
Reply With Quote
Old 02-03-2017, 02:45 PM
  #216
Registered

Join Date: Dec 2014
Location: New England
Posts: 225
Thanked 0 Times in 0 Posts
Originally Posted by Jazer View Post
Here is the first 3D printed bracket. His printer jammed in the middle of the night last night and didnt finish the last section, but fortunately it had already finished everything that was actually important. It's just missing the outer edge of the bottom piece (which effects nothing anyways).



Hmmm
Hmmm interesting, since i no longer work friday night, i might draw up some brackets and 3D print some myself. Luckily i can use my schools resources for this " school project" :D
xKp5609x is offline
Reply With Quote
Old 02-03-2017, 06:40 PM
  #217
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
Originally Posted by xKp5609x View Post
Hmmm interesting, since i no longer work friday night, i might draw up some brackets and 3D print some myself. Luckily i can use my schools resources for this " school project" :D
Haha, go for it! This is the easiest way to confirm fitment for us, being a few states away while Im down here in AL. Especially since he's going to powder coat the final bracket. Would hate to waste time on something that wasn't perfect. If there are any fitment issues i can easily mark/drill the 3d print model and send them back to to edit the file. I think well be okay but better safe than sorry!
Jazer is offline
Reply With Quote
Old 02-03-2017, 07:05 PM
  #218
Registered

Join Date: Dec 2014
Location: New England
Posts: 225
Thanked 0 Times in 0 Posts

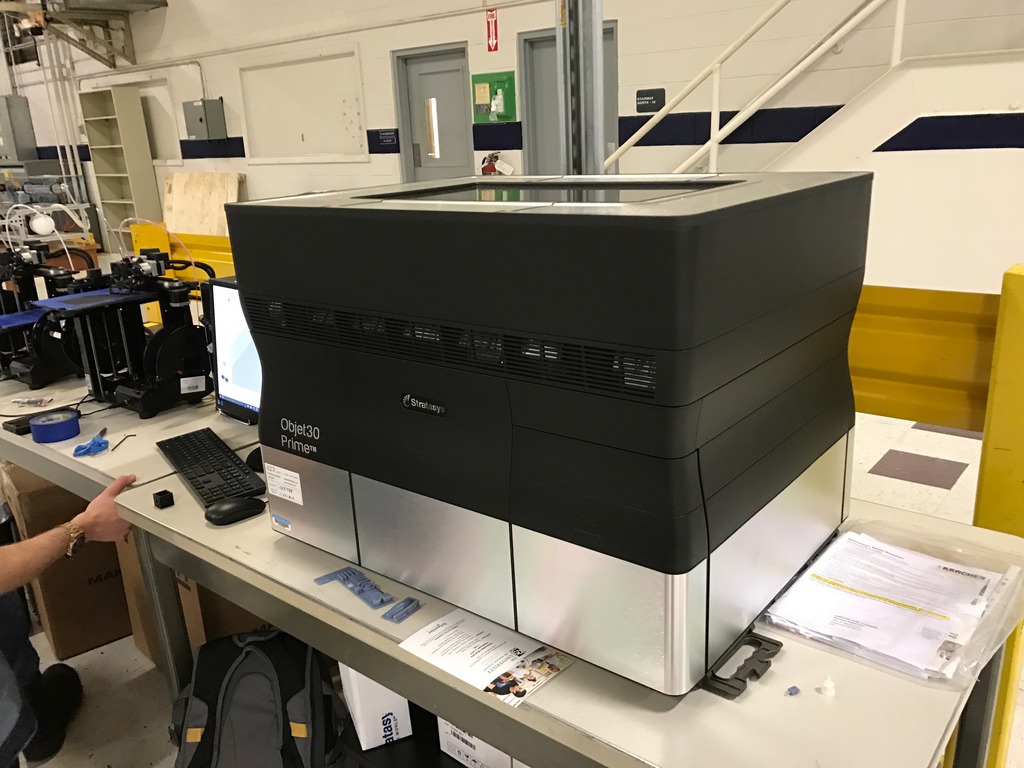

Yup, check out this printer!

Name:  IMG_4247.JPG.jpeg
Views: 49
Size:  177.5 KB

It's printing using some sort of epoxy resin but its not a big deal, the real brackets would be some sort of alloy.

Name:  IMG_4248.JPG.jpeg
Views: 48
Size:  130.7 KB
xKp5609x is offline
Reply With Quote
Old 02-03-2017, 07:08 PM
  #219
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
Nice!! I wouldn't hate having one..... Lol.
Jazer is offline
Reply With Quote
Old 02-03-2017, 07:12 PM
  #220
Registered

Join Date: Dec 2014
Location: New England
Posts: 225
Thanked 0 Times in 0 Posts
Originally Posted by Jazer View Post
Nice!! I wouldn't hate having one..... Lol.
I wish it was mine, but for only 70k+ you can have your own!
xKp5609x is offline
Reply With Quote
Old 02-05-2017, 12:46 PM
  #221
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
Two brackets are complete. The 2nd one was printed flawlessly (printer had zero issues with this one). He said it looks so good he might reprint the 1st one "just cause", lol. Hoping they can be shipped tomorrow and have an update on the test fit at some point next week. Getting antsy! Trying so hard to be patient, lol.

Jazer is offline
Reply With Quote
Old 02-05-2017, 01:19 PM
  #222
Dark Moderator
iTrader: (18)

Williard's Avatar

Join Date: Jul 2011
Location: PA, Shamokin. Ho-bud
Posts: 2,028
Thanked 54 Times in 47 Posts
Very cool Jazer.

When ya boosting?


Travis
Williard is offline
Reply With Quote
Old 02-05-2017, 04:06 PM
  #223
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
Originally Posted by Williard View Post
Very cool Jazer.

When ya boosting?


Travis
Haha. No plans for boost. Ive built/turbocharged an n/a car before. Ive been down that road. I completely enjoy the car as it is maintenance and a few upgrades when it makes sense.. About it.
Jazer is offline
Reply With Quote
Old 02-05-2017, 06:55 PM
  #224
Dark Moderator
iTrader: (18)

Williard's Avatar

Join Date: Jul 2011
Location: PA, Shamokin. Ho-bud
Posts: 2,028
Thanked 54 Times in 47 Posts
Boost, Nitrous or sit down

Otherwise their just boring lol

Good idea on the brackets btw

Travis
Williard is offline
Reply With Quote
Old 02-05-2017, 08:52 PM
  #225
Registered
Thread Starter

Jazer's Avatar

Join Date: Mar 2015
Location: Eastern, NC
Posts: 423
Thanked 97 Times in 62 Posts
Thanks! I can't take credit for it tho, it was my friend's idea. Easier means of test fitting our measurements for sure.

Im not trying to make a "race car" out of it, so I have to say that while boost is always possible, it is not probable.. definitely no time soon.

The car isn't fast by any means, but it is still a joy to drive, and feels very sporty. Im an old lady now, It's just fine for what I do with it. lol. Once I start getting into AutoXing it, which I would like to do eventually I might at that point want more power once I am able to push the car to it's limits as it sits "stock".
