MS Gauge Pod Installed
Finally finished the install, some bits were a bugger, and half the dash / center console had to be removed, but worth it all for the end result.

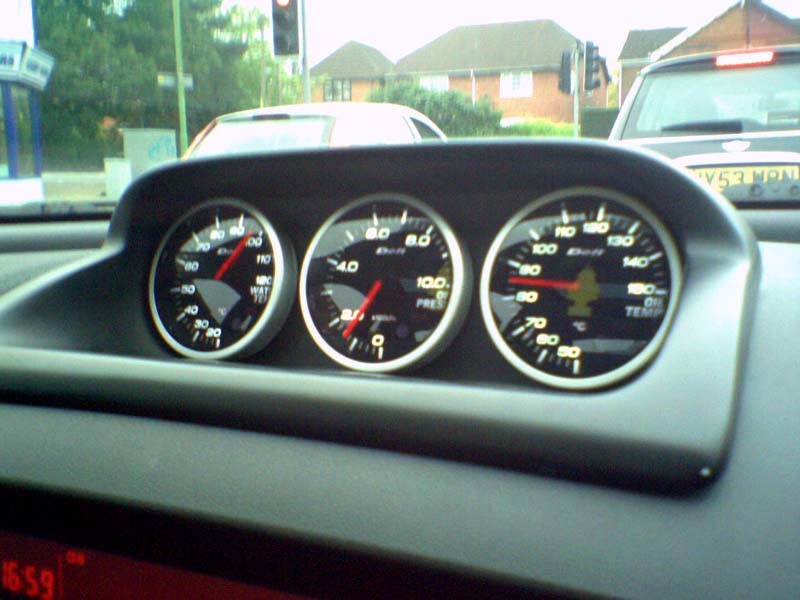

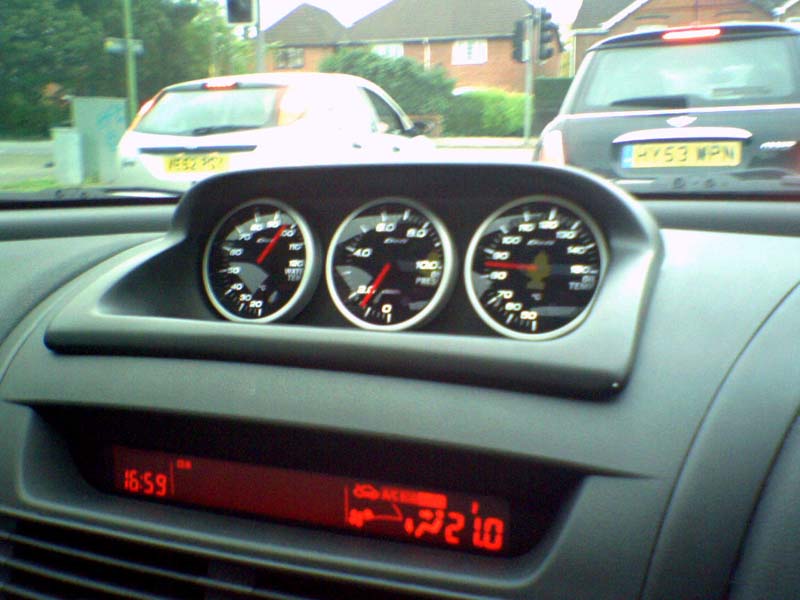

A couple of very quick snaps taken on my phone on way home tonight. Will get some better ones soon.
The start up and switch off sequence is glorious!
Interesting that the oil coolers and big INGs grill do actually bring the tempertaure down when blasting along, takes oil down by 20C and water by 15C
A couple of very quick snaps taken on my phone on way home tonight. Will get some better ones soon.
The start up and switch off sequence is glorious!
Interesting that the oil coolers and big INGs grill do actually bring the tempertaure down when blasting along, takes oil down by 20C and water by 15C
10-06-2005, 02:32 PM
#3
Oil Injection
I love that gauge setup, it looks so great. I just dont know If I am willing to spend that much on it, im sure ill end up getting it though, so clean and nice!
looks great
happy motoring!
looks great
happy motoring!
10-06-2005, 03:25 PM
#7
#1 Legend
iTrader: (1)
Join Date: May 2004
Location: TEXAS
Posts: 3,904
Likes: 0
Received 0 Likes
on
0 Posts
Many people who have NA Cars still have gauges.
Oil Pressure is always important. The gauge on your dash won't let you know its adjusting, until your motor is empty and dead.
Water Temp, and Oil Temp... same thing.
Your gauges look great, I have the Defi BF series on my car as well. With the MS Set do you still need the Defi Control Unit? I think its definetely worth the money. Being able to record, set warning levels, and to view peaks becomes very useful.
Oil Pressure is always important. The gauge on your dash won't let you know its adjusting, until your motor is empty and dead.
Water Temp, and Oil Temp... same thing.
Your gauges look great, I have the Defi BF series on my car as well. With the MS Set do you still need the Defi Control Unit? I think its definetely worth the money. Being able to record, set warning levels, and to view peaks becomes very useful.
10-06-2005, 03:36 PM
#8
beyond the ultraworld
Thread Starter
Join Date: Oct 2003
Location: Southampton, UK
Posts: 479
Likes: 0
Received 0 Likes
on
0 Posts
Yeah, you get the control unit with the set, the mk2 version. Had to fiddle with the pressure warning level, kept going off at traffic lights as the revs dipped slightly! Like the peak recording too. Very nice package
10-06-2005, 07:32 PM
#9
#1 Legend
iTrader: (1)
Join Date: May 2004
Location: TEXAS
Posts: 3,904
Likes: 0
Received 0 Likes
on
0 Posts
HEHE, i know what you mean. I was freaking out when i first drove with them in.
Did you install these yourself? Where are you running the oil pressure gauge too? I had to buy the greddy oil filter adapter so i could run the gauge into it.
Did you install these yourself? Where are you running the oil pressure gauge too? I had to buy the greddy oil filter adapter so i could run the gauge into it.
10-07-2005, 02:46 AM
#10
beyond the ultraworld
Thread Starter
Join Date: Oct 2003
Location: Southampton, UK
Posts: 479
Likes: 0
Received 0 Likes
on
0 Posts
The MS set comes with all the attachments needed to fit to the car, replacement section for the coolant tube which has the probe into the water flow. The oil pressure sensor fits into a new bolt that attachs just below the oil filter, simple off on replacement. Oil temp replaces the sump drain bolt in similar manner with sensor through the middle of it.
I installed the sensors and engine side stuff myself, but didn't fancy taking the whole interior out so got my bodyshop mate to do that side of it for me.
I installed the sensors and engine side stuff myself, but didn't fancy taking the whole interior out so got my bodyshop mate to do that side of it for me.
10-07-2005, 07:58 AM
#11
#1 Legend
iTrader: (1)
Join Date: May 2004
Location: TEXAS
Posts: 3,904
Likes: 0
Received 0 Likes
on
0 Posts
Oh ok... interesting.
Thanks for the info.
For $1300... 3 Defi BF Link Gauges, 1 Defi Control Unit, Replacement Radiator Hose, Oil Filter Adapter, and Gauge pod..... that is a GOOD DEAL!!!
Thanks for the info.
For $1300... 3 Defi BF Link Gauges, 1 Defi Control Unit, Replacement Radiator Hose, Oil Filter Adapter, and Gauge pod..... that is a GOOD DEAL!!!
Last edited by BigOLundh; 10-07-2005 at 08:02 AM.
10-16-2005, 09:18 PM
#15
New Member
Originally Posted by orbist
PS. Many thanks Taka for the translations
I am here to help
Taka
P.S. PM sent. I need somehelp from you.
10-17-2005, 12:49 AM
#18
New Member
I think so. If you take the top centre console piece out and have a look. There is a cut out outlined in the inner surface. And the picture does not seem to the pod facing the other way.
My Re Amemiya pod is facing the RHD driver - which is good for me
My Re Amemiya pod is facing the RHD driver - which is good for me
10-17-2005, 02:33 AM
#19
Registered User
Join Date: Mar 2004
Location: Tokyo JAPAN
Posts: 365
Likes: 0
Received 0 Likes
on
0 Posts
JapanParts chimes in.....
Originally Posted by orbist
Finally finished the install, some bits were a bugger, and half the dash / center console had to be removed, but worth it all for the end result.
A couple of very quick snaps taken on my phone on way home tonight. Will get some better ones soon.
The start up and switch off sequence is glorious!
Interesting that the oil coolers and big INGs grill do actually bring the tempertaure down when blasting along, takes oil down by 20C and water by 15C
A couple of very quick snaps taken on my phone on way home tonight. Will get some better ones soon.
The start up and switch off sequence is glorious!
Interesting that the oil coolers and big INGs grill do actually bring the tempertaure down when blasting along, takes oil down by 20C and water by 15C
Send me some decent pictures gware@japanparts.com and I'll put them on our website and give you the credit for those, and you will find an RX-8 Hyper-Rev on it's way to you at no charge...
Let me know! And congrats again!!
Graham
Export Manager
www.japanparts.com
Last edited by Japanparts.com; 10-17-2005 at 02:35 AM.
11-13-2005, 02:18 PM
#21
Storm Trooper
Join Date: May 2004
Location: Freakmont, CA
Posts: 3,908
Likes: 0
Received 0 Likes
on
0 Posts
Orbist, do you have any problems constantly hitting your link controller where you mounted it? I mounted mine directly below the steering column, so I wouldn't hit it with my knee.
11-13-2005, 02:54 PM
#23
Storm Trooper
Join Date: May 2004
Location: Freakmont, CA
Posts: 3,908
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by takahashi
Moostafa,
orbist is from the UK and I think he is driving a RHD RX-8. So I don't think the controller in the passenger side is of any problem
orbist is from the UK and I think he is driving a RHD RX-8. So I don't think the controller in the passenger side is of any problem
11-14-2005, 03:51 PM
#24
beyond the ultraworld
Thread Starter
Join Date: Oct 2003
Location: Southampton, UK
Posts: 479
Likes: 0
Received 0 Likes
on
0 Posts
Yeah, passenger side - the Mrs does complain about it though
PS. Missed the question on last page - the dials are mounted pretty much straight on, so would work on LHD or RHD
PS. Missed the question on last page - the dials are mounted pretty much straight on, so would work on LHD or RHD
11-14-2005, 05:50 PM
#25
New Member
I know it is the peak value

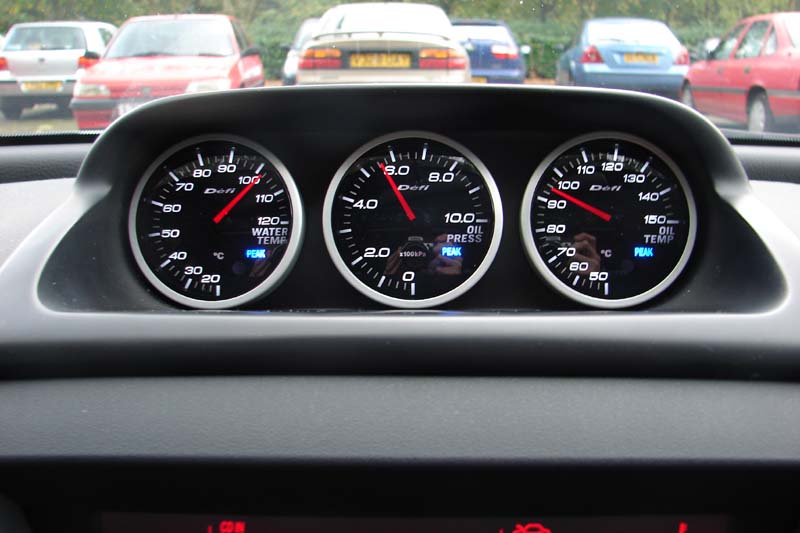

but what were you doing when this shot is taken (the peak value)
https://www.rx8club.com/attachment.p...chmentid=63051
Water temp is 102 were you racing
Hey I put my oil pres sensor at the sandwich, quite a distance above yours. So I get 505kPa max rather than 520 at WOT.
Interesting....
but what were you doing when this shot is taken (the peak value)
https://www.rx8club.com/attachment.p...chmentid=63051
Water temp is 102 were you racing
Hey I put my oil pres sensor at the sandwich, quite a distance above yours. So I get 505kPa max rather than 520 at WOT.
Interesting....
