can someone tell me how to distinguish the front rotor from the rear, i am presently putting an engine together and found this problem. thanks mario

I8U

iTrader: (1)

Honestly, if you can't figure that part you really don't need to be putting an engine together.

Easy_E1

iTrader: (2)

Can you figure out the direction of the engines rotation? I hope so.
If you can then simply put the bevel on the rotor edge on the trailing side of the rotation.

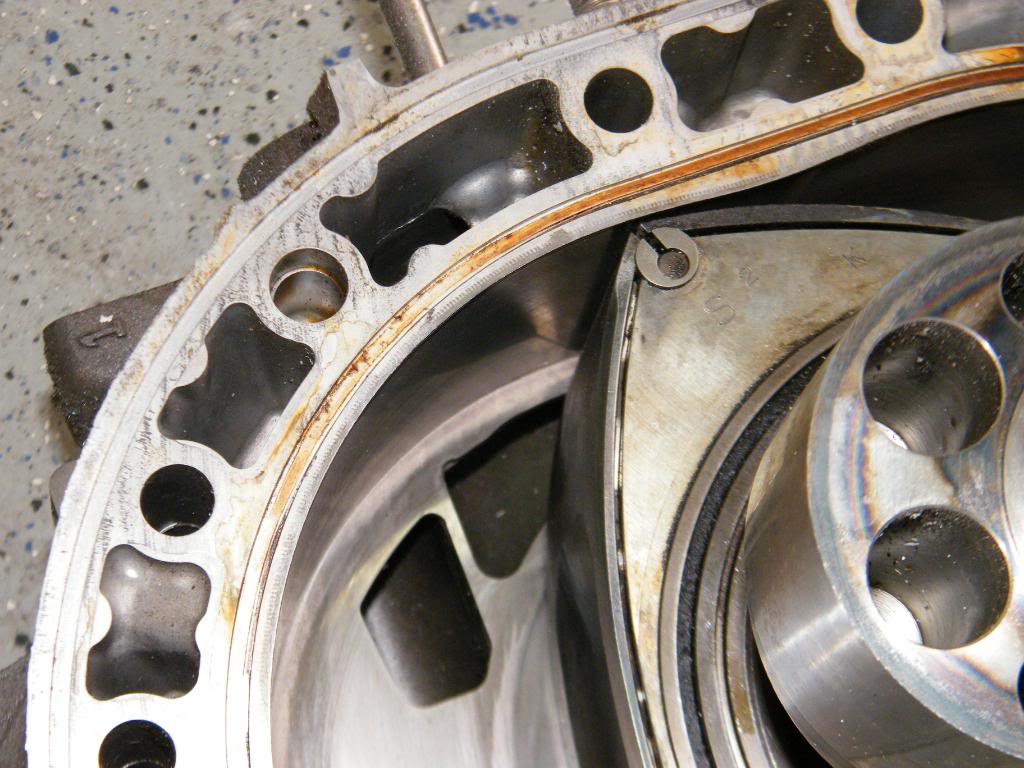

Look at the pic.

EMart11b

iTrader: (5)

lol @ big embossed "1"

RotaryResurrection

iTrader: (3)

Looking at all 3 faces of each rotor, one will have a stamp on the face (not the side) that includes some numbers, and either an F or R.

rotaryPilot

Why front and rear rotor is different ?????

RotaryResurrection

iTrader: (3)

Hey man, no offense, but if you have to ask...are you sure you should be trying to build your own engine?

There are chamfers cut into the side of the rotors which must align with the exhaust ports to facilitate exhaust gases exiting the engine. Reversing the rotors means these chamfers will not align any more.

rx 8speciale

iTrader: (3)

what? you dont know...epic failure

ken-x8

But he knew that he didn't know...and he asked people who did.

Sounds like a winner to me.

Ken

rotaryPilot

thanks everybody and special rotary resurrection for answering my question. Well I am not trying to build my own engine but i had this question since Mazda has labeled with different part number front and rear rotor.

So rotary ressurection this difference that you have mentioned between front and rear rotor can we call it port phasing ?
